WW-1

DRIVER CONTROLS

C

D

E

F

G

H

I

J

K

M

SECTION

WW

A

B

WW

N

O

P

CONTENTS

WIPER & WASHER

BASIC INSPECTION  ....................................

3

DIAGNOSIS AND REPAIR WORKFLOW  ..........

3

Work Flow  .................................................................

3

FUNCTION DIAGNOSIS ...............................

6

FRONT WIPER AND WASHER SYSTEM  ..........

6

System Diagram ........................................................

6

System Description  ...................................................

6

Component Parts Location ........................................

9

Component Description ..........................................

10

DIAGNOSIS SYSTEM (BCM)  ............................

11

COMMON ITEM .........................................................

11

COMMON ITEM : Diagnosis Description  ................

11

COMMON ITEM : CONSULT-III Function ...............

11

WIPER .......................................................................

12

WIPER : CONSULT - III Function  ...........................

12

DIAGNOSIS SYSTEM (IPDM E/R) .....................

13

Diagnosis Description  .............................................

13

CONSULT - III Function (IPDM E/R) .......................

16

COMPONENT DIAGNOSIS .........................

19

WIPER AND WASHER FUSE ............................

19

Description ..............................................................

19

Diagnosis Procedure ...............................................

19

FRONT WIPER MOTOR LO CIRCUIT ...............

20

Component Function Check ....................................

20

Diagnosis Procedure ...............................................

20

FRONT WIPER MOTOR HI CIRCUIT  ................

22

Component Function Check ....................................

22

Diagnosis Procedure ...............................................

22

FRONT WIPER AUTO STOP SIGNAL CIR-
CUIT ....................................................................

24

Component Function Check ....................................

24

Diagnosis Procedure  ...............................................

24

FRONT WIPER MOTOR GROUND CIRCUIT ...

26

Diagnosis Procedure  ...............................................

26

FRONT WIPER AND WASHER SYSTEM  ........

27

Wiring Diagram-Coupe  ............................................

27

Wiring Diagram-Sedan  ............................................

32

ECU DIAGNOSIS .........................................

37

BCM (BODY CONTROL MODULE)  .................

37

Reference Value ......................................................

37

Terminal Layout .......................................................

42

Physical Values  .......................................................

42

Wiring Diagram-Coupe  ............................................

61

Wiring Diagram-Sedan  ............................................

70

Fail Safe ..................................................................

78

DTC Inspection Priority Chart ...............................

80

DTC Index ...............................................................

81

IPDM E/R (INTELLIGENT POWER DISTRI-
BUTION MODULE ENGINE ROOM)  ................

84

Reference Value ......................................................

84

Wiring Diagram — Coupe ........................................

92

Wiring Diagram — Sedan ........................................

98

Fail Safe ................................................................

103

DTC Index .............................................................

105

SYMPTOM DIAGNOSIS  ............................

106

FRONT WIPER AND WASHER SYSTEM
SYMPTOMS ....................................................

106

Symptom Table  .....................................................

106

FRONT WIPER DOES NOT OPERATE  .........

108

Description .............................................................

108

Diagnosis Procedure  .............................................

108

NORMAL OPERATING CONDITION  .............

110

Description .............................................................

110

WW-2

PRECAUTION ............................................

111

PRECAUTIONS  ...............................................

111

Supplemental Restraint System (SRS) AIR BA
G and SEAT BELT PRE-TENSIONER ...............

111

Necessary for Steering Wheel Rotation After Bat-
tery Disconnect ......................................................

111

ON-VEHICLE REPAIR  ...............................

112

FRONT WIPER  ................................................

112

Exploded View .......................................................

112

FRONT WIPER BLADE REFILL ..............................

112

FRONT WIPER BLADE REFILL : Removal and
Installation .............................................................

112

FRONT WIPER BLADE  ...........................................

115

FRONT WIPER BLADE : Removal and Installa-
tion .........................................................................

115

FRONT WIPER ARMS  .............................................

116

FRONT WIPER ARMS : Removal and Installation ..

116

FRONT WIPER DRIVE ASSEMBLY .......................

116

FRONT WIPER DRIVE ASSEMBLY : Removal
and Installation ......................................................

116

FRONT WASHER .............................................

118

WASHER TUBE  ......................................................

118

WASHER TUBE : Layout ......................................

118

FRONT WASHER NOZZLE  ....................................

118

FRONT WASHER NOZZLE : Removal and Instal-
lation .....................................................................

118

FRONT WASHER NOZZLE : Adjustment .............

119

WASHER TANK  ......................................................

119

WASHER TANK : Removal and Installation  .........

119

FRONT WASHER PUMP  ........................................

120

FRONT WASHER PUMP : Removal and Installa-
tion ........................................................................

120

FRONT WIPER AND WASHER SWITCH  ........

121

Removal and Installation .......................................

121

DIAGNOSIS AND REPAIR WORKFLOW

WW-3

< BASIC INSPECTION >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

BASIC INSPECTION

DIAGNOSIS AND REPAIR WORKFLOW

Work Flow

INFOID:0000000004202185

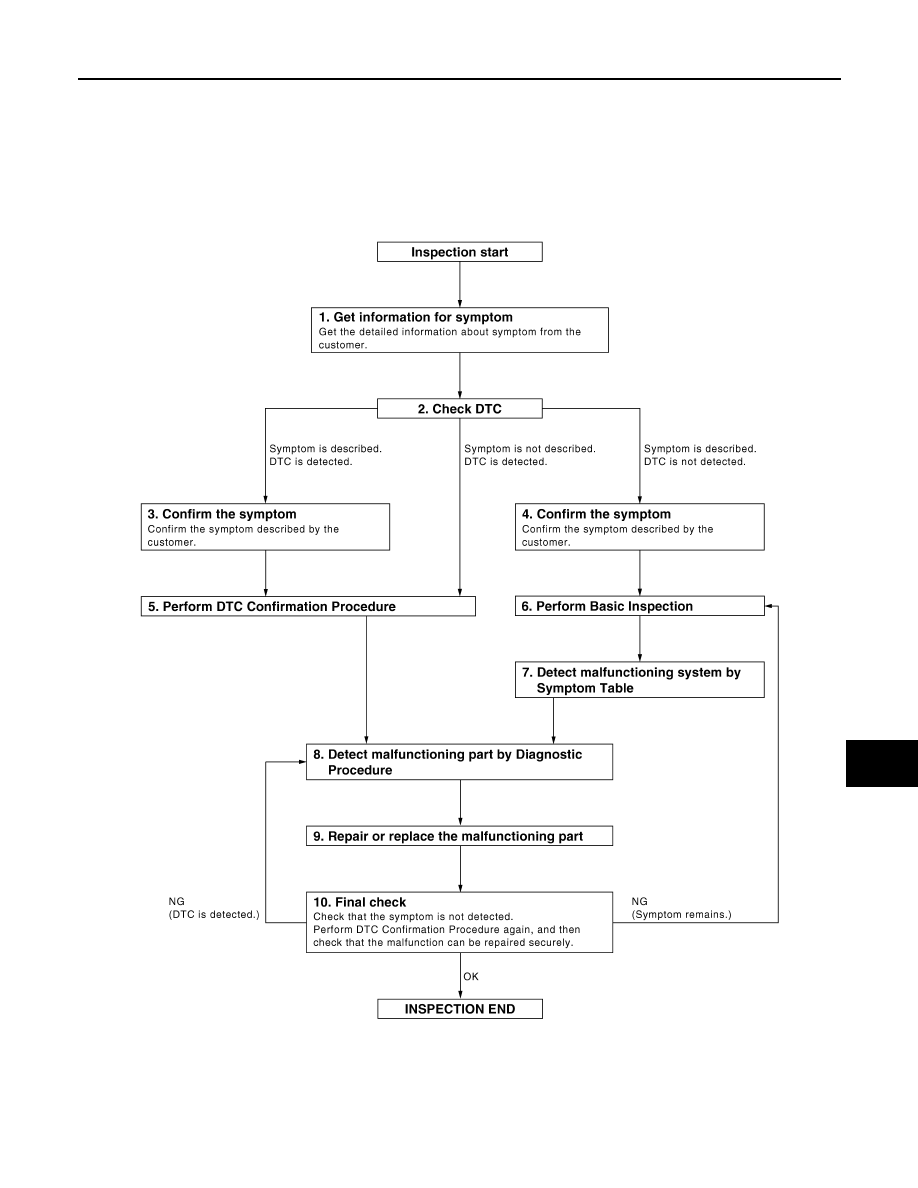

OVERALL SEQUENCE

DETAILED FLOW

JMKIA0101GB

WW-4

< BASIC INSPECTION >

DIAGNOSIS AND REPAIR WORKFLOW

1.

 GET INFORMATION FOR SYMPTOM

Get the detailed information from the customer about the symptom (the condition and the environment when

the incident/malfunction occurred).

>> GO TO 2

2.

 CHECK DTC

1. Check DTC.

2. Perform the following procedure if DTC is displayed.

-

Record DTC and freeze frame data (Print them out with CONSULT-III.)

-

Erase DTC.

-

Study the relationship between the cause detected by DTC and the symptom described by the customer.

3. Check related service bulletins for information.
Is any symptom described and any DTC detected?

Symptom is described, DTC is displayed>>GO TO 3

Symptom is described, DTC is not displayed>>GO TO 4

Symptom is not described, DTC is displayed>>GO TO 5

3.

 CONFIRM THE SYMPTOM

Confirm the symptom described by the customer.

Connect CONSULT-III to the vehicle in “DATA MONITOR” mode and check real time diagnosis results.

Verify relation between the symptom and the condition when the symptom is detected.

>> GO TO 5

4.

 CONFIRM THE SYMPTOM

Confirm the symptom described by the customer.

Connect CONSULT-III to the vehicle in “DATA MONITOR ” mode and check real time diagnosis results.

Verify relation between the symptom and the condition when the symptom is detected.

>> GO TO 6

5.

 PERFORM DTC CONFIRMATION PROCEDURE

Perform DTC Confirmation Procedure for the displayed DTC, and then check that DTC is detected again.

At this time, always connect CONSULT-III to the vehicle, and check diagnostic results in real time.

If two or more DTCs are detected, refer to

BCS-90, "DTC Inspection Priority Chart"

 and determine trouble

diagnosis order.

NOTE:

• Freeze frame data is useful if the DTC is not detected.

• Perform Component Function Check if DTC Confirmation Procedure is not included in Service Manual. This

simplified check procedure is an effective alternative though DTC cannot be detected during this check.

If the result of Component Function Check is NG, it is the same as the detection of DTC by DTC Confirma-

tion Procedure.

Is DTC detected?

YES

>> GO TO 8

NO

>> Refer to

GI-42, "Intermittent Incident"

.

6.

 PERFORM BASIC INSPECTION

Perform

WW-3, "Work Flow"

.

Inspection End>>GO TO 7

7.

 DETECT MALFUNCTIONING SYSTEM BY SYMPTOM TABLE

Detect malfunctioning system according to

WW-108, "Diagnosis Procedure"

 based on the confirmed symptom

in step 4, and determine the trouble diagnosis order based on possible causes and symptom.

>> GO TO 8
