Nissan Altima L32. Manual - part 157

BRM-18

< ON-VEHICLE REPAIR >

[COUPE]

BODY CONSTRUCTION

BODY CONSTRUCTION

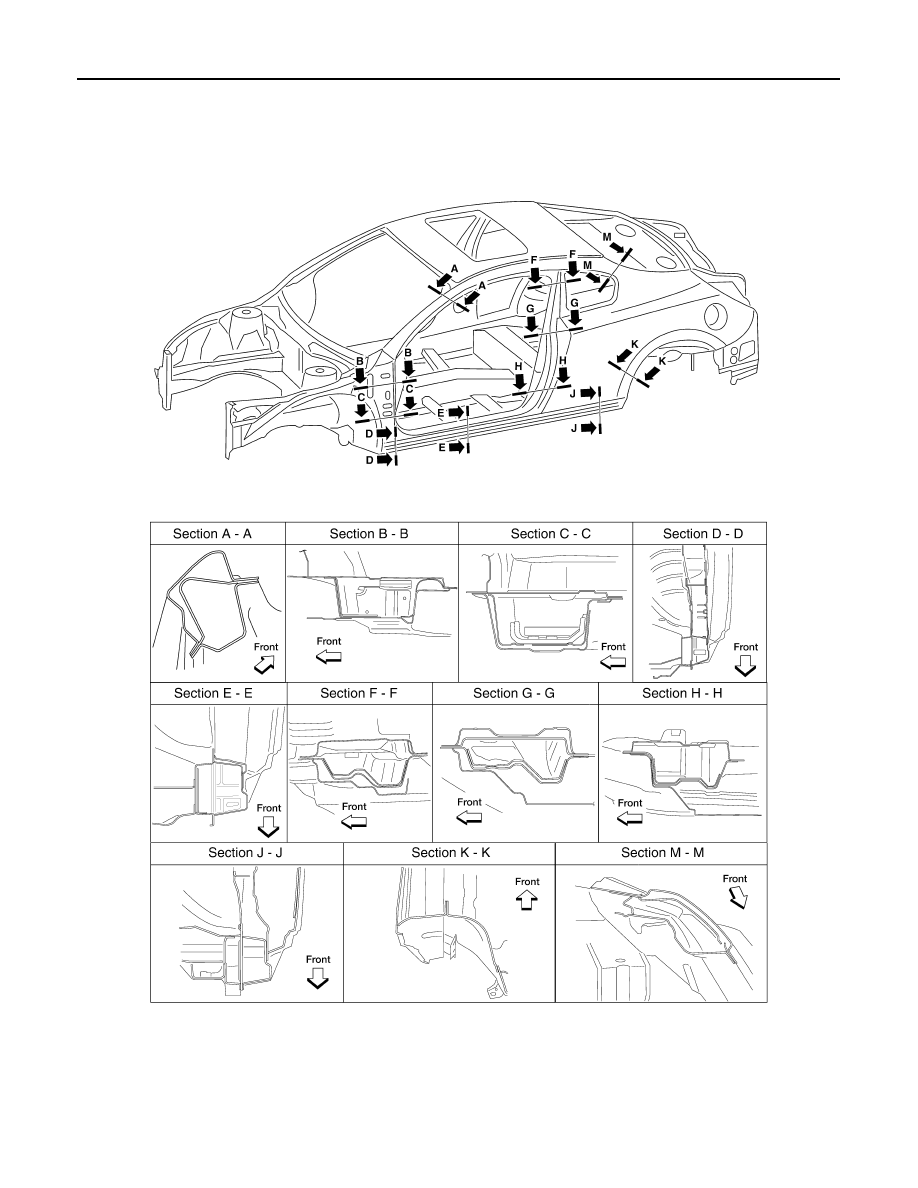

Body Construction

INFOID:0000000004205853

ALKIA0799GB

BODY ALIGNMENT

BRM-19

< ON-VEHICLE REPAIR >

[COUPE]

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

BODY ALIGNMENT

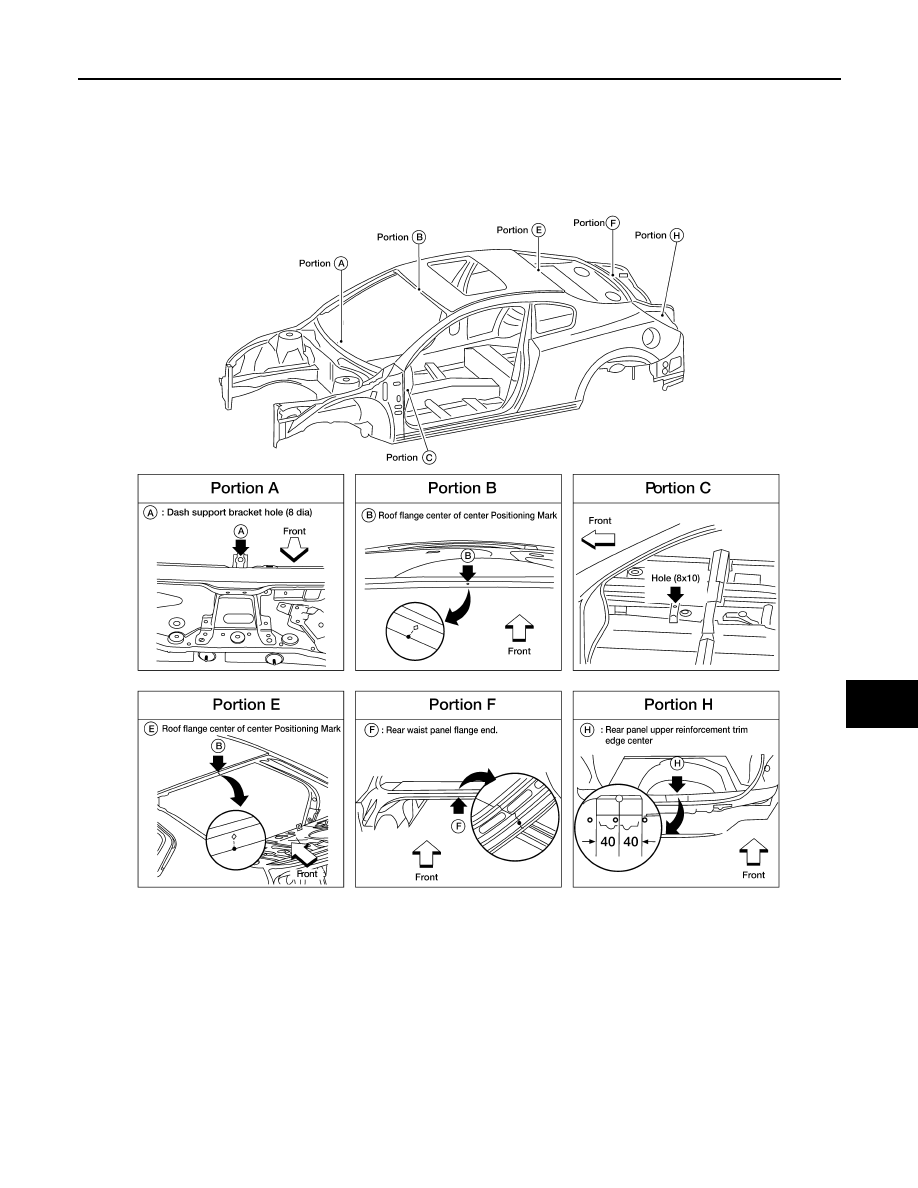

Body Center Marks

INFOID:0000000004205854

A mark has been placed on each part of the body to indicate the vehicle center. When repairing parts dam-

aged by an accident which might affect the vehicle frame (members, pillars, etc.), more accurate and effective

repair will be possible by using these marks together with body alignment specifications.

ALKIA0800GB

BRM-20

< ON-VEHICLE REPAIR >

[COUPE]

BODY ALIGNMENT

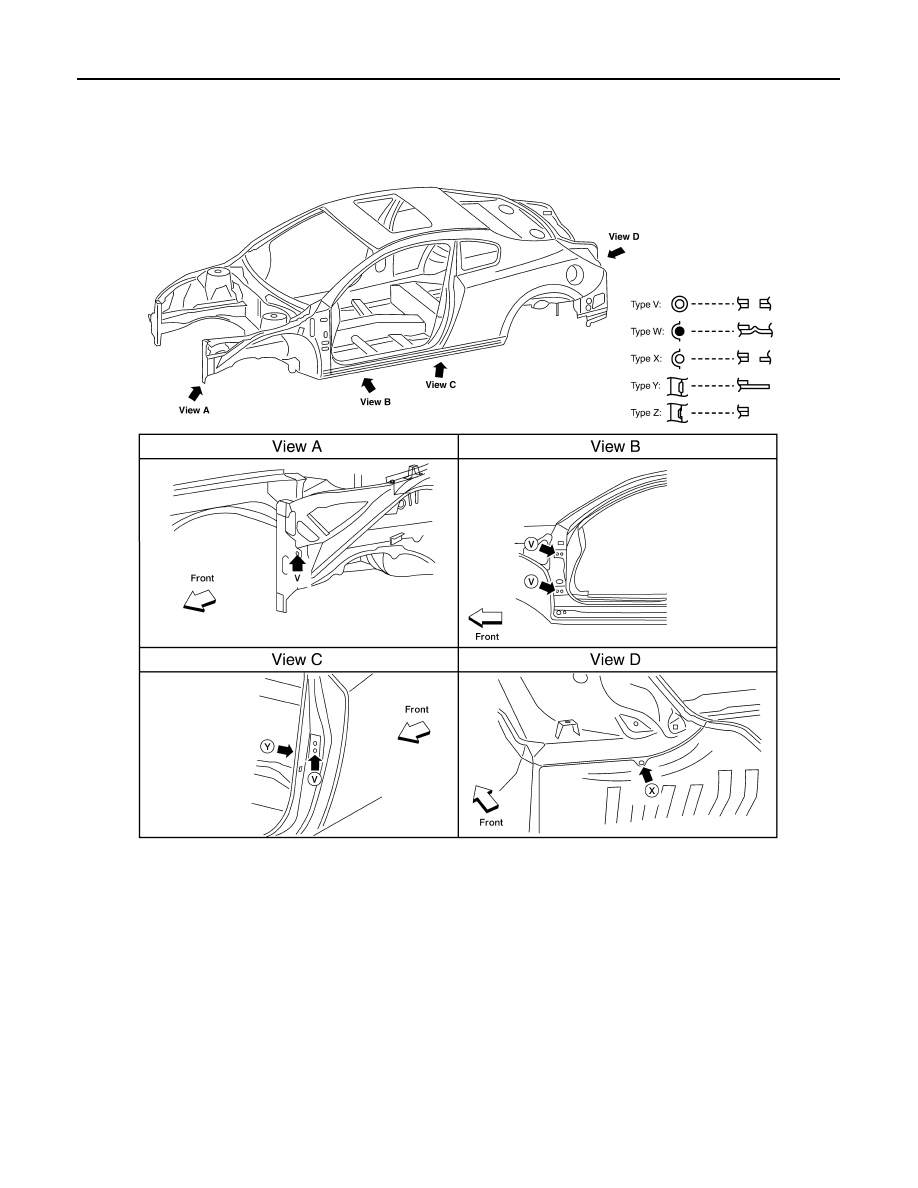

Panel Parts Matching Marks

INFOID:0000000004205855

A mark has been placed on each body panel to indicate the parts matching positions. When repairing parts

damaged by an accident which might affect the vehicle structure (members, pillars, etc.), more accurate and

effective repair will be possible by using these marks together with body alignment specifications.

Description

INFOID:0000000004205856

• All dimensions indicated in the figures are actual.

• When using a tracking gauge, adjust both pointers to equal length. Then check the pointers and gauge itself

to make sure there is no free play.

• When a measuring tape is used, check to be sure there is no elongation, twisting or bending.

• Measurements should be taken at the center of the mounting holes.

• An asterisk (*) following the value at the measuring point indicates that the measuring point on the other side

is symmetrically the same value.

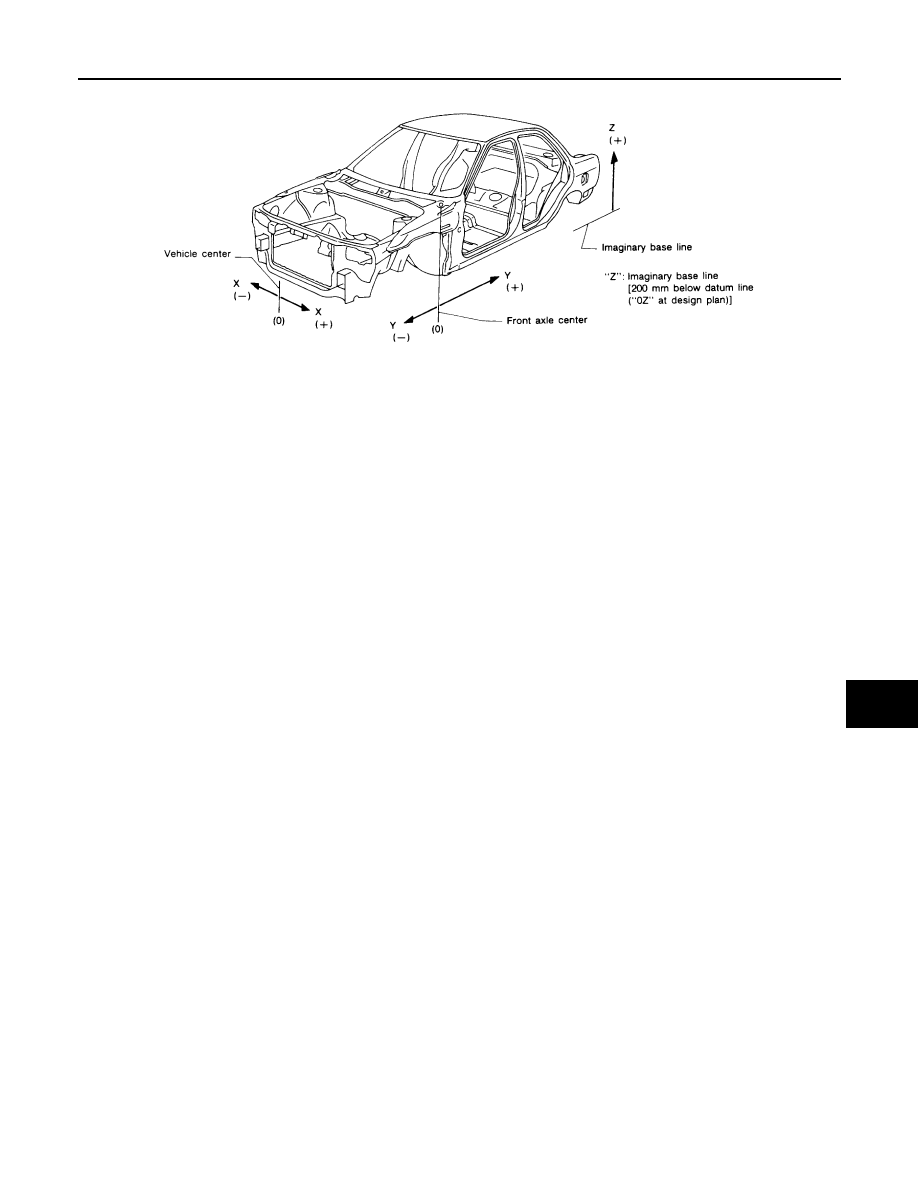

• The coordinates of the measurement points are the distances measured from the standard line of

″X″, ″Y″

and

″Z″.

ALKIA0801GB

BODY ALIGNMENT

BRM-21

< ON-VEHICLE REPAIR >

[COUPE]

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

PIIA0104E
