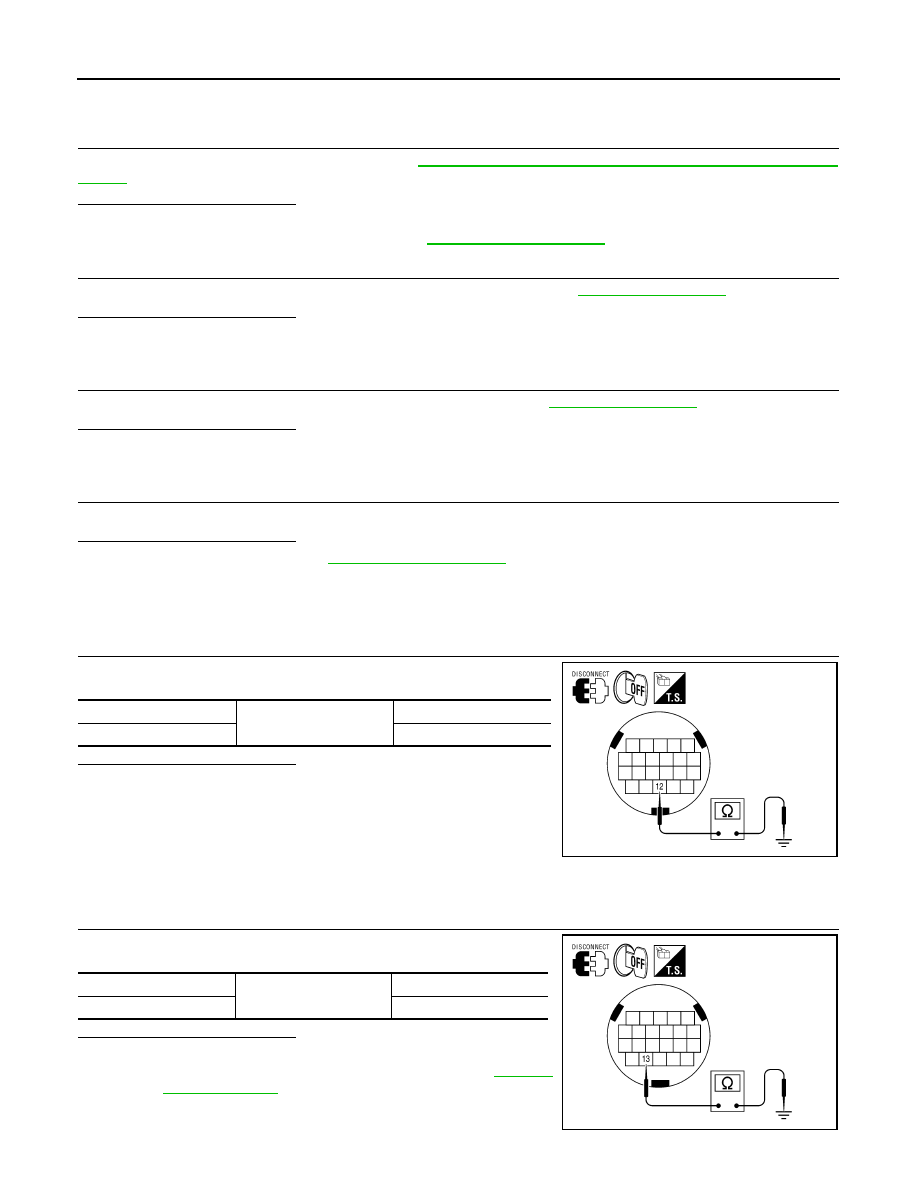

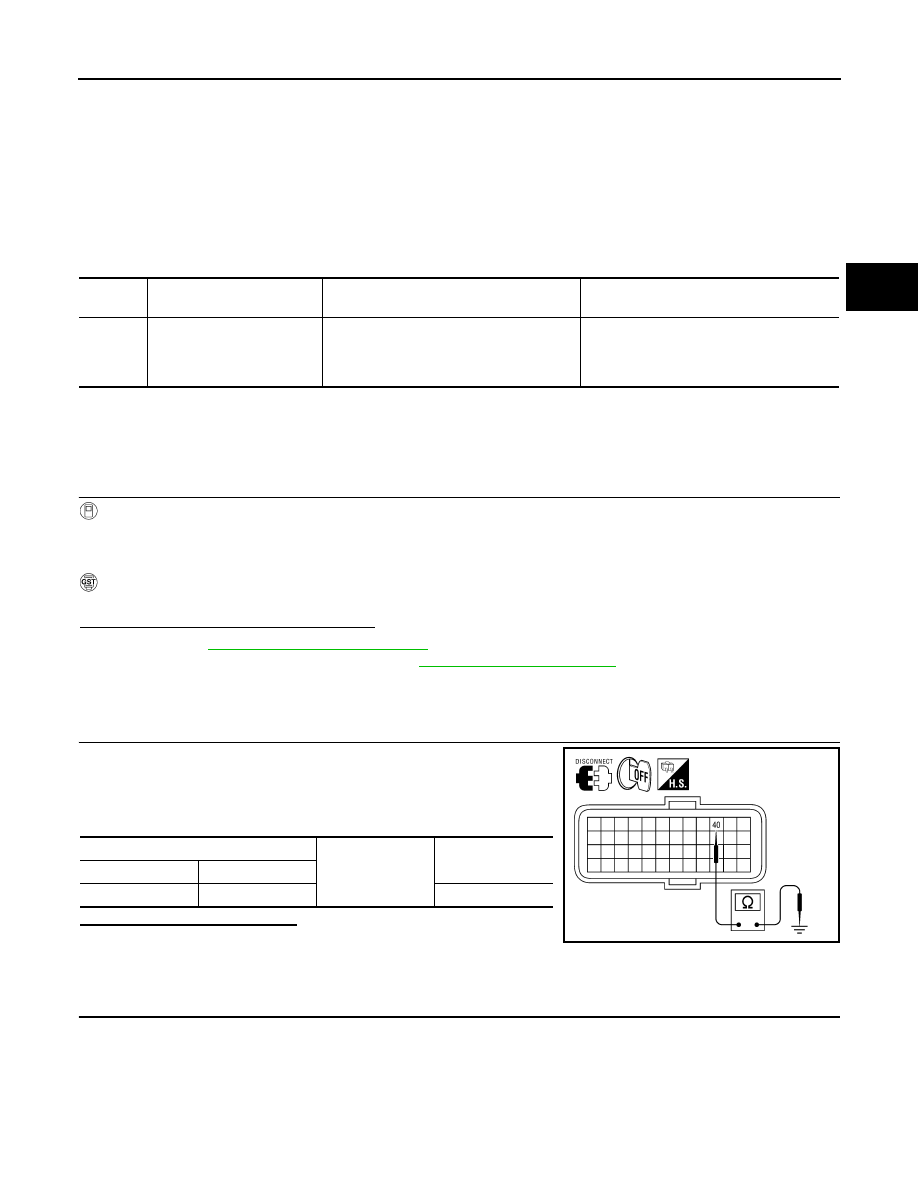

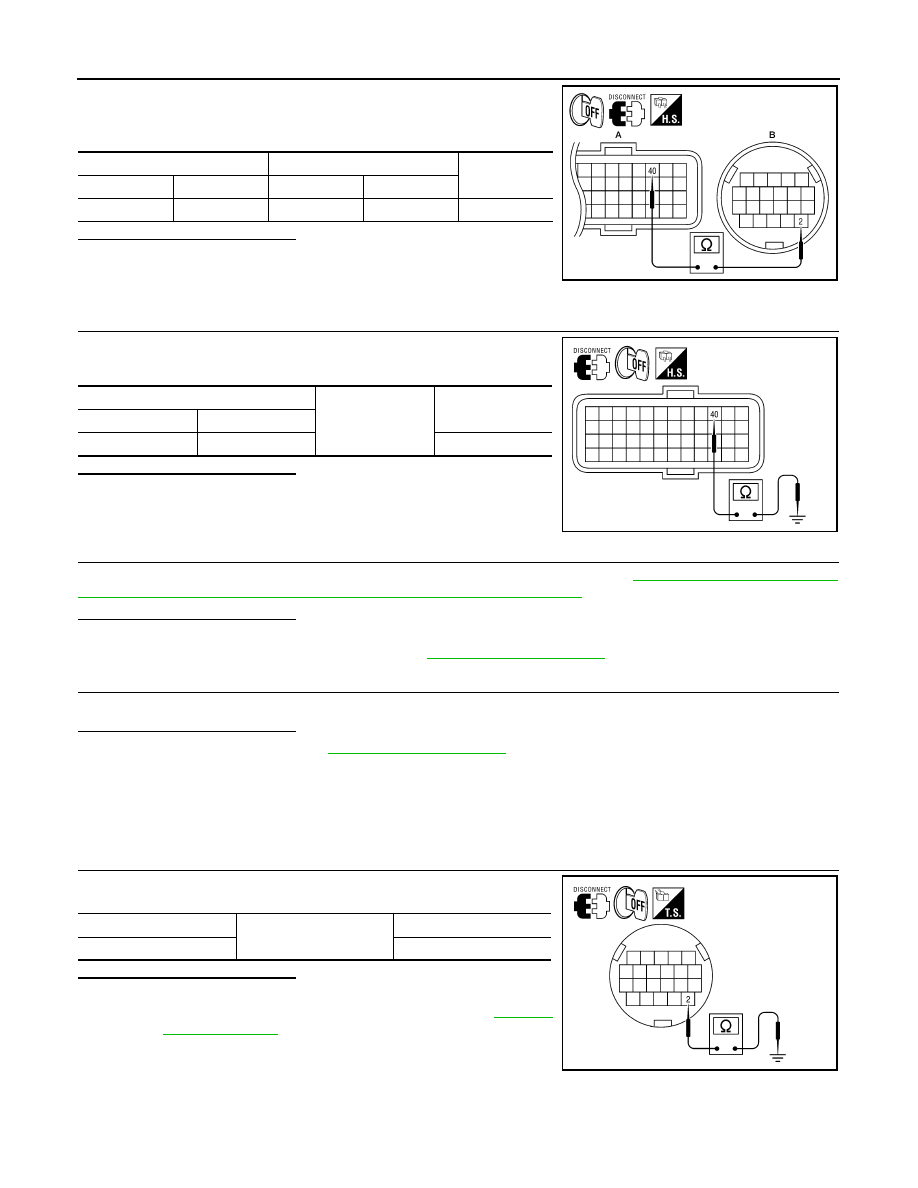

TM-328 < COMPONENT DIAGNOSIS > [CVT: RE0F10A] P0744 A/T TCC S/V FUNCTION (LOCK -UP) YES >> GO TO 3. NO >> Repair or replace damaged parts. 3. CHECK LOCK-UP SELECT SOLENOID VALVE Check lock-up select solenoid valve. Refer to TM-328, "Component Inspection (Lock-up Select Solenoid . Is the inspection result normal? YES >> GO TO 4. NO >> Replace transaxle assembly. Refer to 4. CHECK OUTPUT SPEED SENSOR (SECONDARY SPEED SENSOR) SYSTEM Check output speed sensor (secondary speed sensor) system. Refer to . Is the inspection result normal? YES >> GO TO 5. NO >> Repair or replace damaged parts. 5. CHECK INPUT SPEED SENSOR (PRIMARY SPEED SENSOR) SYSTEM Check input speed sensor (primary speed sensor) system. Refer to Is the inspection result normal? YES >> GO TO 6. NO >> Repair or replace damaged parts. 6. DETECT MALFUNCTIONING ITEMS Check TCM connector pin terminals for damage or loose connection with harness connector. YES NO >> Repair or replace damaged parts. Component Inspection (Torque Converter Clutch Solenoid Valve) INFOID:0000000004201899 1. CHECK TORQUE CONVERTER CLUTCH SOLENOID VALVE Check resistance between CVT unit terminal 12 and ground. Is the inspection result normal? YES >> INSPECTION END NO >> Perform “SELF-DIAG RESULTS” mode for “TRANS- MISSION”. Component Inspection (Lock-up Select Solenoid Valve) INFOID:0000000004201900 1. CHECK LOCK-UP SELECT SOLENOID VALVE Check resistance between CVT unit terminal 13 and ground. Is the inspection result normal? YES >> INSPECTION END NO >> Replace transaxle assembly. Refer to . CVT unit terminal Ground Resistance (Approx.) 12 3.0 – 9.0 Ω AWDIA0118ZZ CVT unit terminal Ground Resistance (Approx.) 13 17.0 – 38.0 Ω AWDIA0119ZZ |
