BR-34

< ON-VEHICLE REPAIR >

REAR DISC BRAKE

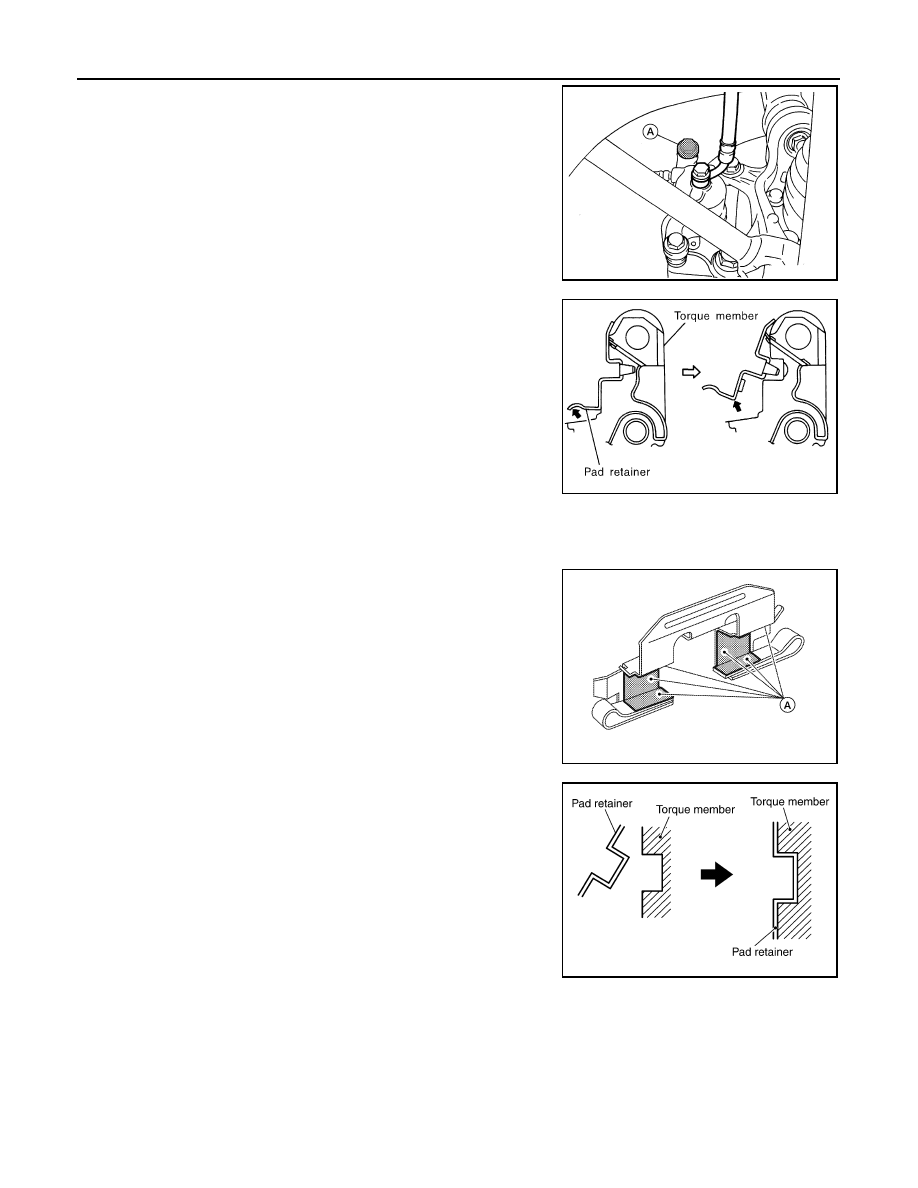

2. Remove upper sliding pin bolt (A) and swing caliper out support-

ing it with a suitable wire.

CAUTION:

Do not twist or stretch the brake hose.

3. Remove pads, pad retainers and multilayered shims from torque

member.

CAUTION:

When removing the pad retainer from the torque member,

lift it in the direction indicated by the arrow as shown so

that it does not deform.

INSTALLATION

1. Apply Molykote M-77 grease or equivalent to between multilayered shims and brake pads. Install inner

multilayered shim to inner pad, and outer multilayered shim to outer pad.

2. Apply Molykote 7439 grease (A) to the pad retainer as shown.

3. Attach pad retainers to torque member, then install brake pads

and multilayered shim assemblies.

CAUTION:

When attaching pad retainer, attach it firmly so that it is

flush with torque member as shown.

4. Press in piston until pads can be installed, and then install caliper to torque member.

CAUTION:

In the case of replacing a pad with new one, check a brake fluid level in the reservoir tank because

brake fluid returns to master cylinder reservoir tank when pressing piston in.

NOTE:

Use a disc brake piston tool (commercial service tool) to easily press piston.

AWFIA0508ZZ

SBR556E

AWFIA0039ZZ

PFIA0273E

REAR DISC BRAKE

BR-35

< ON-VEHICLE REPAIR >

C

D

E

G

H

I

J

K

L

M

A

B

BR

N

O

P

5. Install upper sliding pin bolt (A) and tighten to the specified

torque. Refer to

BR-33, "BRAKE PAD : Exploded View"

.

6. Check rear disc brake for drag.
7. Install rear wheel and tires. Refer to

WT-66, "Adjustment"

.

BRAKE CALIPER ASSEMBLY

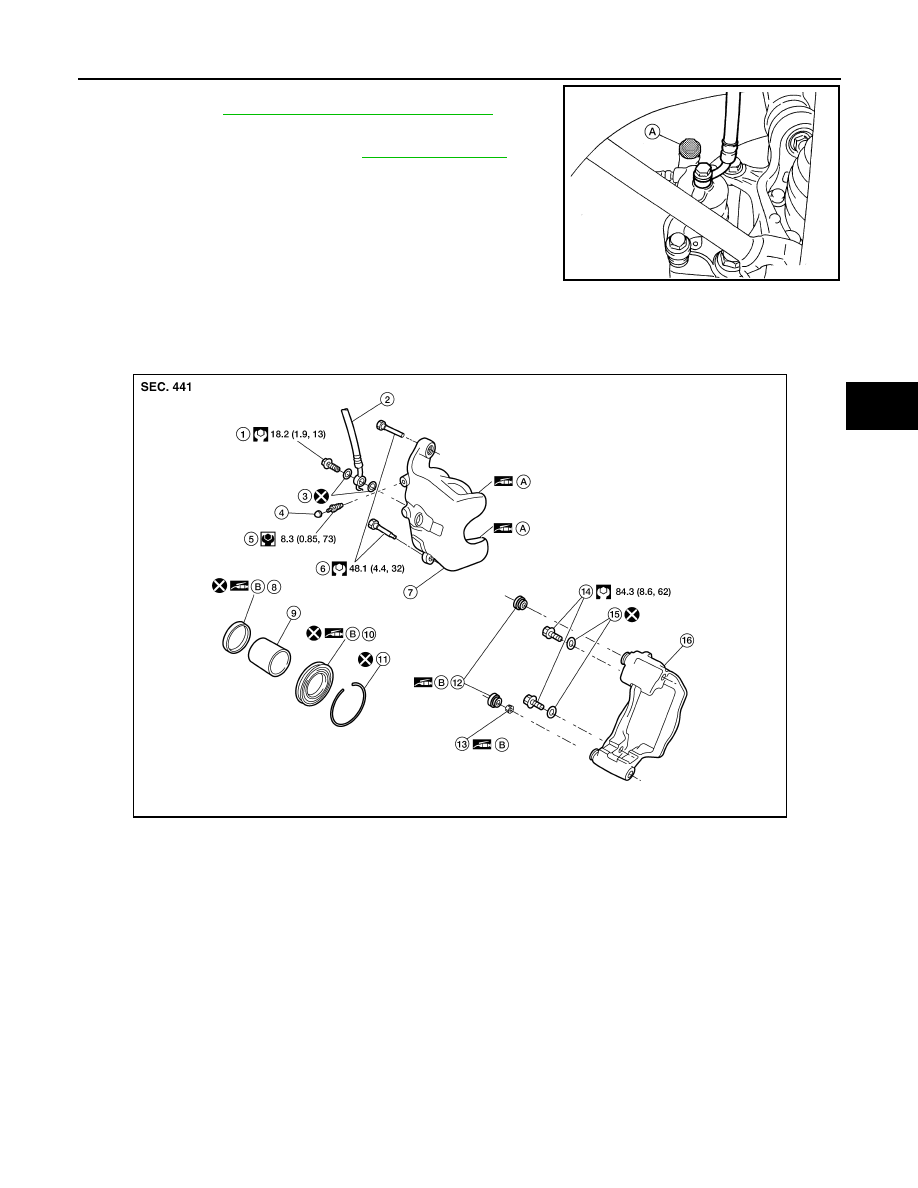

BRAKE CALIPER ASSEMBLY : Exploded View

INFOID:0000000004499318

BRAKE CALIPER ASSEMBLY : Removal and Installation

INFOID:0000000004499319

WARNING:

Clean dust on caliper and brake pad with a vacuum dust collector to minimize the hazard of air borne

particles or other materials.

CAUTION:

• While removing caliper, do not depress brake pedal because the piston will pop out.

• Do not damage piston boot.

• Keep disc rotor free from brake fluid.

AWFIA0508ZZ

1.

Union bolt

2.

Brake hose

3.

Copper washer

4.

Cap

5.

Bleed valve

6.

Sliding pin bolt

7.

Caliper

8.

Piston seal

9.

Piston

10. Piston boot

11. Retaining ring

12.

Sliding pin boot

13. Bushing

14. Torque member bolt

15.

Washer

16. Torque member

A.

PBC (Poly Butyl Cuprysil) grease or
silicone-based grease

B.

Rubber grease

AWFIA0503GB

BR-36

< ON-VEHICLE REPAIR >

REAR DISC BRAKE

• Refill the brake reservoir with new brake fluid “DOT 3”.

• Never reuse drained brake fluid.

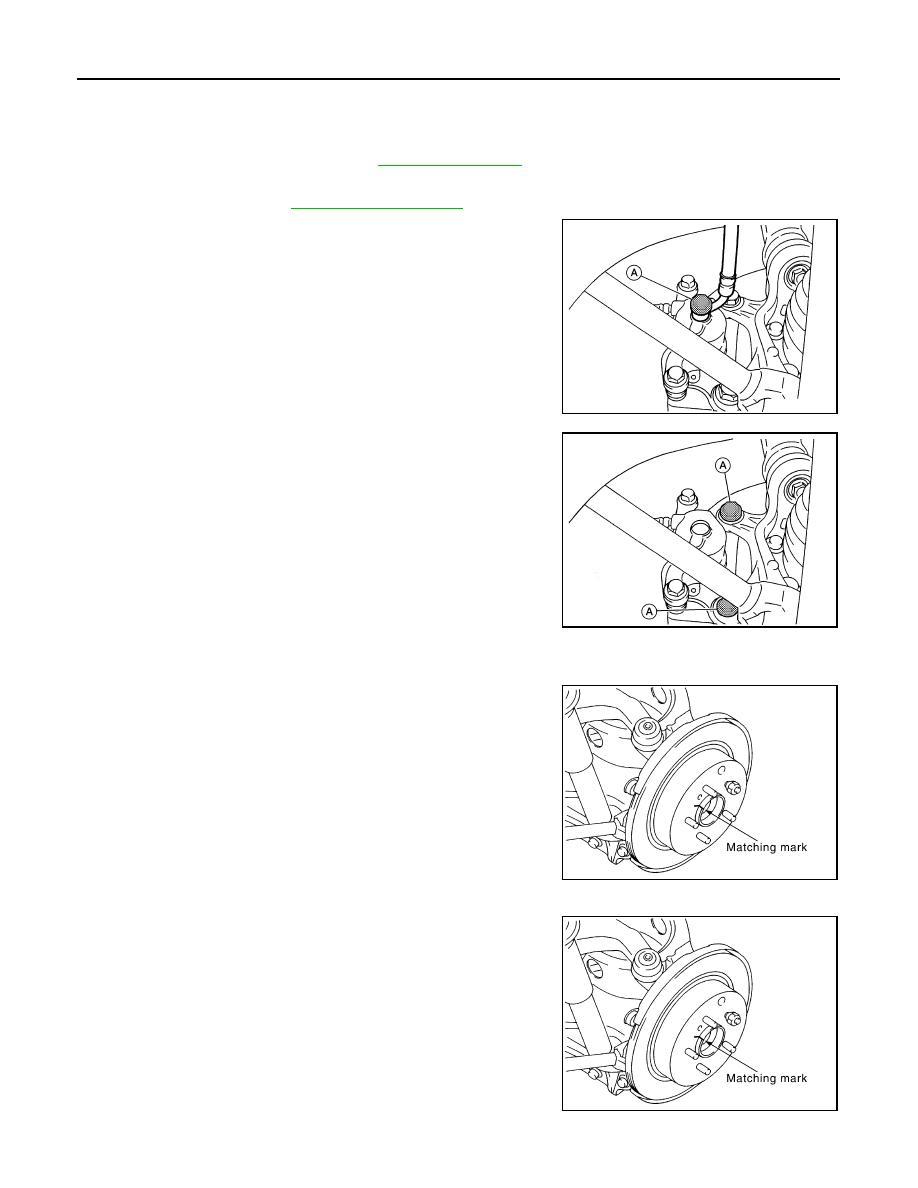

REMOVAL

1. Remove rear wheel and tires. Refer to

WT-66, "Adjustment"

.

2. Fasten disc rotor using a wheel nut.
3. Drain brake fluid. Refer to

BR-15, "Drain and Refill"

.

4. Remove union bolt (A) and then disconnect brake hose from cal-

iper. Discard the copper washers.

CAUTION:

Do not reuse copper washers.

5. Remove the two torque member bolts (A), and then remove the

torque member, caliper and pads as an assembly.

CAUTION:

Do not drop the brake pad and multilayered shim assem-

blies.

6. Remove the two sliding pin bolts and separate the caliper from the torque member. Remove the brake pad

and multilayered shim assemblies from the caliper.

7. Remove the disc rotor.

CAUTION:

Put matching marks on wheel hub assembly and disc rotor,

if it necessary to reuse the disc rotor.

INSTALLATION

1. Install the disc rotor.

CAUTION:

Alignment marks of disc rotor and wheel hub put at the time

of removal when reusing disc rotor.

AWFIA0505ZZ

AWFIA0509ZZ

SDIA2638E

SDIA2638E

REAR DISC BRAKE

BR-37

< ON-VEHICLE REPAIR >

C

D

E

G

H

I

J

K

L

M

A

B

BR

N

O

P

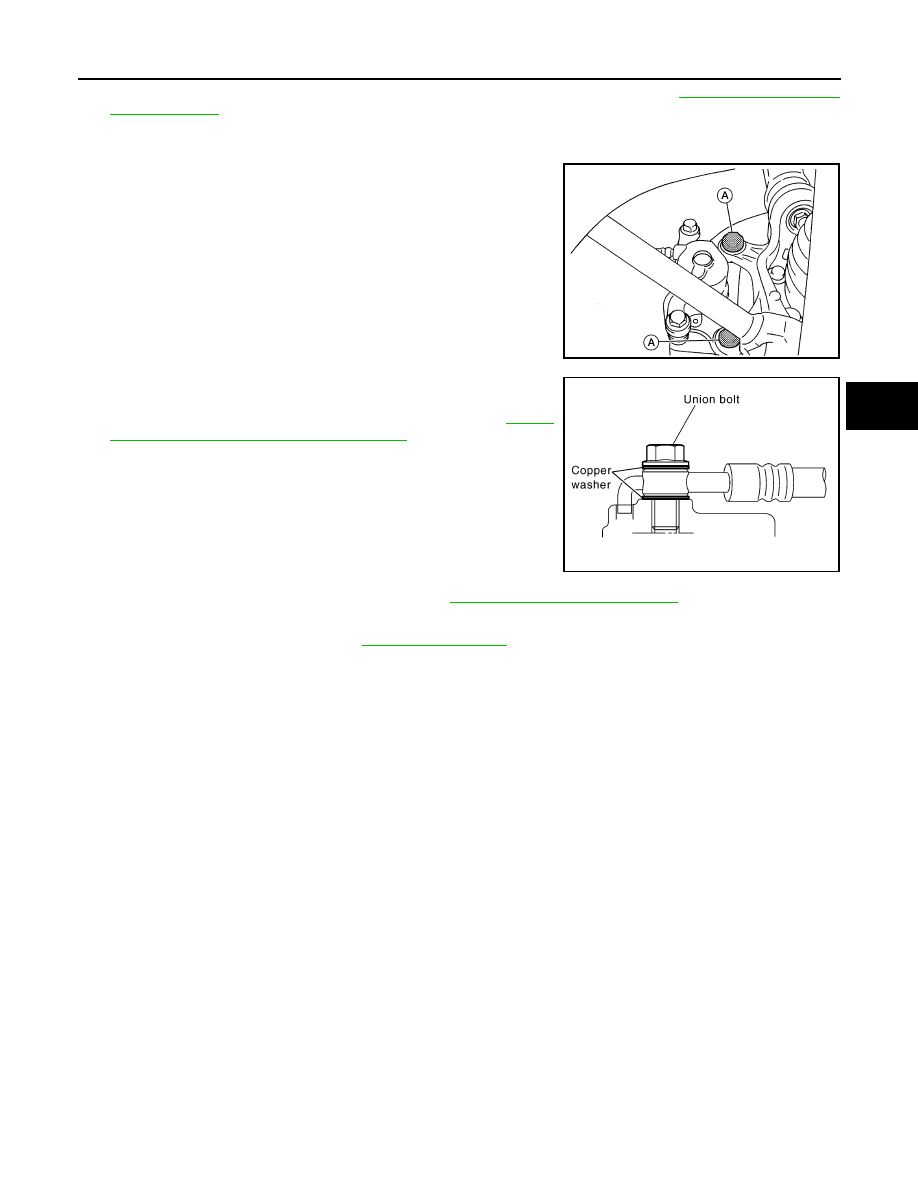

2. Install the brake pad and multilayered shim assemblies on the caliper. Refer to

BR-33, "BRAKE PAD :

Exploded View"

.

3. Install the caliper and pad assembly on the torque member, then tighten the two sliding pin bolts to the

specified torque.

4. Install the torque member, pads and brake caliper assembly,

and tighten the torque member bolts (A) to the specified torque.

CAUTION:

Before installing wipe off all oil and moisture on all mating

surfaces of rear axle and torque member, threads, bolts and

washers.

5. Align the L-shaped pin on the brake hose in the hole in the cali-

per, then install the brake hose with new copper washers and

tighten the union bolt to the specified torque. Refer to

BR-20,

"REAR BRAKE : Removal and Installation"

.

CAUTION:

Do not reuse copper washers.

6. Refill with new brake fluid and bleed air. Refer to

BR-16, "Bleeding Brake System"

.

7. Check rear disc brake for drag.
8. Install rear wheel and tires. Refer to

WT-66, "Adjustment"

.

AWFIA0509ZZ

SFIA1137E
