TM-292

< FUNCTION DIAGNOSIS >

[CVT: RE0F10A]

SHIFT MECHANISM

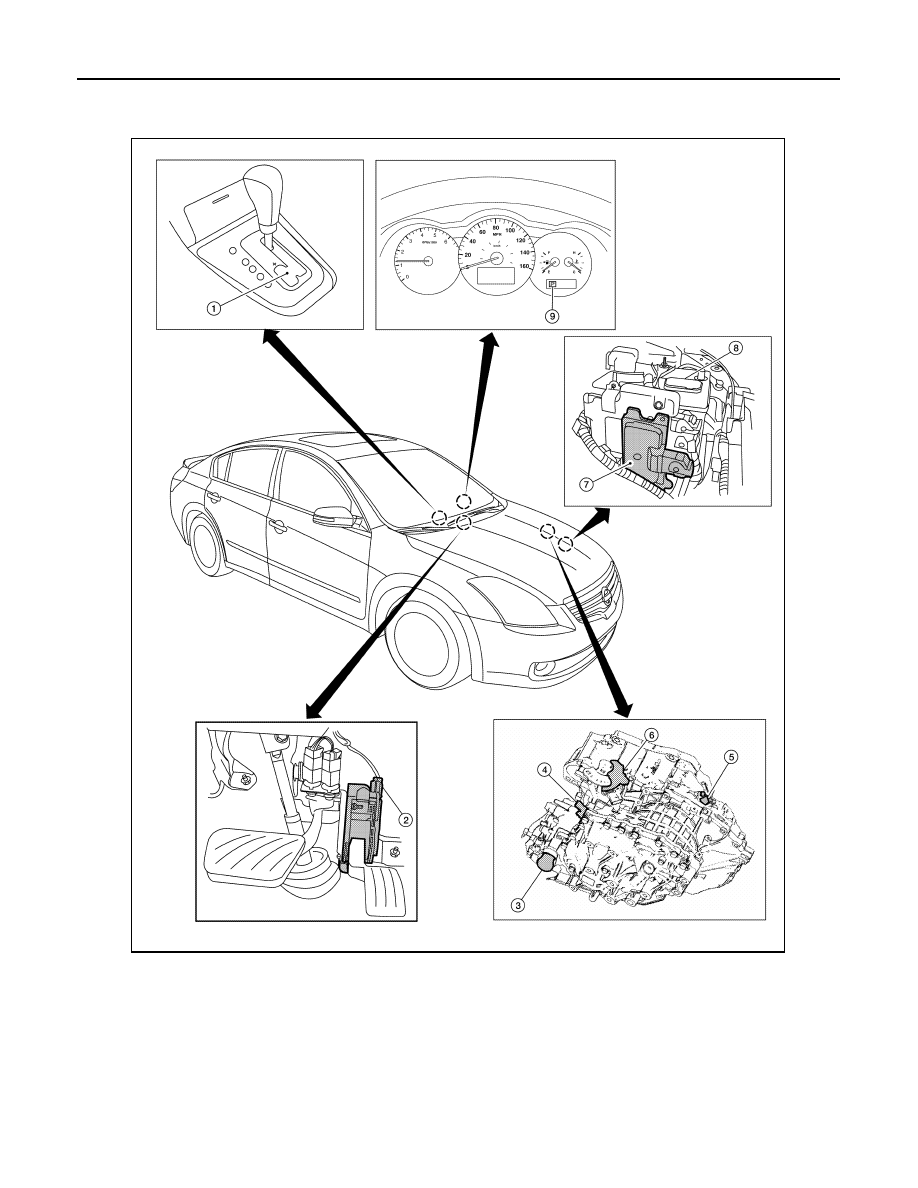

Component Parts Location - Sedan

INFOID:0000000004201853

Component Description

INFOID:0000000004201854

TRANSAXLE ASSEMBLY

1.

Control device assembly

2.

Accelerator pedal position sensor

3.

CVT unit harness connector

4.

Primary speed sensor

5.

Secondary speed sensor

6.

PNP switch

7.

TCM

8.

Battery

9.

Shift position indicator
Manual mode indicator

AWIIA0002ZZ

SHIFT MECHANISM

TM-293

< FUNCTION DIAGNOSIS >

[CVT: RE0F10A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

EXCEPT TRANSAXLE ASSEMBLY

Item

Function

PNP switch

TM-307

Primary speed sensor

TM-313

Secondary speed sensor

TM-318

Step motor

TM-361

Shift control valve

TM-279

Primary pulley

TM-275

Secondary pulley

TM-275

Item

Function

TCM

TM-284

TM-294

< FUNCTION DIAGNOSIS >

[CVT: RE0F10A]

SHIFT LOCK SYSTEM

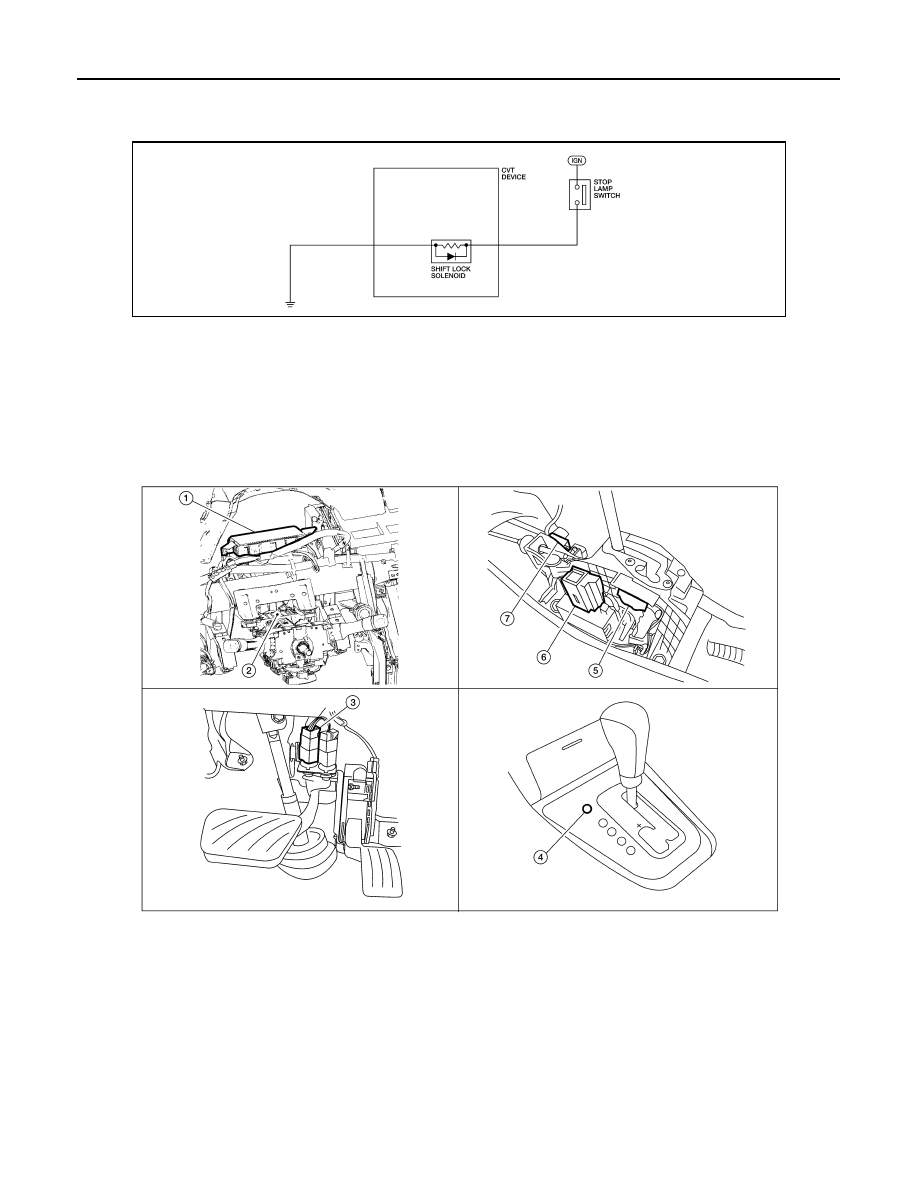

SHIFT LOCK SYSTEM

System Diagram

INFOID:0000000004201855

System Description

INFOID:0000000004201856

The selector lever cannot be shifted from “P” position to any other position unless the ignition switch is in the

ON position and the brake pedal is depressed.

Component Parts Location

INFOID:0000000004201857

Component Description

INFOID:0000000004201858

ALDIA0018GB

1.

BCM (view with instrument panel re-
moved

2.

Steering column

3.

Stop lamp switch

4.

Shift lock release button

5.

Detention switch (for manual shift)

6.

Shift lock solenoid/Detent switch
(key)

7.

CVT device connector

AWDIA0006ZZ

SHIFT LOCK SYSTEM

TM-295

< FUNCTION DIAGNOSIS >

[CVT: RE0F10A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

Component

Function

CVT device

Shift lock solenoid

Shift lock solenoid

TM-294, "System Description"

Lock plate

The lock plate restricts the position pin stroke by se-
lector button operation according to the shift lock unit
status.

Position pin

The position pin, linking with the selector button, re-
stricts the selector lever movement.

Shift lock release button

Pressing the shift lock release button cancels the
shift lock forcibly.
