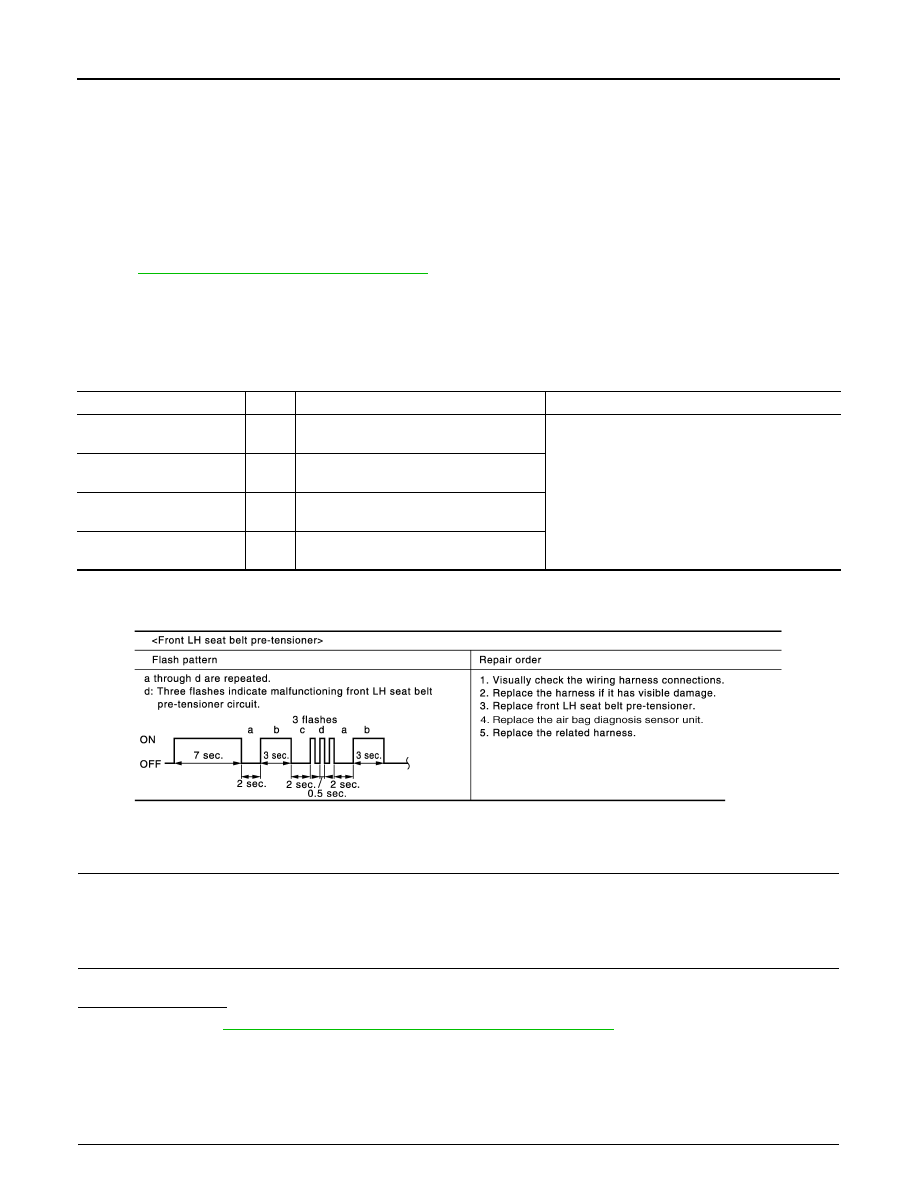

SRC-34 < COMPONENT DIAGNOSIS > B1086 – B1089 SEAT BELT PRE-TENSIONER LH B1086 – B1089 SEAT BELT PRE-TENSIONER LH Description INFOID:0000000004205371 DTC B1086 – B1089 SEAT BELT PRE-TENSIONER LH The seat belt pre-tensioner LH is wired to the air bag diagnosis sensor unit. The air bag diagnosis sensor unit will monitor for opens and shorts in detected lines to the seat belt pre-tensioner LH. PART LOCATION SRC-7, "SRS Component Parts Location" DTC Logic INFOID:0000000004205372 DTC DETECTION LOGIC With CONSULT-lll Without CONSULT-lll DTC CONFIRMATION PROCEDURE (With CONSULT-lll) 1. INSPECTION START Turn ignition switch ON. >> GO TO 2. 2. CHECK SELF-DIAG RESULT Check for the DTC on CONSULT-lll. YES >> Refer to SRC-35, "Diagnosis Procedure (Component Diagnosis)" . NO >> Inspection End. DTC CONFIRMATION PROCEDURE (Without CONSULT-lll) NOTE: SRS will not enter diagnosis mode if no malfunction is detected in user mode. 1. IGNITION SWITCH CONSULT-III name DTC DTC detecting condition Repair order PRE-TEN FRONT LH [OPEN] B1086 LH seat belt pre-tensioner circuit is open. 1. Visually check the wiring harness connection. 2. Replace the harness if it has visible damage. 3. Replace the front LH seat belt pre-tensioner. 4. Replace the air bag diagnosis sensor unit. 5. Replace the related harness. PRE-TEN FRONT LH [VB-SHORT] B1087 LH seat belt pre-tensioner circuit is shorted PRE-TEN FRONT LH [GND-SHORT] B1088 LH seat belt pre-tensioner circuit is shorted PRE-TEN FRONT LH [SHORT] B1089 LH seat belt pre-tensioner circuits are WHIA0263E |
