SEC-510

< COMPONENT DIAGNOSIS >

[SEDAN WITHOUT INTELLIGENT KEY]

HORN

HORN

Description

INFOID:0000000004499210

Horn (high/low) is located inside of front bumper and operates when theft warning system is in alarm phase.

Component Function Check

INFOID:0000000004499211

1.

CHECK FUNCTION

1. Select HORN in “ACTIVE TEST” mode with CONSULT-III.

2. Check the horn (high/low) operation.

Is the operation normal?

YES

>> Inspection End.

NO

>> Refer to

SEC-510, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000004499212

1.

CHECK HORN FUNCTION

Check horn function with horn switch
Do the horns sound?

YES

>> GO TO 2

NO

>> Refer to

HRN-7, "Wiring Diagram - Sedan"

.

2.

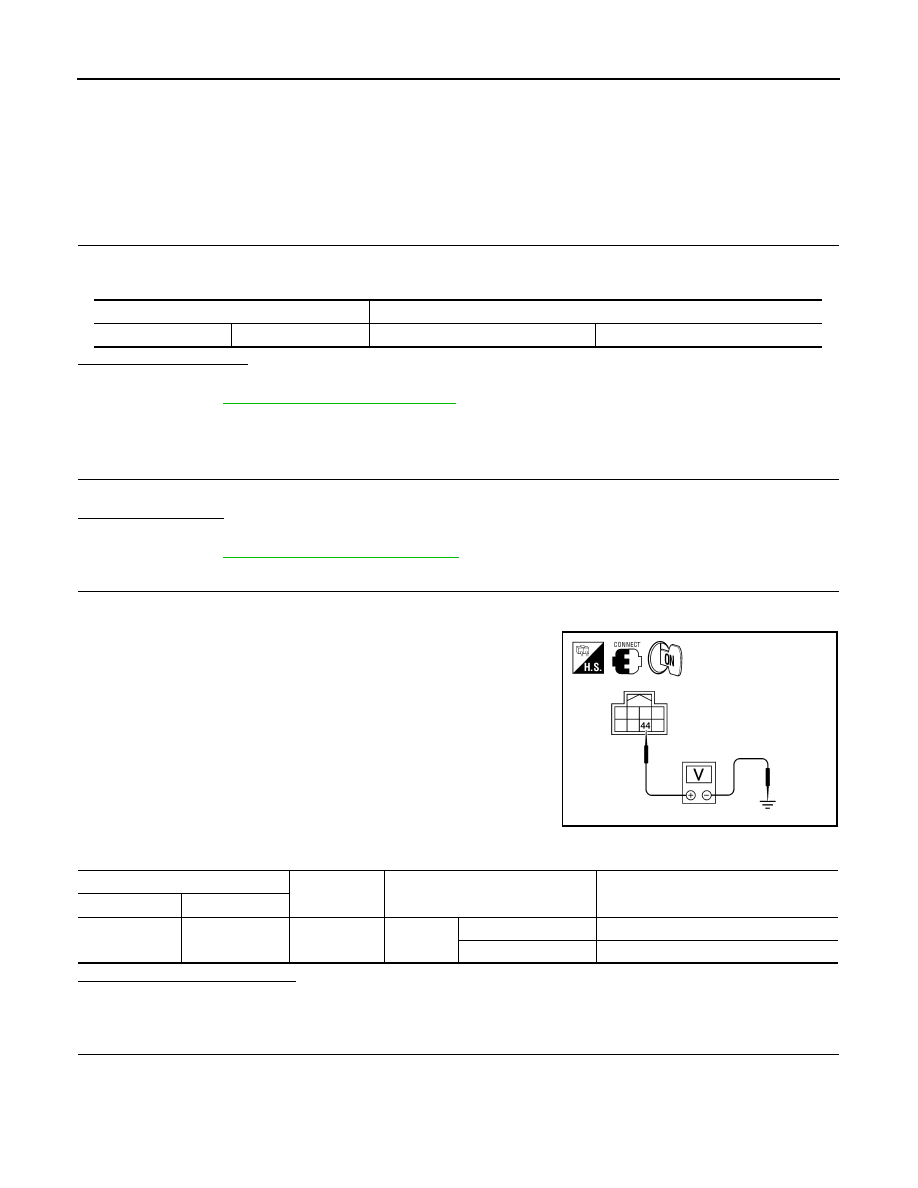

CHECK HORN RELAY POWER SUPPLY

1. Turn ignition switch ON.

2. Perform “ACTIVE TEST” (“HORN”) with CONSULT-Ill.

3. Using an analog voltmeter or an oscilloscope, check voltage

between IPDM E/R connector E17 terminal 44 and ground.

Is the inspection result normal?

YES

>> Repair or replace harness between IPDM E/R and horn relay.

NO

>> GO TO 3

3.

CHECK HORN RELAY CIRCUIT

1. Turn ignition switch OFF.

2. Disconnect IPDM E/R and horn relay connector.

Test item

Description

HORN

ON

Horn relay

ON (for 20 ms)

ALKIA0424ZZ

IPDM E/R

Ground

Test item

Voltage (V)

(Approx.)

Connector

Terminal

E17

44

Ground

HORN

ON

Battery voltage

→ 0 → Battery voltage

Other than above

Battery voltage

HORN

SEC-511

< COMPONENT DIAGNOSIS >

[SEDAN WITHOUT INTELLIGENT KEY]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

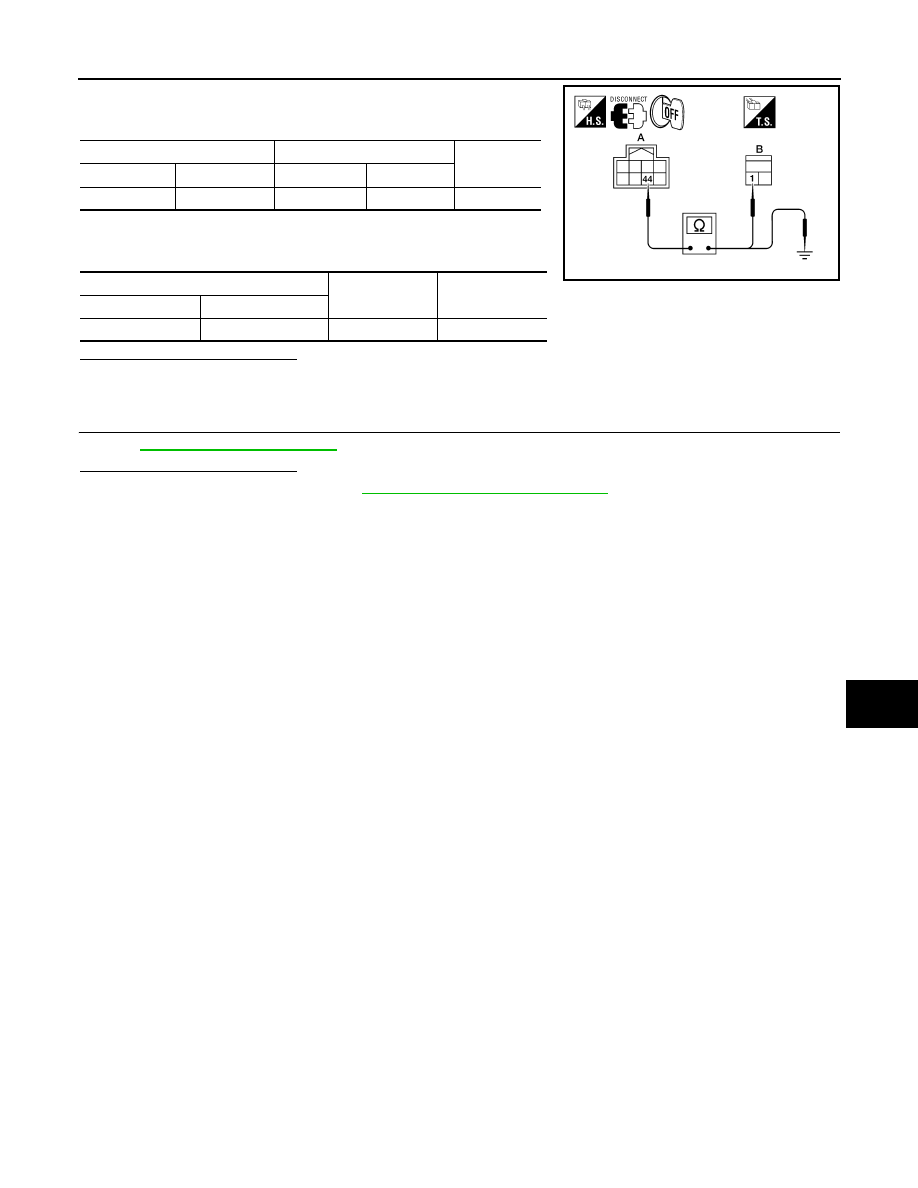

3. Check continuity between IPDM E/R harness connector and

horn relay harness connector.

4. Check continuity between IPDM E/R harness connector and

ground.

Is the inspection result normal?

YES

>> GO TO 4

NO

>> Repair or replace harness.

4.

CHECK INTERMITTENT INCIDENT

Refer to

GI-42, "Intermittent Incident"

.

Is the inspection result normal?

YES

>> Replace IPDM E/R.Refer to

PCS-48, "Removal and Installation"

.

NO

>> Repair or replace the malfunctioning part.

IPDM E/R

Horn relay

Continuity

Connector

Terminal

Connector

Terminal

A: E17

44

B: H-1

1

Yes

IPDM E/R

Ground

Continuity

Connector

Terminal

A: E17

44

Ground

No

ALKIA0425ZZ

SEC-512

< COMPONENT DIAGNOSIS >

[SEDAN WITHOUT INTELLIGENT KEY]

HEADLAMP

HEADLAMP

Description

INFOID:0000000004499213

Headlamp lighting when theft warning system is in alarm phase.

Component Function Check

INFOID:0000000004499214

1.

CHECK HEADLAMP OPERATION

Check if headlamps operate by lighting switch.
Does headlamp come on when turning switch “ON”?

YES

>> Headlamp circuit is OK.

NO

>> Check headlamp system. Refer to

SEC-512, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000004499215

1.

CHECK HEADLAMP OPERATION

Refer to

EXL-61, "Wiring Diagram - Sedan"

.

Is the inspection result normal?

YES

>> GO TO 2

NO

>> Repair or replace malfunctioning parts.

2.

CHECK INTERMITTENT INCIDENT

Refer to

GI-42, "Intermittent Incident"

.

>> Inspection End.

WARNING LAMP

SEC-513

< COMPONENT DIAGNOSIS >

[SEDAN WITHOUT INTELLIGENT KEY]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

WARNING LAMP

Description

INFOID:0000000004499216

• Warning lamp is built in combination meter.

• Remote keyless entry system malfunction is reported to the driver by the warning lamp illumination.

Component Function Check

INFOID:0000000004499217

1.

CHECK FUNCTION

1. Perform “INDICATOR” in the “Active Test” mode with CONSULT-III.

2. Check warning lamp operation.

Is the inspection result normal?

YES

>> Inspection End.

NO

>> Refer to

SEC-513, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000004499218

1.

CHECK “COMBINATION METER.”

Check combination meter function. Refer to

MWI-4, "Work Flow"

.

Is the inspection result normal?

YES

>> GO TO 2

NO

>> Repair or replace the malfunctioning parts.

2.

CHECK INTERMITTENT INCIDENT

Refer to

GI-42, "Intermittent Incident"

.

>> Inspection End.

Test item

Description

INDICATOR

ON

Warning lamp

ON

OFF

OFF
