SEC-450

< COMPONENT DIAGNOSIS >

[SEDAN WITHOUT INTELLIGENT KEY]

B210F PNP/CLUTCH INTERLOCK SWITCH

B210F PNP/CLUTCH INTERLOCK SWITCH

Description

INFOID:0000000004499103

IPDM E/R confirms the shift position with the following signals.

• Park/neutral position (PNP) switch

• Shift position signal from BCM (CAN)

DTC Logic

INFOID:0000000004499104

DTC DETECTION LOGIC

NOTE:

• If DTC B210F is displayed with DTC U1000, first perform the trouble diagnosis for DTC U1000. Refer to

SEC-433, "DTC Logic"

• If DTC B210F is displayed with DTC U1010, first perform the trouble diagnosis for DTC U1010. Refer to

SEC-433, "DTC Logic"

.

DTC CONFIRMATION PROCEDURE

1.

PERFORM DTC CONFIRMATION PROCEDURE

1. Turn ignition switch ON under the following conditions and wait for at least 1 second.

-

CVT selector lever is in the P or N position

-

Do not depress the brake pedal

2. Check “Self diagnostic result” with CONSULT-III.
Is DTC detected?

YES

>> Refer to

SEC-450, "Diagnosis Procedure"

.

NO

>> Inspection End.

Diagnosis Procedure

INFOID:0000000004499105

1.

CHECK DTC WITH BCM

Refer to

BCS-91, "DTC Index"

.

Is the inspection result normal?

YES

>> GO TO 2

NO

>> Repair or replace malfunctioning parts.

2.

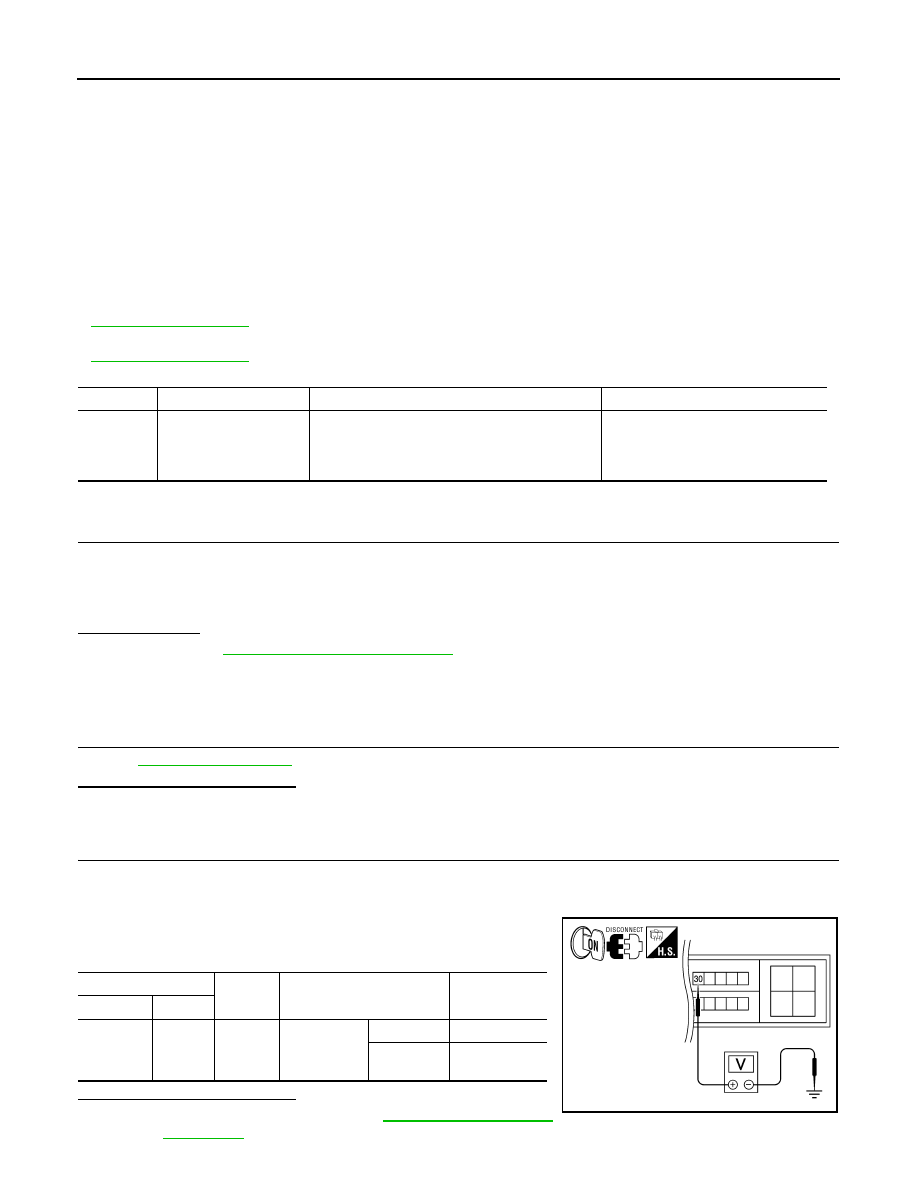

CHECK PNP SWITCH INPUT SIGNAL

1. Turn ignition switch OFF.

2. Disconnect IPDM E/R harness connector.

3. Turn ignition switch ON.

4. Check voltage between IPDM E/R harness connector and

ground under following condition.

Is the inspection result normal?

YES

>> Replace IPDM E/R. Refer to

PCS-48, "Removal and

Installation"

.

DTC No.

Trouble diagnosis name

DTC detecting condition

Possible cause

B210F

INTER LOCK/PNP SW
ON

IPDM E/R detects a mismatch between the signals
below for 1 second or more.
• Shift PNP switch input signal
• Shift position signal from BCM (CAN)

• Harness or connectors

[Park/neutral position (PNP) switch
circuit is open or shorted]

• Park/neutral position (PNP) switch

IPDM E/R

Ground

Condition

Voltage (V)

Connector

Terminal

E18

30

Ground

CVT selector

lever

P or N

0

Other than

above

Battery voltage

ALKIA1308ZZ

B210F PNP/CLUTCH INTERLOCK SWITCH

SEC-451

< COMPONENT DIAGNOSIS >

[SEDAN WITHOUT INTELLIGENT KEY]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

NO

>> GO TO 3

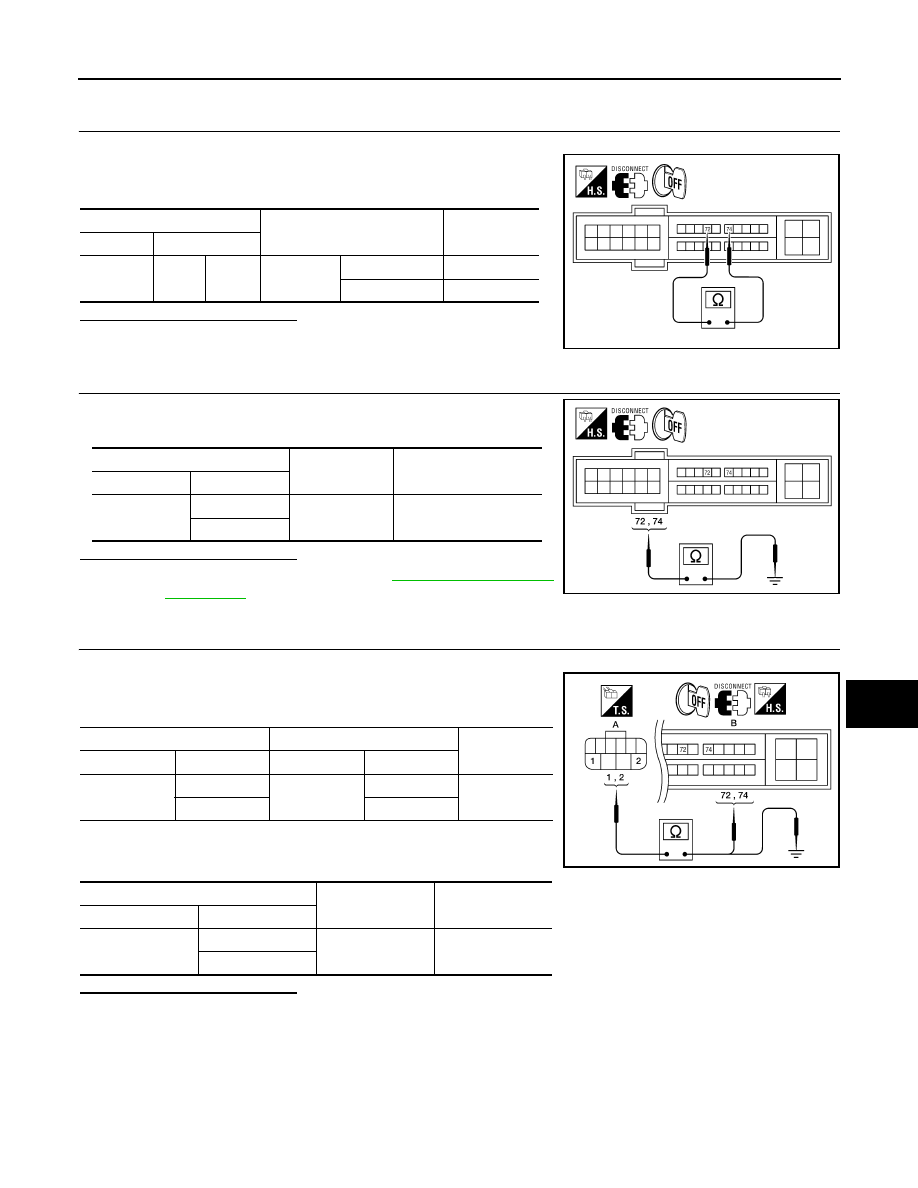

3.

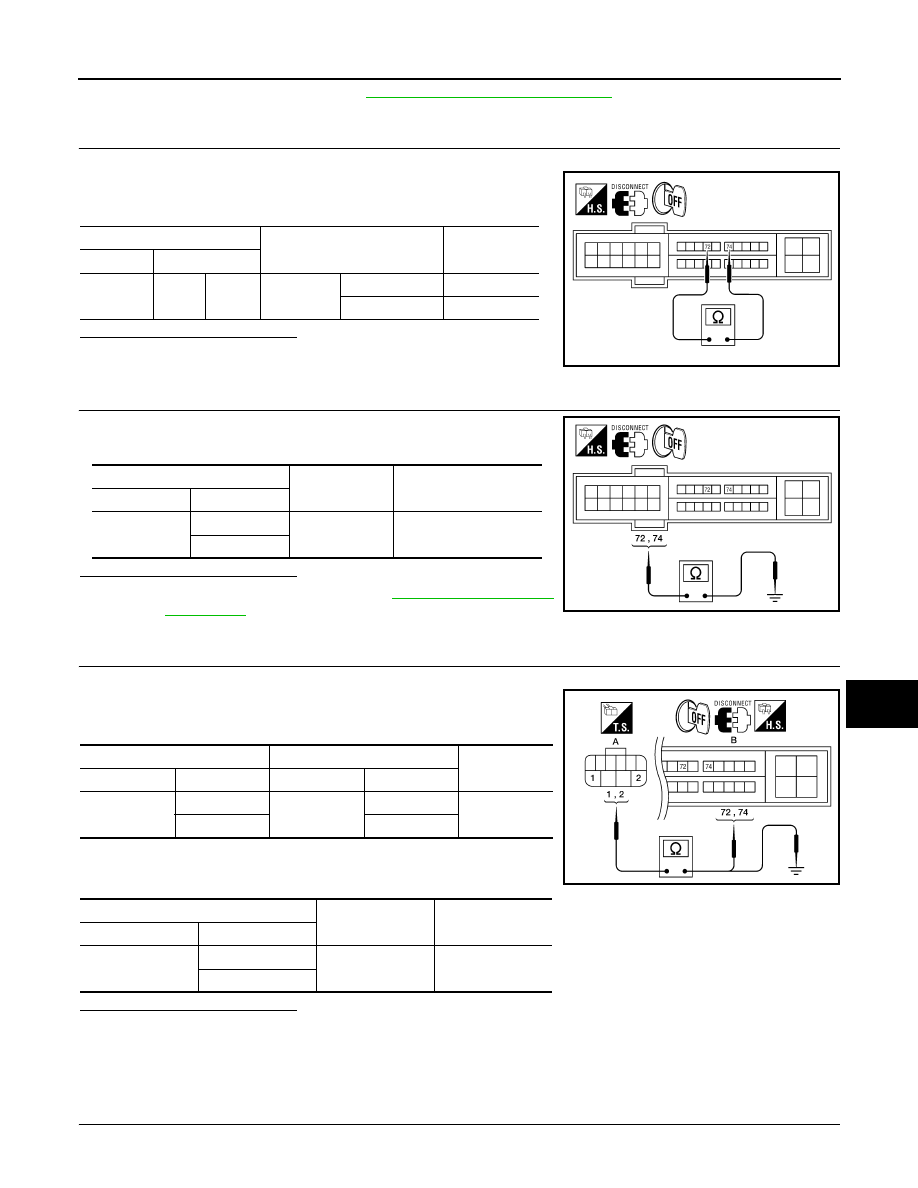

CHECK PNP SWITCH CIRCUIT FOR CONTINUITY

1. Turn ignition switch OFF.

2. Check continuity between IPDM E/R harness connector termi-

nals 72 and 74.

Is the inspection result normal?

YES

>> GO TO 4

NO

>> GO TO 5

4.

CHECK PNP SWITCH CIRCUIT FOR SHORT

Check continuity between IPDM E/R harness connector terminals

72, 74 and ground.

Is the inspection result normal?

YES

>> Replace the IPDM E/R. Refer to

PCS-48, "Removal and

Installation"

.

NO

>> Repair or replace harness.

5.

CHECK PNP SWITCH INPUT SIGNAL CIRCUIT

1. Disconnect PNP switch harness connector.

2. Check continuity between PNP switch and IPDM E/R harness

connectors.

3. Check continuity between PNP switch harness connector and

ground.

Is the inspection result normal?

YES

>> Replace PNP switch.

NO

>> Repair harness or connector.

IPDM E/R

Condition

Continuity

Connector

Terminals

F10

72

74

PNP switch

position

P or N

Yes

Other

No

ALKIA1313ZZ

IPDM E/R

Ground

Continuity

Connector

Terminal

F10

72

Ground

No

74

ALKIA1314ZZ

Park/neutral position switch

IPDM E/R

Continuity

Connector

Terminal

Connector

Terminal

A: F25

1

B: F10

74

Yes

2

72

Park/neutral position switch

Ground

Continuity

Connector

Terminal

A: F25

1

Ground

No

2

ALKIA1315ZZ

SEC-452

< COMPONENT DIAGNOSIS >

[SEDAN WITHOUT INTELLIGENT KEY]

B2110 PNP/CLUTCH INTERLOCK SWITCH

B2110 PNP/CLUTCH INTERLOCK SWITCH

Description

INFOID:0000000004499107

IPDM E/R confirms the shift position with the following signals.

• Park/neutral position (PNP) switch

• Shift position signal from BCM (CAN)

DTC Logic

INFOID:0000000004499108

DTC DETECTION LOGIC

NOTE:

• If DTC B2110 is displayed with DTC U1000, first perform the trouble diagnosis for DTC U1000. Refer to

SEC-433, "DTC Logic"

.

• If DTC B2110 is displayed with DTC U1010, first perform the trouble diagnosis for DTC U1010. Refer to

SEC-434, "DTC Logic"

.

DTC CONFIRMATION PROCEDURE

1.

PERFORM DTC CONFIRMATION PROCEDURE

1. Turn the ignition switch ON under the following conditions and wait for at least 1 second.

-

CVT selector lever is in the P or N position

-

Do not depress the brake pedal

2. Check “Self diagnostic result” with CONSULT-III.
Is DTC detected?

YES

>> Refer to

SEC-452, "Diagnosis Procedure"

.

NO

>> Inspection End.

Diagnosis Procedure

INFOID:0000000004499109

1.

CHECK DTC WITH BCM

Refer to

BCS-91, "DTC Index"

.

Is the inspection result normal?

YES

>> GO TO 2

NO

>> Repair or replace malfunctioning parts.

2.

CHECK PNP SWITCH INPUT SIGNAL

1. Turn ignition switch OFF.

2. Disconnect IPDM E/R harness connector.

3. Turn ignition switch ON.

4. Check voltage between IPDM E/R harness connector and

ground under following condition.

Is the inspection result normal?

DTC No.

Trouble diagnosis

name

DTC detecting condition

Possible cause

B2110

INTER LOCK/PNP
SW

IPDM E/R detects mismatch between the signals
below for 1 second or more.
• Shift NP switch input signal

• Harness or connectors

[Park/neutral position (PNP) switch
circuit is open or shorted]

• Park/neutral position (PNP) switch

IPDM E/R

Ground

Condition

Voltage (V)

Connector

Terminal

E18

30

Ground

CVT selector

lever

P or N

0

Other than

above

Battery voltage

ALKIA1308ZZ

B2110 PNP/CLUTCH INTERLOCK SWITCH

SEC-453

< COMPONENT DIAGNOSIS >

[SEDAN WITHOUT INTELLIGENT KEY]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

YES

>> Replace IPDM E/R. Refer to

PCS-48, "Removal and Installation"

.

NO

>> GO TO 3

3.

CHECK PNP SWITCH CIRCUIT FOR CONTINUITY

1. Turn ignition switch OFF.

2. Check continuity between IPDM E/R harness connector termi-

nals 72 and 74.

Is the inspection result normal?

YES

>> GO TO 4

NO

>> GO TO 5

4.

CHECK PNP SWITCH CIRCUIT FOR SHORT

Check continuity between IPDM E/R harness connector terminals

72, 74 and ground.

Is the inspection result normal?

YES

>> Replace the IPDM E/R. Refer to

PCS-48, "Removal and

Installation"

.

NO

>> Repair or replace harness.

5.

CHECK PNP SWITCH INPUT SIGNAL CIRCUIT

1. Disconnect PNP switch harness connector.

2. Check continuity between PNP switch and IPDM E/R harness

connectors.

3. Check continuity between PNP switch harness connector and

ground.

Is the inspection result normal?

YES

>> Replace PNP switch.

NO

>> Repair harness or connector.

Component Inspection

INFOID:0000000004499110

1.

CHECK CLUTCH INTERLOCK SWITCH

1. Turn ignition switch OFF.

IPDM E/R

Condition

Continuity

Connector

Terminals

F10

72

74

PNP switch

position

P or N

Yes

Other

No

ALKIA1313ZZ

IPDM E/R

Ground

Continuity

Connector

Terminal

F10

72

Ground

No

74

ALKIA1314ZZ

Park/neutral position switch

IPDM E/R

Continuity

Connector

Terminal

Connector

Terminal

A: F25

1

B: F10

74

Yes

2

72

Park/neutral position switch

Ground

Continuity

Connector

Terminal

A: F25

1

Ground

No

2

ALKIA1315ZZ
