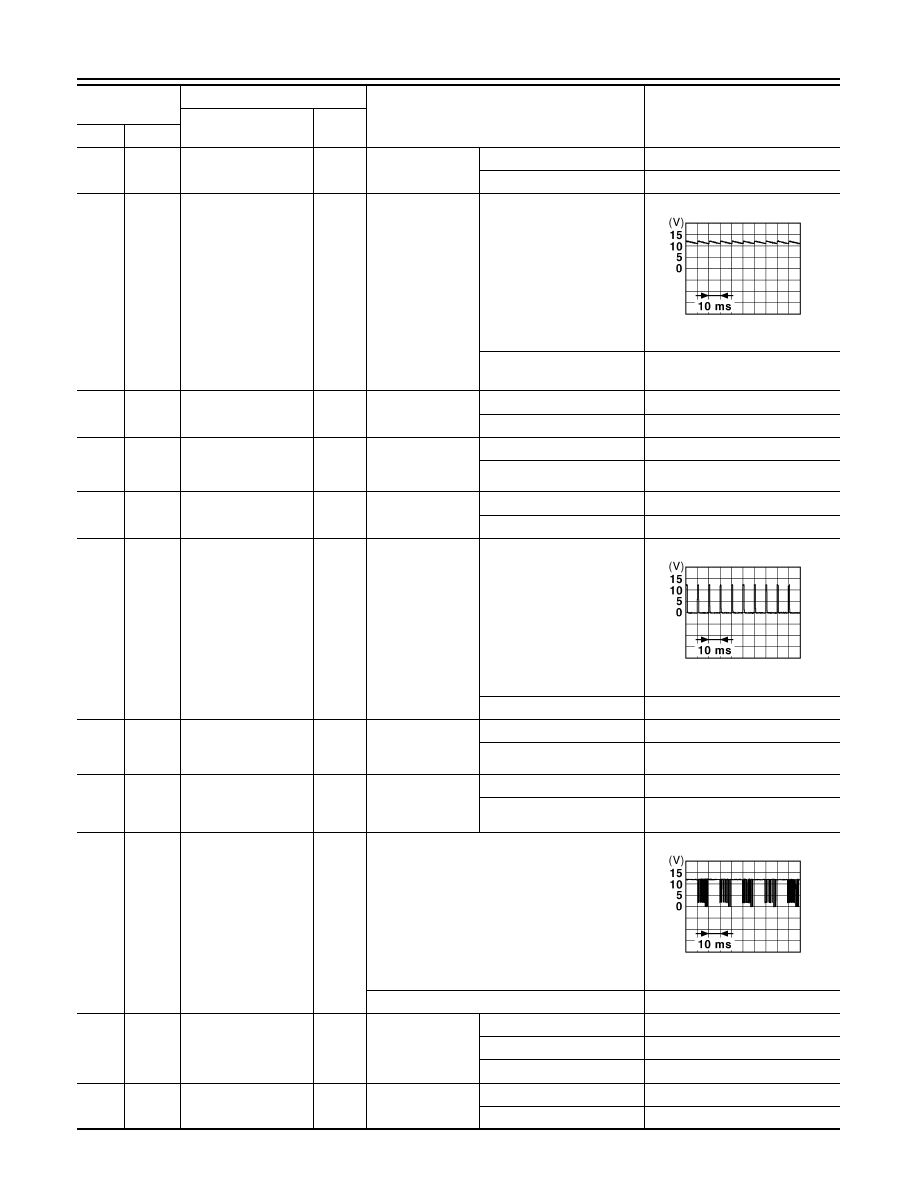

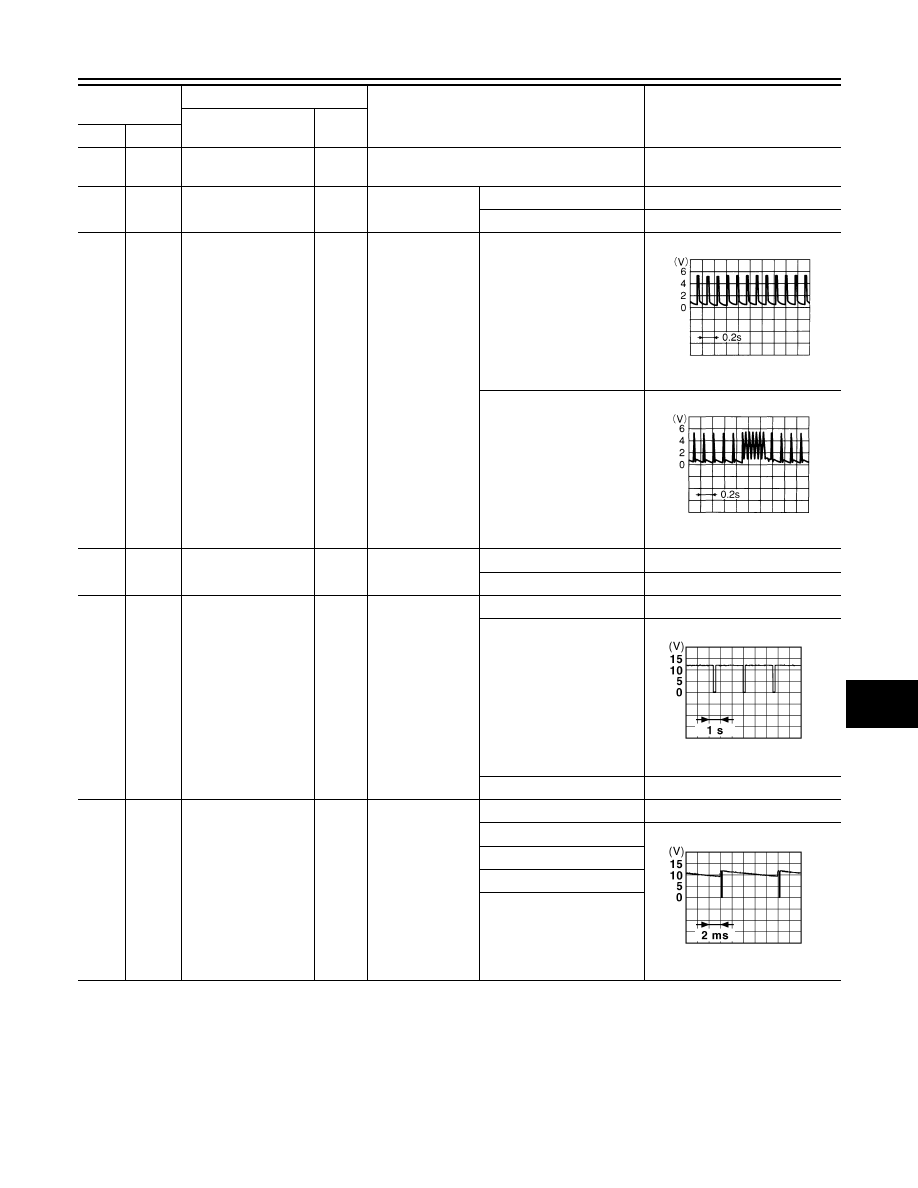

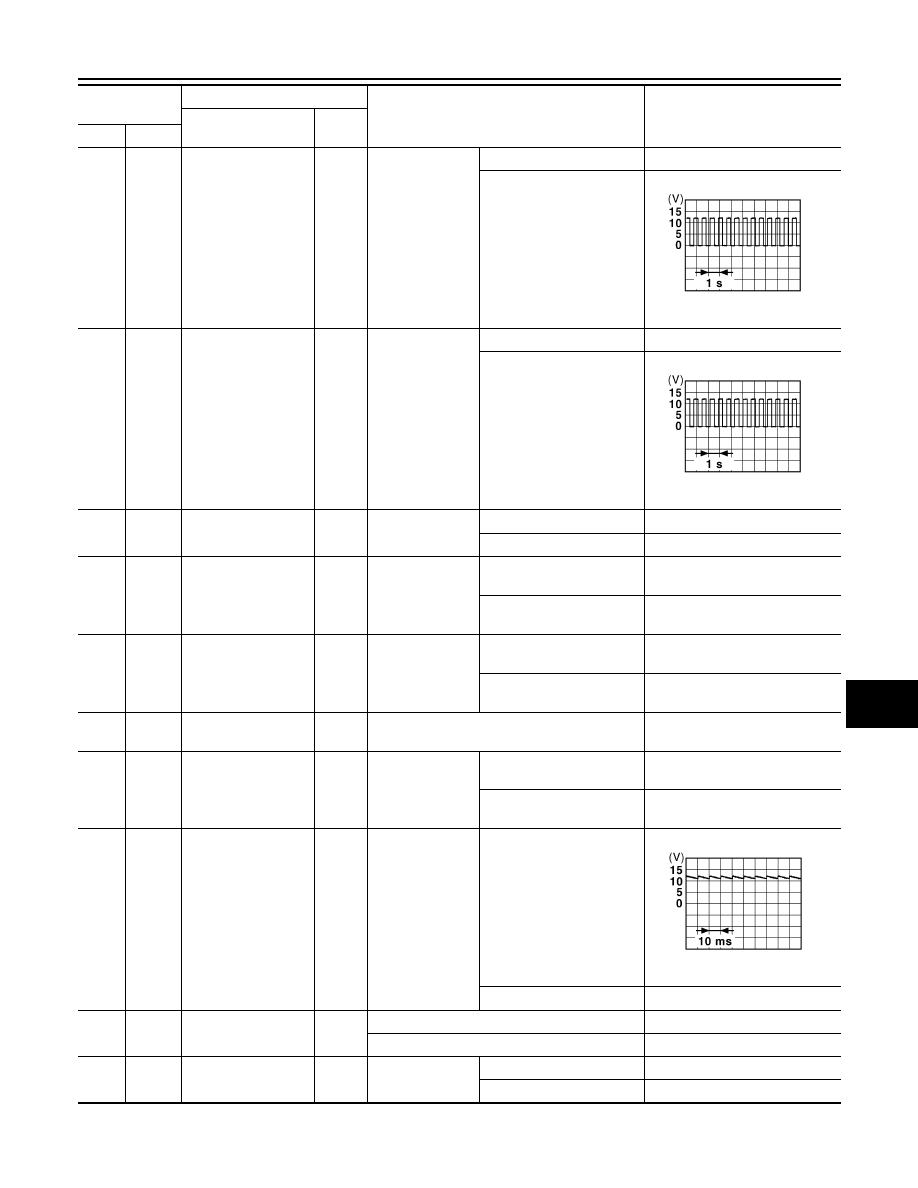

SEC-330 < ECU DIAGNOSIS > [SEDAN WITH INTELLIGENT KEY] BCM (BODY CONTROL MODULE) Terminal No. (Wire color) Description Condition Value (Approx.) Signal name Input/ Output (+) (-) 1 (W/B) Ground Battery power supply Input Ignition switch OFF Battery voltage 2 (R/Y) Ground Battery power supply Output Ignition switch OFF Battery voltage 3 (L/W) Ground Ignition power supply Output Ignition switch ON Battery voltage 4 (P/W) Ground Interior room lamp Output After passing the interior room lamp battery sav- 0V Any other time after passing the interior room Battery voltage 5 (G/Y) Ground Front door RH UN- Output Front door RH UNLOCK (actuator is acti- Battery voltage Other than UNLOCK (actu- 0V 7 (R/W) Ground Step lamp Output Step lamp ON 0V OFF Battery voltage 8 (V) Ground All doors LOCK Output All doors LOCK (actuator is activat- Battery voltage Other than LOCK (actuator 0V 9 (G) Ground Front door LH UN- Output Front door LH UNLOCK (actuator is acti- Battery voltage Other than UNLOCK (actu- 0V 10 1 (G/Y) Ground Rear door RH and Output Rear door RH UNLOCK (actuator is acti- Battery voltage Other than UNLOCK (actu- 0V 11 (Y/R) Ground Battery power supply Input Ignition switch OFF Battery voltage 13 (B) Ground Ground — Ignition switch ON 0V 14 (R/Y) Ground Engine switch (push Input Tail lamp OFF 0V ON NOTE: 15 (Y/L) Ground ACC indicator lamp Output Ignition switch OFF Battery voltage ACC or ON 0V JSNIA0010GB |
