SEC-218

< FUNCTION DIAGNOSIS >

[SEDAN WITH INTELLIGENT KEY]

INTELLIGENT KEY SYSTEM/ENGINE START FUNCTION

*1: When the CVT selector lever position is N position, the engine start condition is different according to the vehicle speed.
• At vehicle speed of 4 km/h (2 MPH) or less, the engine can start only when the brake pedal is depressed.
• At vehicle speed of 4 km/h (2 MPH) or more, the engine can start even if the brake pedal is not depressed. (It is the same as “Engine

stall return operation while driving”.)

*2: When the CVT selector lever position is in any position other than P position and when the vehicle speed is 5 km/h (3 MPH) or more,
the engine stop condition is different.
• Press and hold the push-button ignition switch for 2 seconds or more. (When the push-button ignition switch is pressed for too short a

time, the operation may be invalid, so properly press and hold to prevent an incorrect operation.)

• Press the push-button ignition switch 3 times or more within 1.5 seconds. (Emergency stop operation)

Engine is running

→

ACC
(Engine stop)

—

Any position other than P (*2)

1

Engine stall return oper-
ation while driving

—

P position

1

Power supply position

Engine start/stop condition

Push-button ignition switch op-

eration frequency

Brake pedal (CVT)
/clutch pedal (M/T)

CVT selector lever position

INTELLIGENT KEY SYSTEM/ENGINE START FUNCTION

SEC-219

< FUNCTION DIAGNOSIS >

[SEDAN WITH INTELLIGENT KEY]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

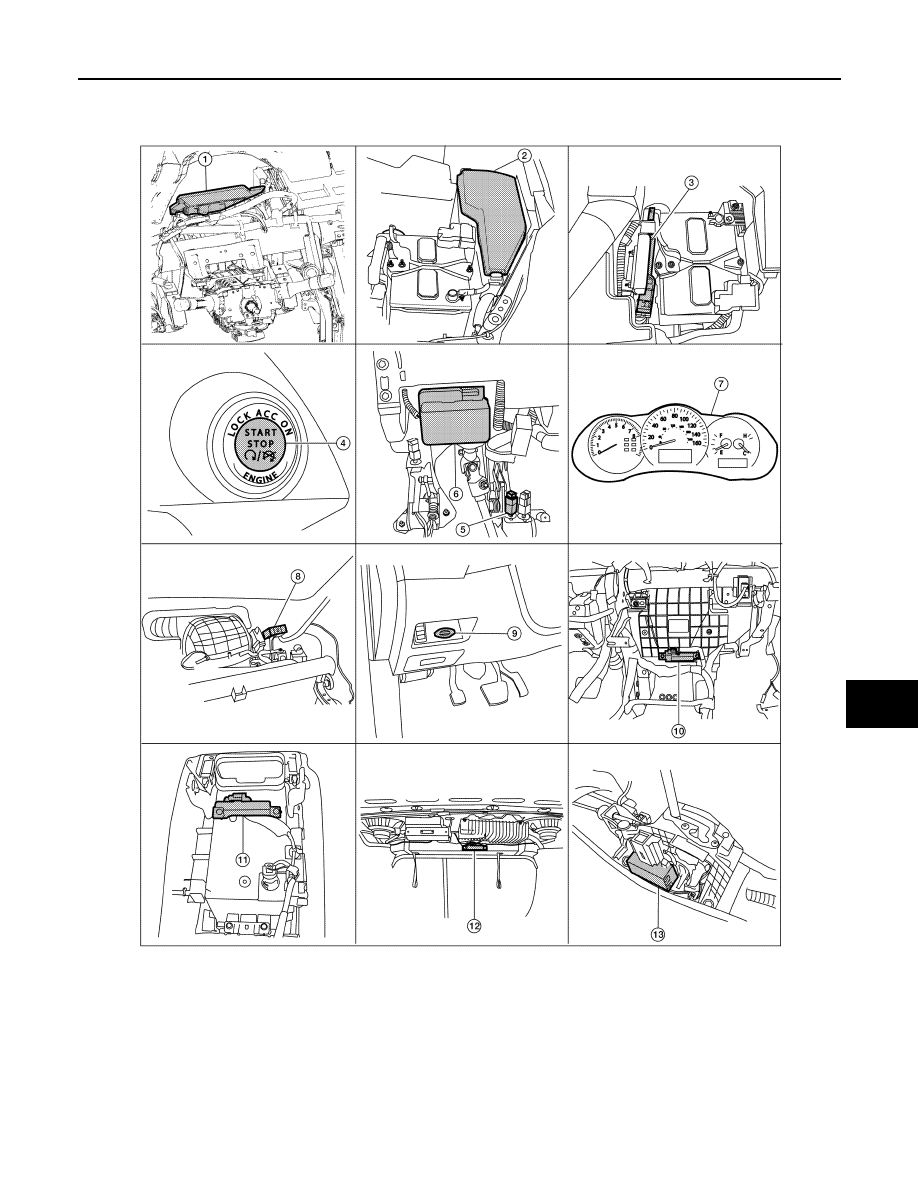

Component Parts Location

INFOID:0000000004206175

1.

Body control module (view with instru-
ment panel removed)

2.

IPDM E/R

3.

ECM

4.

Push button ignition switch

5.

Stop lamp switch (view with lower driv-
er instrument panel removed)

6.

Steering lock unit (steering column)

7.

Combination meter

8.

Remote keyless entry receiver (view
with instrument panel removed)

9.

Key slot

10. Instrument panel antenna (view with in-

strument panel removed)

11. Front console antenna (bottom view of

console)

12.  Rear parcel shelf antenna

13. CVT device (park position switch)

ALKIA0026ZZ

SEC-220

< FUNCTION DIAGNOSIS >

[SEDAN WITH INTELLIGENT KEY]

INTELLIGENT KEY SYSTEM/ENGINE START FUNCTION

Component Description

INFOID:0000000004206176

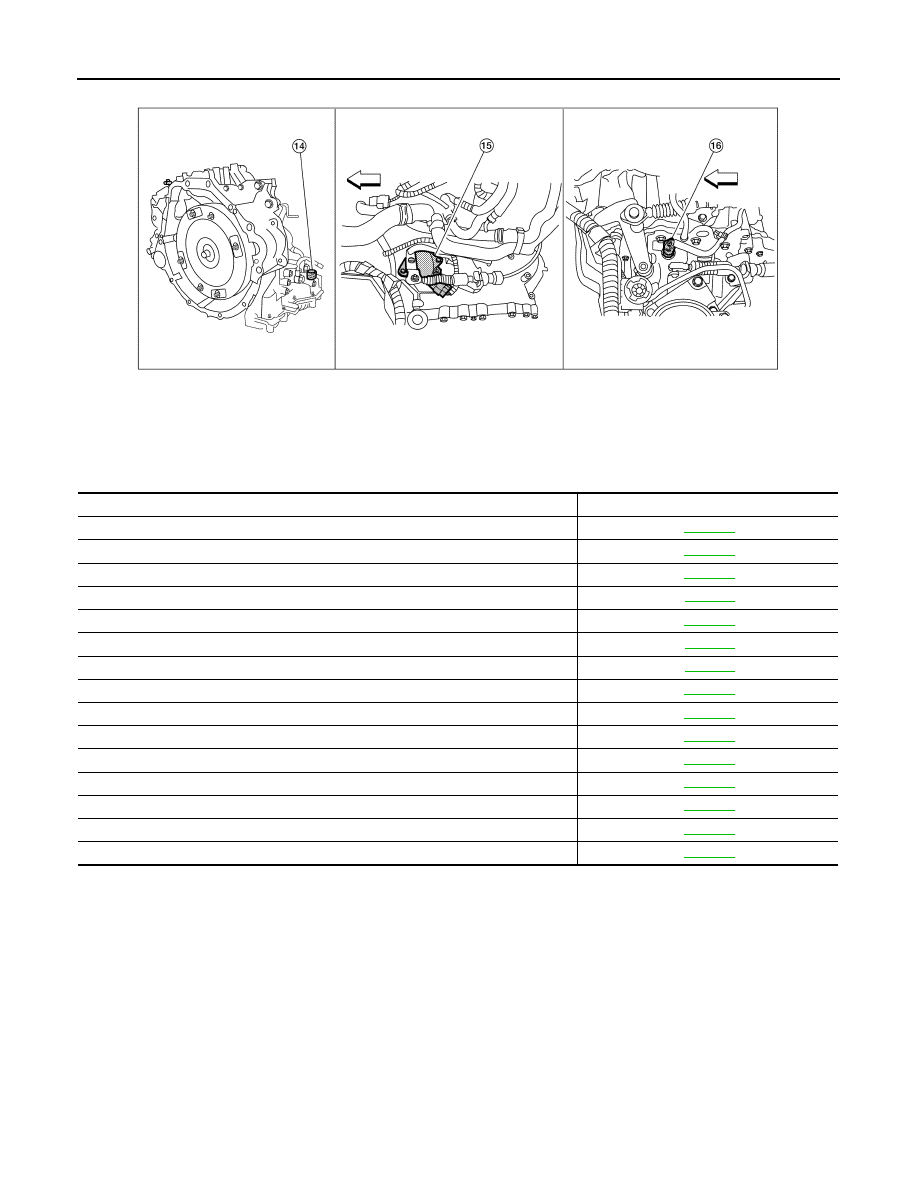

14. Park neutral position switch connec-

tor (switch inside trans) (CVT/VQ)

15. Park neutral position switch (CVT/

QR)

16. Park neutral position switch (M/T)

ALKIA0090ZZ

Component Reference

BCM

SEC-306

Steering lock unit

SEC-296

Push-button ignition switch

SEC-271

Door switch

DLK-293

CVT device (park position switch)

SEC-275

Inside key antenna

DLK-283

Remote keyless entry receiver

DLK-337

Stop lamp switch

SEC-269

Park/neutral position switch

SEC-283

Clutch switch

SEC-253

Steering lock relay

SEC-242

Starter relay

SEC-249

Starter control relay

SEC-247

Security indicator

SEC-323

Key warning lamp

SEC-322

NVIS (NISSAN VEHICLE IMMOBILIZER SYSTEM-NATS)

SEC-221

< FUNCTION DIAGNOSIS >

[SEDAN WITH INTELLIGENT KEY]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

NVIS (NISSAN VEHICLE IMMOBILIZER SYSTEM-NATS)

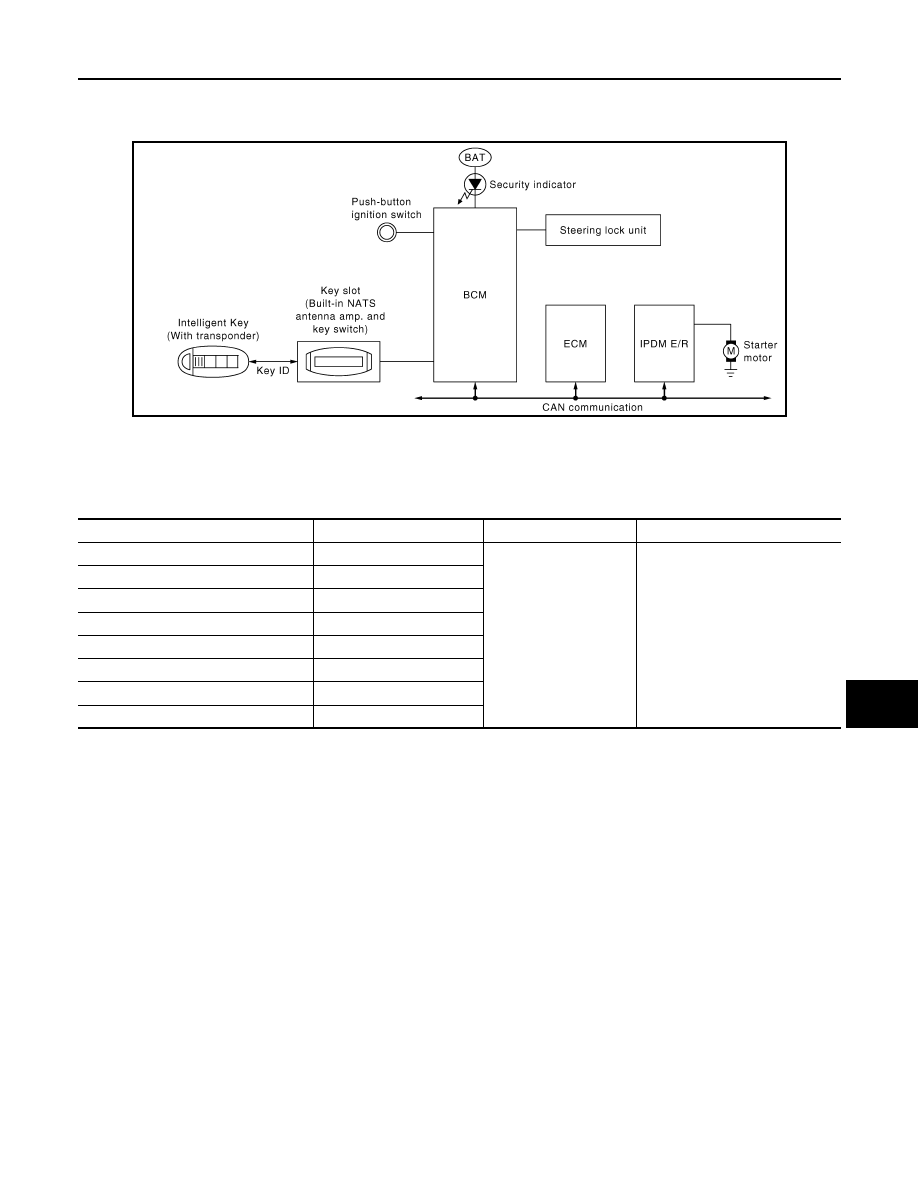

System Diagram

INFOID:0000000004206177

System Description

INFOID:0000000004206178

INPUT/OUTPUT SIGNAL CHART

SYSTEM DESCRIPTION

• The NVIS (NATS) is an anti-theft system by registering an Intelligent Key ID in to the vehicle and prevents

the engine being started by an unregistered Intelligent Key. It has a higher protection against auto thefts that

duplicate mechanical key.

• It performs the ID verification when starting the engine in the same way as the Intelligent Key system. But, it

performs the NVIS (NATS) ID verification when inserting the Intelligent Key and performs the Intelligent Key

ID verification when carrying the Intelligent Key.

• The Intelligent Key system of L32 is not the same as the conventional models. The mechanical key inte-

grated in the Intelligent Key cannot start the engine. When the Intelligent Key battery is discharged, the NVIS

(NATS) ID verification memorized to the transponder integrated with Intelligent Key is performed by inserting

the Intelligent Key into the key slot. If the verification results are OK, the engine start operation can be per-

formed by the push-button ignition switch operation.

• Locate the security indicator and apply the anti-theft system equipment sticker, forewarn that the NVIS

(NATS) is onboard with the model.

• The security indicator always blinks when the Intelligent Key is removed from the key slot and when the

power supply position is in LOCK position.

• Intelligent Key can be registered up to 4 keys (Including the standard ignition key) on request from the

owner.

• The specified registration is required when replacing ECM, BCM or Intelligent Key. The registrations proce-

dure for NVIS (NATS) and registration procedure for Intelligent Key when installing the BCM, refer to CON-

SULT-III Operation Manual NATS-IVIS/NVIS.

JMKIA0058GB

Switch

Input signal to BCM

BCM function

Actuator

Push-button ignition switch

Push switch

NVIS (NATS)

• Steering lock relay
• Steering lock unit
• Starter relay (IPDM E/R)
• Starter control relay (IPDM E/R)
• Starter motor
• KEY warning lamp
• Security indicator lamp

CVT device (CVT models)

P range

PNP switch (CVT models)

N, P range

Clutch interlock switch (M/T models)

Clutch ON/OFF

Stop lamp switch

Brake ON/OFF

Key slot

Key ID

Each door switch

Door open/close

ECM

Engine status signal
