SEC-206

< SYMPTOM DIAGNOSIS >

[COUPE]

NISSAN VEHICLE IMMOBILIZER SYSTEM-NATS SYMPTOMS

NISSAN VEHICLE IMMOBILIZER SYSTEM-NATS SYMPTOMS

Symptom Table

INFOID:0000000004206165

Security indicator does not turn ON or flash.

CAUTION:

• Follow Trouble Diagnosis Flowchart referring to “

SEC-10, "Work Flow"

”. Determine malfunctioning

condition before performing this diagnosis.

• Check that vehicle is under the condition shown in “Conditions of vehicle” before starting diagno-

sis.

• Check systems shown in the “Action” column in this order.

CONDITIONS OF VEHICLE (OPERATING CONDITIONS)

• Intelligent Key is not inserted into key slot.

• Engine switch is not depressed.

Action

Reference page

1. Check vehicle security indicator

SEC-124

2. Check Intermittent Incident

GI-42

KEY SLOT

SEC-207

< ON-VEHICLE REPAIR >

[COUPE]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

ON-VEHICLE REPAIR

KEY SLOT

Removal and Installation

INFOID:0000000004206168

REMOVAL

1. Remove the instrument lower panel LH. Refer to

IP-12, "Removal and Installation"

.

2. Disconnect key slot connector.
3. Remove the key slot screw (A), and then remove key slot (1)

from instrument lower panel LH (2).

INSTALLATION

Installation is in the reverse order of removal.

AWKIA1495ZZ

SEC-208

< ON-VEHICLE REPAIR >

[COUPE]

PUSH BUTTON IGNITION SWITCH

PUSH BUTTON IGNITION SWITCH

Removal and Installation

INFOID:0000000004206169

REMOVAL

1. Remove the cluster lid A assembly. Refer to

IP-12, "Removal and Installation"

.

2. Release the pawls (A) and remove the push-button ignition

switch (1) from cluster lid A.

INSTALLATION

Installation is in the reverse order of removal.

JMKIA0167ZZ

DIAGNOSIS AND REPAIR WORKFLOW

SEC-209

< BASIC INSPECTION >

[SEDAN WITH INTELLIGENT KEY]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

BASIC INSPECTION

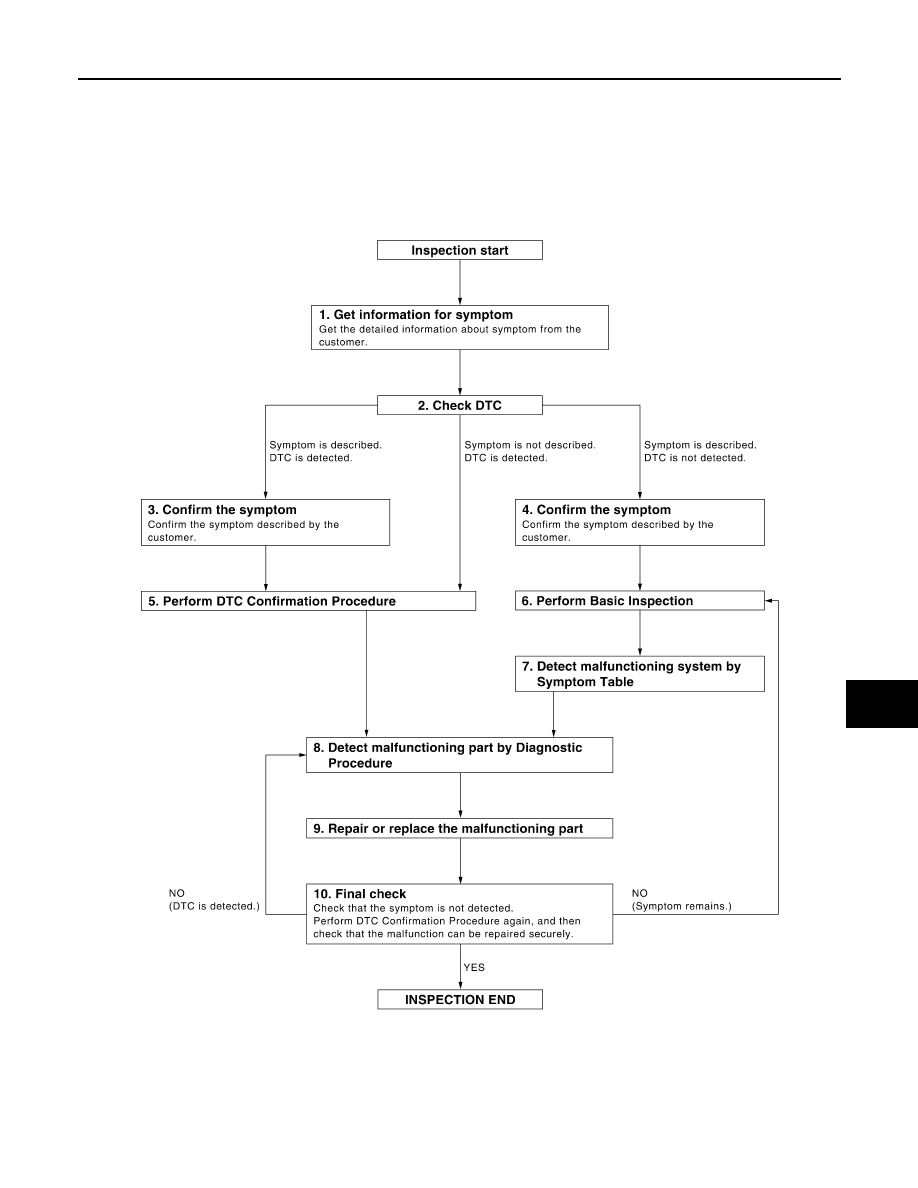

DIAGNOSIS AND REPAIR WORKFLOW

Work Flow

INFOID:0000000004206170

OVERALL SEQUENCE

DETAILED FLOW

ALKIA0246GB
