ON-VEHICLE REPAIR

POWER SOCKET

Removal and Installation

INFOID:0000000004205280

FRONT POWER SOCKET

Removal

1. Remove the instrument panel storage bin or CD changer finisher (if equipped). Refer to

IP-17, "Exploded

View"

.

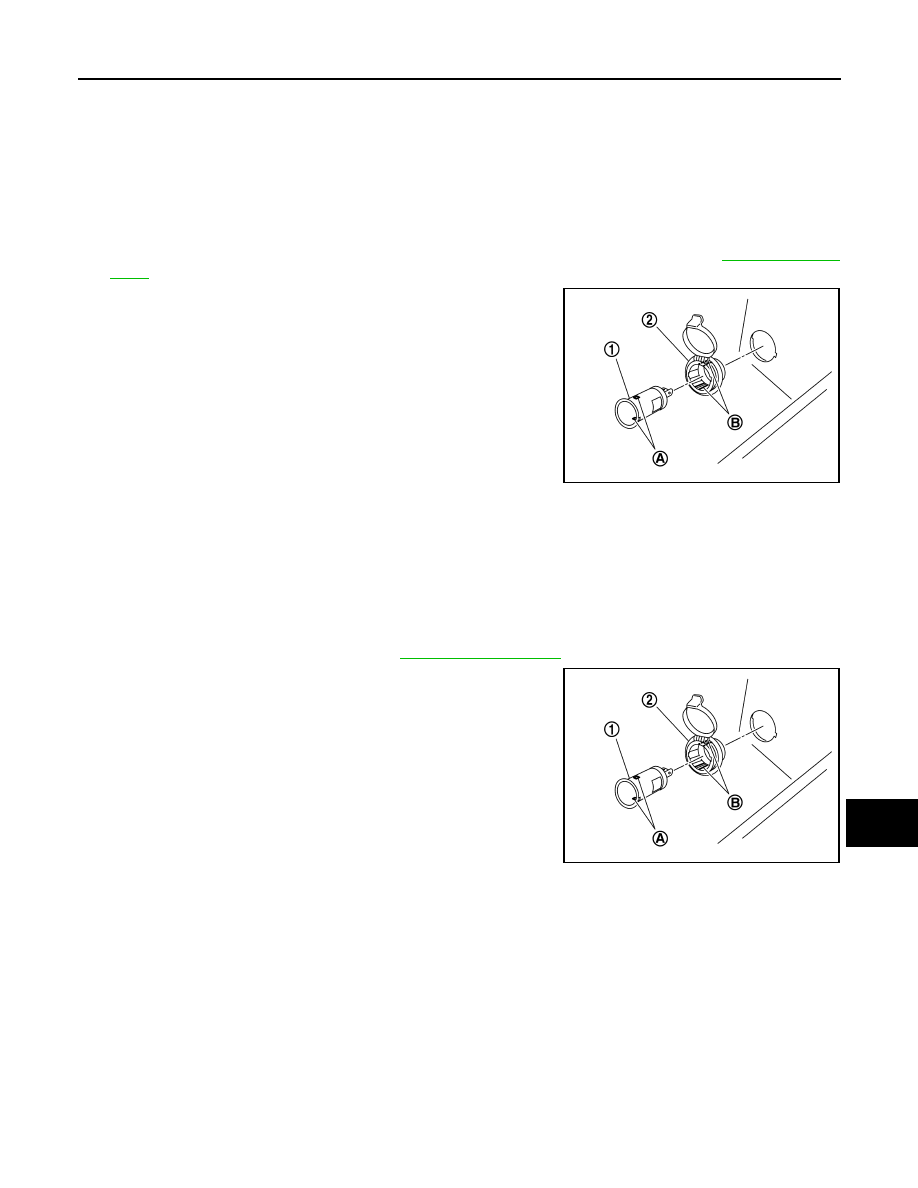

2. Remove the inner socket (1) from the ring (2) while pressing the

hooks (B) on the ring (2) out from the square holes (A).

3. Remove ring (2) from the center console box while pressing in

the pawls.

Installation

Installation is in the reverse order of removal.

CAUTION:

Align the notches of the inner socket and ring with the center console box when installing.

FRONT CONSOLE POWER SOCKET

Removal

1. Disconnect the negative battery terminal.
2. Remove the center console box. Refer to

IP-17, "Exploded View"

.

3. Remove the inner socket (1) from the ring (2) while pressing the

hooks (B) on the ring (2) out from the square holes (A).

4. Remove ring (2) from the center console box while pressing in

the pawls.

Installation

Installation is in the reverse order of removal.

CAUTION:

Align the notches of the inner socket and ring with the center console box when installing.

SKIB4263E

SKIB4263E
