BCM (BODY CONTROL MODULE)

PWC-139

< ECU DIAGNOSIS >

[LH ONLY ANTI-PINCH-SEDAN]

C

D

E

F

G

H

I

J

L

M

A

B

PWC

N

O

P

ACC RLY-F/B

Ignition switch OFF

OFF

Ignition switch ACC or ON

ON

CLUTCH SW

When the clutch pedal is not depressed

OFF

When the clutch pedal is depressed

ON

BRAKE SW 1

When the brake pedal is not depressed

ON

When the brake pedal is depressed

OFF

DETE/CANCL SW

When selector lever is in P position

OFF

When selector lever is in any position other than P

ON

SFT PN/N SW

When selector lever is in any position other than P or N

OFF

When selector lever is in P or N position

ON

S/L-LOCK

Electronic steering column lock LOCK status

OFF

Electronic steering column lock UNLOCK status

ON

S/L-UNLOCK

Electronic steering column lock UNLOCK status

OFF

Electronic steering column lock LOCK status

ON

S/L RELAY-F/B

Ignition switch OFF or ACC

OFF

Ignition switch ON

ON

UNLK SEN-DR

Driver door UNLOCK status

OFF

Driver door LOCK status

ON

PUSH SW-IPDM

When engine switch (push switch) is not pressed

OFF

When engine switch (push switch) is pressed

ON

IGN RLY1 F/B

Ignition switch OFF or ACC

OFF

Ignition switch ON

ON

DETE SW -IPDM

When selector lever is in P position

OFF

When selector lever is in any position other than P

ON

SFT PN -IPDM

When selector lever is in any position other than P or N

OFF

When selector lever is in P or N position

ON

SFT P-MET

When selector lever is in any position other than P

OFF

When selector lever is in P position

ON

SFT N-MET

When selector lever is in any position other than N

OFF

When selector lever is in N position

ON

ENGINE STATE

Engine stopped

STOP

While the engine stalls

STALL

At engine cranking

CRANK

Engine running

RUN

S/L LOCK-IPDM

Electronic steering column lock LOCK status

OFF

Electronic steering column lock UNLOCK status

ON

S/L UNLCK-IPDM

Electronic steering column lock UNLOCK status

OFF

Electronic steering column lock LOCK status

ON

S/L RELAY-REQ

Ignition switch OFF or ACC

OFF

Ignition switch ON

ON

VEH SPEED 1

While driving

Equivalent to speedometer reading

VEH SPEED 2

While driving

Equivalent to speedometer reading

Monitor Item

Condition

Value/Status

PWC-140

< ECU DIAGNOSIS >

[LH ONLY ANTI-PINCH-SEDAN]

BCM (BODY CONTROL MODULE)

DOOR STAT-DR

Driver door LOCK status

LOCK

Wait with selective UNLOCK operation (5 seconds)

READY

Driver door UNLOCK status

UNLK

DOOR STAT-AS

Passenger door LOCK status

LOCK

Wait with selective UNLOCK operation (5 seconds)

READY

Passenger door UNLOCK status

UNLK

ID OK FLAG

Ignition switch ACC or ON

RESET

Ignition switch OFF

SET

PRMT ENG STAT

When the engine start is prohibited

RESET

When the engine start is permitted

SET

PRMT RKE STAT

NOTE:
This item is displayed, but cannot be monitored.

RESET

KEY SW -SLOT

When Intelligent Key is not inserted into key slot

OFF

When Intelligent Key is inserted into key slot

ON

RKE OPE COUN1

During the operation of Intelligent Key

Operation frequency of Intelligent Key

RKE OPE COUN2

NOTE:
This item is displayed, but cannot be monitored.

Operation frequency of Intelligent Key

CONFRM ID ALL

The key ID that the key slot receives does not accord with any key
ID registered to BCM.

YET

The key ID that the key slot receives accords with any key ID regis-
tered to BCM.

DONE

CONFIRM ID4

The key ID that the key slot receives does not accord with the fourth
key ID registered to BCM.

YET

The key ID that the key slot receives accords with the fourth key ID
registered to BCM.

DONE

CONFIRM ID3

The key ID that the key slot receives does not accord with the third
key ID registered to BCM.

YET

The key ID that the key slot receives accords with the third key ID
registered to BCM.

DONE

CONFIRM ID2

The key ID that the key slot receives does not accord with the sec-
ond key ID registered to BCM.

YET

The key ID that the key slot receives accords with the second key
ID registered to BCM.

DONE

CONFIRM ID1

The key ID that the key slot receives does not accord with the first
key ID registered to BCM.

YET

The key ID that the key slot receives accords with the first key ID
registered to BCM.

DONE

TP 4

The ID of fourth key is not registered to BCM

YET

The ID of fourth key is registered to BCM

DONE

TP 3

The ID of third key is not registered to BCM

YET

The ID of third key is registered to BCM

DONE

TP 2

The ID of second key is not registered to BCM

YET

The ID of second key is registered to BCM

DONE

TP 1

The ID of first key is not registered to BCM

YET

The ID of first key is registered to BCM

DONE

AIR PRESS FL

Ignition switch ON (only when the signal from the transmitter is re-
ceived)

Air pressure of front LH tire

AIR PRESS FR

Ignition switch ON (only when the signal from the transmitter is re-
ceived)

Air pressure of front RH tire

Monitor Item

Condition

Value/Status

BCM (BODY CONTROL MODULE)

PWC-141

< ECU DIAGNOSIS >

[LH ONLY ANTI-PINCH-SEDAN]

C

D

E

F

G

H

I

J

L

M

A

B

PWC

N

O

P

AIR PRESS RR

Ignition switch ON (only when the signal from the transmitter is re-
ceived)

Air pressure of rear RH tire

AIR PRESS RL

Ignition switch ON (only when the signal from the transmitter is re-
ceived)

Air pressure of rear LH tire

ID REGST FL1

When ID of front LH tire transmitter is registered

DONE

When ID of front LH tire transmitter is not registered

YET

ID REGST FR1

When ID of front RH tire transmitter is registered

DONE

When ID of front RH tire transmitter is not registered

YET

ID REGST RR1

When ID of rear RH tire transmitter is registered

DONE

When ID of rear RH tire transmitter is not registered

YET

ID REGST RL1

When ID of rear LH tire transmitter is registered

DONE

When ID of rear LH tire transmitter is not registered

YET

WARNING LAMP

Tire pressure indicator OFF

OFF

Tire pressure indicator ON

ON

BUZZER

Tire pressure warning alarm is not sounding

OFF

Tire pressure warning alarm is sounding

ON

Monitor Item

Condition

Value/Status

PWC-142

< ECU DIAGNOSIS >

[LH ONLY ANTI-PINCH-SEDAN]

BCM (BODY CONTROL MODULE)

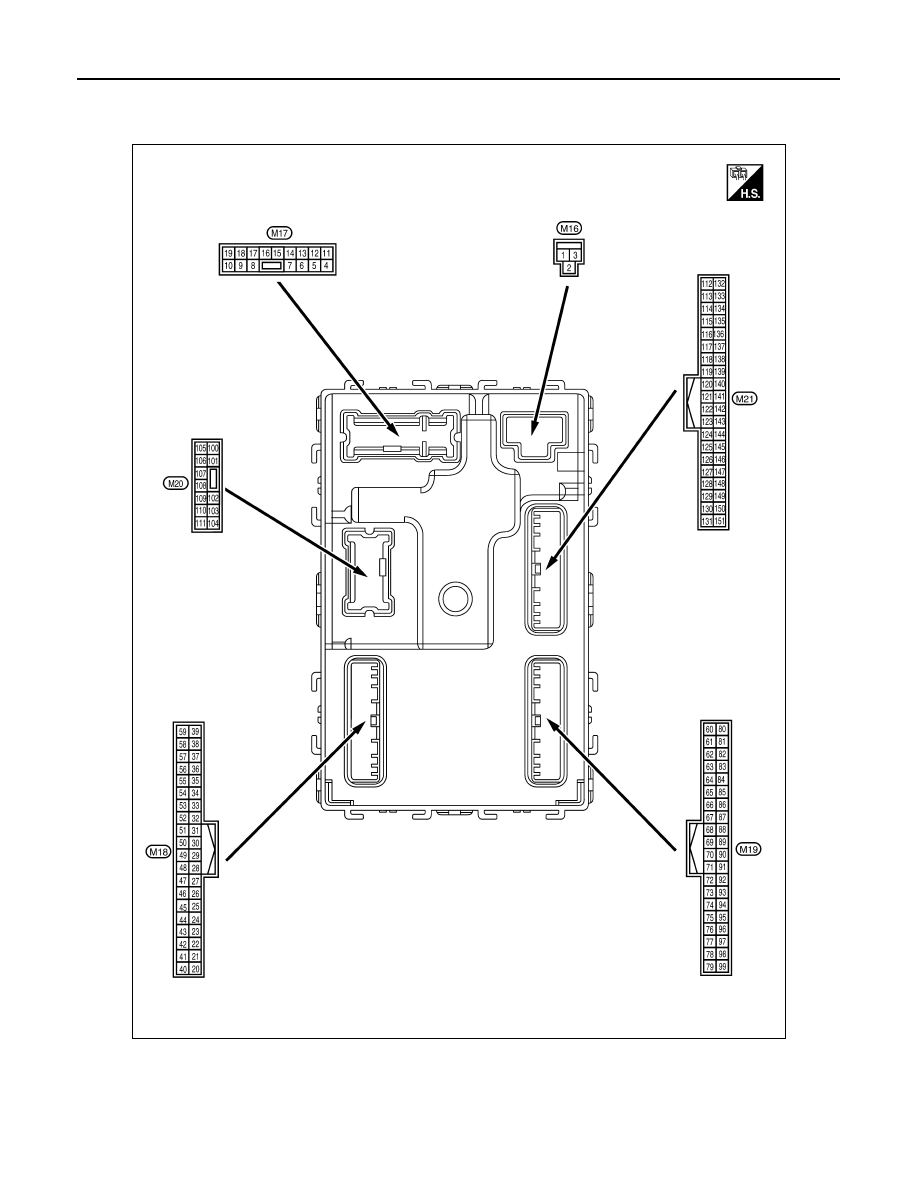

Terminal Layout

INFOID:0000000004498119

Physical Values

INFOID:0000000004498120

ALMIA0127ZZ
