F3

B106

W/8

: To D301

C3 B121

BR/23

: BOSE speaker amp.

F3

B107

—

: Body ground

C3 B122

BR/14

: BOSE speaker amp.

F3

B108

W/3

: Front door switch RH

C3 B123

W/16

: Satellite radio tuner or pre-wiring
  for satellite radio tuner

E3

B112

Y/2

: Front RH side air bag module

C4 B124

W/2

: Rear subwoofer RH

E3

B113

Y/12

: Air bag diagnosis sensor unit

C3 B125

W/8

: Bluetooth control unit

E4

B114

—

: Body ground

B3

B126

W/32

: Bluetooth control unit

F4

B115

Y/2

: Front RH seat belt pre-tensioner

E4

B127

—

: Body ground

PG-120

< COMPONENT DIAGNOSIS >

[SEDAN]

HARNESS

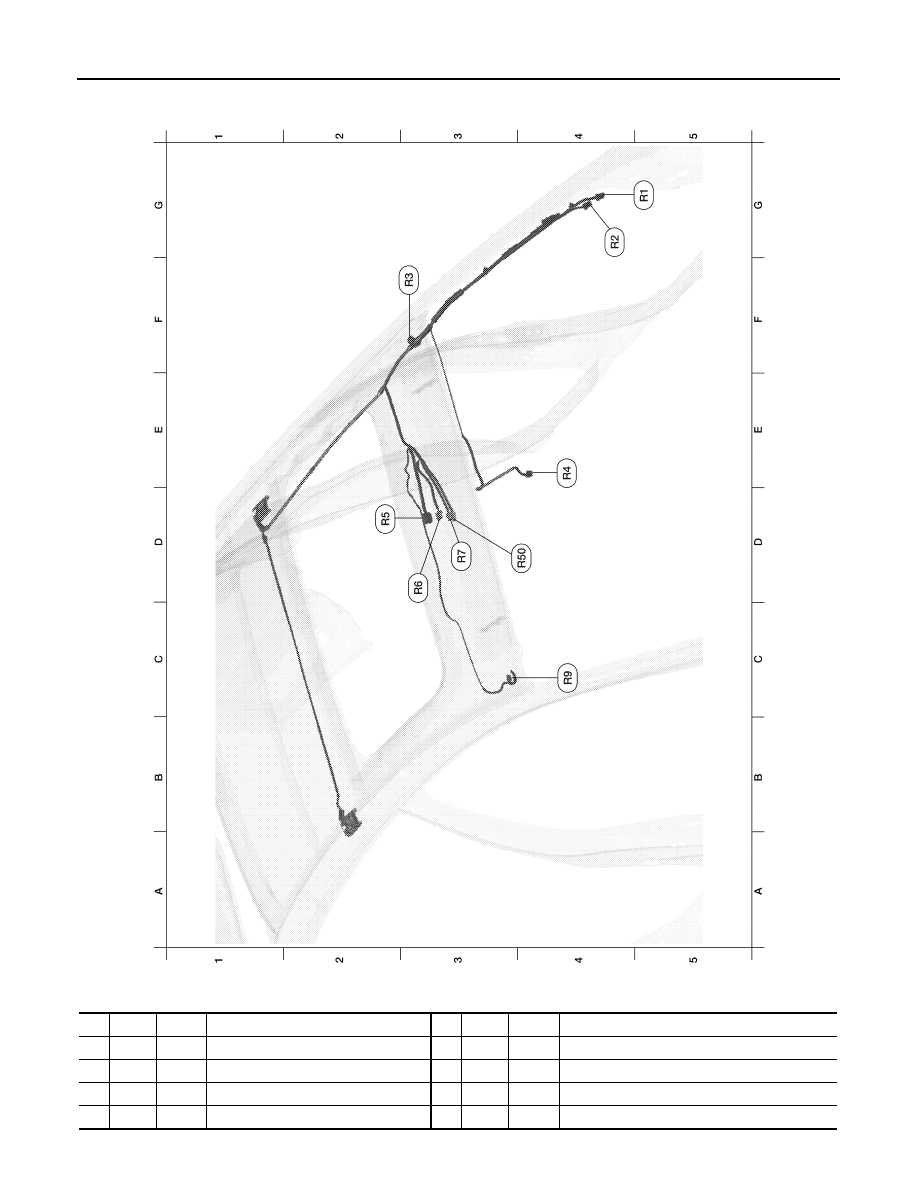

ROOM LAMP HARNESS

ABMIA0552GB

G5 R1

W/16

: To M77

D3 R6

W/3

: Sunroof switch

G4 R2

W/4

: To M13

D3 R7

W/4

: Microphone

F3

R3

W/2

: Vanity mirror  lamp LH

C4 R9

W/2

: Vanity mirror  lamp RH

E4

R4

B/10

: Auto anti-dazzling inside mirror

D4 R50

GR/6

: Front room/map lamp assembly

D2 R5

W/10

: Sunroof motor assembly

PG

HARNESS

PG-121

< COMPONENT DIAGNOSIS >

[SEDAN]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

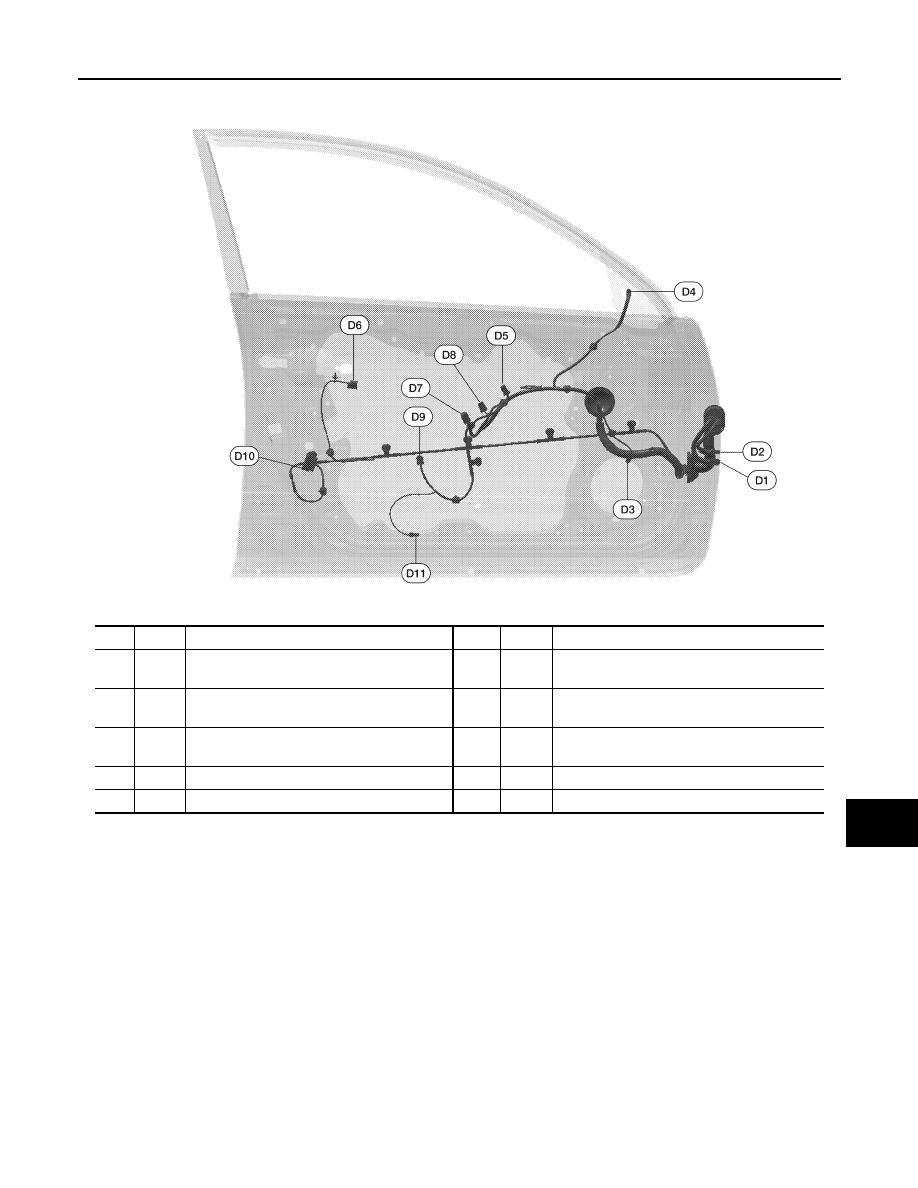

FRONT DOOR LH HARNESS

ALMIA0026GB

D1

W/16

: To M11

D6

B/4

: Front outside handle LH

D2

W/16

: To M12

D7

W/16

: Main power window and door lock/unlock
  switch

D3

W/2

: Front door speaker LH (with base audio
  system)

D8

W/3

: Main power window and door lock/unlock
  switch

D3

BR/2

: Front door speaker LH (with BOSE audio
  system)

D9

W/6

: Front power window motor LH

D4

W/8

: Door mirror LH

D10

GR/6

: Front door lock assembly LH

D5

W/16

: Door mirror remote control switch

D11

W/2

: Step lamp LH

PG-122

< COMPONENT DIAGNOSIS >

[SEDAN]

HARNESS

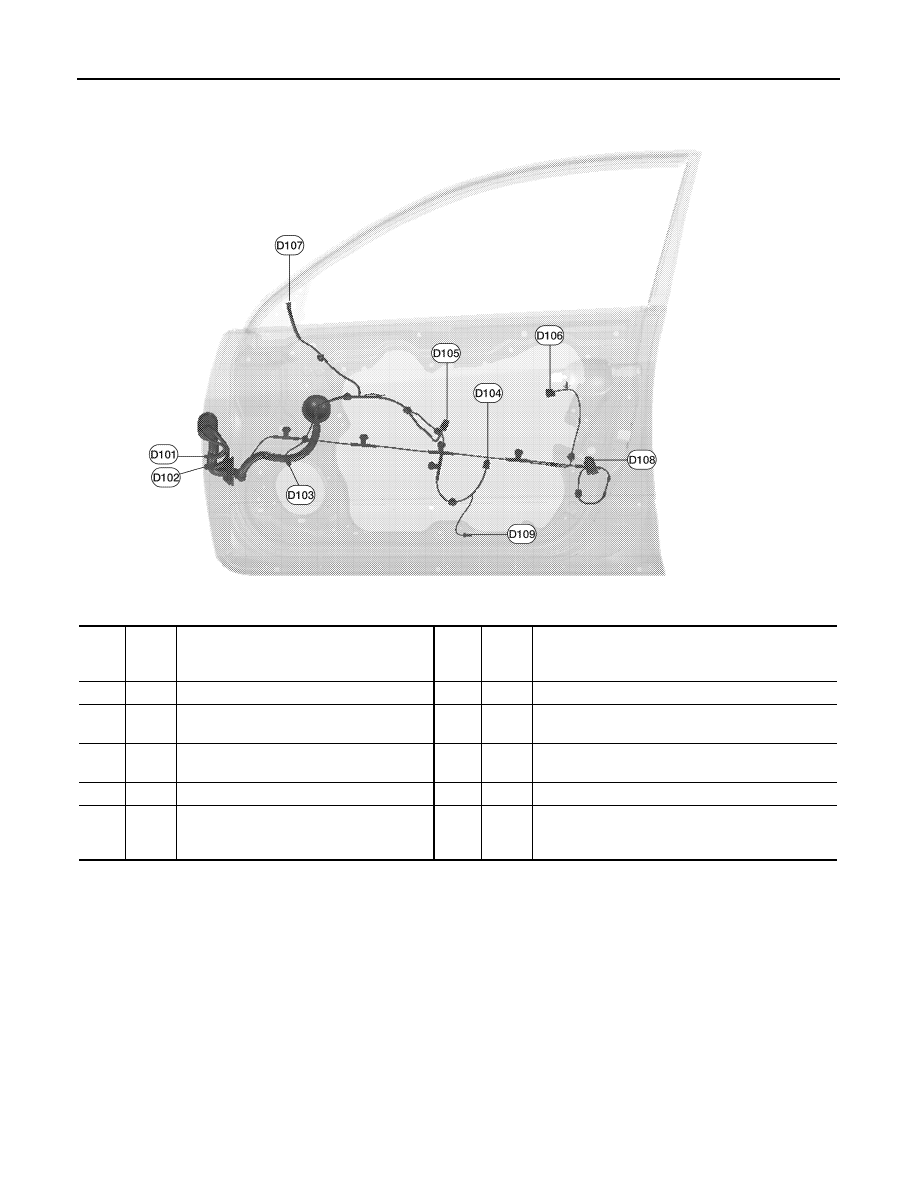

FRONT DOOR RH HARNESS

ALMIA0027GB

D101

W/10

: To M14

D105

W/16

: Power window and door lock/unlock switch RH
  (with left and right front power window anti-pinch
  system)

D102

W/12

: To M15

D106

B/4

: Front outside handle RH

D103

W/2

: Front door speaker RH (with base audio
  system)

D107

W/8

: Door mirror RH

D103

BR/2

: Front door speaker RH (with BOSE audio
  system)

D108

GR/6

: Front door lock actuator RH

D104

W/6

: Front power window motor RH

D109

W/2

: Step lamp RH

D105

W/12

: Power window and door lock/unlock
  switch RH (with left front only power
  window anti-pinch system)
