HARNESS

Harness Layout

INFOID:0000000004206729

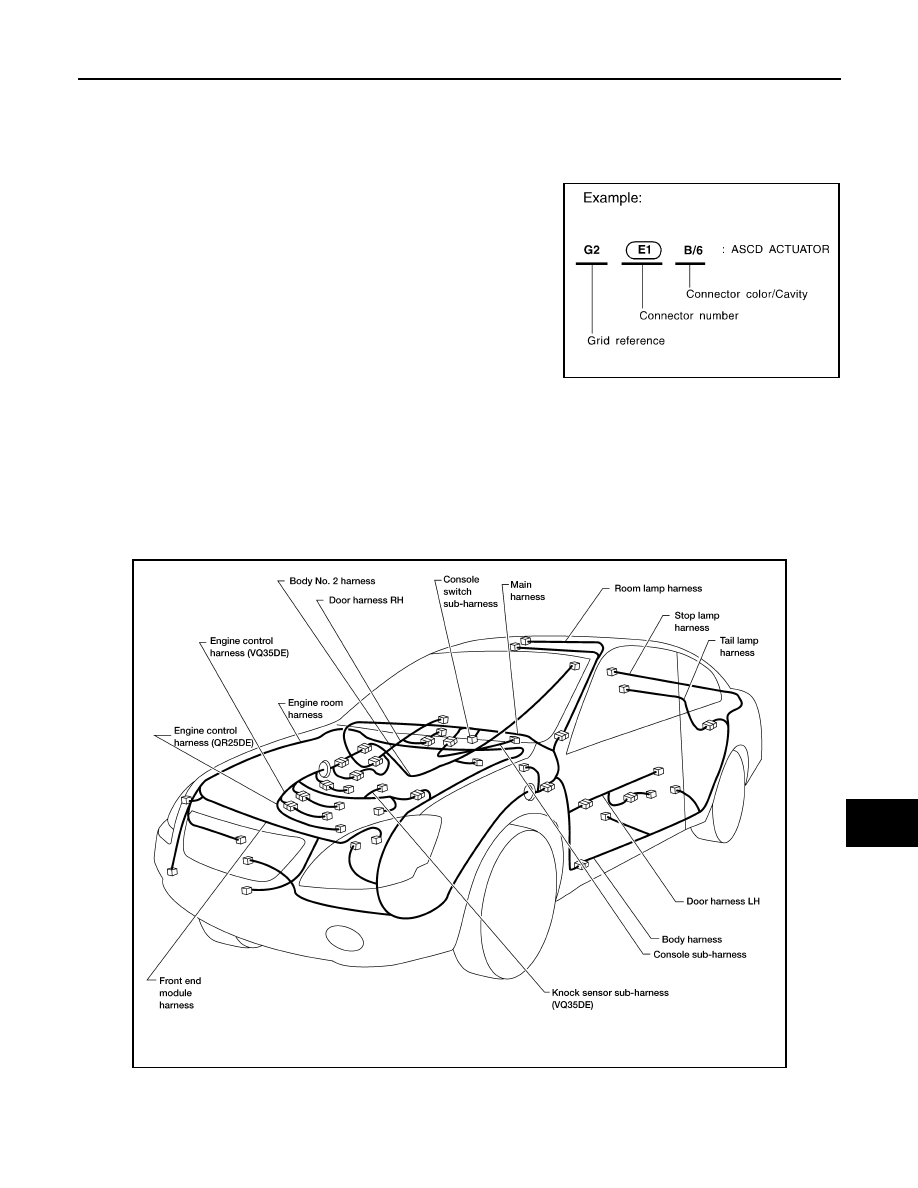

HOW TO READ HARNESS LAYOUT

The following Harness Layouts use a map style grid to help locate

connectors on the drawings:

• Main Harness, Console Sub-harness and Console Switch Sub-

harness

• Engine Room Harness

• Engine Room Harness (Passenger Compartment)

• Front End Module Harness

• Engine Control Harness (VQ35DE) and Knock Sensor Sub-har-

ness

• Engine Control Harness (QR25DE)

• Body Harness and Tail Lamp Harness

• Body No. 2 Harness

• Room Lamp Harness

To use the grid reference
1. Find the desired connector number on the connector list.
2. Find the grid reference.
3. On the drawing, find the crossing of the grid reference letter column and number row.
4. Find the connector number in the crossing zone.
5. Follow the line (if used) to the connector.

OUTLINE

SEL252V

ABMIA0522GB

PG-36

< COMPONENT DIAGNOSIS >

[COUPE]

HARNESS

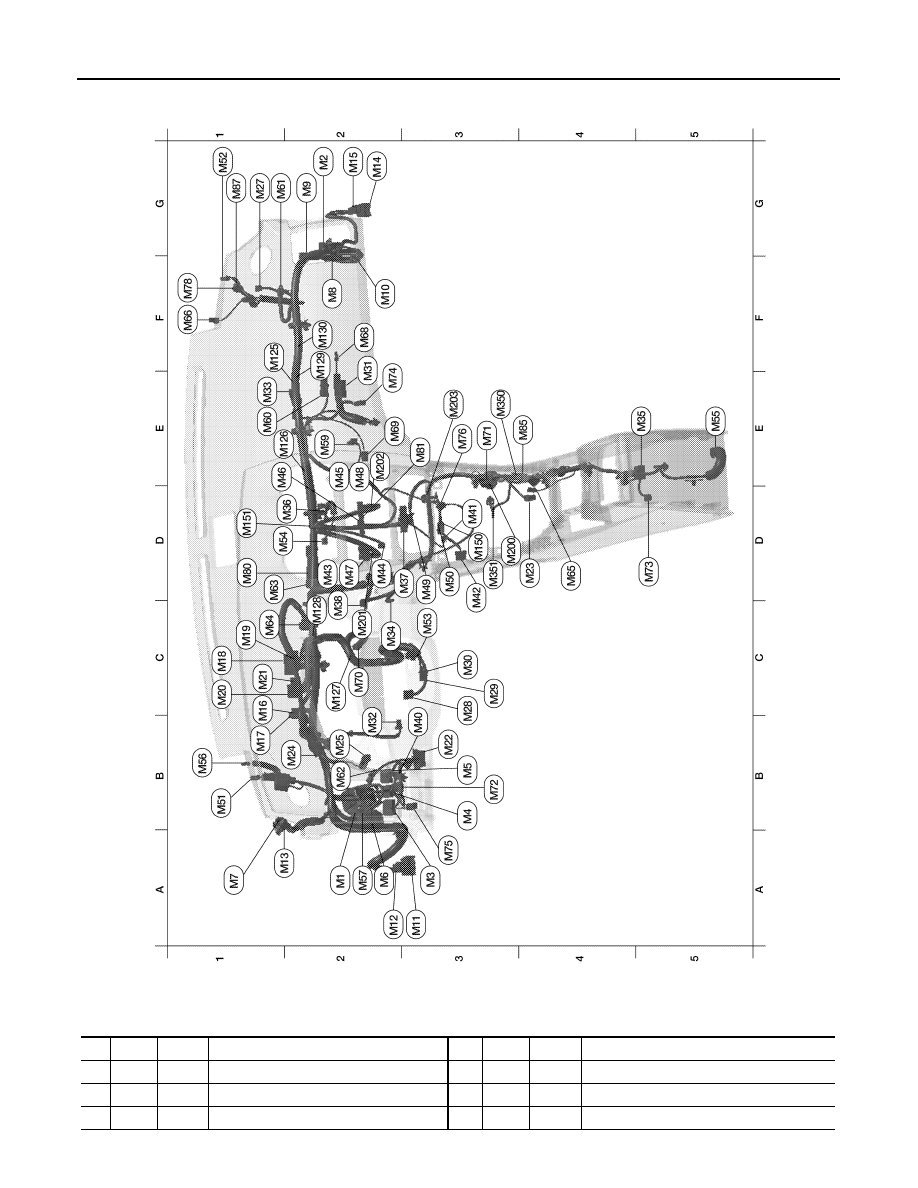

MAIN HARNESS

ABMIA0523GB

A2

M1

SMJ

: To E30

B1

M51

BR/2

: Front tweeter LH

G2 M2

W/32

: To B101

G1

M52

BR/2

: Front tweeter RH

A3

M3

W/8

: Fuse block (J/B)

C3

M53

W/8

: Steering angle sensor

A3

M4

W/10

: Fuse block (J/B)

D2

M54

W/4

: Hazard switch

PG

HARNESS

PG-37

< COMPONENT DIAGNOSIS >

[COUPE]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

B3

M5

W/12

: Fuse block (J/B)

E5

M55

B/4

: Yaw rate/side/decel G sensor

A2

M6

SMJ

: To B1

D2

M56

B/2

: Sunload sensor

A1

M7

W/16

: To R1

A2

M57

—

: Body ground

F2

M8

W/24

: To B102

E2

M59

W/12

: Power steering control unit

G2 M9

BR/16

: To B103

E1

M60

Y/2

: Front passenger air bag module

F2

M10

BR/12

: To B104

G1

M61

—

: Body ground

A3

M11

W/16

: To D1

B2

M62

W/2

: Tire pressure warning check connector

A2

M12

W/16

: To D2

D1

M63

L/12

: Joint connector-M02

A2

M13

W/4

: To R2

C1

M64

GR/6

: Joint connector-M01

G2 M14

W/10

: To D101

D4

M65

BR/2

: CVT device

G2 M15

W/12

: To D102

F1

M66

W/3

: Optical sensor

B1

M16

B/3

: BCM (body control module)

E2

M67

O/2

: Front passenger air bag module

B1

M17

W/16

: BCM (body control module)

F2

M68

W/2

: Glove box lamp

C1 M18

G/40

: BCM (body control module)

E2

M69

W/4

: Intake sensor

C1 M19

B/40

: BCM (body control module)

C2

M70

W/4

: Tire pressure receiver

C1 M20

W/12

: BCM (body control module)

E3

M71

W/12

: To M200

C1 M21

GR/40 : BCM (body control module)

B3

M72

GR/6

: TCS OFF switch (with TCS)

B3

M22

W/16

: Data link connector

G2

M72

GR/6

: VDC OFF switch (with VDC)

D4 M23

W/10

: CVT device

D5

M73

B/1

: Parking brake switch (with M/T)

B2

M24

W/40

: Combination meter

E2

M74

W/2

: Trunk lid opener cancel switch

B2

M25

B/10

: Meter mode switch

A3

M75

B/2

: Trunk lid opener switch

G1 M27

B/4

: Remote keyless entry receiver

E3

M76

B/3

: Front power socket

C3 M28

W/16

: Combination switch

F1

M78

Y/4

: Front passenger air bag module
  (service replacement)

C3 M29

Y/6

: Spiral cable

D1

M80

—

: Diode-3

C3 M30

GR/8

: Spiral cable

E3

M81

GR/3

: Audio unit (without NAVI)

E2

M31

W/6

: Blower motor

E3

M81

GR/3

: AV control unit (with NAVI)

B2

M32

W/8

: Electronic steering column lock

F1

M85

W/2

: To M350

E1

M33

W/3

: To M125

G1

M87

GR/3

: To M501

C2 M34

W/2

: In-vehicle sensor

F1

M125

W/3

: To M33

E5

M35

Y/28

: Air bag diagnosis sensor unit

E2

M126

W/3

: Intake door motor

D2 M36

W/3

: Front passenger air bag off indicator

E2

M127

W/3

: Mode door motor

D3 M37

W/40

: Front air control

C2

M128

W/3

: Air mix door motor LH (with auto A/C)

C2 M38

BR/8

: Push-button ignition switch

C2

M129

W/3

: Air mix door motor RH (with auto A/C)

B3

M40

W/12

: Key slot

C2

M130

W/3

: Air mix door motor (with manual A/C)

B3

M41

W/4

: Aux jack

D3

M150

W/2

: To M50

D3 M42

W/16

: CD changer

D1

M151

BR/2

: Center speaker

D2 M43

W/20

: Audio unit

Console switch sub-harness

D2 M44

W/8

: Audio unit

D3

M200

W/12

: To M71

E2

M45

W/12

: Audio unit

C2

M201

W/6

: Front heated seat switch LH

E2

M46

W/40

: AV control unit

E2

M202

BR/6

: Front heated seat switch RH

D2 M47

W/20

: AV control unit

E3

M203

GR/2

: Front console antenna

D2 M48

GR/12 : AV control unit

Console sub-harness

D3 M49

GR/2

: Instrument panel antenna

E3

M350

W/2

: To M85

D3 M50

W/2

: To M150

D3

M351

B/3

: Front console power socket

PG-38

< COMPONENT DIAGNOSIS >

[COUPE]

HARNESS

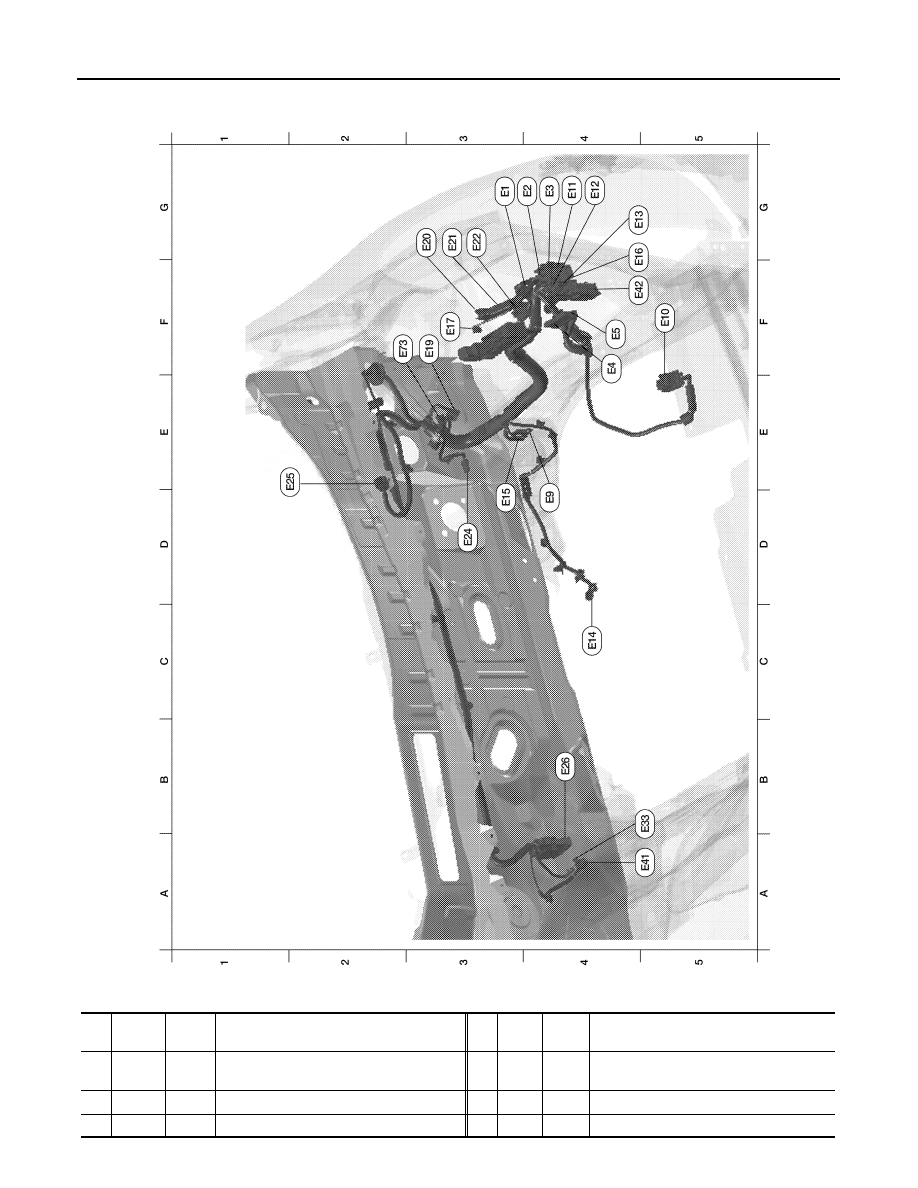

ENGINE ROOM HARNESS

ABMIA0524GB

G4 E1

W/6

: Joint connector-E01

F3

E17

W/8

: IPDM E/R (intelligent power distribution
  module engine room)

G4 E2

W/8

: To E202

C3 E18

W/36

: IPDM E/R (intelligent power distribution
  module engine room)

G4 E3

W/16

: To F1

F3

E19

GR/2

: Front wheel sensor LH

F4

E4

BR/2

: Fusible link box (battery)

G3 E20

W/6

: Joint connector-E02
