< ON-VEHICLE REPAIR >

[BOSE AUDIO WITHOUT NAVIGATION]

REAR DOOR SPEAKER

REAR DOOR SPEAKER

Removal and Installation - Sedan

INFOID:0000000004206499

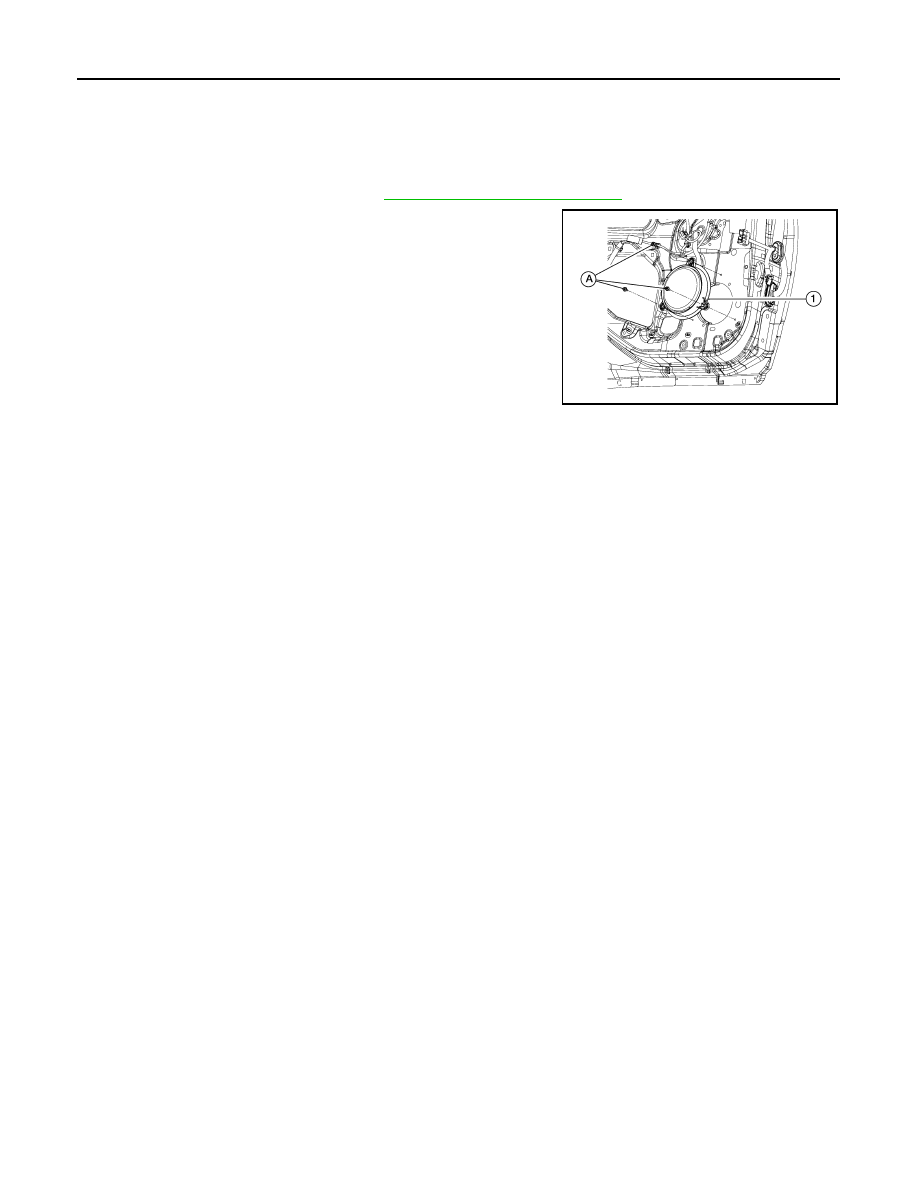

REMOVAL

1. Remove the rear door finisher. Refer to

INT-34, "Removal and Installation"

.

2. Remove the rear door speaker screws (A), then disconnect the

rear door speaker connector and remove the rear door speaker

(1).

INSTALLATION

Installation is in the reverse order of removal.

ALNIA0041ZZ

AV

REAR TWEETER

AV-221

< ON-VEHICLE REPAIR >

[BOSE AUDIO WITHOUT NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

REAR TWEETER

Removal and Installation - Coupe

INFOID:0000000004206500

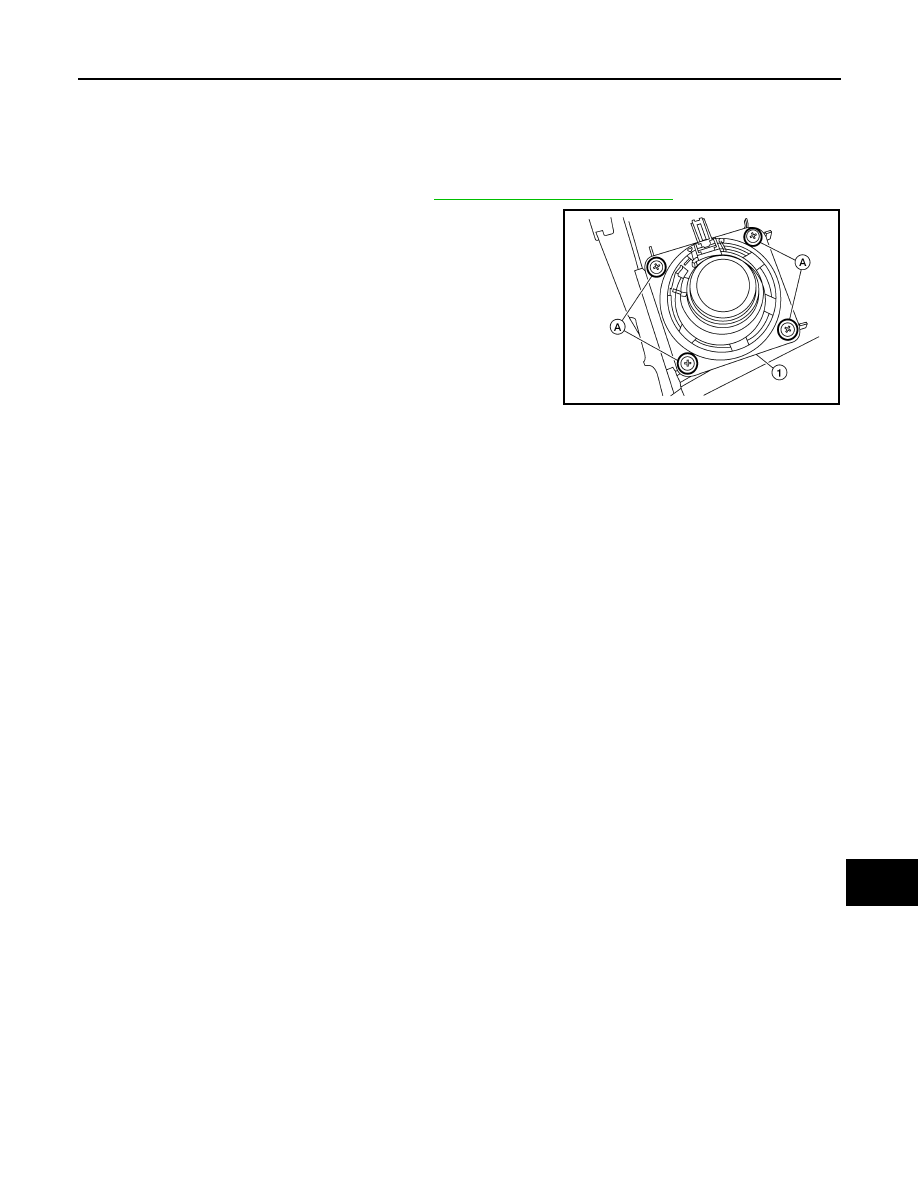

REMOVAL

1. Remove the rear parcel shelf finisher. Refer to

INT-17, "Removal and Installation"

.

2. Remove the rear tweeter speaker screws (A) and remove the

rear tweeter speaker (1).

INSTALLATION

Installation is in the reverse order of removal.

ALNIA0919ZZ

AV-222

< ON-VEHICLE REPAIR >

[BOSE AUDIO WITHOUT NAVIGATION]

SUBWOOFER

SUBWOOFER

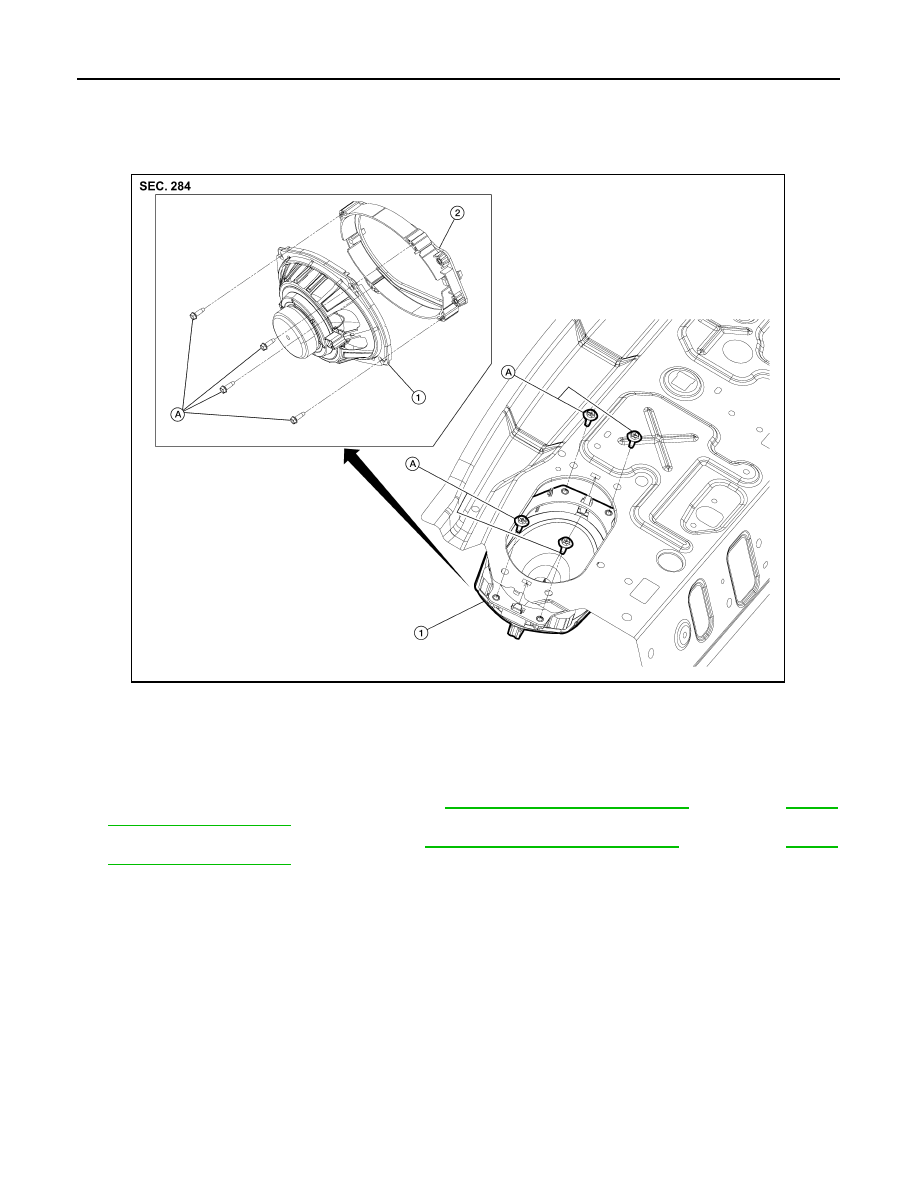

Components

INFOID:0000000004206503

Removal and Installation

INFOID:0000000004206504

REMOVAL

1. Remove the rear parcel shelf finisher. Refer to

INT-17, "Removal and Installation"

 (coupe) and

INT-38,

"Removal and Installation"

 (sedan).

2. Remove the trunk front finisher. Refer to

INT-23, "Removal and Installation"

 (coupe) and

INT-46,

"Removal and Installation"

 (sedan).

3. Remove the subwoofer speaker screws from the top, disconnect the subwoofer speaker harness connec-

tor and remove the subwoofer speaker and spacer assembly.

4. Remove the spacer screws and remove the subwoofer speaker from the spacer.

INSTALLATION

Installation is in the reverse order of removal.

ALNIA0054ZZ

1.

Subwoofer speaker

2.

Spacer

A.

Screws

AV

SATELLITE RADIO TUNER

AV-223

< ON-VEHICLE REPAIR >

[BOSE AUDIO WITHOUT NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

SATELLITE RADIO TUNER

Removal and Installation - Coupe

INFOID:0000000004206505

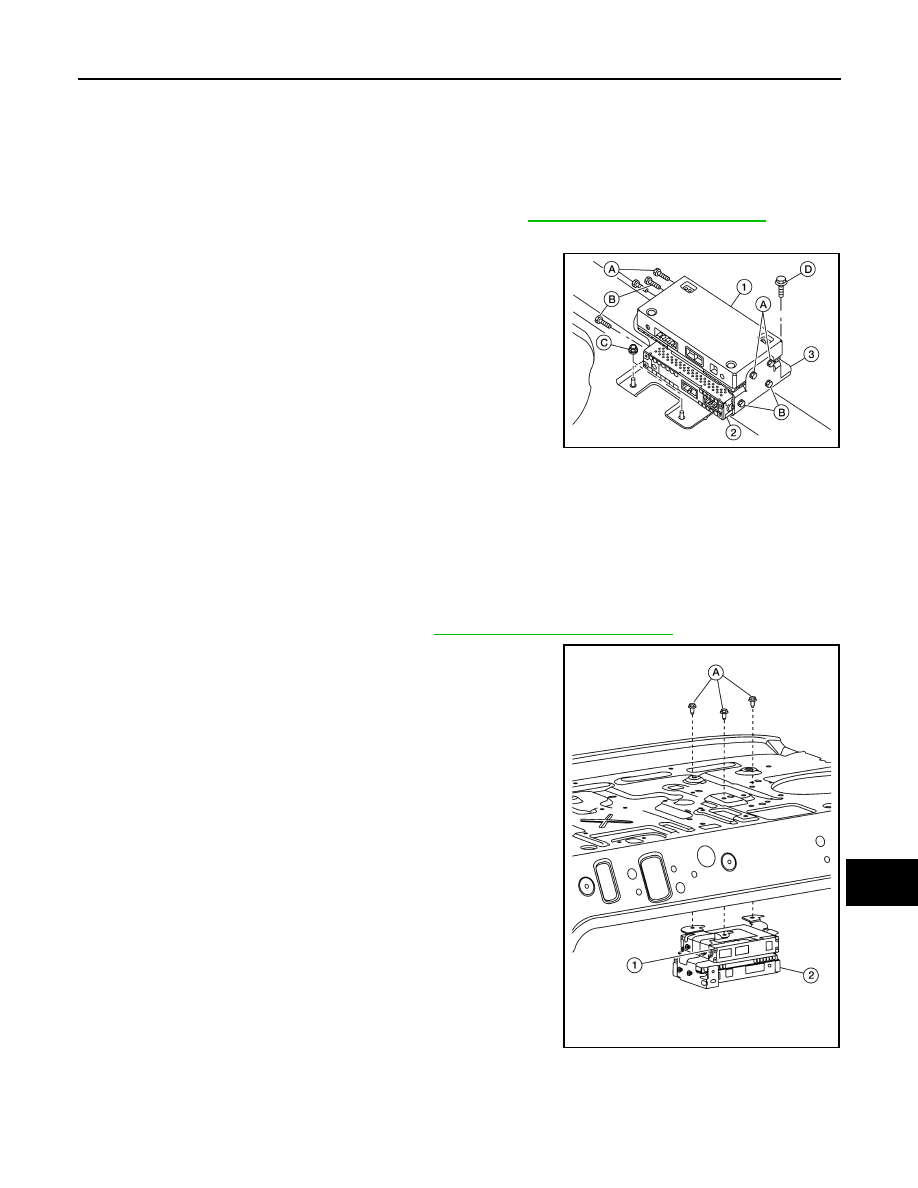

REMOVAL

1. Disconnect the battery negative terminal.
2. Remove the trunk floor carpet and spare tire cover. Refer to

INT-23, "Removal and Installation"

.

3. Remove the LH trunk floor spacer.
4. Remove the Bluetooth control unit screws (A), then disconnect

the Bluetooth control unit connectors and remove the Bluetooth

control unit (1).

5. Remove the satellite radio tuner assembly nuts (C), and satellite

radio tuner screw (D), disconnect the satellite radio tuner har-

ness connectors and remove the satellite radio tuner and

bracket assembly (2 and 3), then remove the satellite radio tuner

screws (B) and remove satellite radio tuner (2) from the bracket

(3).

NOTE:

Bluetooth control unit (1) is removed with the satellite radio tuner

(2) (if equipped).

INSTALLATION

Installation is in the reverse order of removal.

Removal and Installation - Sedan

INFOID:0000000004206506

REMOVAL

1. Disconnect the battery negative terminal.
2. Remove the rear parcel shelf finisher. Refer to

INT-38, "Removal and Installation"

.

3. Remove the satellite radio tuner unit screws (A), disconnect the

satellite tuner harness connectors and remove the satellite radio

tuner (1).

NOTE:

Bluetooth control unit (2) is removed with the satellite radio tuner

unit (if equipped).

INSTALLATION

Installation is in the reverse order of removal.

ALNIA0920ZZ
