< ECU DIAGNOSIS >

[BOSE AUDIO WITHOUT NAVIGATION]

SATELLITE RADIO TUNER (SEDAN)

SATELLITE RADIO TUNER (SEDAN)

Reference Value

INFOID:0000000004496849

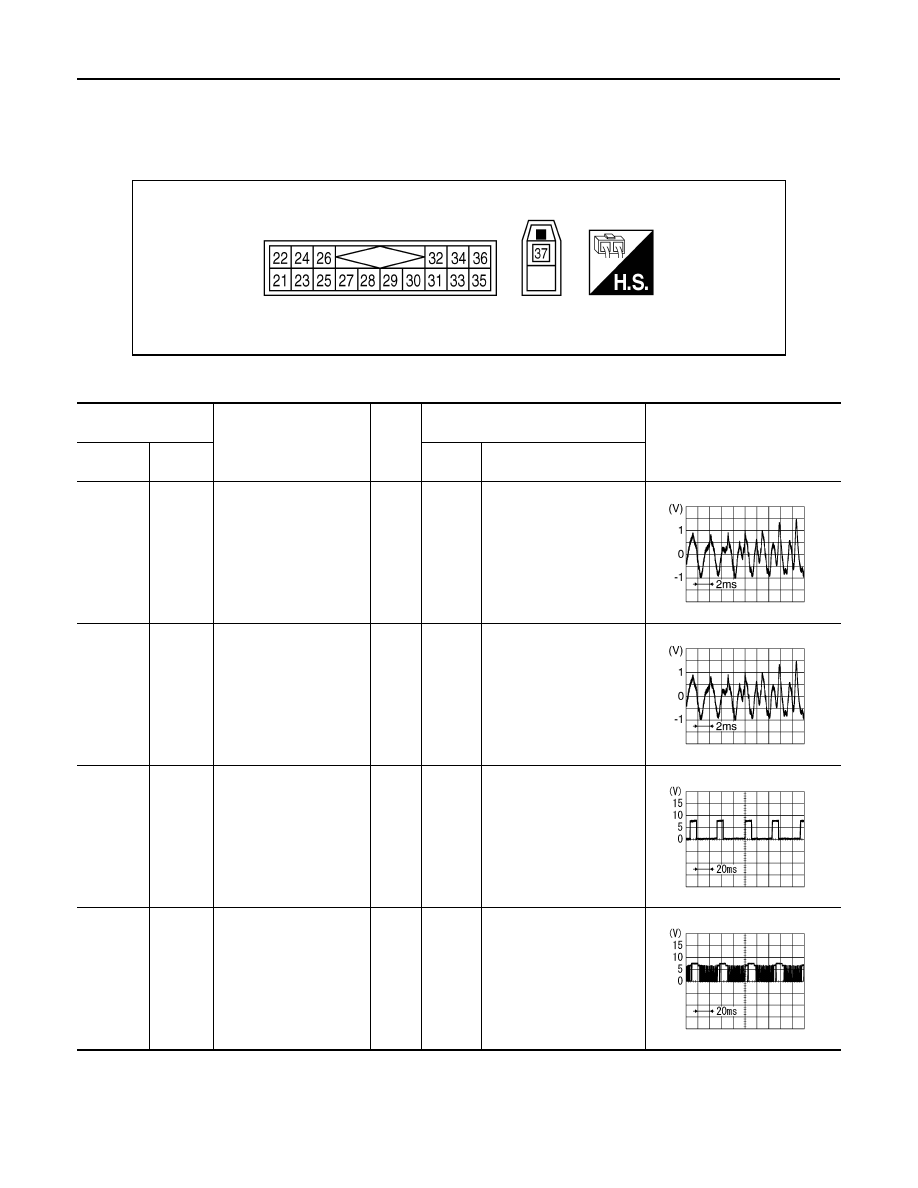

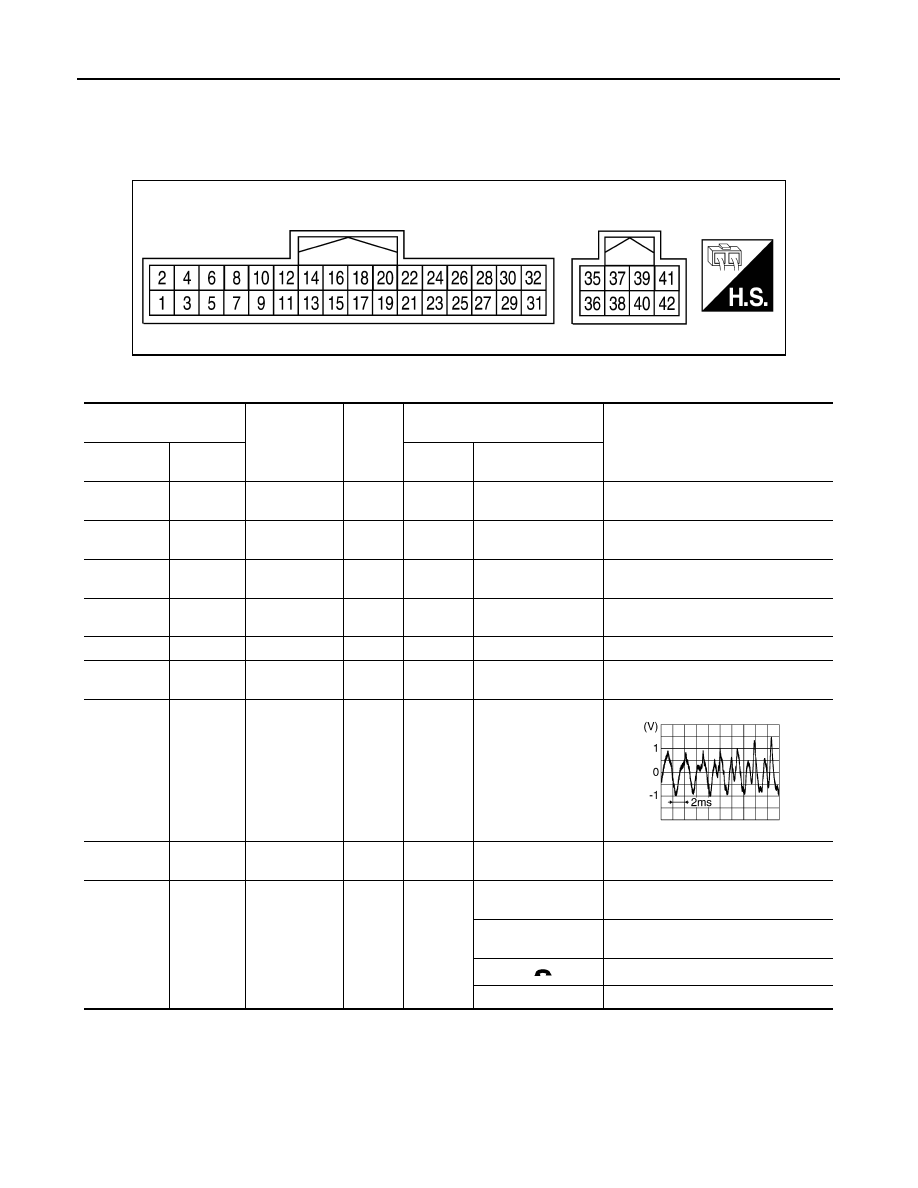

TERMINAL LAYOUT

PHYSICAL VALUES

LKIA0735E

Terminal

(Wire color)

Item

Signal
 input/
output

Condition

Voltage

(approx.)

+

–

Ignition

switch

Operation

22

 (Y/L)

21

 (W/L)

Audio signal LH

Output

ON

Receive audio signal.

24

(BR/L)

23

 (Y/G)

Audio signal RH

Output

ON

Receive audio signal.

28

 (R/L)

Ground

REQ1
(SAT-AUDIO)

Output

ON

Set to the satellite radio
mode

29

 (R/W)

Ground

Communication signal
(SAT-AUDIO)

Output

ON

Set to the satellite radio
mode

SKIB3609E

SKIB3609E

SKIB3825E

SKIB3824E

AV

SATELLITE RADIO TUNER (SEDAN)

AV-205

< ECU DIAGNOSIS >

[BOSE AUDIO WITHOUT NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

30

 (B)

Ground

Communication signal
(AUDIO-SAT)

Input

ON

Set to the satellite radio
mode

32

 (Y/R)

Ground

Battery power supply

Input

OFF

−

Battery voltage

36

(GR/W)

ACC power supply

ACC

37 –

Antenna

signal

–

–

–

Terminal

(Wire color)

Item

Signal
 input/
output

Condition

Voltage

(approx.)

+

–

Ignition

switch

Operation

SKIB3826E

AV-206

< ECU DIAGNOSIS >

[BOSE AUDIO WITHOUT NAVIGATION]

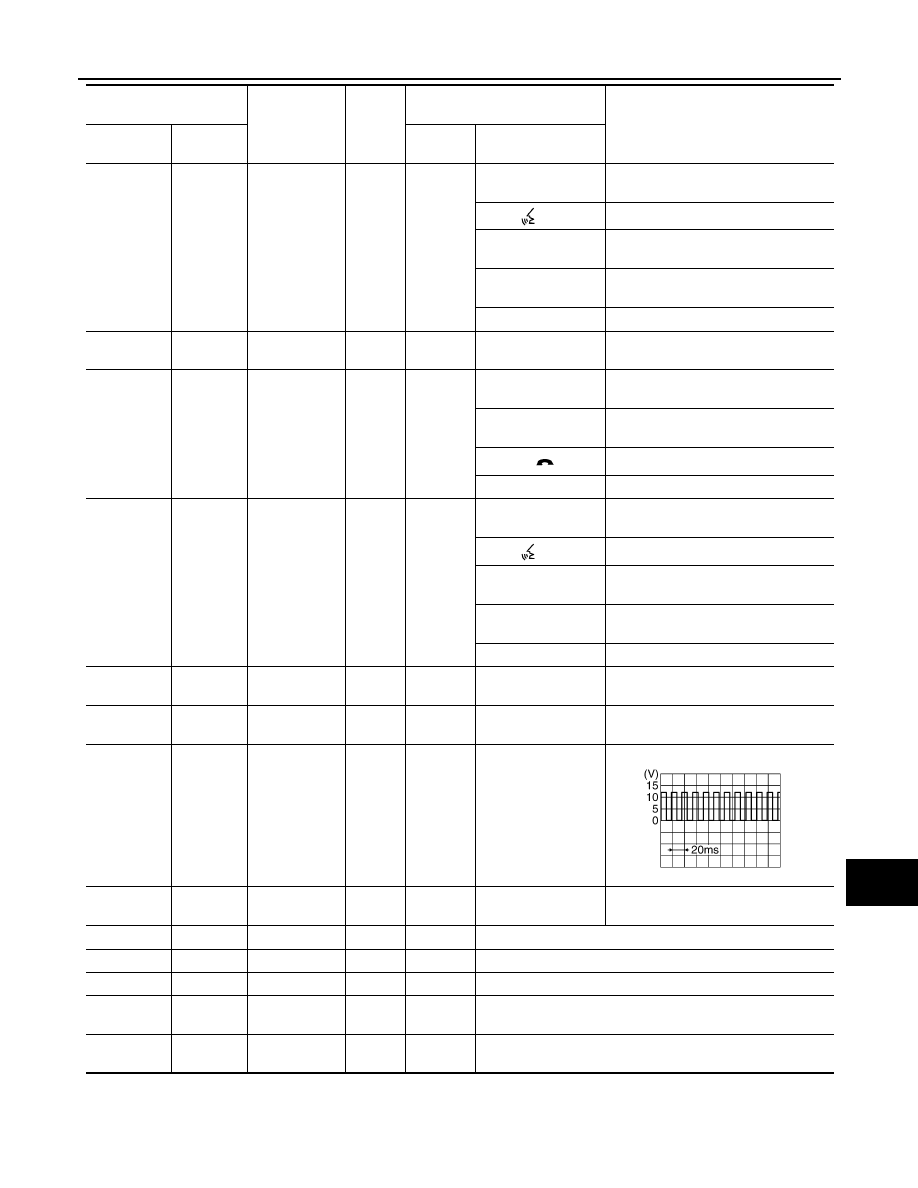

BLUETOOTH CONTROL UNIT

BLUETOOTH CONTROL UNIT

Reference Value

INFOID:0000000004206486

TERMINAL LAYOUT

PHYSICAL VALUES

AWNIA0048ZZ

Terminal

 (Wire color)

Item

Signal

input/

output

Condition

Reference value

(Approx.)

+

–

Ignition

switch

Operation

1

 (Y/B)

Ground

Battery power

Input

–

–

Battery voltage

2

 (V/Y)

Ground

ACC power

Input

ACC/ON

–

Battery voltage

3

(G/W)

Ground

 IGN power

Input

ON/

START

–

Battery voltage

4

(B/W)

–

Ground

–

–

–

–

6

–

Shield

–

–

–

–

7

(B/R)

8

(R/B)

Mic-in signal

Input

–

–

–

9

 (BR)

10

 (Y)

Audio out

Output

ACC/ON

Bluetooth control

unit sends audio sig-

nal

11

(G/O)

–

Mute

Output

–

–

–

12

 (W/G)

Ground

Remote con-

trol switch 1

Input

ACC/ON

Press SEEK DOWN
switch.

0.7 V

Press SEEK UP
switch.

1.3 V

Pressing

switch.

2.0 V

Except for above.

3.3 V

SKIB3609E

AV

BLUETOOTH CONTROL UNIT

AV-207

< ECU DIAGNOSIS >

[BOSE AUDIO WITHOUT NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

13

 (GR/L)

Ground

Remote con-

trol switch 2

Input

ACC/ON

Press SOURCE
switch.

 0 V

Press

switch.

0.7 V

Press VOL UP
switch.

1.3 V

Press VOL DOWN
switch

2 V

Except for above.

3.3 V

14

(L/B)

-

Remote con-

trol ground

Input

-

-

-

17

 (W/G)

Ground

Steering switch

1

Output

ACC/ON

Press SEEK DOWN
switch.

0.7 V

Press SEEK UP
switch.

1.3 V

Pressing

switch.

2.0 V

Except for above.

3.3 V

18

 (GR/L)

Ground

Steering switch

2

Output

ACC/ON

Press SOURCE
switch.

 0 V

Press

switch.

0.7 V

Press VOL UP
switch.

1.3 V

Press VOL DOWN
switch

2 V

Except for above.

3.3 V

19

 (L/B)

Ground

Steering switch

ground

Output

–

-

-

24

 (B/W)

–

Ground

–

–

–

–

28

 (V/W)

–

Vehicle speed

signal (8-

pulse)

Input

ON

When vehicle speed

is approx. 40 km/h

(25 MPH)

29 (R/L)

Ground

Microphone

power

Output

–

–

–

35 (L)

–

M-CAN (+)

–

–

–

36 (P)

–

M-CAN (-)

–

–

–

37

–

Shield ground

–

–

–

39

(Y/R)

–

M-CAN jump-

er-1

–

–

–

40

(Y/R)

–

M-CAN (+) 2

–

–

–

Terminal

 (Wire color)

Item

Signal

input/

output

Condition

Reference value

(Approx.)

+

–

Ignition

switch

Operation

PKIA1935E
