AV-92

< FUNCTION DIAGNOSIS >

[BOSE AUDIO WITHOUT NAVIGATION]

AUDIO SYSTEM (SEDAN)

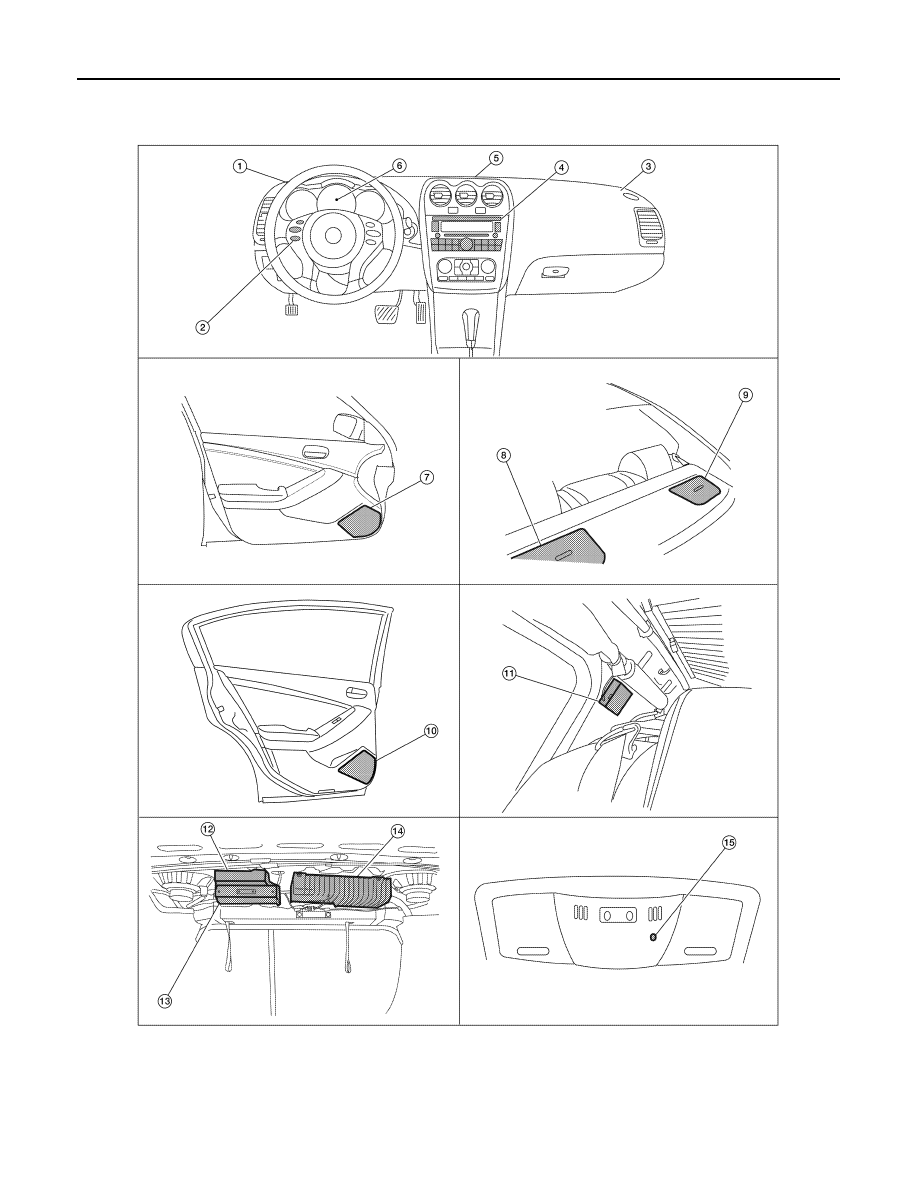

Component Parts Location

INFOID:0000000004206421

1.

Tweeter LH M51

2.

Steering wheel audio control switches 3.

Tweeter RH M52

4.

Audio unit M43, M44, M45, M81

5.

Center speaker M151

6.

Combination meter M24

7.

Front door speaker
LH D3
RH D103

8.

Rear subwoofer LH B120

9.

Rear subwoofer RH B124

AWNIA1815ZZ

AV

AUDIO SYSTEM (SEDAN)

AV-93

< FUNCTION DIAGNOSIS >

[BOSE AUDIO WITHOUT NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

Component Description

INFOID:0000000004206422

10. Rear door speaker

LH D202
RH D302

11. Antenna amp. M502

12.  Satellite radio tuner B123, B129

13. Bluetooth control unit B125, B126

14. BOSE speaker amp. B121, B122

15. Microphone R7

Part name

Description

Audio unit

Controls audio system and satellite radio system functions

BOSE speaker amp.

Receives power (amp ON) and audio signals from audio unit, and outputs au-
dio signals to each speaker.

Steering wheel audio control switches

• Each audio operation can be operated
• Steering switch signal (operation signal) is output to audio unit

Front door speakers

• Outputs audio signal from BOSE speaker amp.
• Outputs high, mid and low range sounds

Tweeters

• Outputs audio signal from BOSE speaker amp.
• Outputs high range sounds

Center speaker

• Outputs audio signal from BOSE speaker amp.
• Outputs high range sounds

Rear door speakers

• Outputs audio signal from BOSE speaker amp.
• Outputs high range sounds

Rear subwoofers

• Outputs audio signal from BOSE speaker amp.
• Outputs low range sounds

Satellite radio tuner

• Receives radio signals from satellite antenna
• Sends audio signals to audio unit

Satellite antenna

Audio signal (satellite radio) is received and output to audio unit.

AV-94

< FUNCTION DIAGNOSIS >

[BOSE AUDIO WITHOUT NAVIGATION]

HANDS FREE PHONE SYSTEM (COUPE)

HANDS FREE PHONE SYSTEM (COUPE)

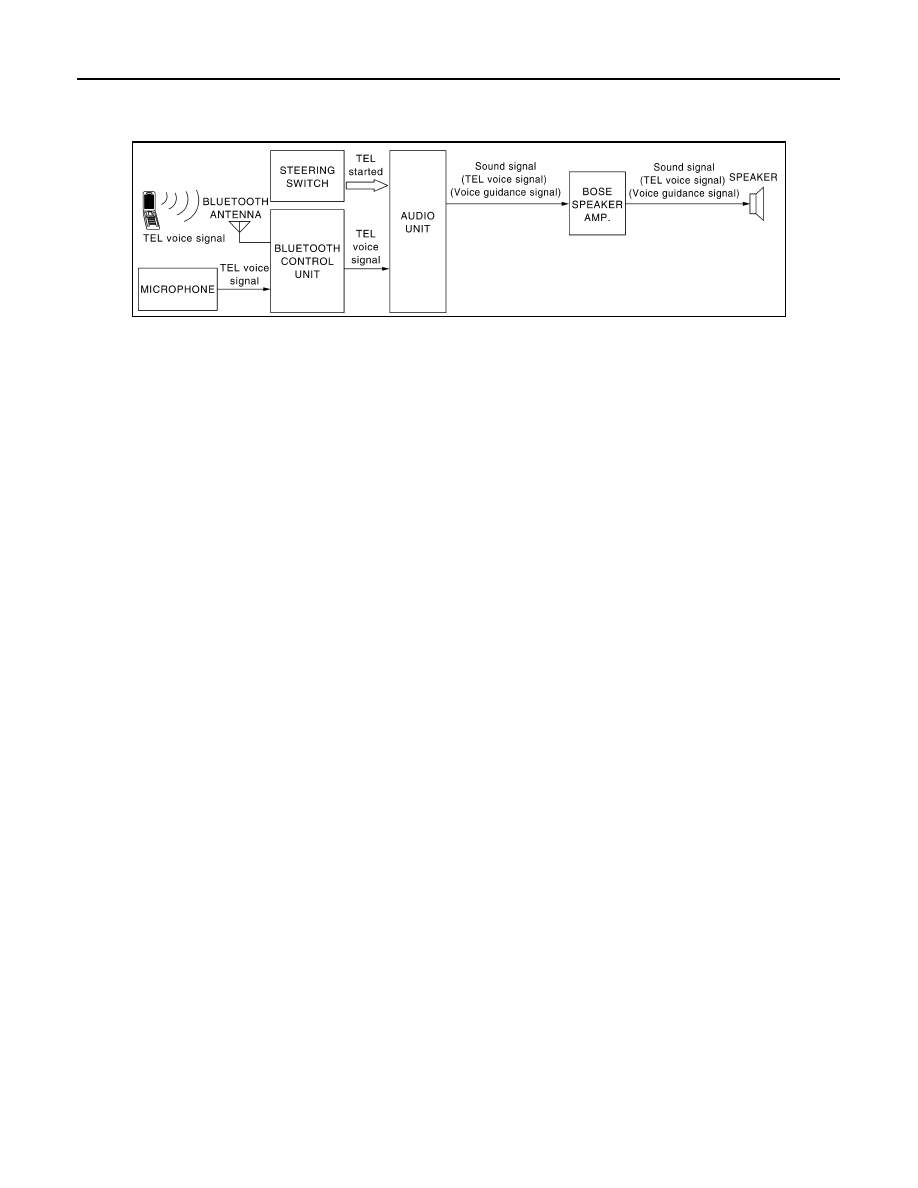

System Diagram

INFOID:0000000004206423

System Description

INFOID:0000000004206424

Refer to the owner's manual for Bluetooth telephone system operating instructions.

NOTE:

Cellular telephones must have their wireless connection set up (paired) before using the Bluetooth telephone

system.

Bluetooth telephone system allows users who have a Bluetooth cellular telephone to make a wireless connec-

tion between their cellular telephone and the Bluetooth control unit. Hands-free cellular telephone calls can be

sent and received. Personal memos can be created using the Nissan Voice Recognition system. Some Blue-

tooth cellular telephones may not be recognized by the Bluetooth control unit. When a cellular telephone or

the Bluetooth control unit is replaced, the telephone must be paired with the Bluetooth control unit. Different

cellular telephones may have different pairing procedures. Refer to the cellular telephone operating manual.

BLUETOOTH CONTROL UNIT

When the ignition switch is turned to ACC or ON, the Bluetooth control unit will power up. During power up, the

Bluetooth control unit is initialized and performs various self checks.   Initialization may take up to 10 seconds.

If a phone is present in the vehicle and paired with the Bluetooth control unit, Nissan Voice Recognition will

then become active. Bluetooth telephone functions can be turned off using the Nissan Voice Recognition sys-

tem.

STEERING WHEEL AUDIO CONTROL SWITCHES

When buttons on the steering wheel audio control switch are pushed, the resistance in steering wheel audio

control switch circuit changes depending on which button is pushed. The Bluetooth control unit uses this sig-

nal to perform various functions while navigating through the voice recognition system.

The following functions can be performed using the steering wheel audio control switch:

• Initiate Self Diagnosis of the Bluetooth telephone system

• Start a voice recognition session

• Answer and end telephone calls

• Adjust the volume of calls

• Record memos

MICROPHONE

The microphone is located in the roof console assembly. The microphone sends a signal to the Bluetooth con-

trol unit. The microphone can be actively tested during self-diagnosis.

AUDIO UNIT

The audio unit receives signals from the Bluetooth control unit and sends audio signals to the speakers.

AWNIA0029GB

AV

HANDS FREE PHONE SYSTEM (COUPE)

AV-95

< FUNCTION DIAGNOSIS >

[BOSE AUDIO WITHOUT NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

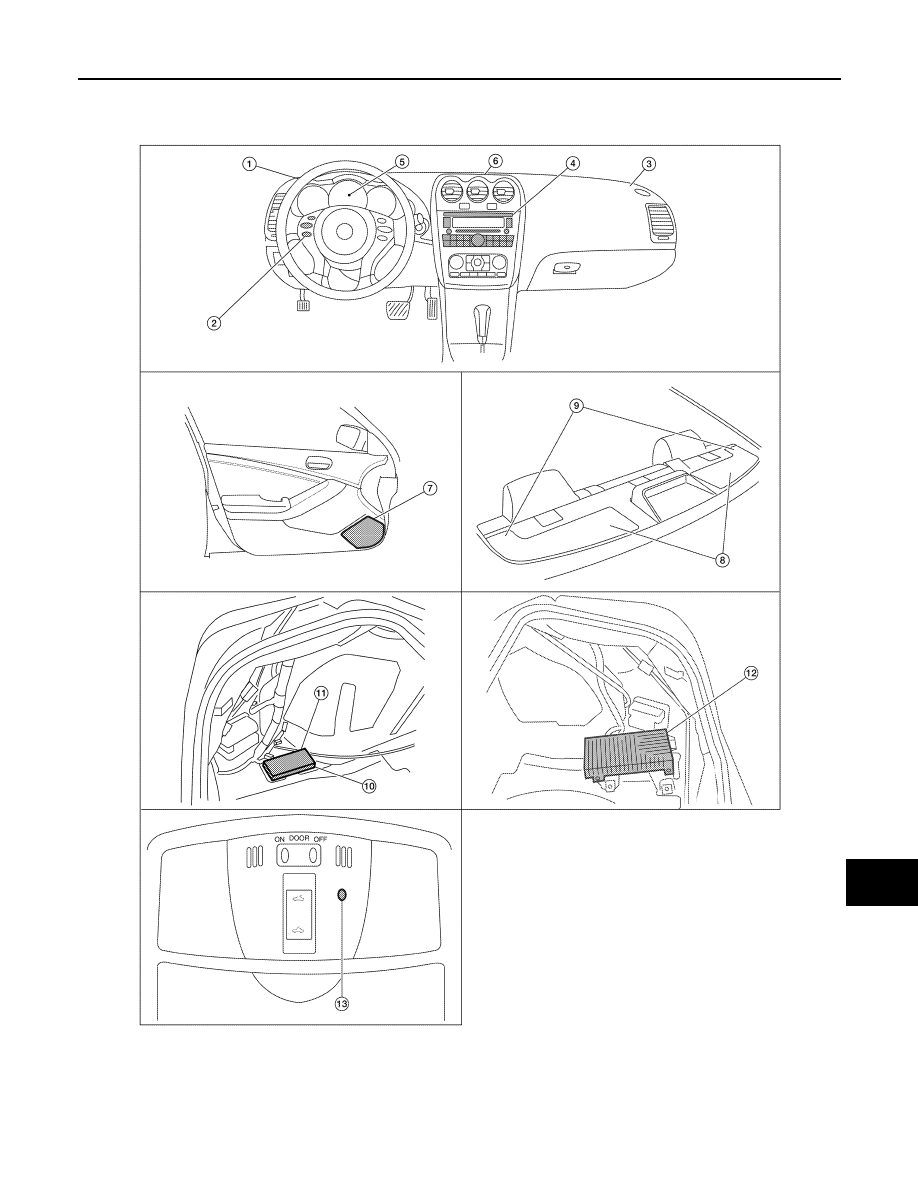

Component Parts Location

INFOID:0000000004206425

1.

Front tweeter LH M51

2.

Steering wheel audio control switch-
es

3.

Front tweeter RH M52

4.

Audio unit M43, M44, M45, M81

5.

Combination meter M24

6.

Center speaker M151

ALNIA0940GB
