Nissan Altima L32. Manual - part 4

AV-8

Removal and Installation - Coupe  .........................

444

SUBWOOFER ..................................................

445

Components ..........................................................

445

Removal and Installation  .......................................

445

SATELLITE RADIO ANTENNA .......................

446

Removal and Installation  .......................................

446

GPS ANTENNA  ...............................................

447

Removal and Installation  .......................................

447

STEERING SWITCH ........................................

448

Removal and Installation  .......................................

448

AUDIO ANTENNA (COUPE)  ...........................

449

Location of Antenna ...............................................

449

Window Antenna Repair ........................................

449

AUDIO ANTENNA (SEDAN)  ............................

452

Location of Antenna  ..............................................

452

Window Antenna Repair  .......................................

452

ANTENNA AMP. ...............................................

455

Removal and Installation - Coupe .........................

455

Removal and Installation - Sedan  .........................

455

MICROPHONE .................................................

456

Removal and Installation .......................................

456

REAR VIEW CAMERA  .....................................

457

Removal and Installation .......................................

457

Adjustment ............................................................

457

CAMERA CONTROL UNIT  ..............................

458

Removal and Installation - Coupe .........................

458

Removal and Installation - Sedan  .........................

458

AV

DIAGNOSIS AND REPAIR WORKFLOW

AV-9

< BASIC INSPECTION >

[BASE AUDIO]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

BASIC INSPECTION

DIAGNOSIS AND REPAIR WORKFLOW

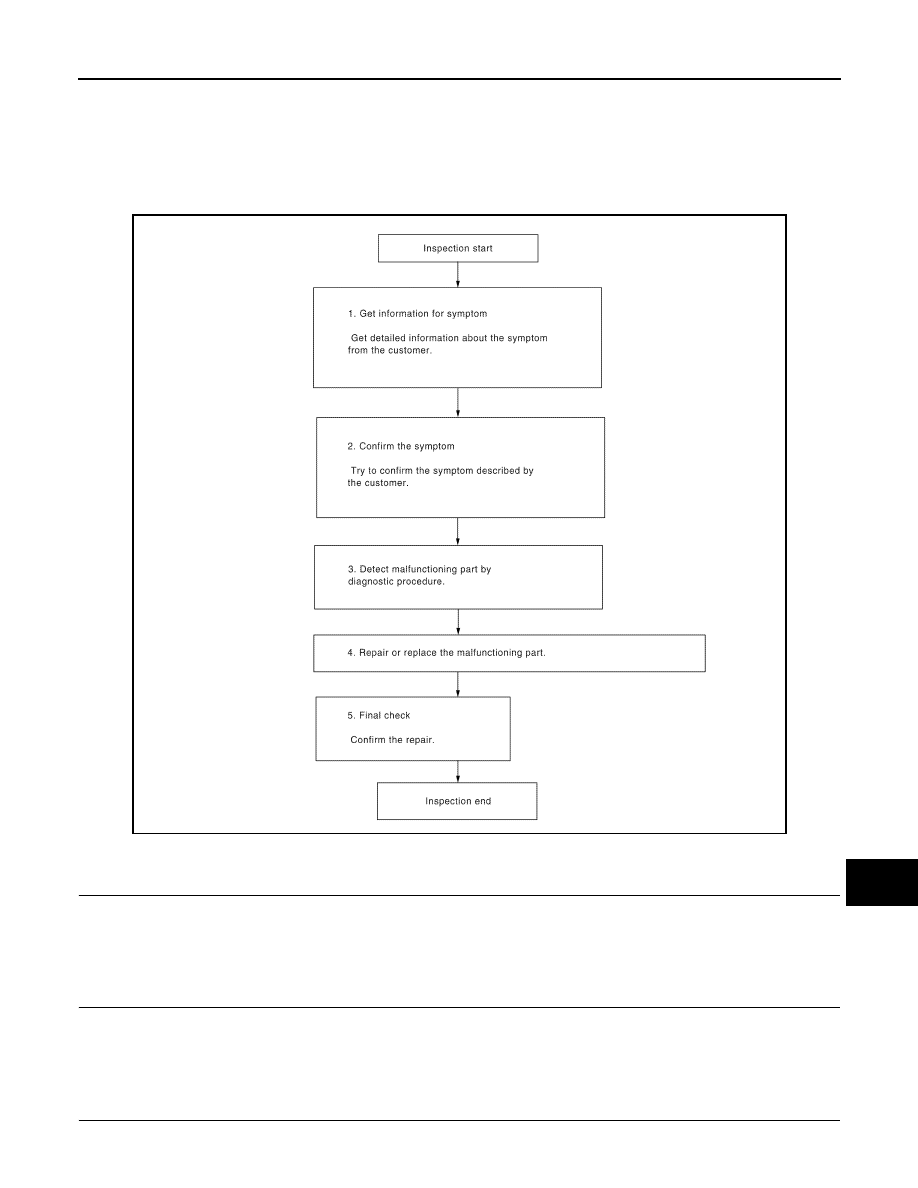

Work Flow

INFOID:0000000004206357

OVERALL SEQUENCE

DETAILED FLOW

1.

GET INFORMATION FOR SYMPTOM

Get detailed information from the customer about the symptom (the condition and the environment when the

incident/malfunction occurred).

>> GO TO 2

2.

CONFIRM THE SYMPTOM

Try to confirm the symptom described by the customer. Verify relation between the symptom and the condition

when the symptom is detected.

>> GO TO 3

3.

DETECT MALFUNCTIONING PART BY DIAGNOSTIC PROCEDURE

Inspect according to Diagnostic Procedure of the system.

ALNIA0182GB

AV-10

< BASIC INSPECTION >

[BASE AUDIO]

DIAGNOSIS AND REPAIR WORKFLOW

Is malfunctioning part detected?

YES

>> GO TO 4

NO

>> GO TO 2

4.

REPAIR OR REPLACE THE MALFUNCTIONING PART

1. Repair or replace the malfunctioning part.

2. Reconnect parts or connectors disconnected during Diagnostic Procedure.

>> GO TO 5

5.

FINAL CHECK

Refer to confirmed symptom in step 2, and make sure that the symptom is not detected.
Has the symptom been repaired?

YES

>> Inspection End.

NO

>> GO TO 2

AV

AUDIO SYSTEM (COUPE)

AV-11

< FUNCTION DIAGNOSIS >

[BASE AUDIO]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

FUNCTION DIAGNOSIS

AUDIO SYSTEM (COUPE)

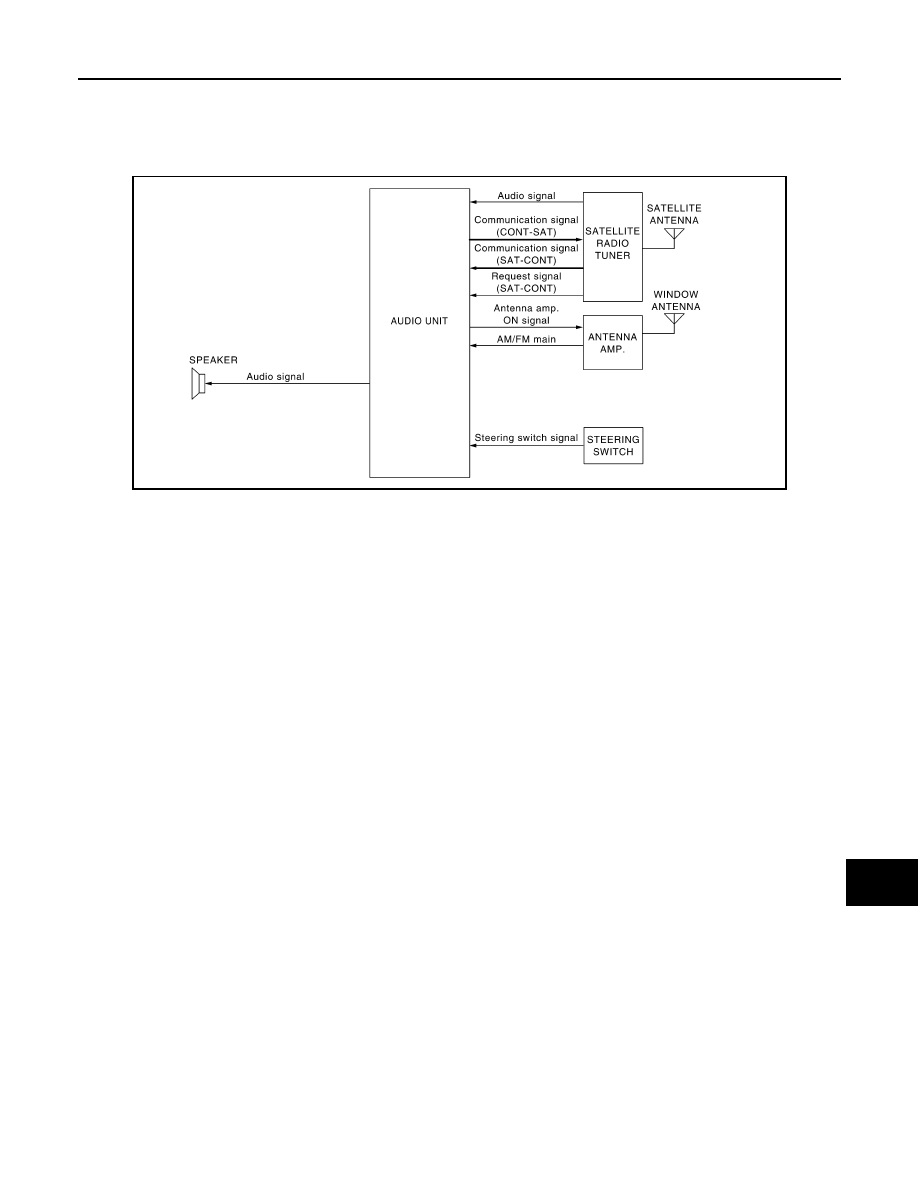

System Diagram

INFOID:0000000004206358

System Description

INFOID:0000000004206359

AUDIO SYSTEM

The audio system consists of the following components

• Audio unit

• Window antenna

• Steering wheel audio control switches

• Door speakers

• Front tweeters

• Rear speakers

When the audio system is on, radio signals are received by the window antenna. The audio unit then sends

audio signals to the door speakers, front tweeters and rear speakers.

Refer to Owner's Manual for audio system operating instructions.

SATELLITE RADIO SYSTEM

The satellite radio system consists of the following components

• Roof antenna (satellite)

• Satellite radio tuner

When the satellite radio system is on, radio signals are supplied to the satellite radio tuner from the satellite

antenna. The satellite radio tuner then sends audio signals to the audio unit.

Refer to Owner's Manual for satellite radio system operating instructions.

AWNIA0027GB
