Function and System Application
Diagnostic
test mode
Function
ENGINE
A/T
Air bag
ABS
NATS*1
Self-diagnostic results
Self-diagnostic results can be read and erased quickly.
x
x
x
x
x
ECU discriminated No.
Classification number of a replacement ECU can be
read to prevent an incorrect ECU from being installed.
—
—
x
—
—
Data monitor
Input/Output data in the ECM can be read.
x
x
—
x
—
Active test
Diagnostic Test Mode in which CONSULT-II drives
some actuators apart from the ECMs and also shifts
some parameters in a specified range.
x
—
—
x
—
ECU (ECM) part number
ECU (ECM) part number can be read.
x
x
—
x
—
Control unit initialisation
All registered ignition key IDs in NATS components can
be initialised and new IDs can be registered.
—
—
—
—
x
Self-function check
ECM checks its own NATS communication interface.
—
—
—
—
x
x: Applicable
*1: NATS: Nissan Anti-Theft System
Nickel Metal Hydride Battery Replacement
CONSULT-II contains a nickel metal hydride battery. When replacing the battery obey the following:
WARNING:
Replace the nickel metal hydride battery with genuine CONSULT-II battery only. Use of another battery
may present a risk of fire or explosion. The battery may present a fire or chemical burn hazard if mis-
treated. Do not recharge, disassemble of dispose of in fire.
Keep the battery out of reach of children and discard used battery conforming to the local regulations.
Checking Equipment
When ordering this equipment, contact your NISSAN distributor.
Tool name
Description

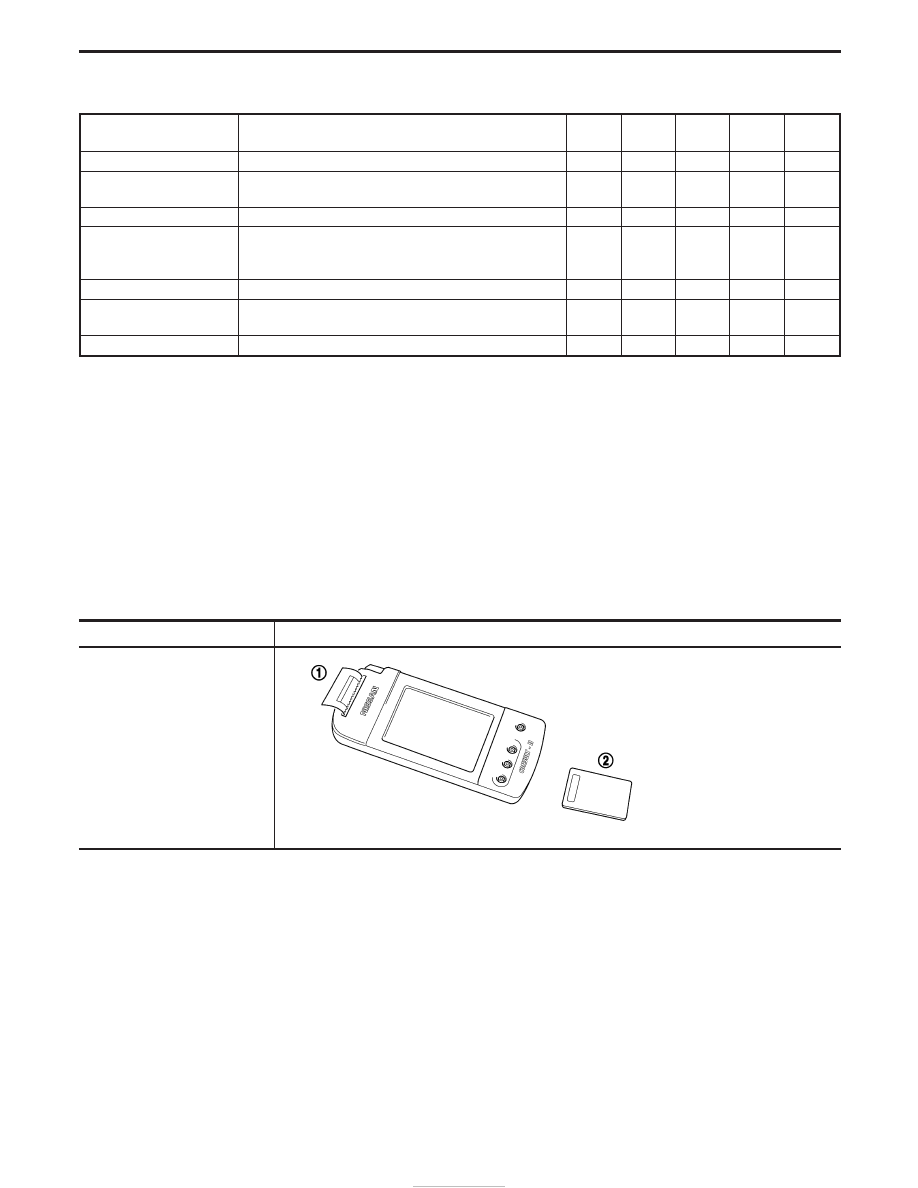

NISSAN CONSULT-II
q
1
CONSULT-II unit and acces-
sories
q
2
Program card
AED03E for diagnosis,
AEN02C-1 for NATS
To confirm the best combination
of these softwares, refer to
CONSULT-II Operation Manual.
YGI004
NOTE:
I
The CONSULT-II must be used in conjunction with a program card.
CONSULT-II does not require loading (Initialisation) procedure.
I
Be sure the CONSULT-II is turned off before installing or removing a program card.
CONSULT-II CHECKING SYSTEM
