MANUAL A/C IDENTIFICATION TABLE

HAC-101

< SYSTEM DESCRIPTION >

[MANUAL A/C (TYPE 1)]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

SYSTEM DESCRIPTION

MANUAL A/C IDENTIFICATION TABLE

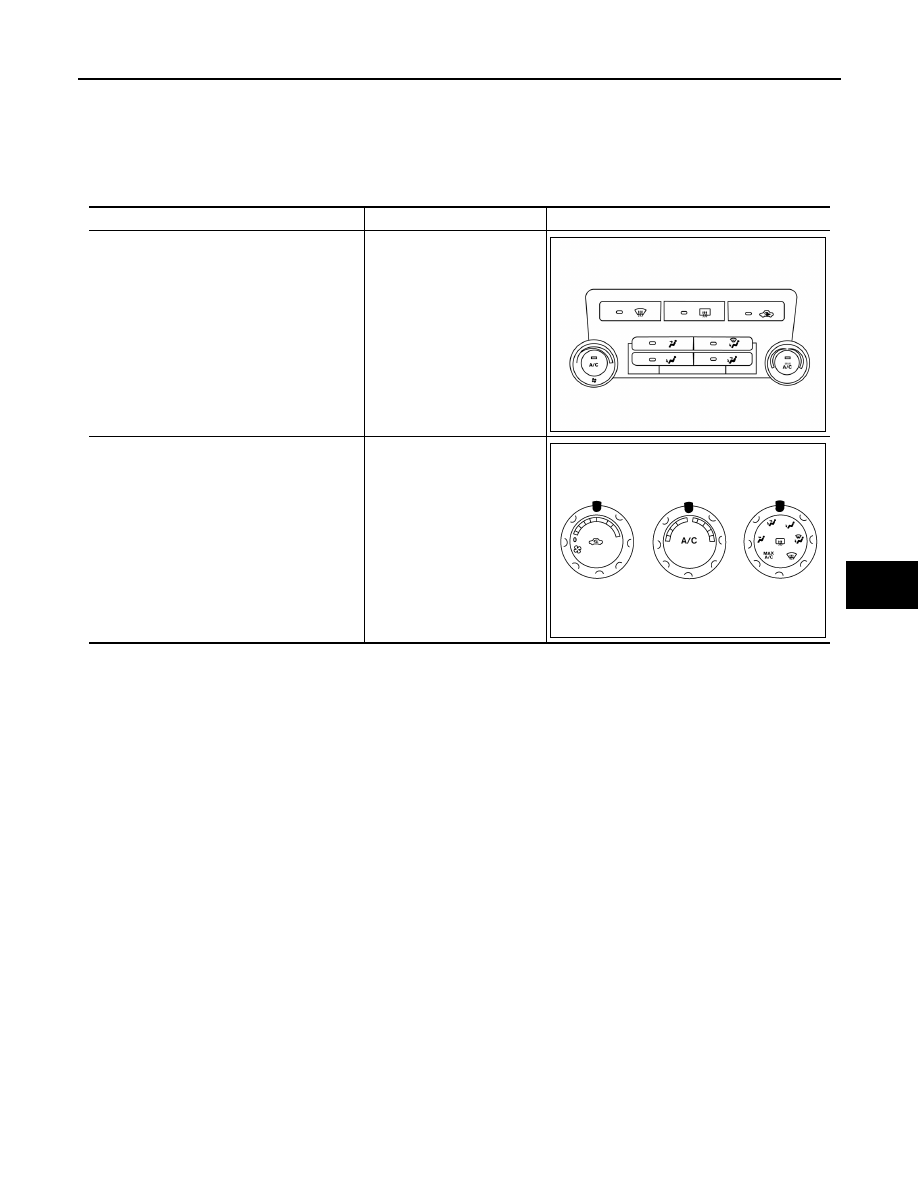

Application Table

INFOID:0000000009882501

Manual A/C Type

Description

Visual Identification

Manual A/C (Type 1)

Two Control Dial System

Manual A/C (Type 2)

Three Control Dial System

[with variable blower control

(VBC)]

ALIIA0692ZZ

AWIIA0478ZZ

HAC-102

< SYSTEM DESCRIPTION >

[MANUAL A/C (TYPE 1)]

FUNCTION INFORMATION

FUNCTION INFORMATION

Component Part Location

INFOID:0000000009882502

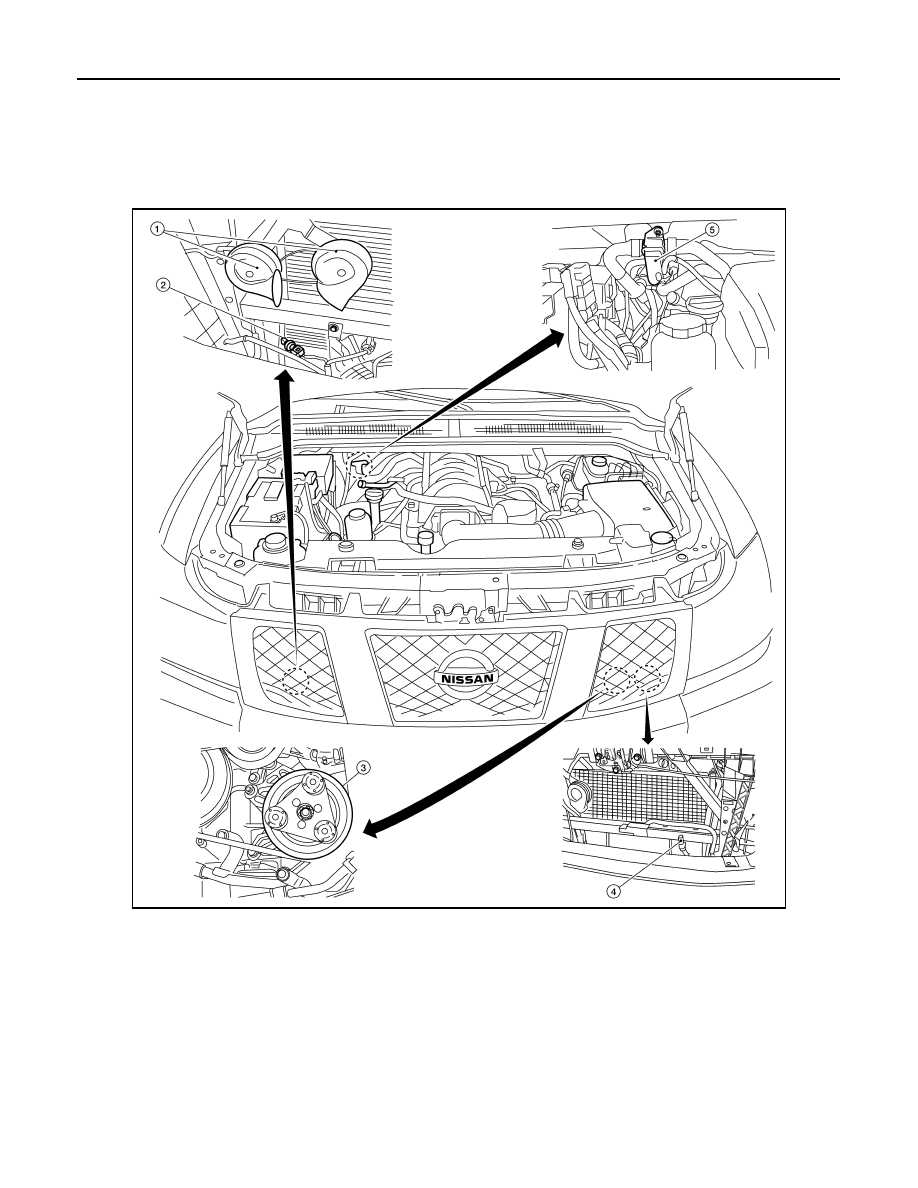

ENGINE COMPARTMENT

AWIIA1075ZZ

1.

Horn (view with grille removed)

2.

Refrigerant pressure sensor E48
(view with grille removed)

3.

A/C compressor F3

4.

Ambient sensor E1 (view with grille
removed)

5.

Water valve F68

FUNCTION INFORMATION

HAC-103

< SYSTEM DESCRIPTION >

[MANUAL A/C (TYPE 1)]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

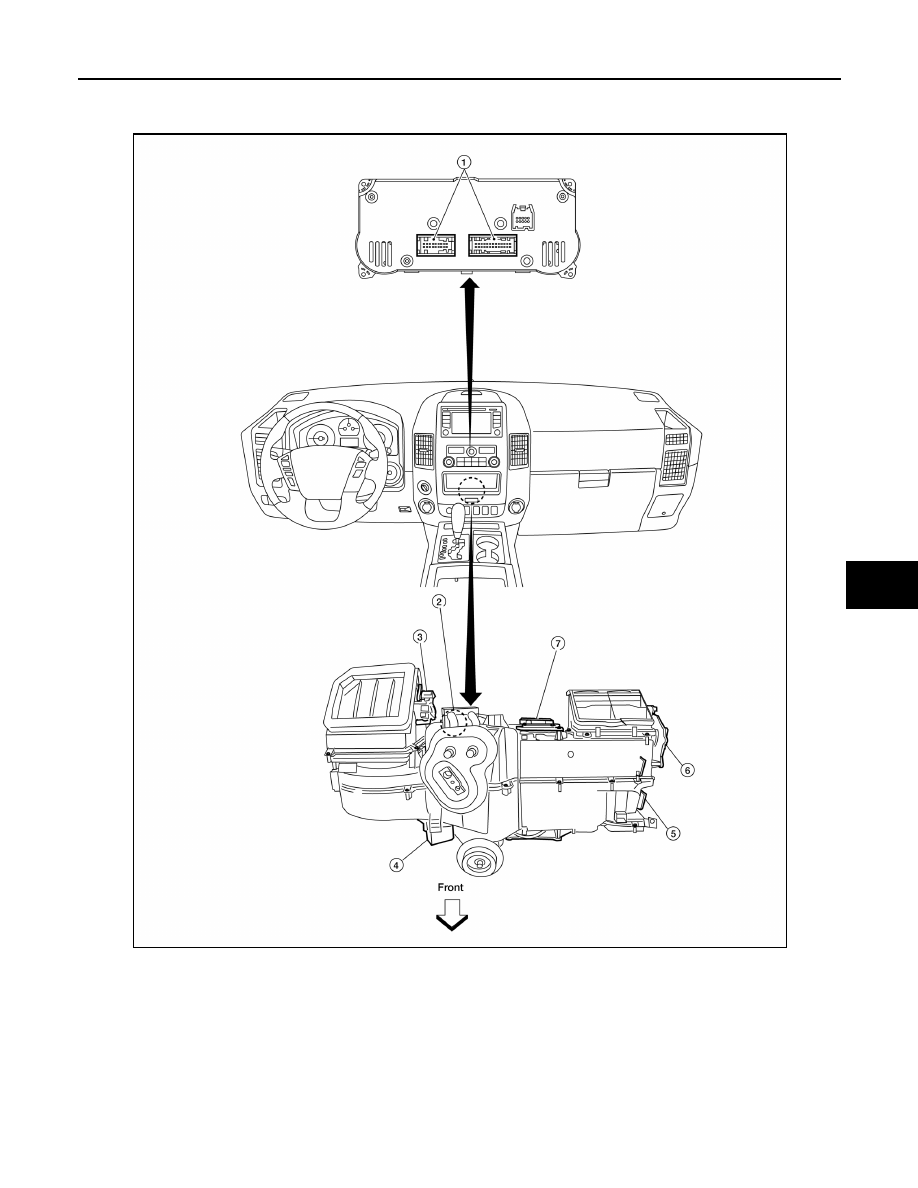

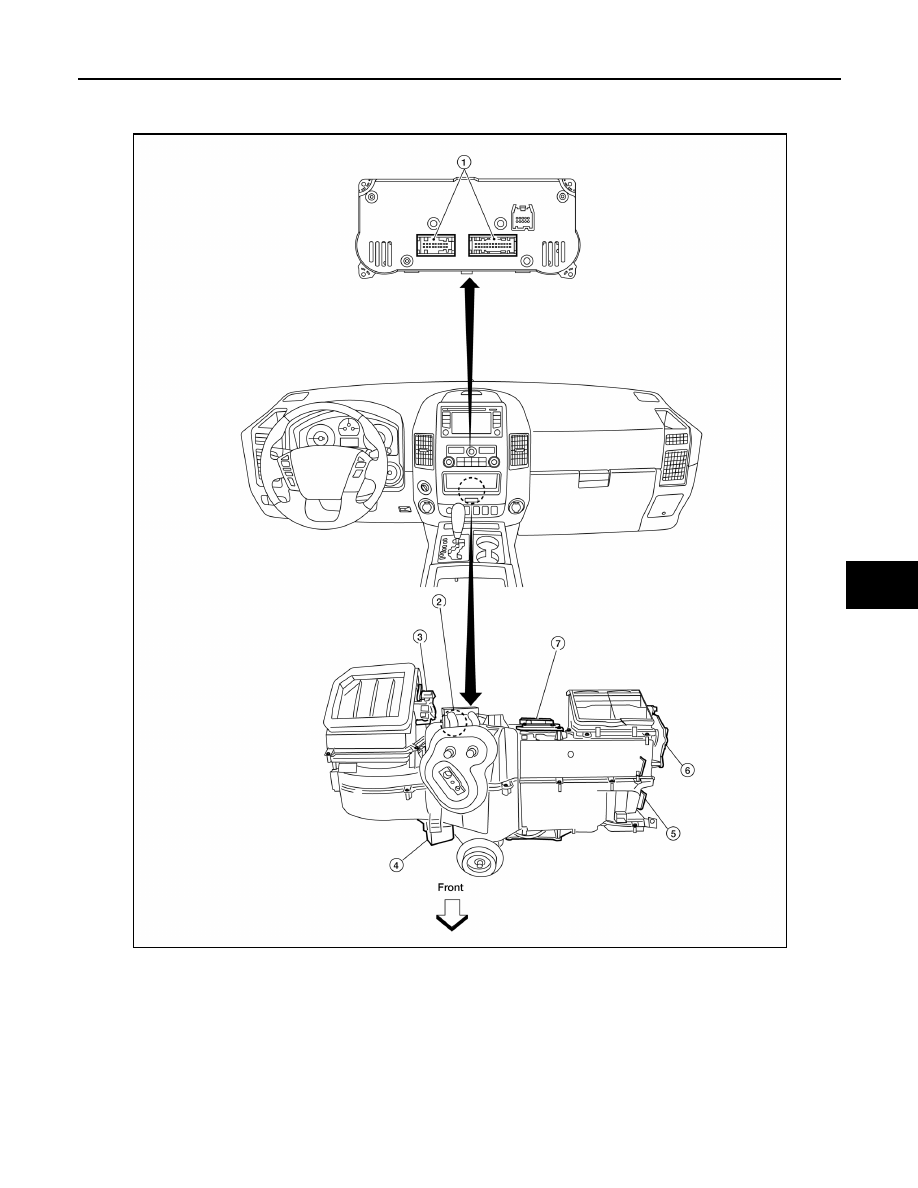

PASSENGER COMPARTMENT

1.

Front air control M180, M181

2.

Intake sensor M146

3.

Intake door motor M58

4.

Variable blower control M122

5.

Mode door motor M142

6.

Defroster door motor M144

7.

Air mix door motor M147

ALIIA0695ZZ

HAC-104

< SYSTEM DESCRIPTION >

[MANUAL A/C (TYPE 1)]

FUNCTION INFORMATION

Symptom Table

INFOID:0000000009882503

Symptom

Reference Page

A/C system does not come on.

Go to Trouble Diagnosis Procedure for A/C System.

HAC-150

A/C system cannot be controlled.

Go to Self-diagnosis Function.

HAC-114

Air outlet does not change.

Go to Trouble Diagnosis Procedure for Mode Door Motor.

HAC-116

Mode door motor is malfunctioning.

Discharge air temperature does not change.

Go to Trouble Diagnosis Procedure for Air Mix Door Motor.

HAC-120

Air mix door motor is malfunctioning.

Intake door does not change.

Go to Trouble Diagnosis Procedure for Intake Door Motor.

HAC-126

Intake door motor is malfunctioning.

Defroster door motor is malfunctioning.

Go to Trouble Diagnosis Procedure for Defroster Door Motor.

HAC-127

Front blower motor operation is malfunctioning.

Go to Trouble Diagnosis Procedure for Front Blower Motor.

HAC-132

Magnet clutch does not engage.

Go to Trouble Diagnosis Procedure for Magnet Clutch.

HAC-137

Insufficient cooling

Go to Trouble Diagnosis Procedure for Insufficient Cooling.

HAC-167

Insufficient heating

Go to Trouble Diagnosis Procedure for Insufficient Heating.

HAC-175

Noise

Go to Trouble Diagnosis Procedure for Noise.

HAC-177

Self-diagnosis cannot be performed.

Go to Trouble Diagnosis Procedure for Self-diagnosis.

HAC-114
