REAR DOOR LOCK

DLK-133

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

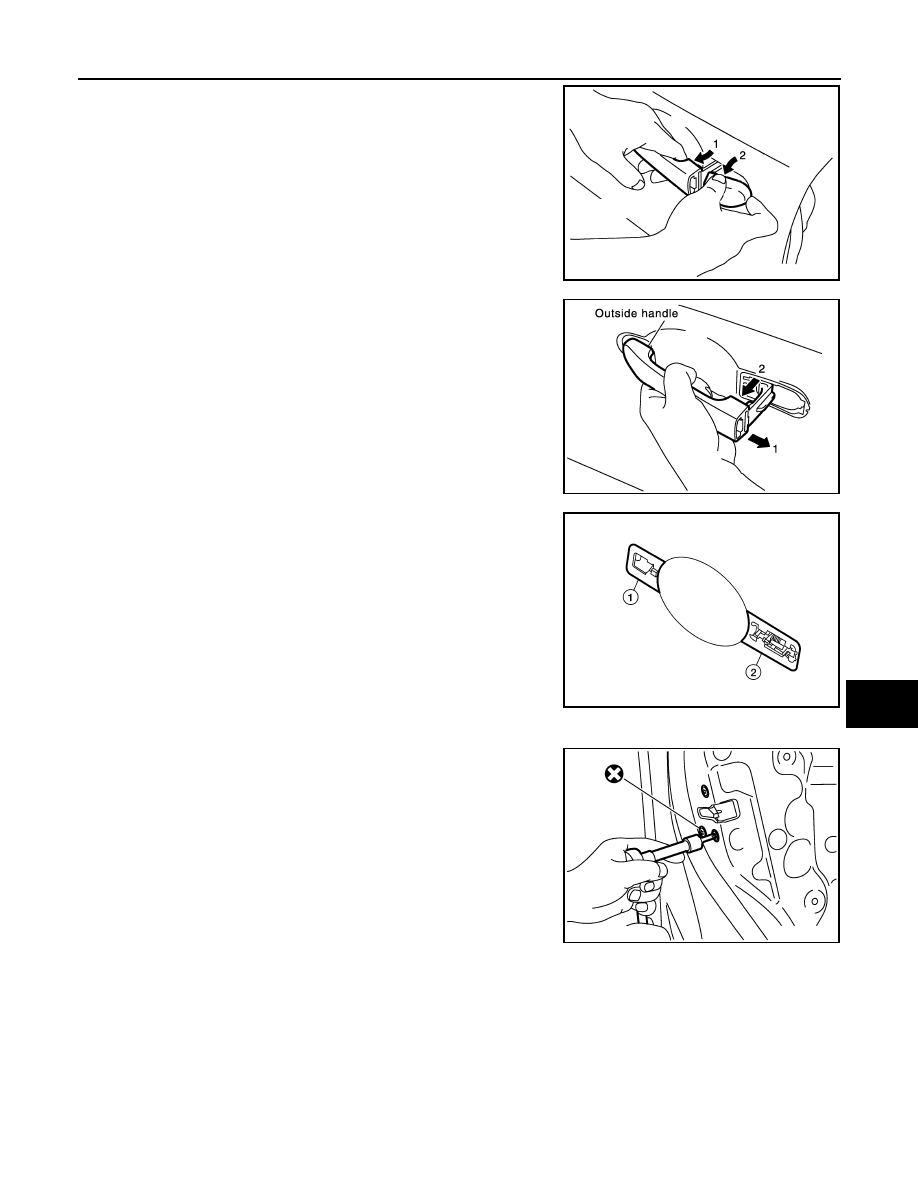

4. While pulling the outside handle, remove the door handle

escutcheon in order shown.

5. While pulling the outside handle, slide it toward the rear of vehi-

cle to remove in order shown.

6. Remove the front gasket (1) and rear gasket (2).

7. Remove the inside handle screws.
8. Remove the bolts and the door lock assembly.

CAUTION:

Do not reuse bolts.

LIIA1971E

LIIA0532E

ALKIA0893ZZ

PIIB5812E

DLK-134

< REMOVAL AND INSTALLATION >

REAR DOOR LOCK

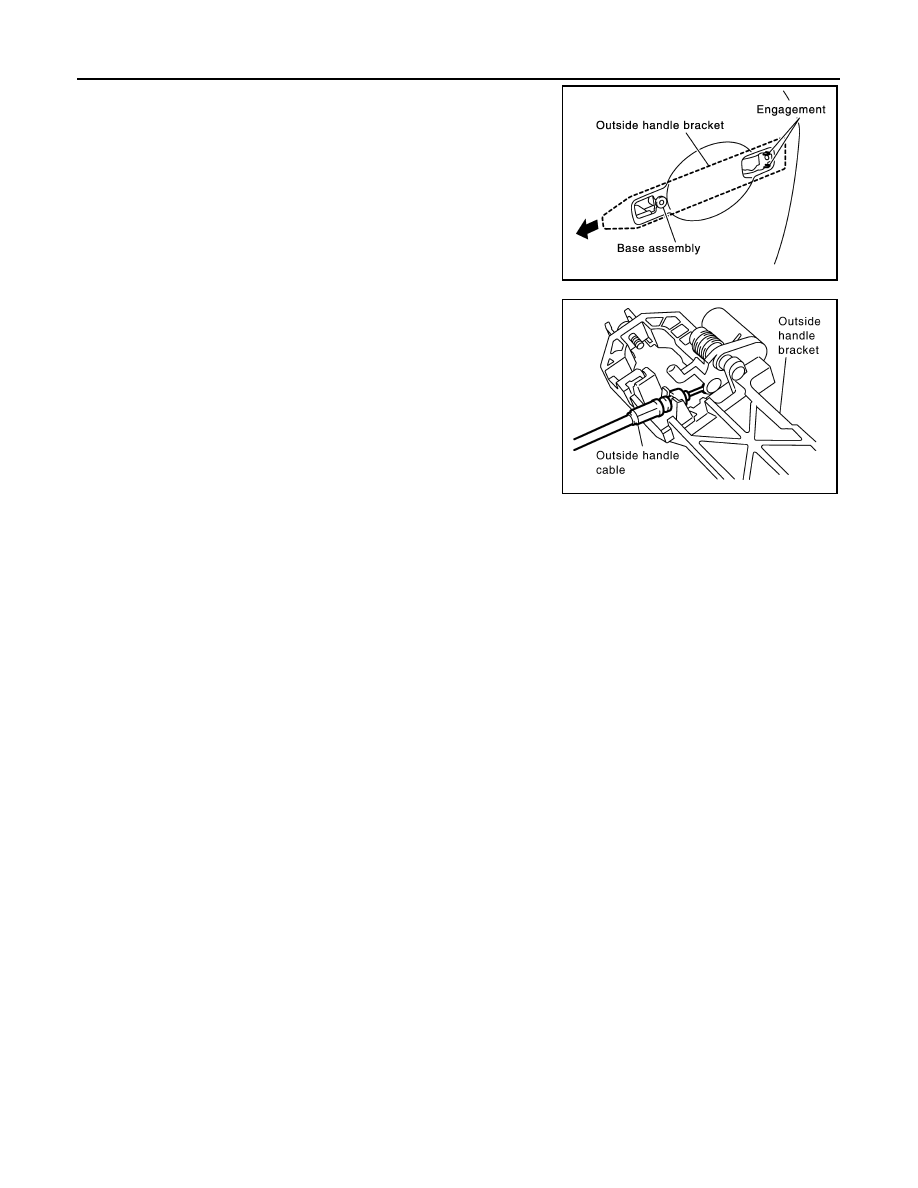

9. While pulling outside handle bracket, slide toward rear of vehicle

to remove outside handle bracket and door lock assembly.

10. Disconnect the outside handle cable.

INSTALLATION

Installation is in the reverse order of removal.

PIIA3558E

PIIA5059E

TAIL GATE

DLK-135

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

TAIL GATE

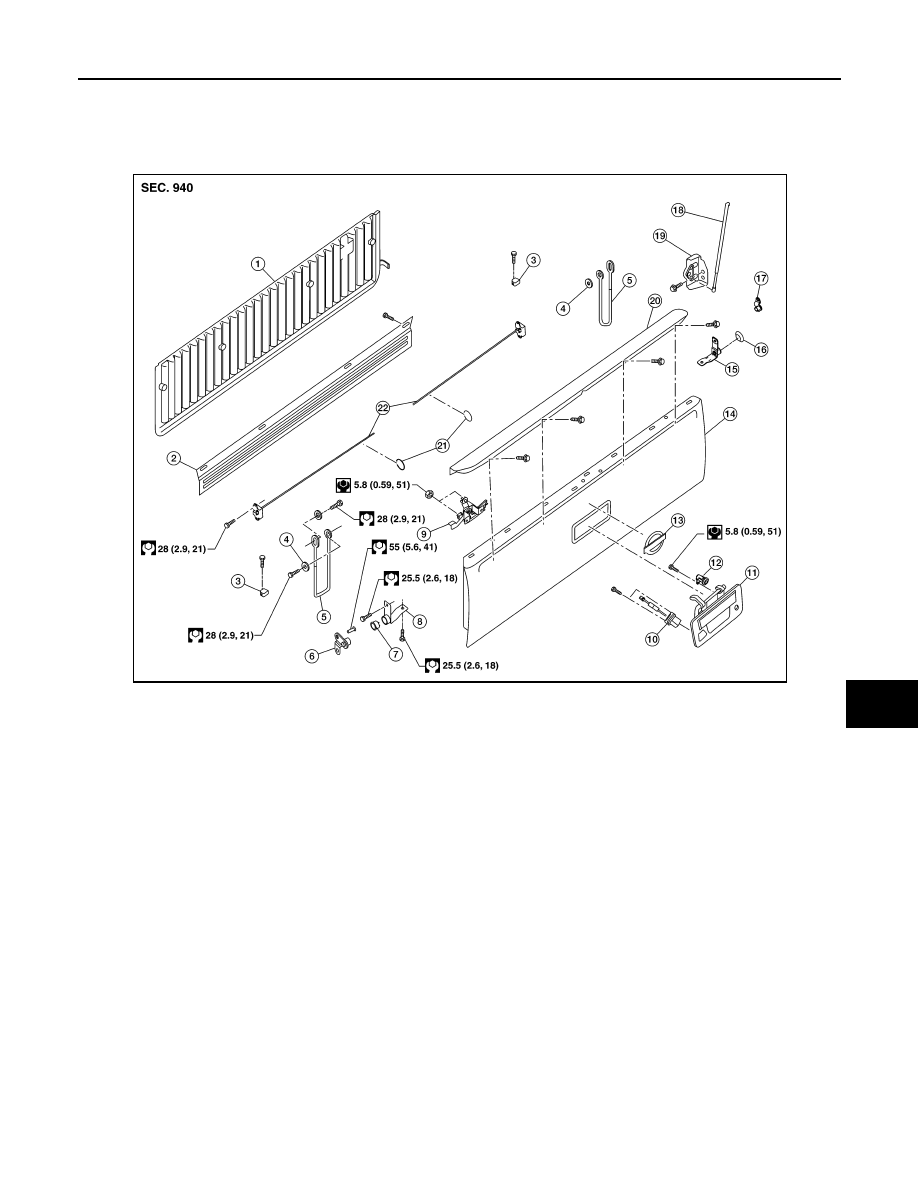

Exploded View

INFOID:0000000009878847

Removal and Installation

INFOID:0000000009878848

CAUTION:

Use two people when removing or installing tail gate assembly due to its heavy weight.

TAIL GATE

Removal

1. Lower tail gate to access rear camera harness connector bracket (if equipped). Release tab on bracket,

then pull out rear camera harness and disconnect connector.

2. Release tail gate stay assembly (LH/RH).

1.

Tail gate liner cover (if equipped)

2.

Tail gate inner panel

3.

Tail gate rubber bumper

4.

Washer

5.

Tail gate stay assembly

6.

Tail gate hinge assembly (LH), body
side

7.

Tail gate ring (LH)

8.

Tail gate hinge assembly (LH), gate
side

9.

Tail gate control assembly

10. Rear camera

11. Tail gate handle

12. Tail gate lock cylinder

13. Emblem

14. Tail gate

15. Tail gate hinge assembly (RH), gate

side

16. Tail gate ring (RH)

17. Tail gate hinge assembly (RH), body

side

18. Gas stay (if equipped)

19. Gas stay bracket

20. Tail gate cover

21. Rubber bumper

22. Tail gate latch assembly (LH/RH)

AWKIA2078ZZ

DLK-136

< REMOVAL AND INSTALLATION >

TAIL GATE

3. While holding tail gate at 45 degree angle, pull tailgate out from hinge assembly (LH), then slide tail gate

out of hinge assembly (RH) and remove.

Installation

Installation is in the reverse order of removal.

GAS STAY

Removal

WARNING:

The gas stay is under high pressure. Remove the gas stay only with the tail gate fully closed. Injury

may result if the gas stay is removed when the tail gate is open.
1. Remove the RH rear combination lamp assembly. Refer to

EXL-150, "Removal and Installation"

.

2. Remove the gas stay.

Installation

Installation is in the reverse order of removal.

Tail Gate Gas Stay Disposal

INFOID:0000000009878849

1. Fix tail gate gas stay (1) using a vise (C).
2. Using hacksaw (A) slowly make 2 holes in the tail gate gas stay,

in numerical order as shown.

CAUTION:

• When cutting a hole on tail gate gas stay, always cover

hacksaw with shop cloths (B) to avoid scattering metal

fragments or oil.

• Wear eye protection (safety glasses).

• Wear gloves.

LIIA1984E

JMKIA3336ZZ
