KEY SWITCH SIGNAL CIRCUIT

WCS-23

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

1. Turn ignition switch OFF.

2. Disconnect key switch connector.

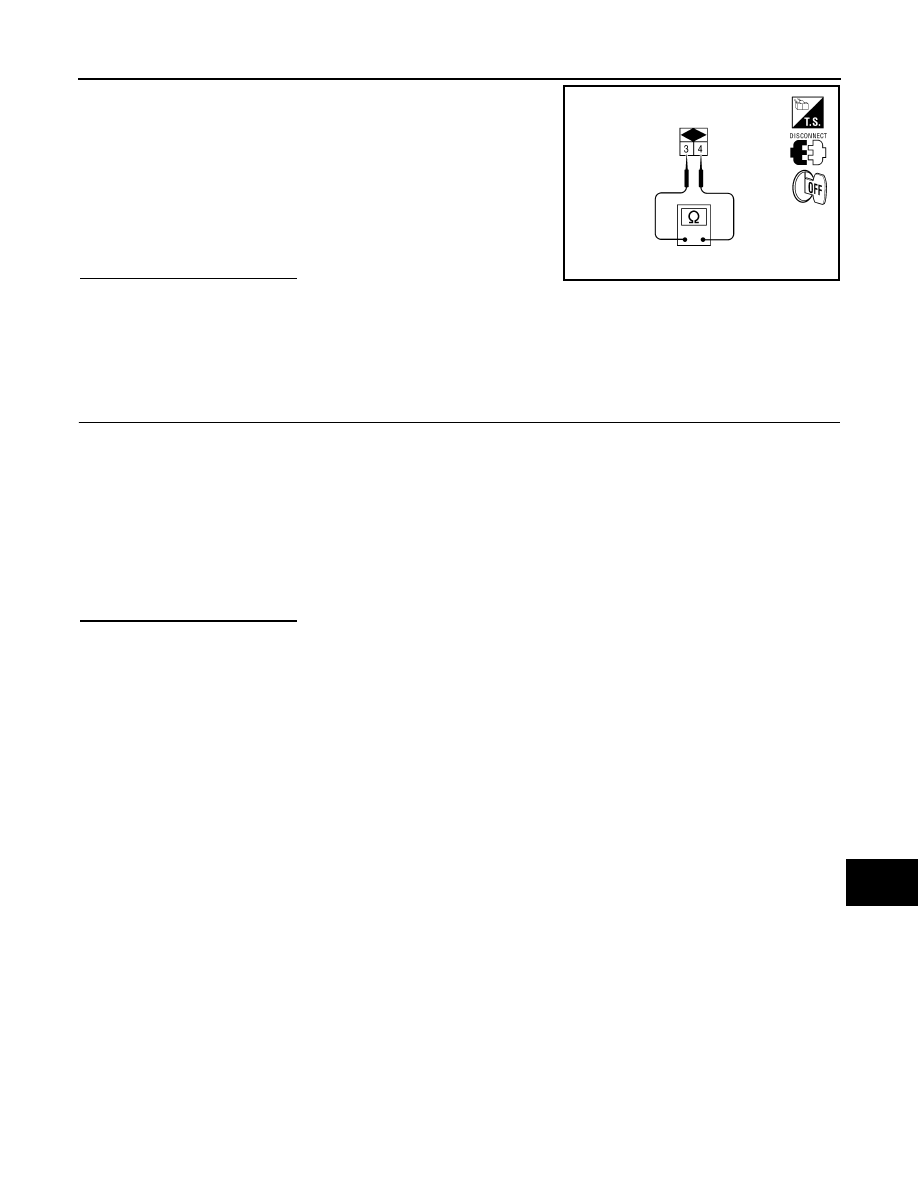

3. Check continuity between key switch terminals 3 and 4.

Is the inspection result normal?

YES

>> Inspection End.

NO

>> Replace key switch.

Component Inspection - Floor Shift

INFOID:0000000006166414

FLOOR SHIFT

1.

CHECK KEY SWITCH

1. Turn ignition switch OFF.

2. Disconnect key switch and key lock solenoid connector.

3. Check continuity between key switch and key lock solenoid terminals 3 and 4.

Is the inspection result normal?

YES

>> Inspection End.

NO

>> Replace key switch and key lock solenoid.

3 – 4
When key is inserted
into key cylinder

: Continuity should exist.

When key is removed
from key cylinder

: Continuity should not exist.

AWNIA0180ZZ

3 – 4
When key is inserted
into key cylinder

: Continuity should exist.

When key is removed
from key cylinder

: Continuity should not exist.

WCS-24

< ECU DIAGNOSIS INFORMATION >

COMBINATION METER

ECU DIAGNOSIS INFORMATION

COMBINATION METER

Reference Value

INFOID:0000000006625927

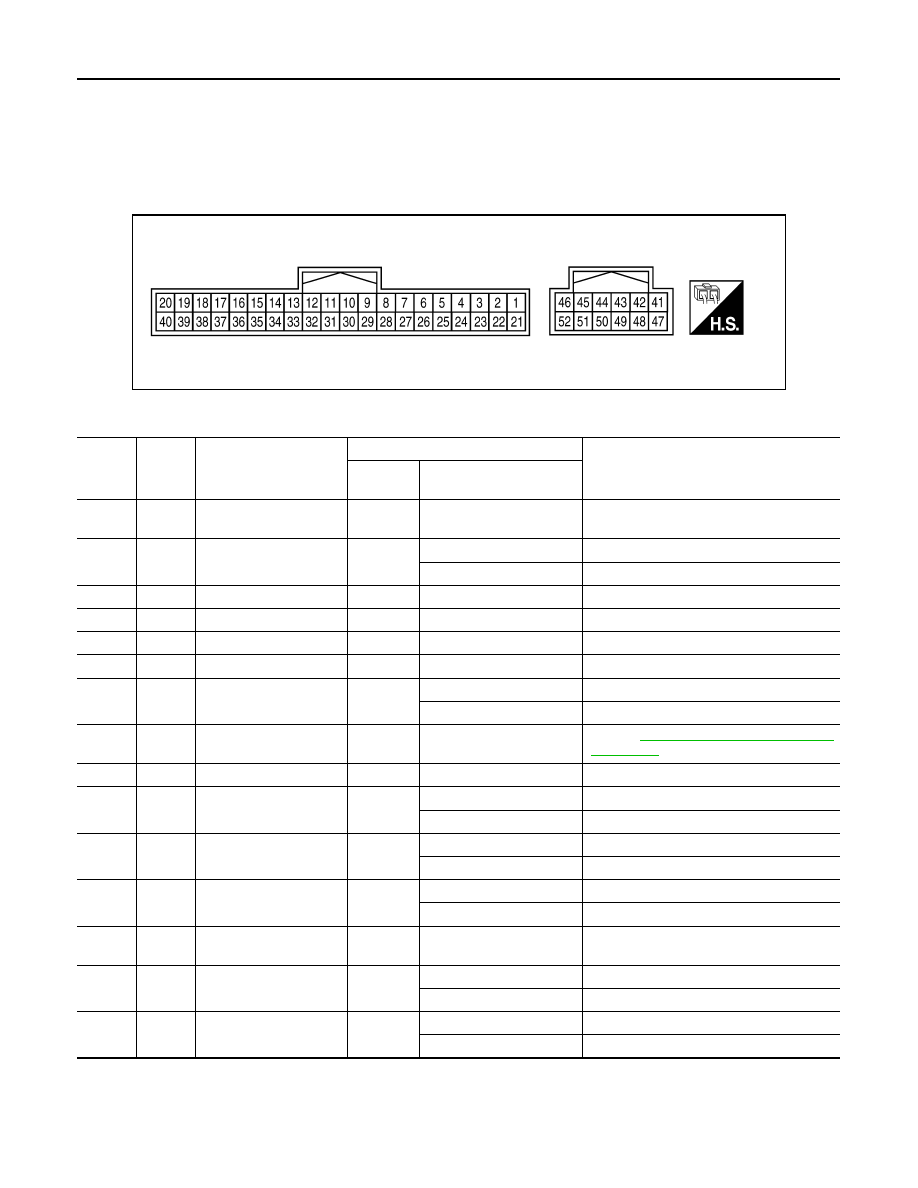

TERMINAL LAYOUT

PHYSICAL VALUES

WKIA5724E

Termi-

nal

Wire

color

Item

Condition

Reference value (V)

(Approx.)

Ignition

switch

Operation or condition

1

O

Ignition switch ACC or
ON

—

—

Battery voltage

2

P

Air bag warning lamp in-
put

ON

Air bag warning lamp ON

4

Air bag warning lamp OFF

0

8

P

Battery power supply

—

—

Battery voltage

9

B

Ground

—

—

0

11

L

CAN-H

—

—

—

12

P

CAN-L

—

—

—

14

L

DIFF LOCK indicator in-
put

ON

DIFF LOCK indicator ON

0

DIFF LOCK indicator OFF

Battery voltage

15

Y/L

Fuel level sensor signal

—

—

Refer to

MWI-12, "FUEL GAUGE : System

Description"

.

16

B/P

Fuel level sensor ground

ON

—

0

17

R/G

Stop lamp switch

—

Brake pedal depressed

Battery voltage

Brake pedal released

0

18

P/B

Brake fluid level switch

ON

Brake fluid level low

0

Brake fluid level normal

Battery voltage

23

G

Parking brake switch

ON

Parking brake applied

0

Parking brake released

Battery voltage

24

O/L

Ignition switch ON or
START

ON

—

Battery voltage

27

O/B

Seat belt buckle switch
LH

ON

Unfastened (ON)

0

Fastened (OFF)

Battery voltage

28

G/O

Security indicator input

OFF

Security indicator ON

0

Security indicator OFF

Battery voltage

WCS

COMBINATION METER

WCS-25

< ECU DIAGNOSIS INFORMATION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

Fail Safe

INFOID:0000000006625928

The combination meter performs a fail-safe operation for the functions listed below when communication is

lost.

29

W/R

Vehicle speed signal out-
put (8-pulse)

ON

Speedometer operated
[When vehicle speed is ap-
prox. 40 km/h (25 MPH)]

NOTE:
Maximum voltage may be 12V due to spec-
ifications (connected units).

37

W/L

Washer fluid level switch

ON

Washer fluid level low

0

Washer fluid level normal

Battery voltage

41

P/L

Seat belt buckle switch
RH

ON

Unfastened (ON)

0

Fastened (OFF)

Battery voltage

45

BR/W

Generator

ON

Generator voltage low

0

Generator voltage normal

Battery voltage

50

BR

Illumination output

—

—

Refer to

INL-10, "System Description"

.

52

B

Ground

—

—

0

Termi-

nal

Wire

color

Item

Condition

Reference value (V)

(Approx.)

Ignition

switch

Operation or condition

PKIC0643E

Function

Specifications

Speedometer

Zero indication.

Tachometer

Fuel gauge

Engine coolant temperature gauge

Engine oil pressure gauge (if equipped)

Voltage gauge (if equipped)

A/T oil temperature gauge (if equipped)

Illumination control

Meter illumination

Change to nighttime mode when communication is lost.

Segment LCD

Odometer

Freeze current indication.

A/T position

Display turns off.

Buzzer

Buzzer turns off.

WCS-26

< ECU DIAGNOSIS INFORMATION >

COMBINATION METER

DTC Index

INFOID:0000000006625929

NOTE:

“TIME” indicates the following.

• 0: Indicates that a malfunction is detected at present.

• 1-63: Indicates that a malfunction was detected in the past. (Displays number of ignition switch OFF

→ ON

cycles after malfunction is detected. Self-diagnosis result is erased when “63” is exceeded.)

Warning lamp/indicator lamp

ABS warning lamp

Lamp turns on when communication is lost.

Brake warning lamp

VDC OFF indicator lamp

SLIP indicator lamp

A/T CHECK warning lamp

Lamp turns off when communication is lost.

Oil pressure/coolant temperature
warning lamp

Malfunction indicator lamp

Master warning lamp

Air bag warning lamp

High beam indicator

Turn signal indicator lamp

Driver and passenger seat belt warn-
ing lamp

Lamp turns off when disconnected.

Charge warning lamp

Security indicator lamp

4WD indicator lamp

ATP indicator lamp

DIFF LOCK indicator lamp

Low tire pressure warning lamp

Lamp will flash every second for 1 minute and then stay on con-
tinuously thereafter.

Function

Specifications

CONSULT-III display

Malfunction

Reference

page

CAN COMM CIRC
[U1000]

Malfunction is detected in CAN communication.

CAUTION:

Even when there is no malfunction on CAN communication system, malfunction may be
misinterpreted when battery has low voltage (when maintaining 7 - 8 V for about 2 sec-
onds) or 10A fuse [No. 3, located in the fuse block (J/B)] is disconnected.

MWI-31

VEHICLE SPEED
CIRC
[B2205]

Malfunction is detected when an erroneous speed signal is input.

CAUTION:

Even when there is no malfunction on speed signal system, malfunction may be misin-
terpreted when battery has low voltage (when maintaining 7 - 8 V for about 2 seconds).

MWI-32
