< UNIT DISASSEMBLY AND ASSEMBLY >

ASSEMBLY

d. Calculate dimension “M”.

3. Adjust total end play “T

1

”.

• Select proper thickness of bearing race so that total end play

is within specifications.

Assembly (2)

INFOID:0000000006159473

1. Install O-ring to oil pump assembly.

CAUTION:

• Do not reuse O-ring.

• Apply ATF to O-ring.

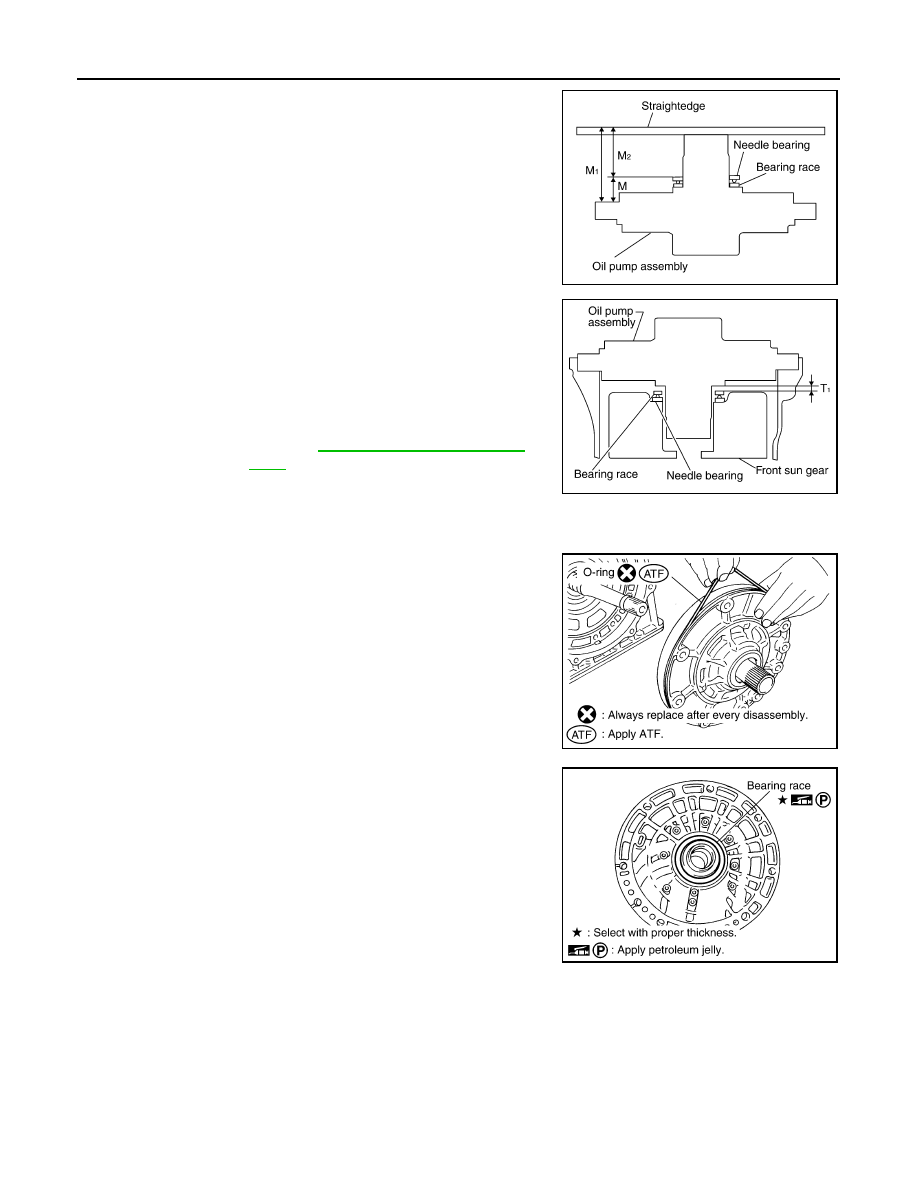

2. Install bearing race to oil pump assembly.

CAUTION:

Apply petroleum jelly to bearing race.

“M”: Distance between transmission case fitting sur-
face of oil pump and needle bearing on oil pump.

M = M

1

 – M

2

SCIA3125E

T

1

 = J – M

Total end play “T

1

” : 0.25 - 0.55 mm (0.0098 - 0.0217 in)

Bearing races :Refer to

TM-283, "General Specifica-

tion"

.

SCIA2810E

SCIA5172E

SCIA6529E

ASSEMBLY

TM-277

< UNIT DISASSEMBLY AND ASSEMBLY >

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

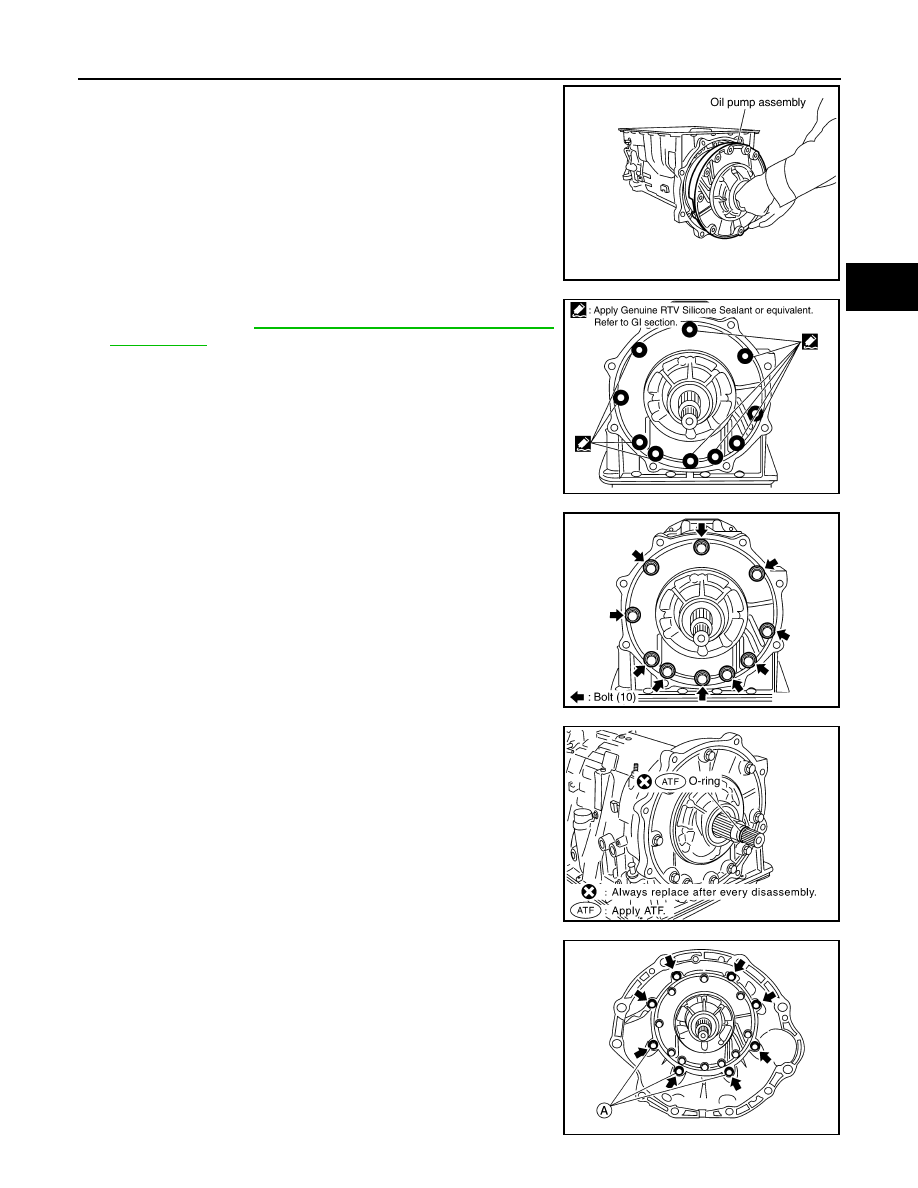

3. Install oil pump assembly in transmission case.

CAUTION:

Apply ATF to oil pump bearing.

4. Apply recommended sealant (Genuine RTV Silicone Sealant or

equivalent. Refer to

GI-15, "Recommended Chemical Products

and Sealants"

.) to oil pump assembly as shown.

CAUTION:

Completely remove all moisture, oil, old sealant and any

foreign material from the oil pump bolts and oil pump bolt

mating surfaces.

5. Tighten oil pump bolts to specified torque.

CAUTION:

Apply ATF to oil pump bushing.

6. Install O-ring to input clutch assembly.

CAUTION:

• Do not reuse O-ring.

• Apply ATF to O-ring.

7. Install converter housing to transmission case and tighten bolts

to specified torque.

CAUTION:

Do not reuse self-sealing bolt (A).

SCIA2811E

SCIA5321E

Oil pump bolts

: 48 N·m (4.9 kg-m, 35 ft-lb)

SCIA2300E

SCIA5011E

Converter housing bolt

: 52 N·m (5.3 kg-m, 38 ft-lb)

Self-sealing bolt (A)

: 61 N·m (6.2 kg-m, 45 ft-lb)

WCIA0662E

TM-278

< UNIT DISASSEMBLY AND ASSEMBLY >

ASSEMBLY

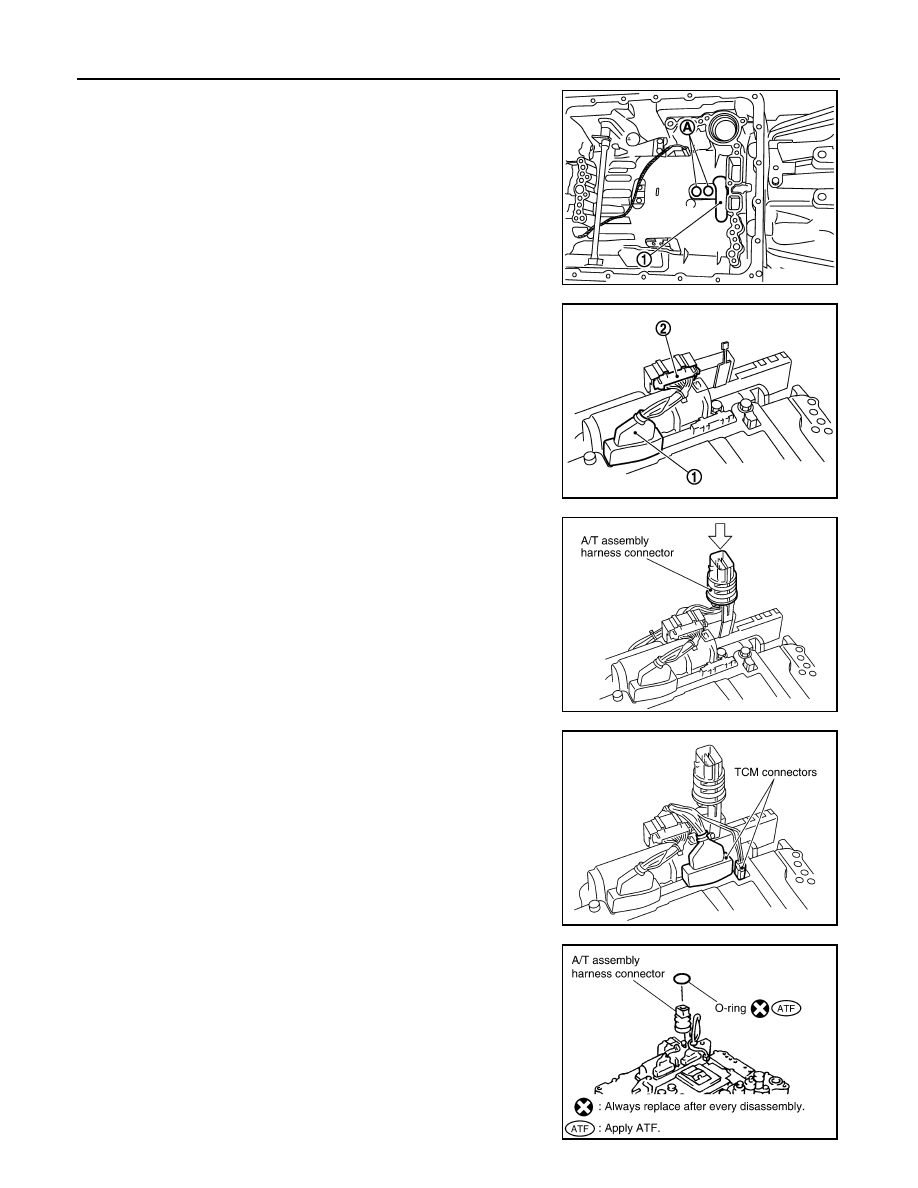

8. Make sure that brake band (1) does not close input speed sen-

sor hole (A).

9. Connect TCM connector (1) and transmission range switch con-

nector (2).

10. Install A/T assembly harness connector to control valve with

TCM.

11. Connect TCM connectors.

12. Install O-ring to A/T assembly harness connector.

CAUTION:

• Do not reuse O-ring.

• Apply ATF to O-ring.

JSDIA1318ZZ

JSDIA1317ZZ

SCIA5450E

SCIA5447E

SCIA5155E

ASSEMBLY

TM-279

< UNIT DISASSEMBLY AND ASSEMBLY >

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

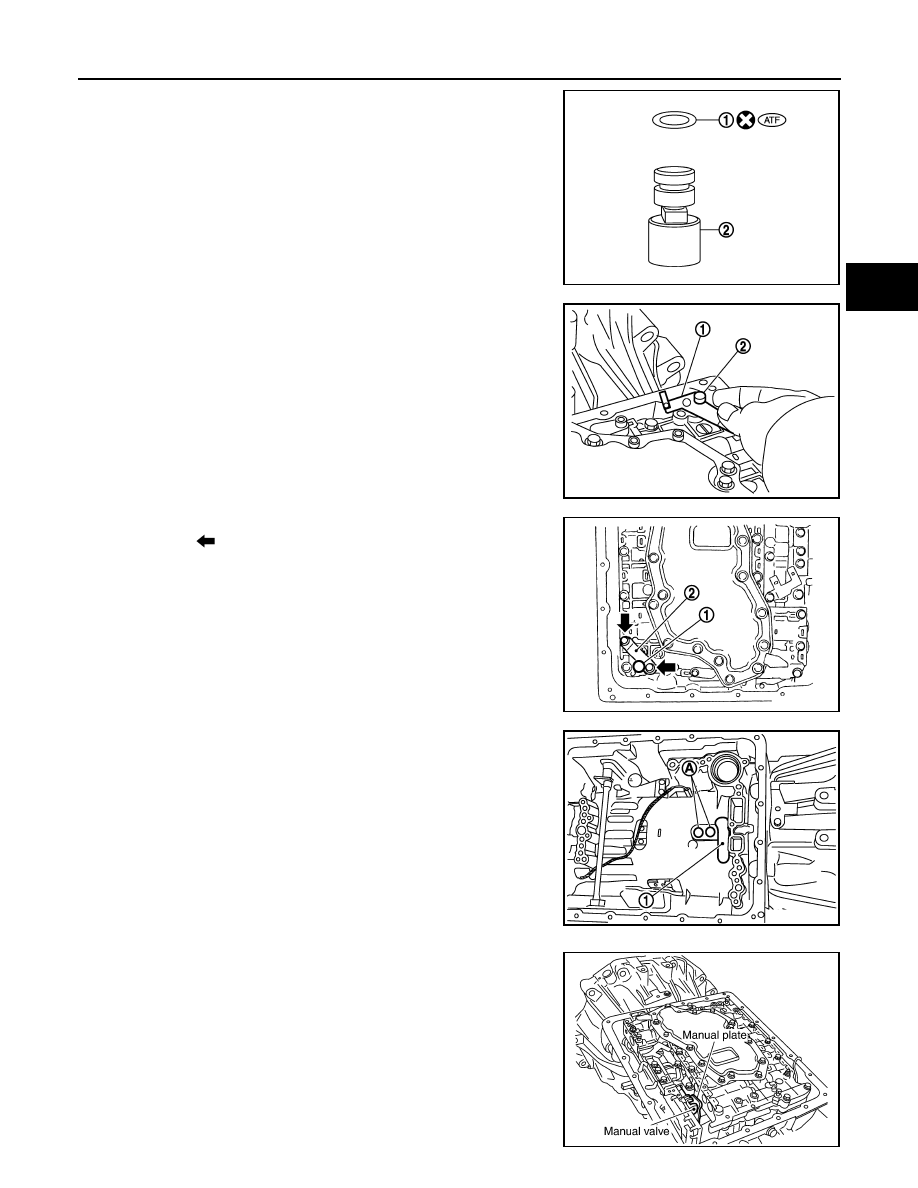

13. Install new O-ring (1) in plug (2).

CAUTION:

• Do not reuse O-ring.

• Apply ATF to O-ring.

• O-ring should be free of contamination.

14. Install plug (2) to bracket (1).

15. Install plug (1) [with bracket (2)] to control valve with TCM and

tighten bolt (

) to specified torque.

CAUTION:

Adjust bolt hole of bracket to bolt hole of control valve.

16. Install control valve with TCM in transmission case.

CAUTION:

• Make sure that input speed sensor is securely installed

into input speed sensor hole (A).

• Hang down output speed sensor harness toward outside

so as not to disturb installation of control valve with TCM.

• Adjust A/T assembly harness connector of control valve

with TCM to terminal hole of transmission case.

• Assemble it so that manual valve cutout is engaged with

manual plate projection.

JSDIA1313ZZ

JSDIA1312ZZ

Bracket bolt

: 7.9 N·m (0.81 kg-m, 70 in-lb)

JSDIA1311ZZ

1

: Brake band

JSDIA1318ZZ

SCIA5035E
