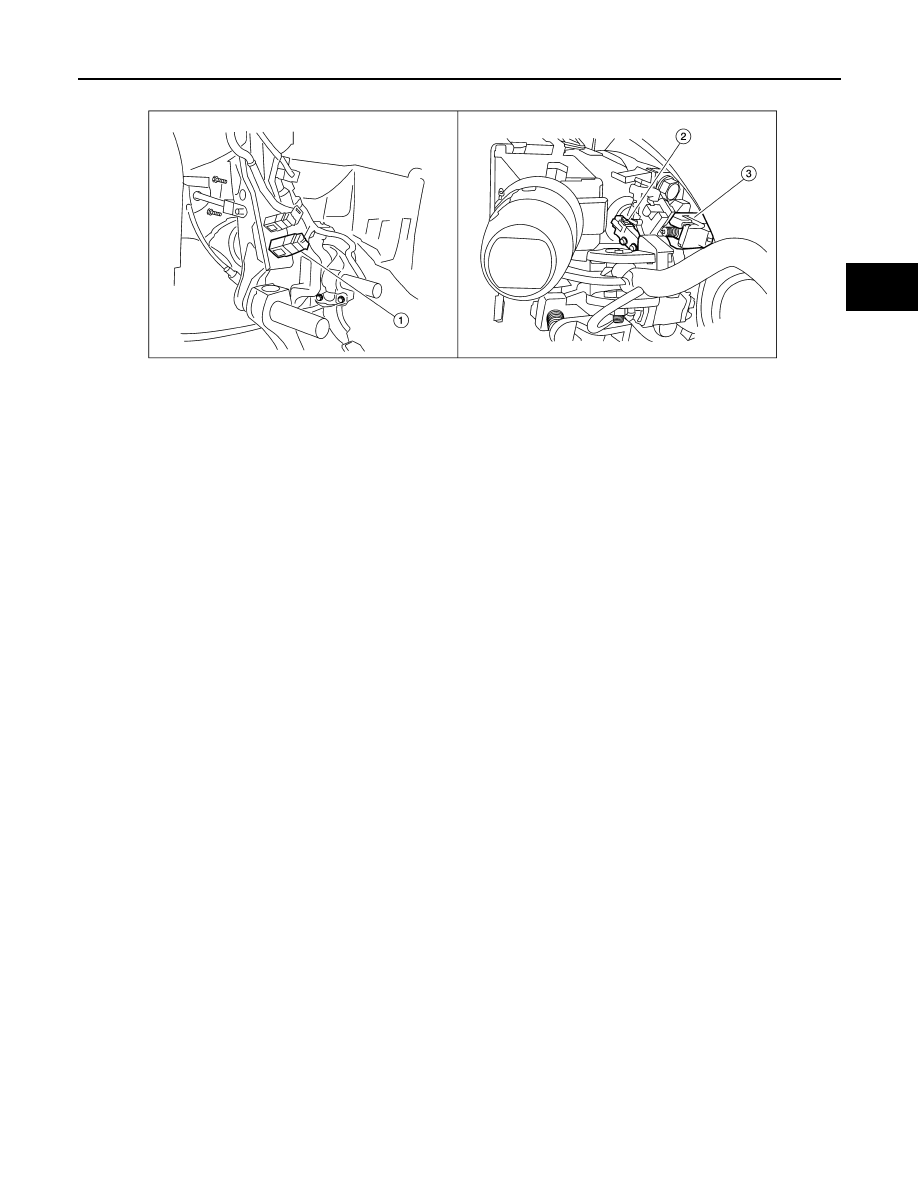

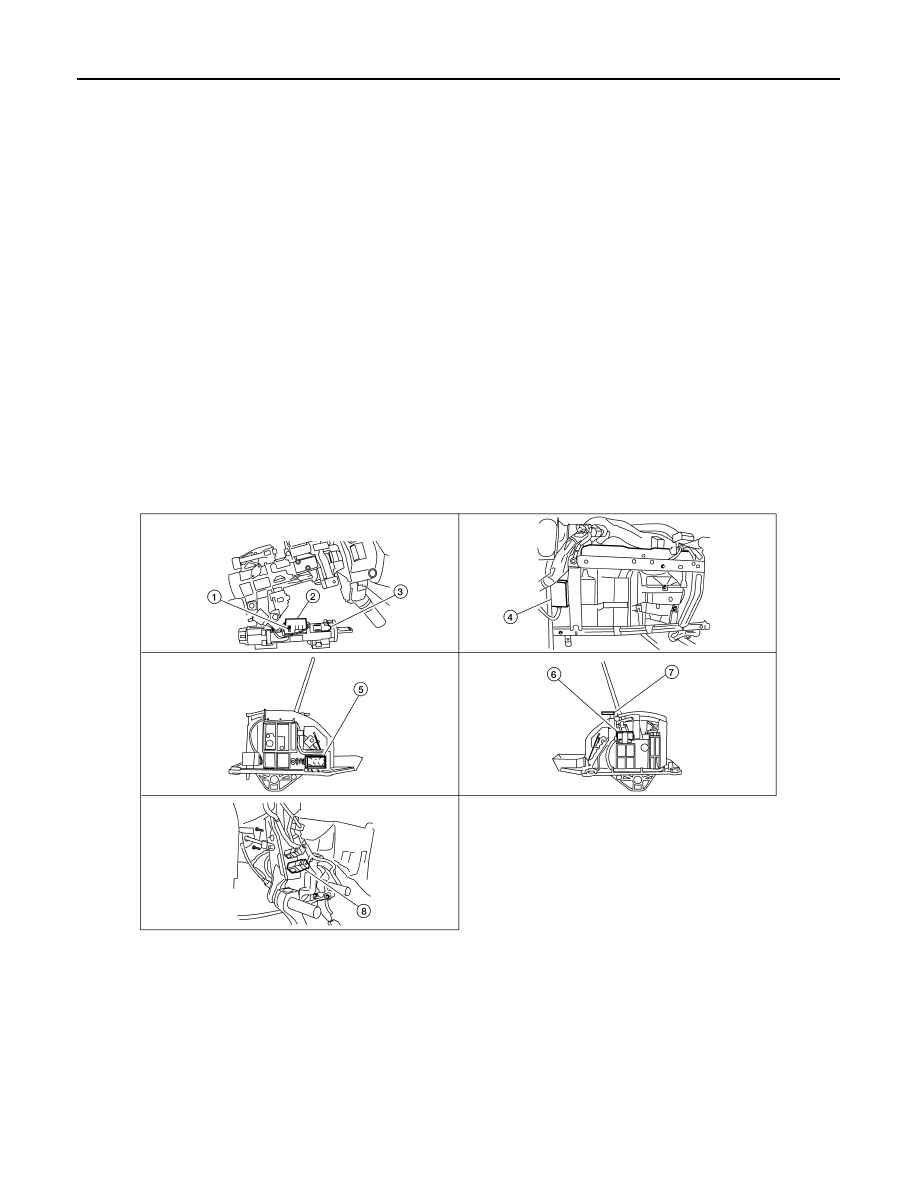

TM-32 < SYSTEM DESCRIPTION > A/T SHIFT LOCK SYSTEM A/T SHIFT LOCK SYSTEM System Description INFOID:0000000006159239 FLOOR SHIFT MODELS • The selector lever cannot be shifted from “P” (Park) unless the brake pedal is applied and the ignition switch is turned to the “ON” position. • The ignition switch cannot be returned to the “OFF” position and the key removed unless the selector lever is placed in “P” (Park). • The shift lock mechanism is controlled by the ON-OFF operation of the shift lock solenoid. • The key switch and key lock solenoid lock mechanism are controlled by the ON-OFF operation of the key lock solenoid and the operation of the rotator and slider located inside the key cylinder. COLUMN SHIFT MODELS • The selector lever cannot be shifted from “P” (Park) unless the brake pedal is applied and the ignition switch is turned to the “ON” position. • The ignition switch cannot be returned to the “OFF” position and the key removed unless the selector lever is placed in “P” (Park). • The shift lock mechanism is controlled by the ON-OFF operation of the shift lock solenoid. Component Parts Location INFOID:0000000006159240 FLOOR SHIFT MODELS COLUMN SHIFT MODELS 1. Emergency lever 2. Key lock solenoid 3. Key switch 4. Shift lock control unit (view with glove 5. Shift lock solenoid 6. Park position switch 7. Shift lock release 8. Stop lamp switch AWDIA0780ZZ |
