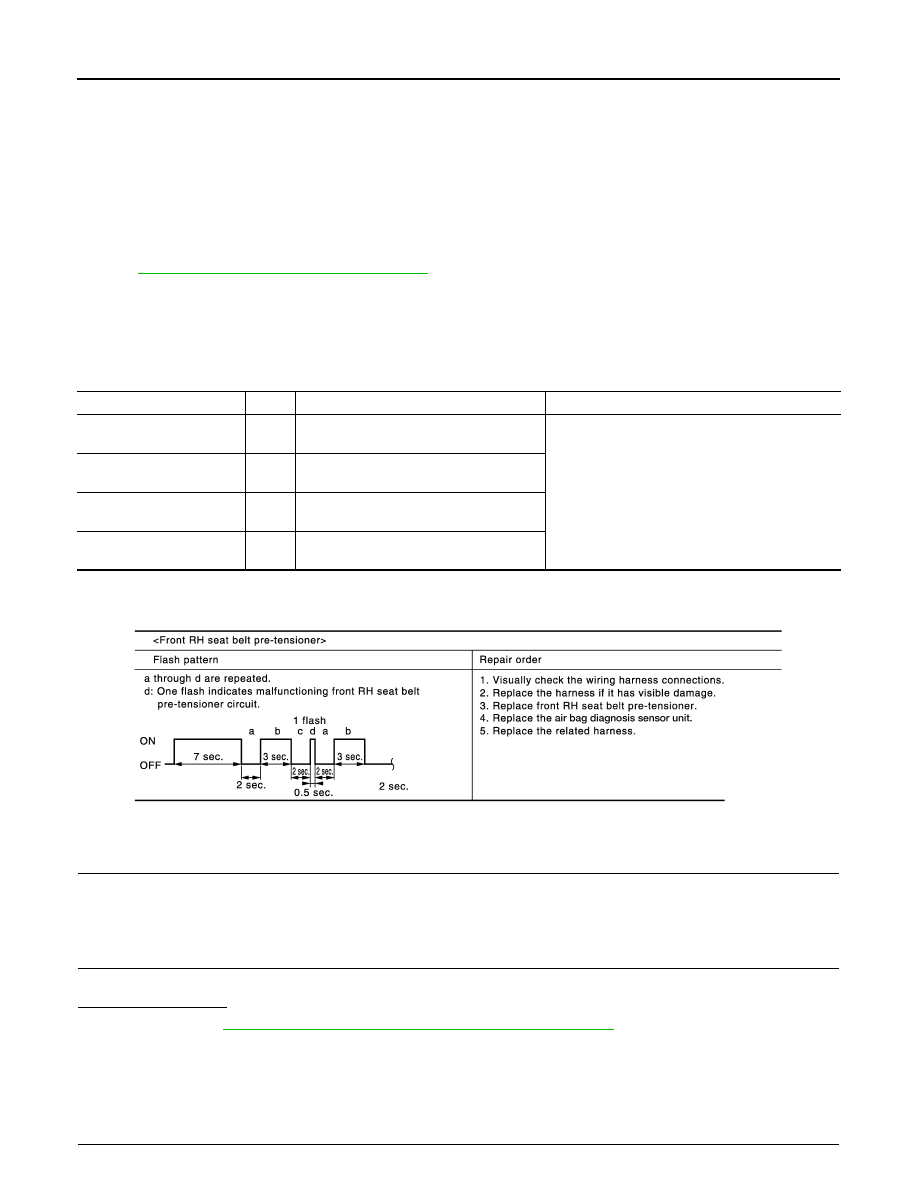

SRC-36 < DTC/CIRCUIT DIAGNOSIS > B1086 – B1089 SEAT BELT PRE-TENSIONER LH >> GO TO 2 2. CONSULT-III Select "DIAG MODE". >> GO TO 3 3. DTC If DTC is detected. Refer to SRC-36, "Diagnosis Procedure (Component Diagnosis)" >> END DTC CONFIRMATION PROCEDURE (Without CONSULT-lll) NOTE: SRS will not enter diagnosis mode if no malfunction is detected in user mode. 1. IGNITION SWITCH Turn ignition switch ON. >> GO TO 2 2. IGNITION SWITCH After air bag warning lamp lights for 7 seconds, turn ignition switch OFF within 1 second. >> GO TO 3 3. WAIT TIME Wait more than 3 seconds. >> GO TO 4 4. REPEAT STEPS Repeat steps 1 to 3 twice. >> GO TO 5 5. IGNITION SWITCH Turn ignition switch ON. >> GO TO 6 6. DIAGNOSTIC MODE SRS system is now in diagnostic mode and AIR BAG warning lamp flashes. Refer to . >> END Diagnosis Procedure (Component Diagnosis) INFOID:0000000006163163 Recheck SRS after each replacement. 1. HARNESS CONNECTOR Is there any visible damage to the connector? YES >> Replace the harness. NO >> GO TO 2 |
