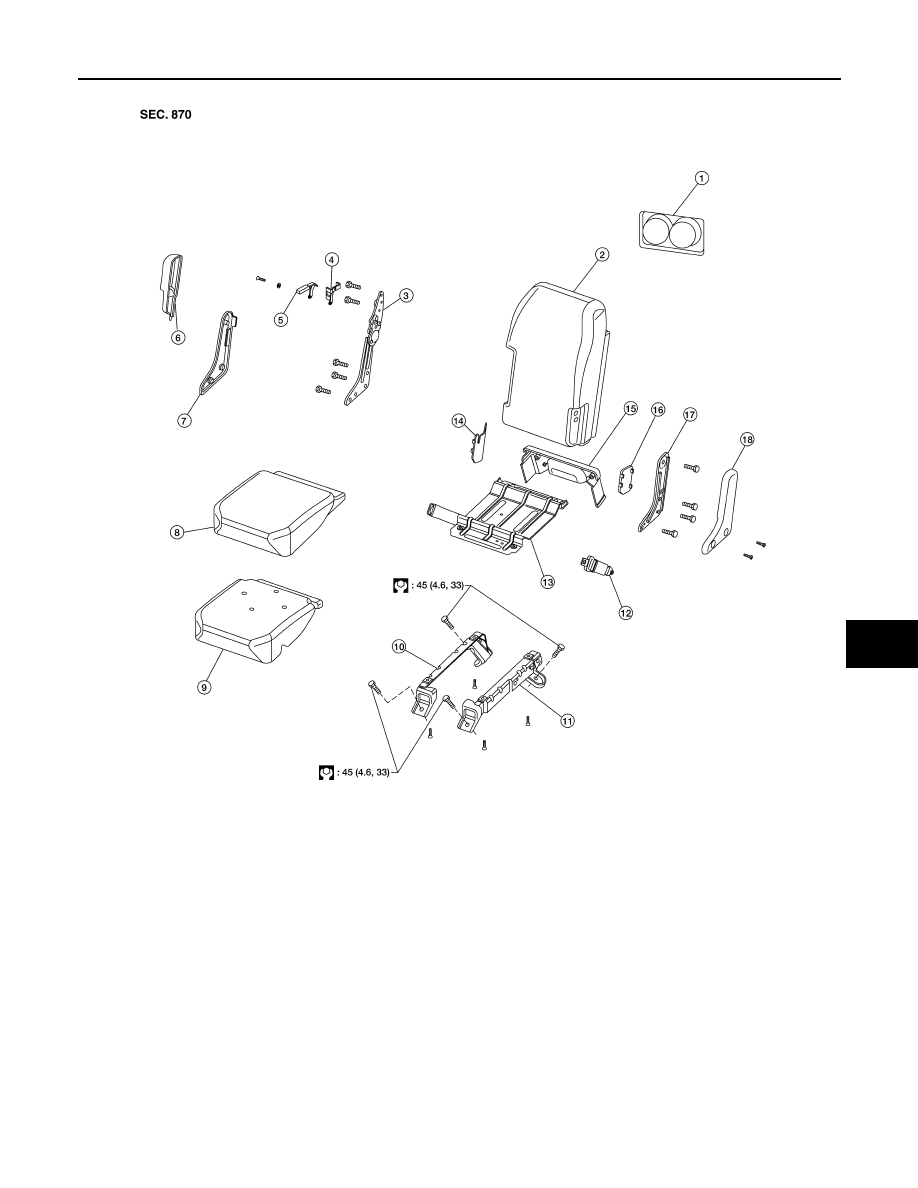

Center Seat

WIIA0947E

1.

Cupholder

2.

Armrest assembly

3.

Armrest pivot arm

4.

Armrest release bracket

5.

Armrest pivot release lever

6.

Upper armrest pivot cover

7.

Lower armrest pivot cover

8.

Seat cushion cover

9.

Seat cushion pad

10. RH pedestal support

11. LH pedestal support

12. Seat belt tongue

13. Center seat pan

14. Inboard lower pivot cover

15. Rear hinge cover

16. Inboard armrest support cover

17. Armrest support

18. Armrest bolt cover

SE-42

< UNIT DISASSEMBLY AND ASSEMBLY >

FRONT SEAT

Power Passenger Seat

AWJIA0478GB

1.

Headrest

2.

Headrest holder with multi position
lock

3.

Headrest holder

4.

Seat fold lever

5.

Seat fold handle and cable

6.

Seatback assembly with armrest,
with side airbag (if equipped)

7.

Power seat switch

8.

Power seat switch escutcheon

9.

Recliner switch

10. Seat slide switch

11. Seat cushion assembly

12. Outboard reclining arm outer cover

13. Seatback assembly without arm rest 14. Seat cushion outer finisher

15. Bolt cover

FRONT SEAT

SE-43

< UNIT DISASSEMBLY AND ASSEMBLY >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

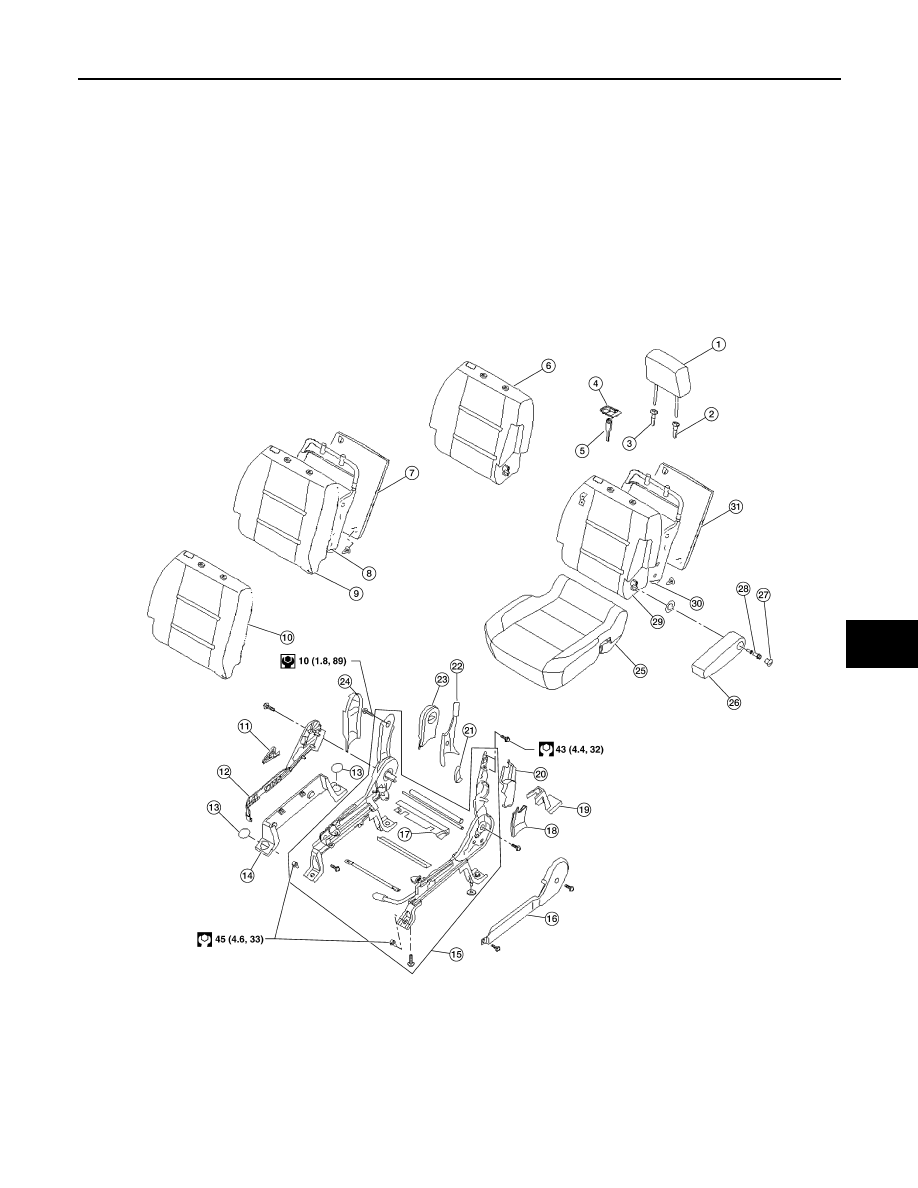

Manual Passenger Seat

16. Outer pedestal finisher

17. Power seat frame assembly

18. Seat cushion front finisher

19. Seat cushion inner finisher

20. Seat wiring harness

21. Wire harness cover

22. Inner recliner cover

23. RH inner leg cover

24. Seat latch cover

25. Inner reclining cover

26. Outer reclining cover

27. Outboard reclining arm inner cover

28. Inboard reclining arm inner cover

29. Reclining rod

30. Armrest assembly (if equipped)

31. Armrest cap (if equipped)

32. Armrest bolt (if equipped)

33. Seatback board

AWJIA0479GB

SE-44

< UNIT DISASSEMBLY AND ASSEMBLY >

FRONT SEAT

Disassembly and Assembly

INFOID:0000000006163213

SEATBACK TRIM AND PAD

NOTE:

Only complete outboard seatback assemblies can be replaced on vehicles equipped with side air bags.

Be sure to set the front/rear cushion lifter to the top position.

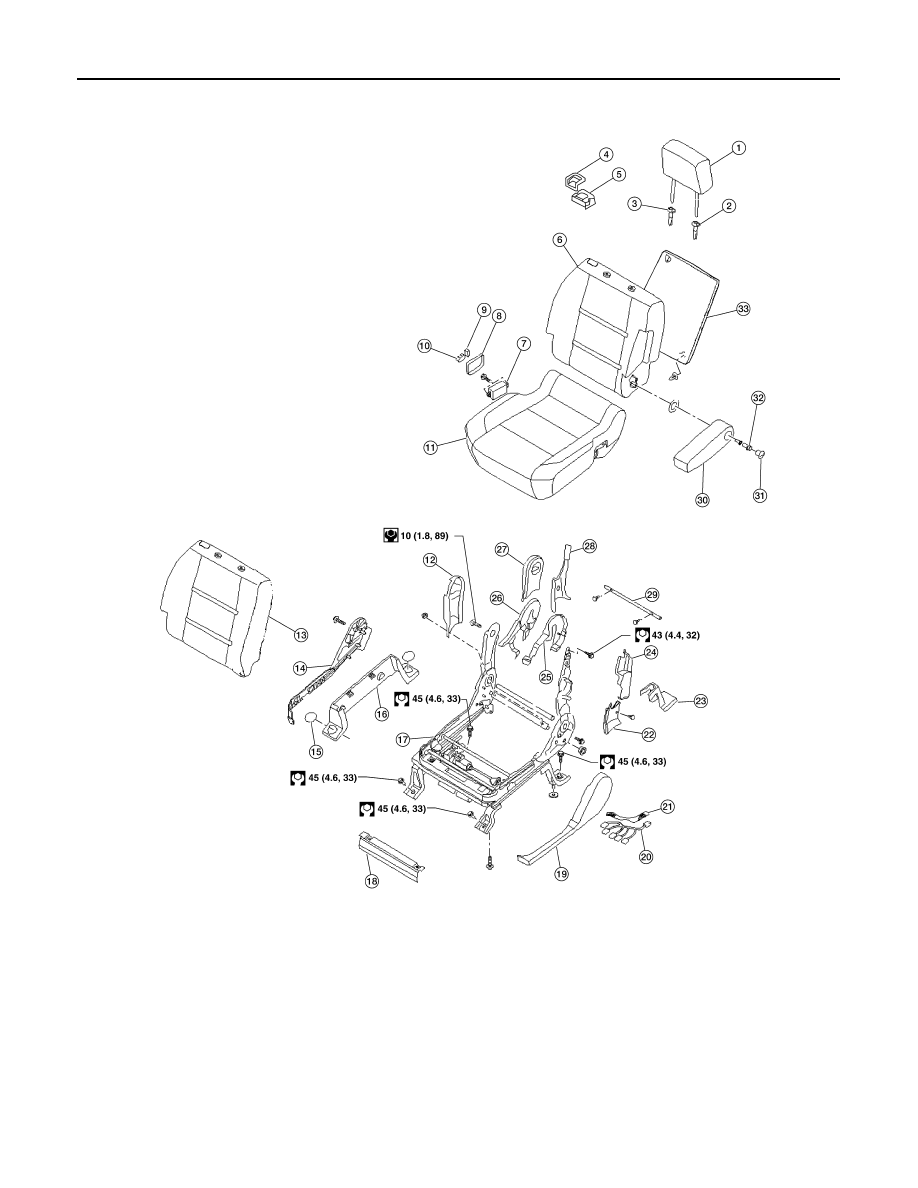

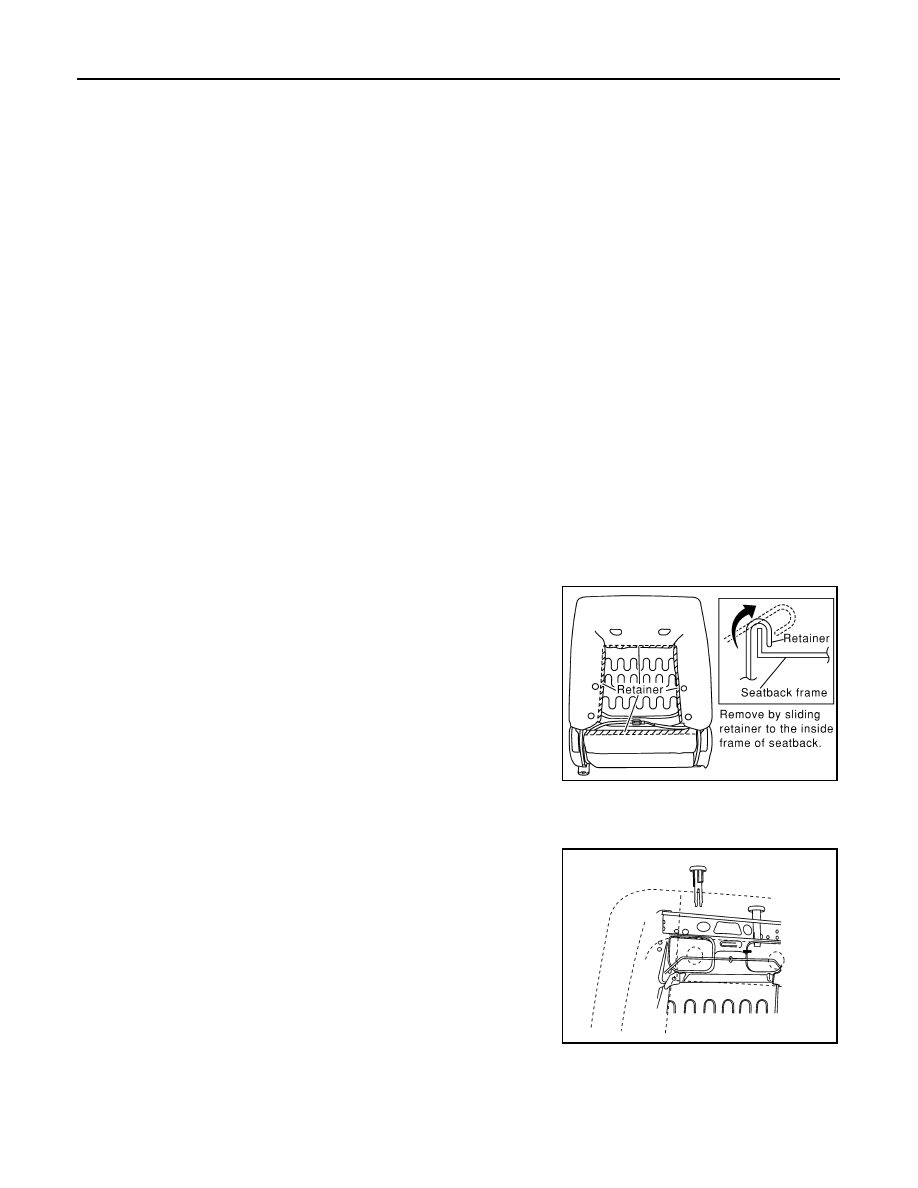

1. Remove the seatback board.

2. Remove the retainer.

3. Remove the headrest.

4. From inside of the seatback, squeeze the headrest holder tabs

at the base of the stay pipe and pull the up to remove.

NOTE:

Before installing the headrest holder, check its orientation (front/

rear and right/left).

1.

Headrest

2.

Headrest holder with multi position
lock

3.

Headrest holder

4.

Seat fold lever

5.

Seat fold handle and cable

6.

Seatback assembly with armrest,
with side airbag (if equipped)

7.

Seatback board without armrest,
without airbag (if equipped)

8.

Seatback frame assembly without
armrest, without airbag (if equipped)

9.

Seatback pad and cover without arm-
rest, without airbag (if equipped)

10. Seatback assembly without armrest,

with side airbag (if equipped)

11. Seat recline lever

12. Seat cushion outer finisher

13. Bolt cover

14. Outer pedestal finisher

15. Power seat frame assembly

16. Seat cushion inner finisher

17. Seat rear cover

18. Inner recliner cover

19. RH inner leg cover

20. Seat latch cover

21. Armrest cover (if equipped)

22. Inboard reclining arm inner cover

23. Outboard reclining arm outer cover

24. Outboard reclining arm outer cover

25. Seat cushion assembly

26. Armrest assembly (if equipped)

27. Armrest cap (if equipped)

28. Armrest bolt (if equipped)

29. Seatback pad and cover with arm-

rest, without airbag (if equipped)

30. Seatback frame assembly with arm-

rest, without airbag (if equipped)

31. Seatback board with armrest, without

airbag (if equipped)

SIIA0113E
