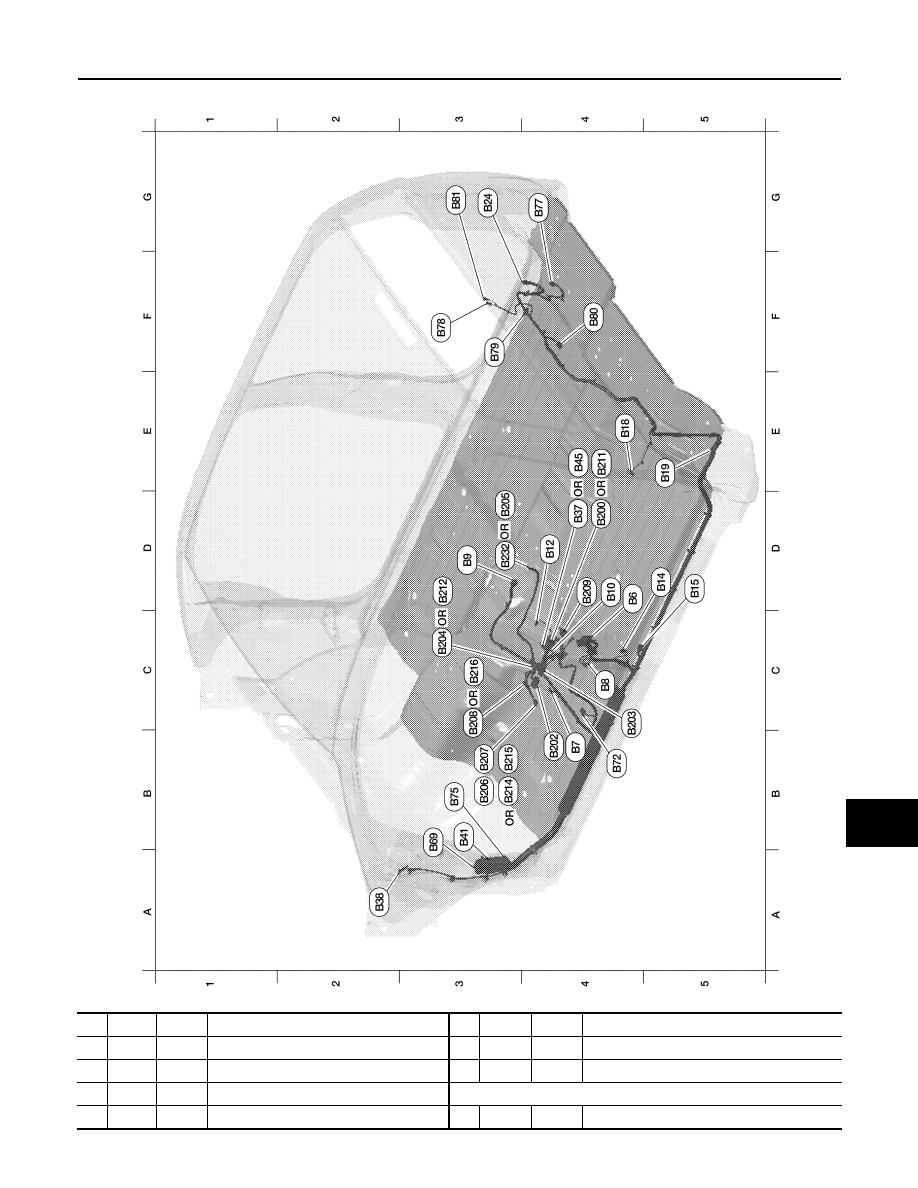

BODY HARNESS (CREW CAB MODELS)

ABMIA1630GB

D4 B6

W/18

: To D201

F3

B79

—

: Body ground

B4

B7

—

: Body ground

F4

B80

GR/4

: Rear power drop glass motor

C4 B8

W/3

: Front door switch LH

G3 B81

B/1

: Rear window defogger

D3 B9

Y/12

: Air bag diagnosis sensor unit

Front seat LH harness

D4 B10

Y/2

: Front LH side air bag module

D4 B200

W/16

: To B37

PG-54

< DTC/CIRCUIT DIAGNOSIS >

HARNESS

D4 B12

W/4

: Seat belt buckle switch LH

B4

B202

W/32

: Driver seat control unit

D5 B14

Y/2

: Front LH seat belt pre-tensioner

C4 B203

W/16

: Driver seat control unit

D5 B15

Y/2

: LH side air bag (satellite) sensor

C3 B204

GR/5

: Sliding motor LH (with automatic drive
  positioner)

E4

B18

W/3

: Rear door switch LH

D3 B205

W/4

: Reclining motor LH (with automatic drive
  positioner)

E5

B19

—

: Body ground

B3

B206

W/5

: Lifting motor (front) (with automatic drive
  positioner)

G3 B24

W/16

: Sonar control unit

B3

B207

GR/5

: Lifting motor (rear) (with automatic drive
  positioner)

D4 B37

W/16

: To B200

C3 B208

W/10

: Power seat switch LH (with automatic drive
  positioner)

A2

B38

Y/2

: LH side curtain air bag module

D4 B209

W/3

: Front seat heater LH

B3

B41

W/12

: To E35

E4

B211

W/2

: To B45

E4

B45

W/2

: To B211

D3 B212

B/2

: Sliding motor LH (without automatic drive
  positioner)

B3

B69

SMJ

: To M40

B3

B214

GR/2

: Lifting motor (front) (without automatic
  drive positioner)

B4

B72

W/4

: Subwoofer

B3

B215

GR/2

: Lifting motor (rear) (without automatic
  drive positioner)

B3

B75

BR/2

: To E50

C3 B216

W/10

: Power seat switch LH (without automatic
  drive positioner)

G4 B77

B/26

: Differential lock control unit

D3 B232

W/2

: Reclining motor LH (without automatic
  drive positioner)

F3

B78

B/1

: Rear window defogger

PG

HARNESS

PG-55

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

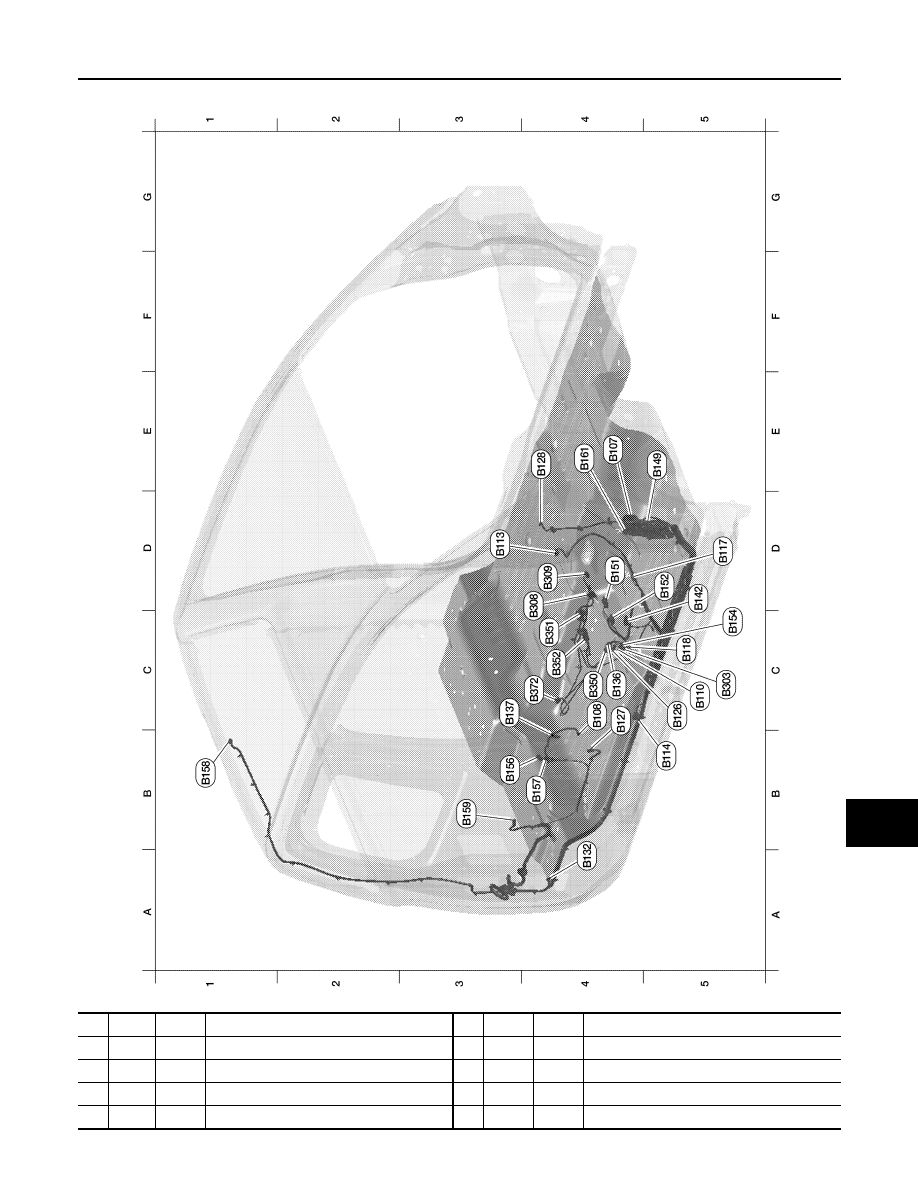

BODY NO. 2 HARNESS (KING CAB MODELS)

ABMIA0124GB

E4

B107

W/8

: To E139

D5 B152

W/32

: NAVI control unit

C4 B108

W/3

: Front door switch RH

C5 B154

W/2

: To B303

C5 B110

W/4

: Seat belt buckle switch RH

B3

B156

B/2

: Rear door switch upper RH

D3 B113

Y/12

: Air bag diagnosis sensor unit

B4

B157

B/2

: Rear door switch lower RH

B5

B114

Y/2

: RH side air bag (satellite) sensor

B1

B158

W/3

: High-mounted stop lamp

PG-56

< DTC/CIRCUIT DIAGNOSIS >

HARNESS

D5 B117

—

: Body ground

B3

B159

W/2

: Rear door speaker RH

C5 B118

W/3

: Front seat heater RH

E4

B161

W/20

: To M157

C5 B126

Y/2

: Front RH side air bag module

Front seat RH harness

C4 B127

Y/2

: Front RH seat belt pre-tensioner

C5 B303

W/2

: To B154

E4

B128

Y/2

: RH side curtain air bag module

D4 B308

W/6

: Power seat switch RH

B4

B132

—

: Body ground

D4 B309

GR/2

: Sliding motor RH

C4 B136

W/8

: To B350

C4 B350

Y/8

: To B136

C3 B137

W/3

: Belt tension sensor

C4 B351

B/18

: Occupant classification control unit

D5 B142

W/32

: Bluetooth control unit

C4 B352

B/3

: Occupant classification system sensor

E5

B149

SMJ

: To M36

C2 B372

W/2

: Reclining motor RH

D4 B151

W/40

: NAVI control unit
