POWER SUPPLY ROUTING CIRCUIT

PG-21

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

Wiring Diagram —Ignition Power Supply —

INFOID:0000000006179643

ABMWA1077GB

PG-22

< DTC/CIRCUIT DIAGNOSIS >

POWER SUPPLY ROUTING CIRCUIT

ABMWA1068GB

PG

POWER SUPPLY ROUTING CIRCUIT

PG-23

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

ABMWA1076GB

PG-24

< DTC/CIRCUIT DIAGNOSIS >

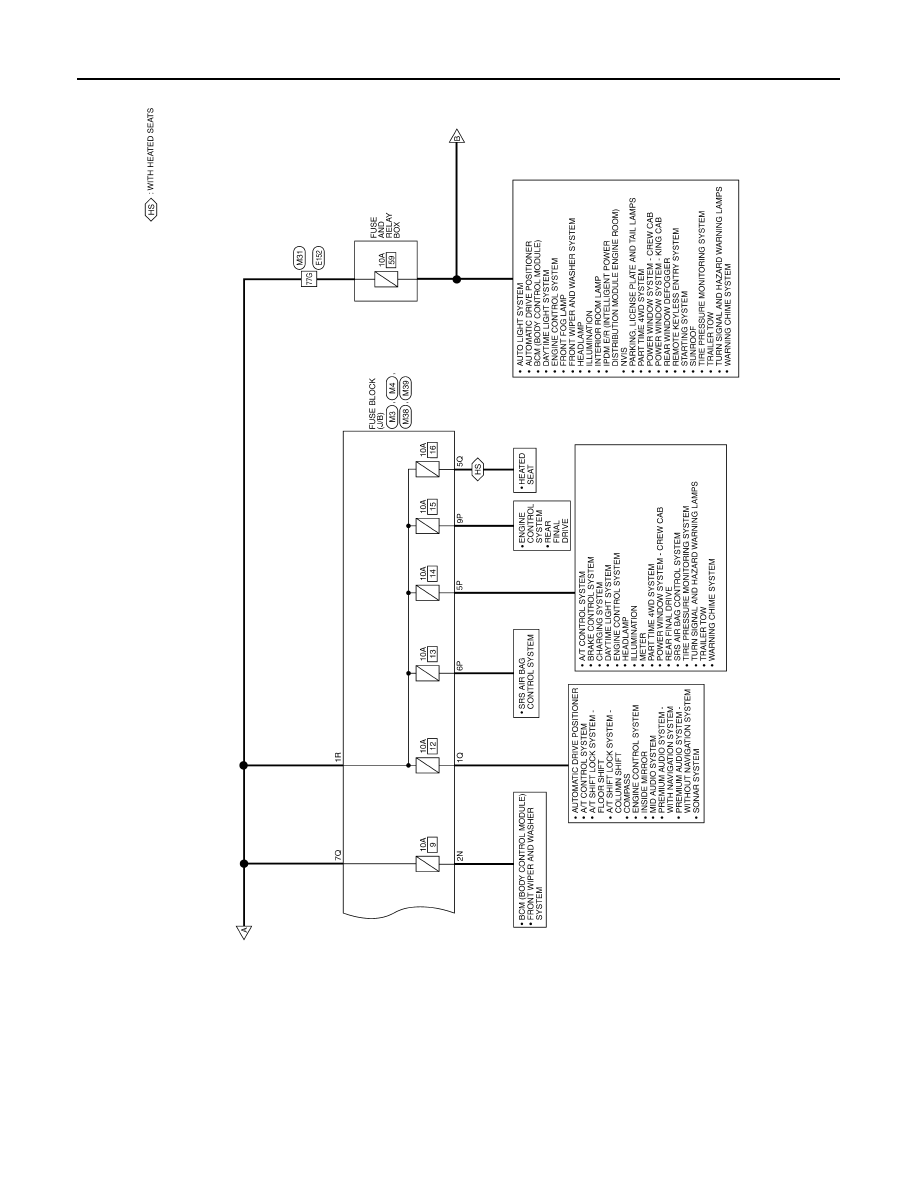

POWER SUPPLY ROUTING CIRCUIT

ABMWA1069GB
