LU-10

< PERIODIC MAINTENANCE >

ENGINE OIL

• The refill capacity depends on the engine oil temperature and drain time. Use these specifica-

tions for reference only.

• Always use the oil level gauge to determine when the proper amount of engine oil is in the

engine.

8. Warm up engine and check area around drain plug and oil filter for oil leakage.
9. Stop engine and wait for 10 minutes.
10. Check engine oil level. Refer to

LU-8, "Inspection"

.

OIL FILTER

LU-11

< PERIODIC MAINTENANCE >

C

D

E

F

G

H

I

J

K

L

M

A

LU

N

P

O

OIL FILTER

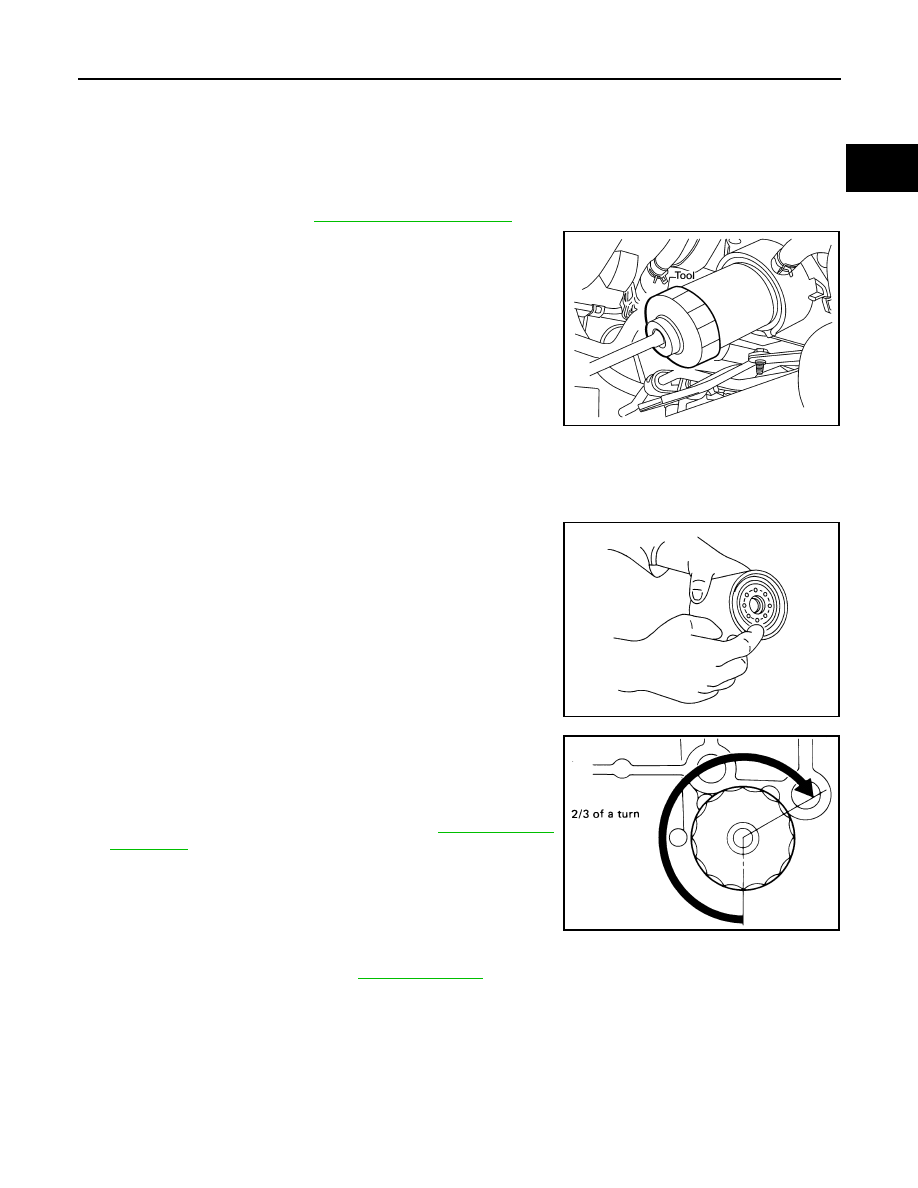

Removal and Installation

INFOID:0000000006158406

REMOVAL

1. Remove engine undercover using a power tool.
2. Drain the engine oil. Refer to

LU-9, "Changing Engine Oil"

.

3. Remove the oil filter using Tool.

WARNING:

• Be careful not to get burned when the engine and engine

oil are hot.

CAUTION:

• The oil filter is provided with a relief valve.

Use Genuine NISSAN oil filter or equivalent.

• When removing, prepare a shop cloth to absorb any

engine oil leakage or spillage.

• Do not allow engine oil to adhere to the drive belts.

• Completely wipe off any engine oil that adheres to the engine and the vehicle.

INSTALLATION

1. Remove foreign materials adhering to the oil filter installation surface.
2. Apply engine oil to the oil seal circumference of the new oil filter.

3. Screw the oil filter manually until it touches the installation sur-

face, then tighten it by 2/3 turn. Or tighten to specification.

4. Refill the engine with new engine oil. Refer to

LU-9, "Changing

Engine Oil"

.

5. Inspect the engine for oil leakage. Follow the "INSPECTION

AFTER INSTALLATION" procedure.

6. Install engine undercover using a power tool.

INSPECTION AFTER INSTALLATION

1. Check the engine oil level. Refer to

LU-8, "Inspection"

.

2. Start the engine and check for engine oil leakage.
3. Stop the engine and wait for 10 minutes.
4. Check the engine oil level and add engine oil as required.

Tool number

: KV10115801 (J-38956)

WBIA0388E

SMA010

Oil filter

: 17.7 N·m (1.8 kg-m, 13 ft-lb)

SMA229B

LU-12

< REMOVAL AND INSTALLATION >

OIL COOLER

REMOVAL AND INSTALLATION

OIL COOLER

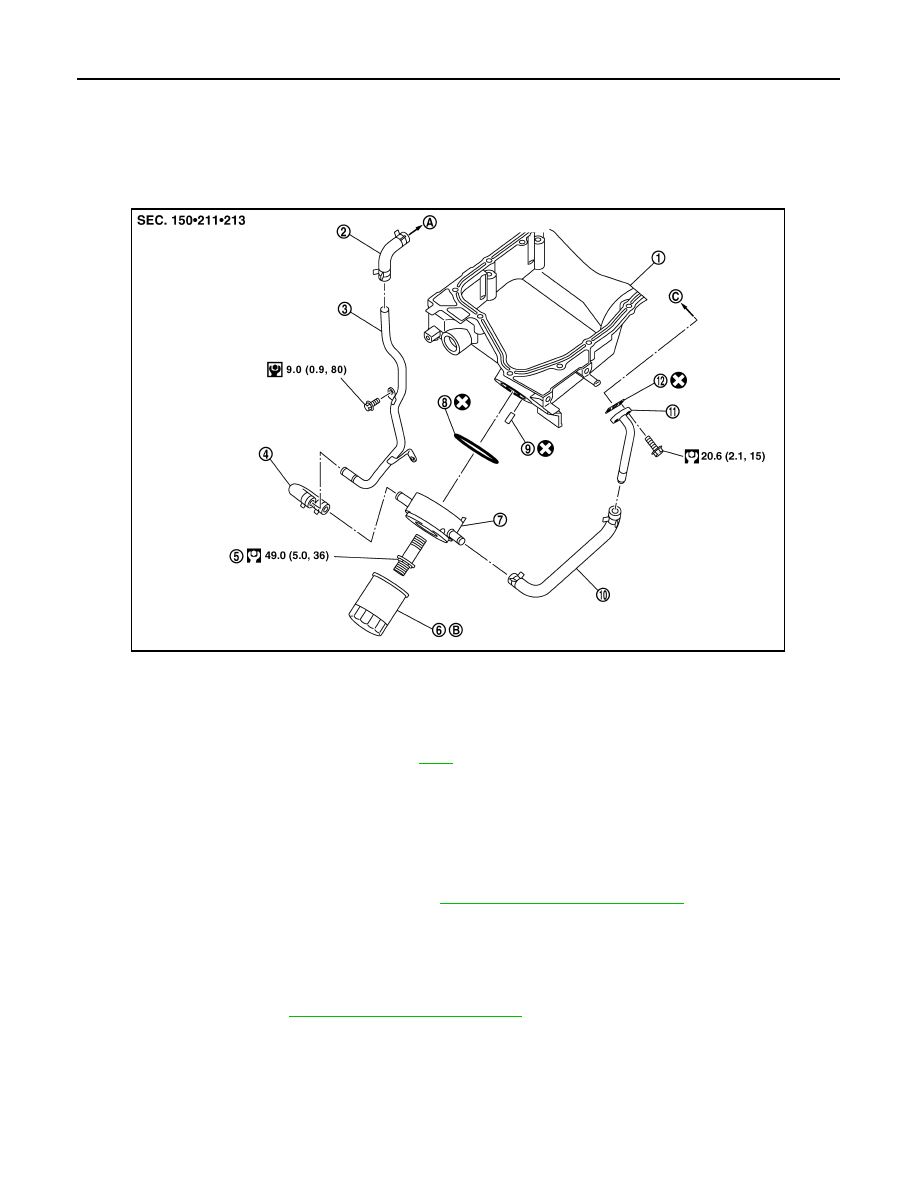

Exploded View

INFOID:0000000006158407

Removal and Installation

INFOID:0000000006158408

WARNING:

Be careful not to burn yourself, as the engine oil and engine coolant are hot.

REMOVAL

1. Drain engine coolant from the radiator. Refer to

CO-11, "Changing Engine Coolant"

.

2. Disconnect water hoses from the oil cooler.

CAUTION:

Do not spill engine coolant on the drive belt.

NOTE:

Cap or plug opening(s) to prevent fluid from spilling.

3. Remove oil filter. Refer to

LU-11, "Removal and Installation"

.

CAUTION:

Do not spill engine oil on the drive belts.

4. Remove connector bolt, and remove oil cooler and O-ring.

INSPECTION AFTER REMOVAL

Oil Cooler

1.

Oil pan (Upper)

2.

Water hose

3.

Water pipe

4.

Water hose

5.

Connector bolt

6.

Oil filter

7.

Oil cooler

8.

O-ring

9.

Relief valve

10. Water hose

11. Connector pipe

12. Gasket

A.

To thermostat housing

B.

Refer to

LU-11

C.

To cylinder block

WBIA0790E

OIL COOLER

LU-13

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

L

M

A

LU

N

P

O

Check oil cooler for cracks. Check oil cooler for clogging by blowing compressed air through engine coolant

inlet. If necessary, replace oil cooler assembly.

Relief Valve

Inspect relief valve for movement, cracks and breaks by pushing the ball. If replacement is necessary, remove

the valve by prying it out using a suitable tool. Install a new valve in place by tapping it.

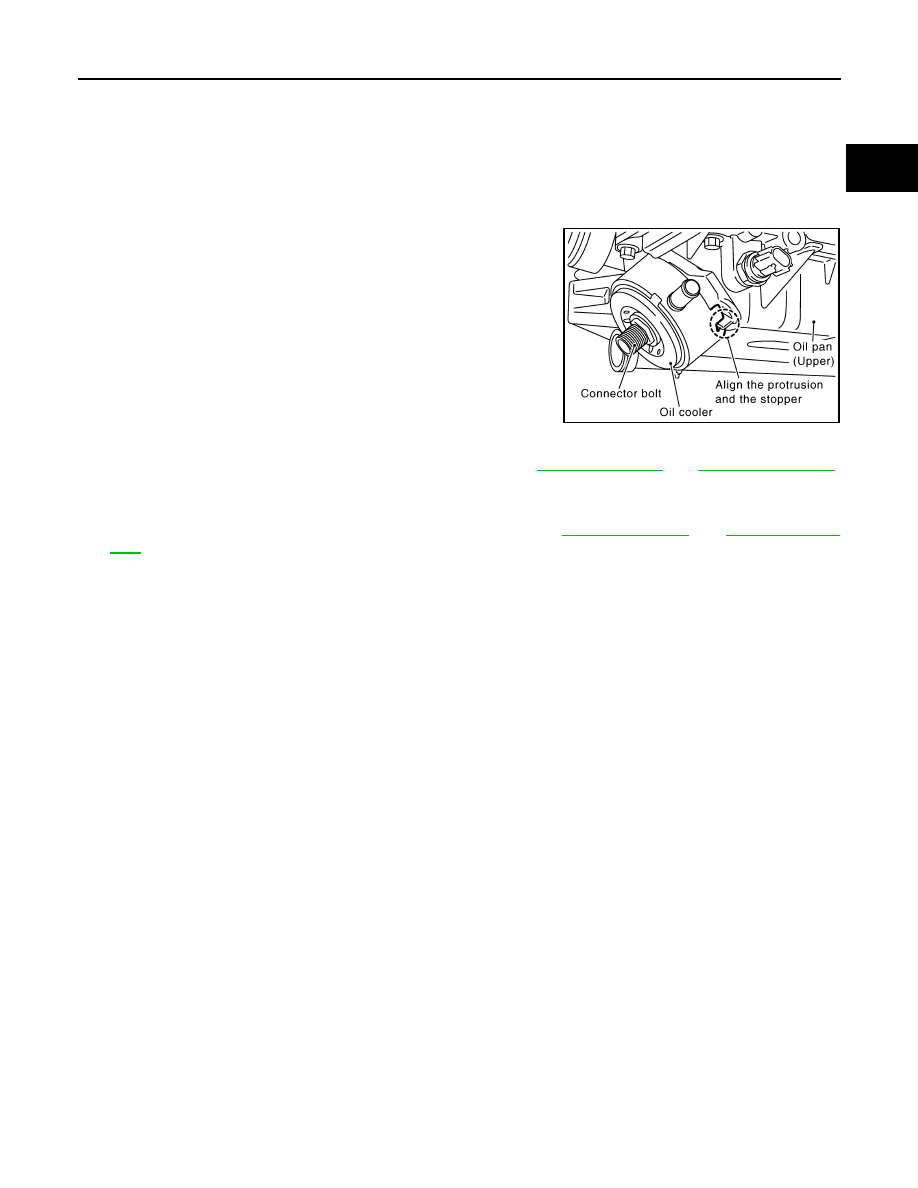

INSTALLATION

Installation is in the reverse order of removal, paying attention to the following:

• Confirm that no foreign objects are adhering to the sealing sur-

faces of the oil cooler or oil pan.

• Tighten the connecting bolt after aligning the stopper on the oil pan

side with protrusion of the oil cooler.

• Install using a new O-ring.

INSPECTION AFTER INSTALLATION

1. Check levels and add engine oil and engine coolant. Refer to

LU-8, "Inspection"

 and

CO-10, "Inspection"

.

2. Start the engine, and check for engine oil and engine coolant leaks and repair as necessary.
3. Stop the engine and wait for 10 minutes.
4. Check engine oil level and engine coolant level again. Refer to

LU-8, "Inspection"

 and

CO-10, "Inspec-

tion"

.

KBIA2500E
