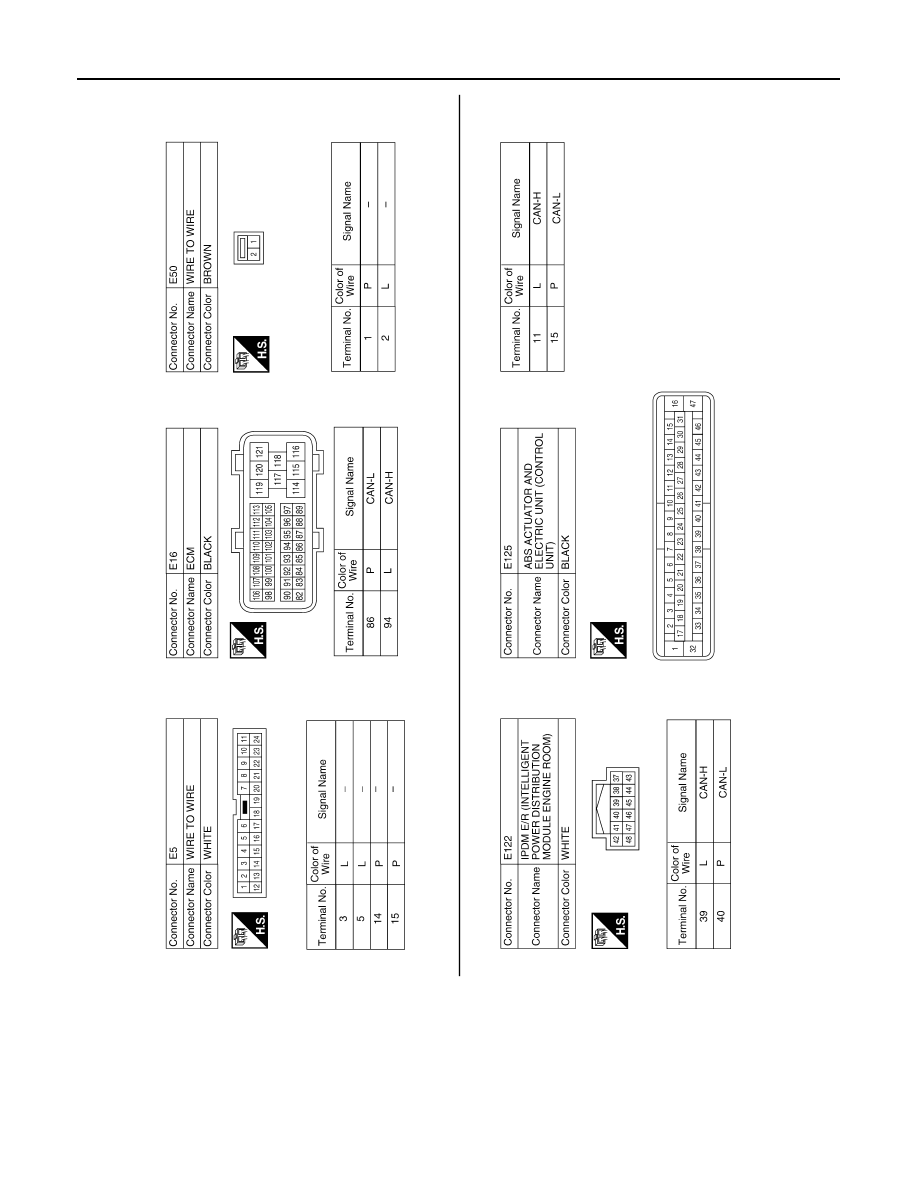

LAN-64

< WIRING DIAGRAM >

[CAN]

CAN SYSTEM

AAMIA0511GB

LAN

CAN SYSTEM

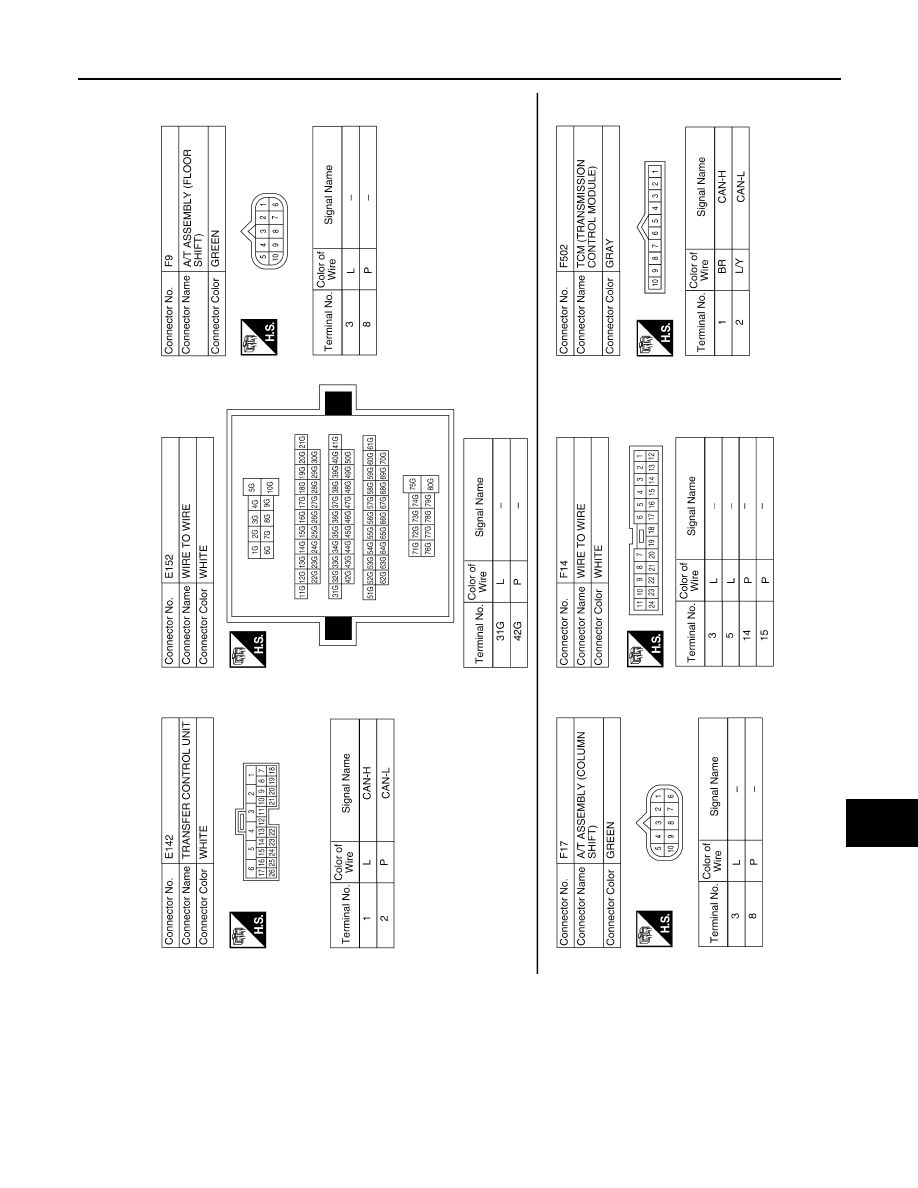

LAN-65

< WIRING DIAGRAM >

[CAN]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

AAMIA0512GB

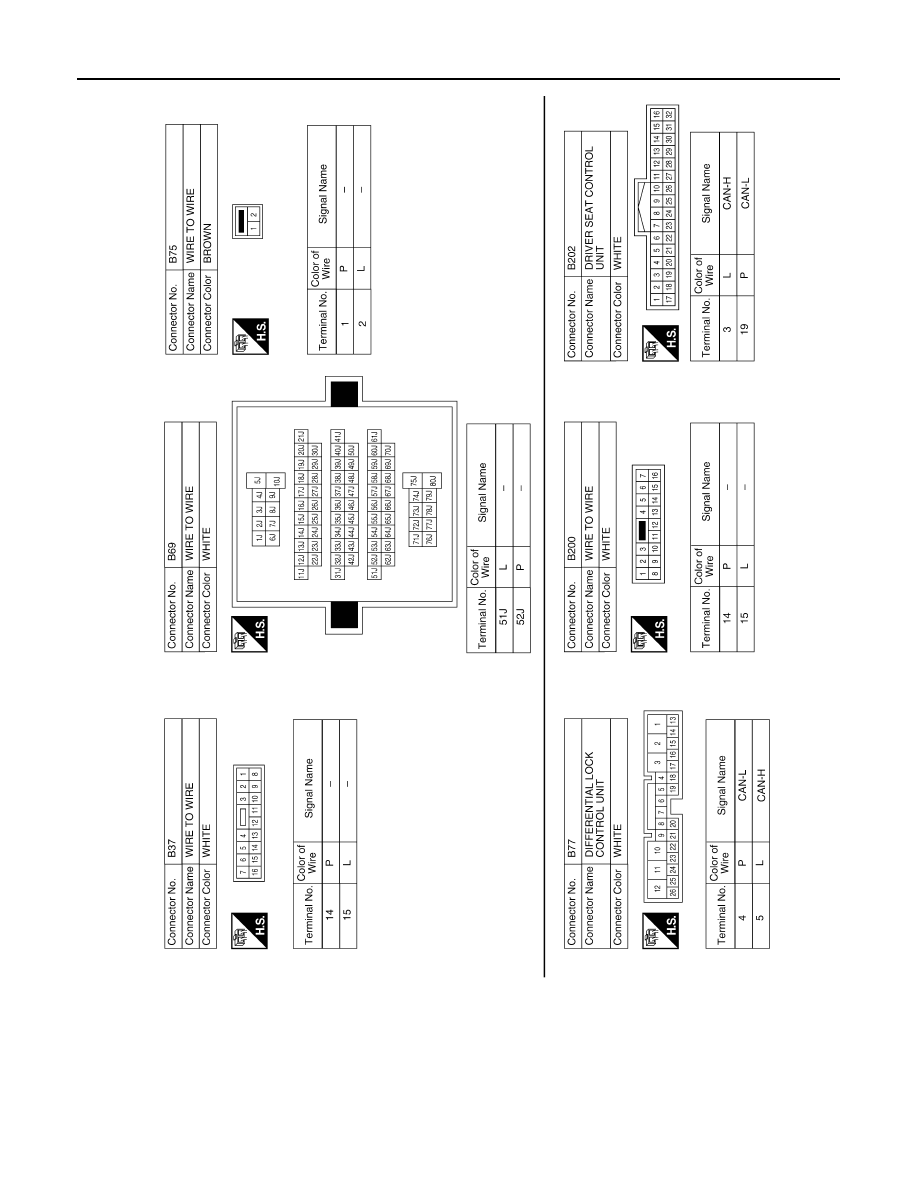

LAN-66

< WIRING DIAGRAM >

[CAN]

CAN SYSTEM

AAMIA0513GB

LAN

CAN COMMUNICATION SYSTEM

LAN-67

< DTC/CIRCUIT DIAGNOSIS >

[CAN]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

DTC/CIRCUIT DIAGNOSIS

CAN COMMUNICATION SYSTEM

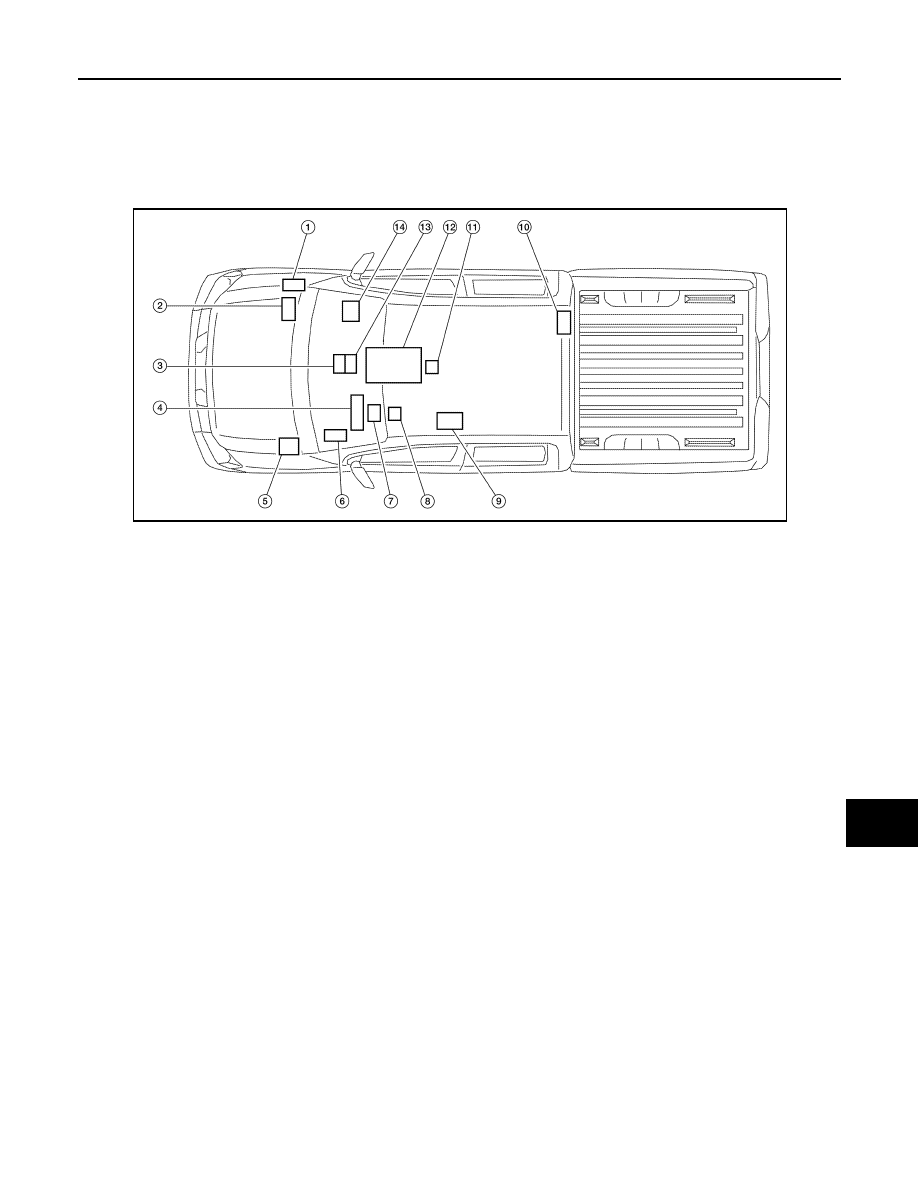

Component Parts Location

INFOID:0000000006179129

1.

ECM E16

2.

IPDM E/R E122

3.

Display control unit M95

4.

Combination meter M24

5.

ABS actuator and electric unit (con-
trol unit) E125

6.

BCM M18

7.

Data link connector M22

8.

Steering angle sensor M17

9.

Driver seat control unit B202

10. Differential lock control unit B77

11. Air bag diagnosis sensor unit M35

12. A/T assembly

F9: With floor shift
F17: With column shift

13. Front air control

M50: With auto A/C
M177: With manual 3 control dial
system
M181: With manual 2 control dial
system

14. Transfer control unit E142

AWMIA0008ZZ
