HEADLINING

INT-23

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

INT

N

O

P

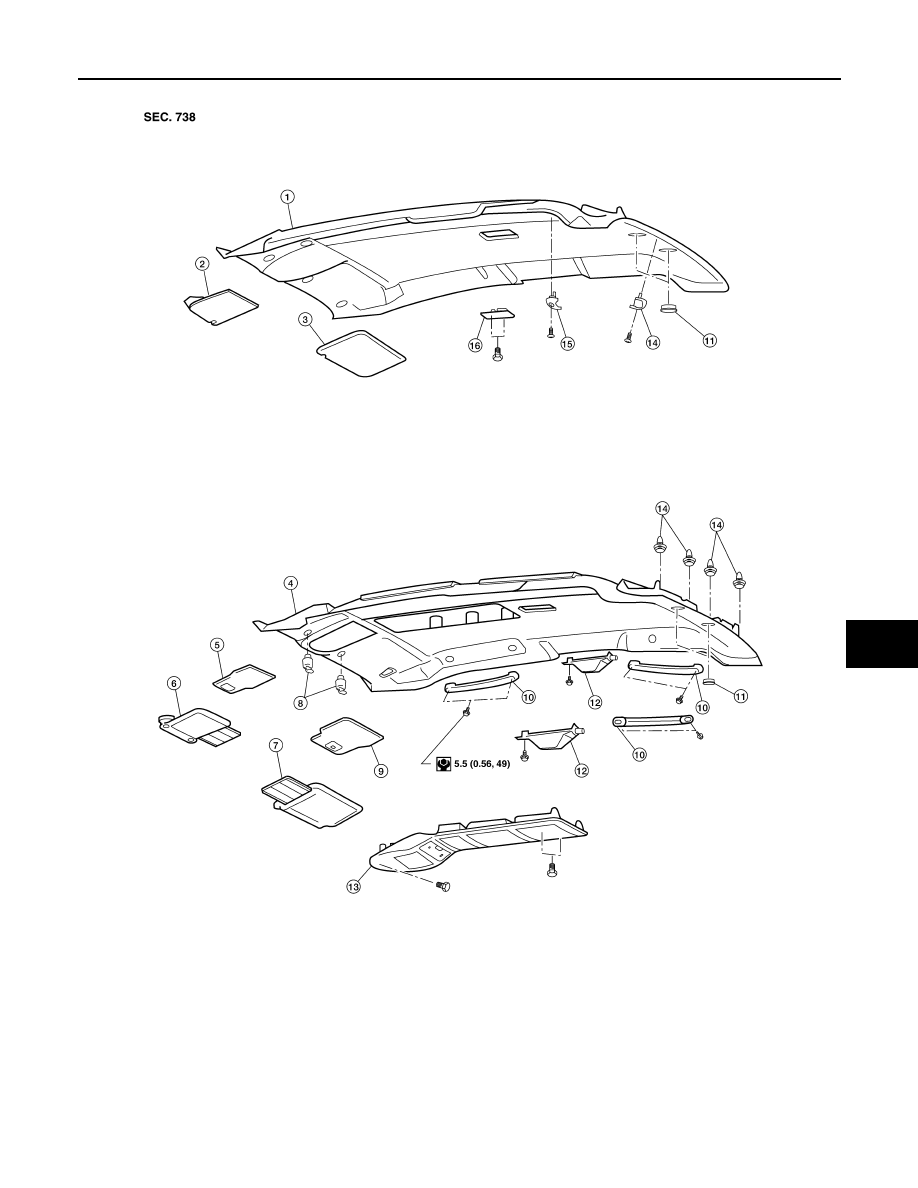

King Cab

AWJIA0016ZZ

1.

Headlining (standard)

2.

Sunvisor assembly standard LH

3.

Sunvisor assembly standard RH

4.

Headlining (optional)

5.

Dual sun visor assembly LH (if
equipped)

6.

Extended sun visor assembly LH

7.

Extended sun visor assembly RH

8.

Sunvisor holder

9.

Dual sun visor assembly RH (if
equipped)

10. Assist grip

11. High mounted stop lamp access cov-

er (CHMSL)

12. Striker cover

INT-24

< REMOVAL AND INSTALLATION >

HEADLINING

REMOVAL

CAUTION:

Disconnect both terminals from battery in advance.
1. Remove the body side trim. Refer to

INT-14

.

2. Remove the rear trim. Refer to

INT-14

.

3. Remove the sun visor assemblies.

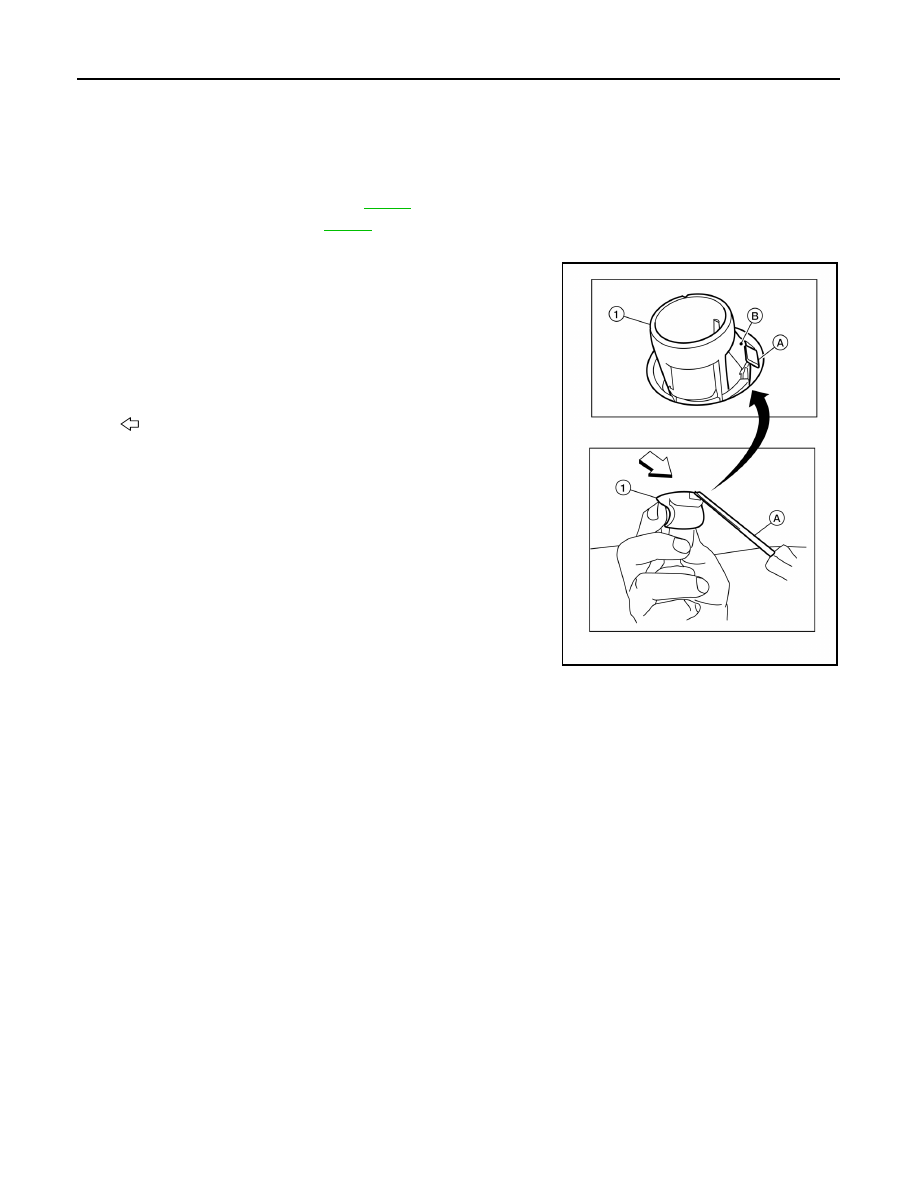

4. Insert a suitable thin tool (A) at approximately a 30 degree angle

into the sunvisor holder notch on the front of the sunvisor holder

(1) and press in the locking tab (B) to release it. While holding in

lock tab (B), turn the sunvisor holder (1) 90 degrees to release it

from the headliner.

• If the sunvisor holder (1) does not fully rotate, make sure that

the suitable thin tool (A) is pressing in on the locking tab (B)

and is not positioned under locking tab (B). Reinsert the suit-

able thin tool (A) as necessary to release the locking tab (B).

•

: Front

CAUTION:

Do not force the sunvisor holder when removing as the

locking tab may be damaged if the suitable thin tool is not

positioned correctly.

5. Remove the front roof console (if equipped).

• Disconnect the harnesses.

6. Remove the rear roof console (if equipped).

• Disconnect the harnesses.

7. Remove the center roof console (if equipped).

• Disconnect the harnesses.

8. Remove the assist grips.
9. Remove the striker covers (if equipped).
10. Remove the room lamp.
11. Remove the headlining.

• Disconnect the harnesses.

12. Remove the rear audio control assembly from rear roof console (if equipped).

• Disconnect the harness.

13. Remove the lamp assemblies from roof console.

• Disconnect the harnesses.

14. Remove the rear roof console bracket (if equipped).
15. Remove the center roof console front bracket (if equipped).
16. Remove the assist grip brackets from roof (if equipped).

INSTALLATION

Installation is in the reverse order of removal.

13. Center roof console

14. Plastic clip

15. Coat hook

16. Room lamp

ALJIA0537ZZ

IP-1

BODY INTERIOR

C

D

E

F

G

H

I

K

L

M

SECTION

IP

A

B

IP

N

O

P

CONTENTS

INSTRUMENT PANEL

PRECAUTION ...............................................

2

PRECAUTIONS ...................................................

2

Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" ...................................................................

2

Precaution for Work  ..................................................

2

PREPARATION ............................................

3

PREPARATION ...................................................

3

Special Service Tool  .................................................

3

Commercial Service Tool  ..........................................

3

SYMPTOM DIAGNOSIS  ...............................

5

SQUEAK AND RATTLE TROUBLE DIAG-
NOSES ................................................................

5

Work Flow  .................................................................

5

Generic Squeak and Rattle Troubleshooting  ............

7

Diagnostic Worksheet  ...............................................

9

REMOVAL AND INSTALLATION ...............

11

INSTRUMENT PANEL ASSEMBLY  ..................

11

Exploded View  ........................................................

11

Removal and Installation .........................................

12

CLUSTER LID A .................................................

13

Exploded View  ........................................................

13

Removal and Installation .........................................

13

CLUSTER LID C  ...............................................

14

Exploded View .........................................................

14

Removal and Installation  .........................................

14

CLUSTER LID D  ...............................................

15

Exploded View .........................................................

15

Removal and Installation  .........................................

15

INSTRUMENT LOWER PANEL RH AND
GLOVE BOX  .....................................................

16

Removal and Installation  .........................................

16

INSTRUMENT LOWER PANEL LH ..................

17

Removal and Installation  .........................................

17

A/T FINISHER  ...................................................

18

Removal and Installation  .........................................

18

CENTER CONSOLE  .........................................

19

Exploded View .........................................................

19

Removal and Installation  .........................................

19

UNIT DISASSEMBLY AND ASSEMBLY  ....

20

INSTRUMENT LOWER PANEL RH AND
GLOVE BOX  .....................................................

20

Exploded View .........................................................

20

Disassembly and Assembly .....................................

20

CENTER CONSOLE ASSEMBLY  ....................

22

Exploded View .........................................................

22

Disassembly and Assembly .....................................

23

IP-2

< PRECAUTION >

PRECAUTIONS

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000006161527

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along

with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain

types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS

system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front

air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.

Information necessary to service the system safely is included in the SR and SB section of this Service Man-

ual.

WARNING:

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision which would result in air bag inflation, all maintenance must be performed by

an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag

Module, see the SR section.

• Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this

Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-

ness connectors.

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

• When working near the Airbag Diagnosis Sensor Unit or other Airbag System sensors with the Igni-

tion ON or engine running, DO NOT use air or electric power tools or strike near the sensor(s) with a

hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly causing

serious injury.

• When using air or electric power tools or hammers, always switch the Ignition OFF, disconnect the

battery, and wait at least 3 minutes before performing any service.

Precaution for Work

INFOID:0000000006710661

• When removing or disassembling each component, be careful not to damage or deform it. If a component

may be subject to interference, be sure to protect it with a shop cloth.

• When removing (disengaging) components with a screwdriver or similar tool, be sure to wrap the component

with a shop cloth or vinyl tape to protect it.

• Protect the removed parts with a shop cloth and prevent them from being dropped.

• Replace a deformed or damaged clip.

• If a part is specified as a non-reusable part, always replace it with new one.

• Be sure to tighten bolts and nuts securely to the specified torque.

• After installation is complete, be sure to check that each part works properly.

• Follow the steps below to clean components.

- Water soluble dirt: Dip a soft cloth into lukewarm water, and wring the water out of the cloth to wipe the dirty

area.

Then rub with a soft and dry cloth.

- Oily dirt: Dip a soft cloth into lukewarm water with mild detergent (concentration: within 2 to 3%), and wipe

the dirty area.

Then dip a cloth into fresh water, and wring the water out of the cloth to wipe the detergent off. Then rub with

a soft and dry cloth.

• Do not use organic solvent such as thinner, benzene, alcohol, or gasoline.

• For genuine leather seats, use a genuine leather seat cleaner.
