INSUFFICIENT COOLING
HAC-167
< SYMPTOM DIAGNOSIS >
[MANUAL A/C (TYPE 1)]
C
D
E
F
G
H
J
K
L
M
A
B
HAC
N
O
P

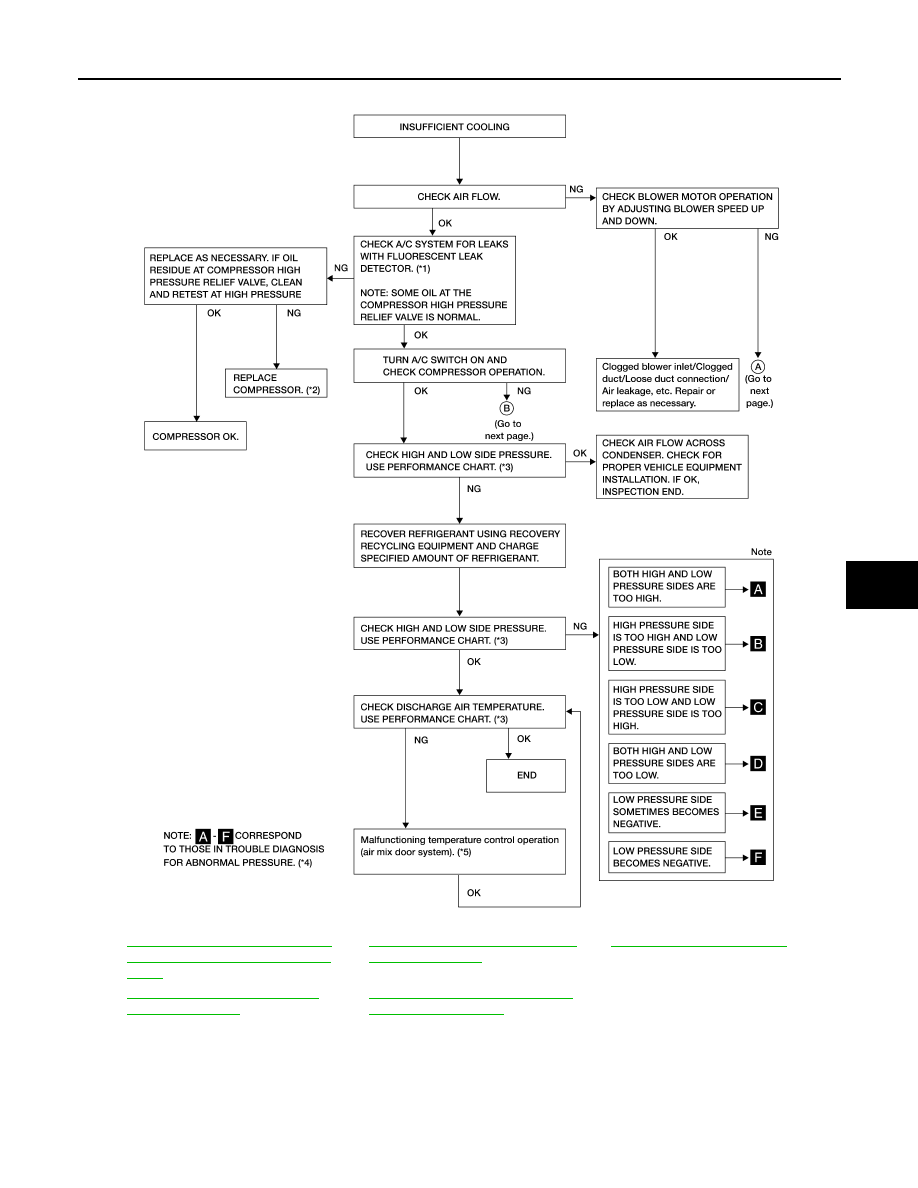

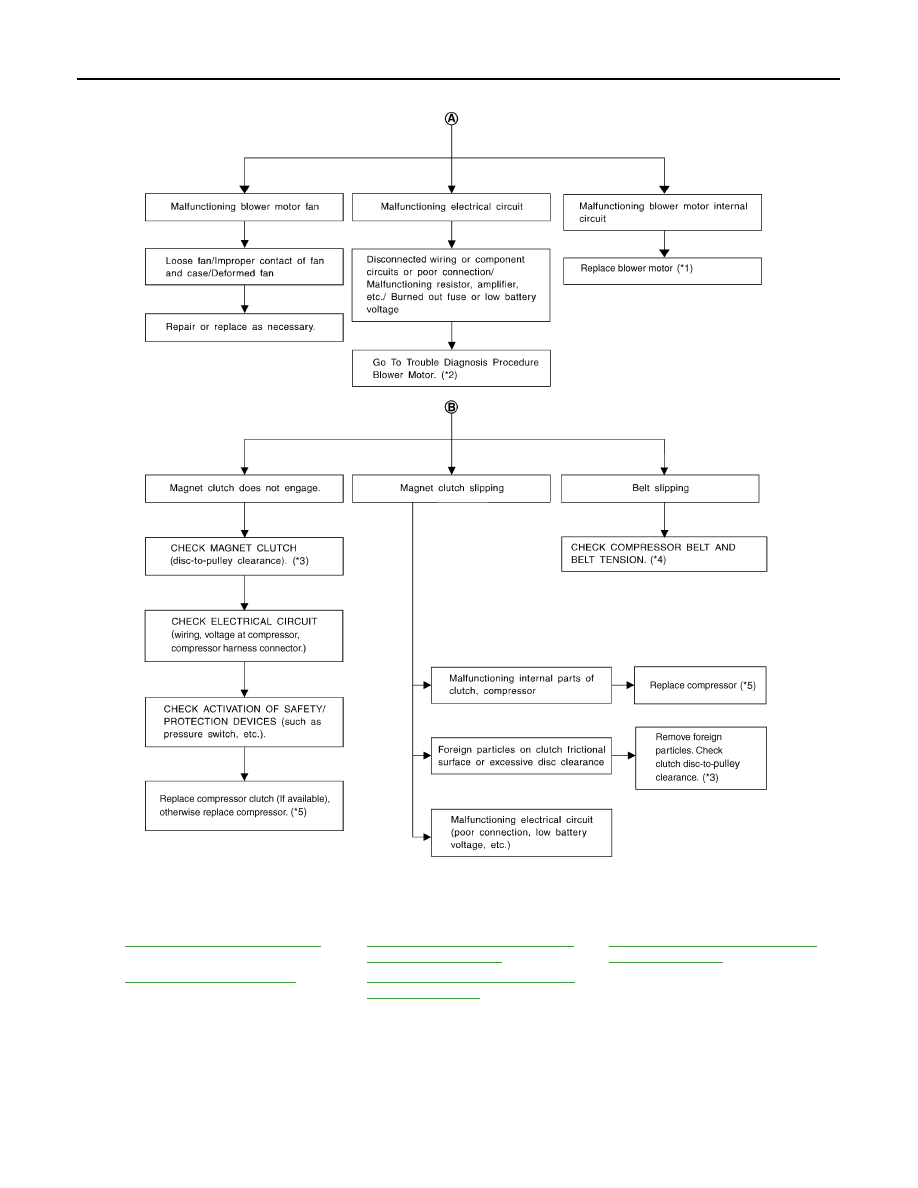

INSUFFICIENT COOLING
Component Function Check
INFOID:0000000006164789
SYMPTOM: Insufficient cooling
INSPECTION FLOW
1.
CONFIRM SYMPTOM BY PERFORMING OPERATIONAL CHECK - TEMPERATURE DECREASE
1. Rotate the blower control dial to the low speed.
2. Turn temperature control dial counterclockwise to maximum cold.
3. Check for cold air at discharge air outlets.
Can the symptom be duplicated?
YES
>> GO TO 3.
NO
>> GO TO 2.
2.
CHECK FOR ANY SYMPTOMS
Perform a complete operational check for any symptoms. Refer to
Does another symptom exist?
YES
>> Refer to
HAC-166, "Symptom Matrix Chart"
NO
>> System OK.
3.
CHECK FOR SERVICE BULLETINS
Check for any service bulletins.
>> If equipped with NAVI, GO TO 4.
>> If not equipped with NAVI, GO TO 5.
4.
PERFORM SELF-DIAGNOSIS
Perform self-diagnosis Refer to
HAC-114, "Front Air Control Self-Diagnosis"
Is the inspection result normal?
YES
>> GO TO 5.
NO
>> Refer to
HAC-166, "Symptom Matrix Chart"
5.
CHECK DRIVE BELTS
Check compressor belt tension. Refer to
.
Is the inspection result normal?
YES
>> GO TO 6.
NO
>> Adjust or replace compressor belt. Refer to
EM-13, "Removal and Installation"
6.
CHECK AIR MIX DOOR OPERATION
Check and verify air mix door mechanism for smooth operation. Refer to
HAC-120, "Air Mix Door Motor Com-
.
Does air mix door operate correctly?
YES
>> GO TO 7.
NO
>> Check air mix door motor circuit. Refer to
HAC-121, "Air Mix Door Motor Diagnosis Procedure"
.
7.
CHECK COOLING FAN MOTOR OPERATION
Check and verify cooling fan motor for smooth operation. Refer to
EC-358, "Overall Function Check"
.
Does cooling fan motor operate correctly?
YES
>> GO TO 8.
NO
>> Check cooling fan motor. Refer to
.
8.
CHECK WATER VALVE OPERATION
Check and verify water valve for smooth operation. Refer to
.
Does water valve operate correctly?
YES
>> GO TO 9.
