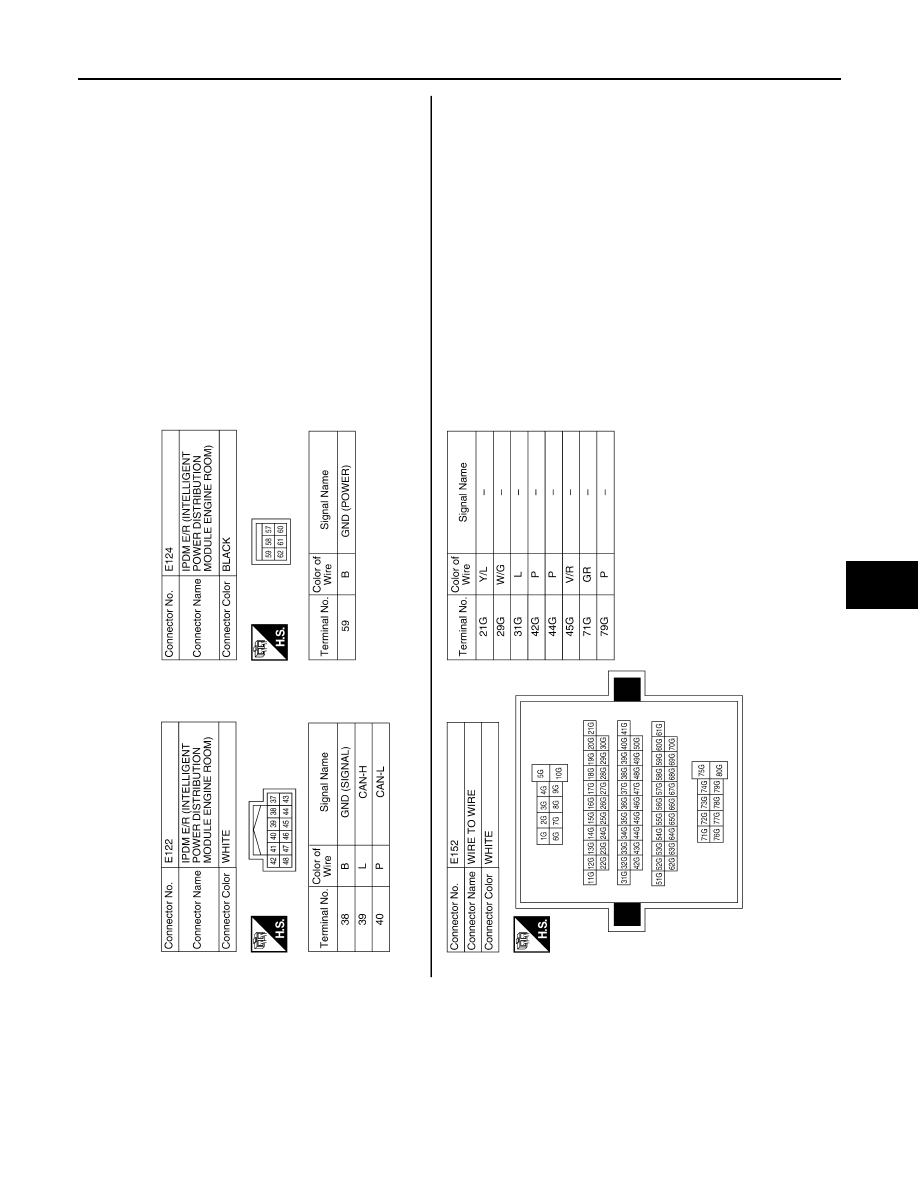

Nissan Titan A60. Manual - part 599

AIR CONDITIONER CONTROL

HAC-79

< WIRING DIAGRAM >

[AUTOMATIC AIR CONDITIONER]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

ABIIA0643GB

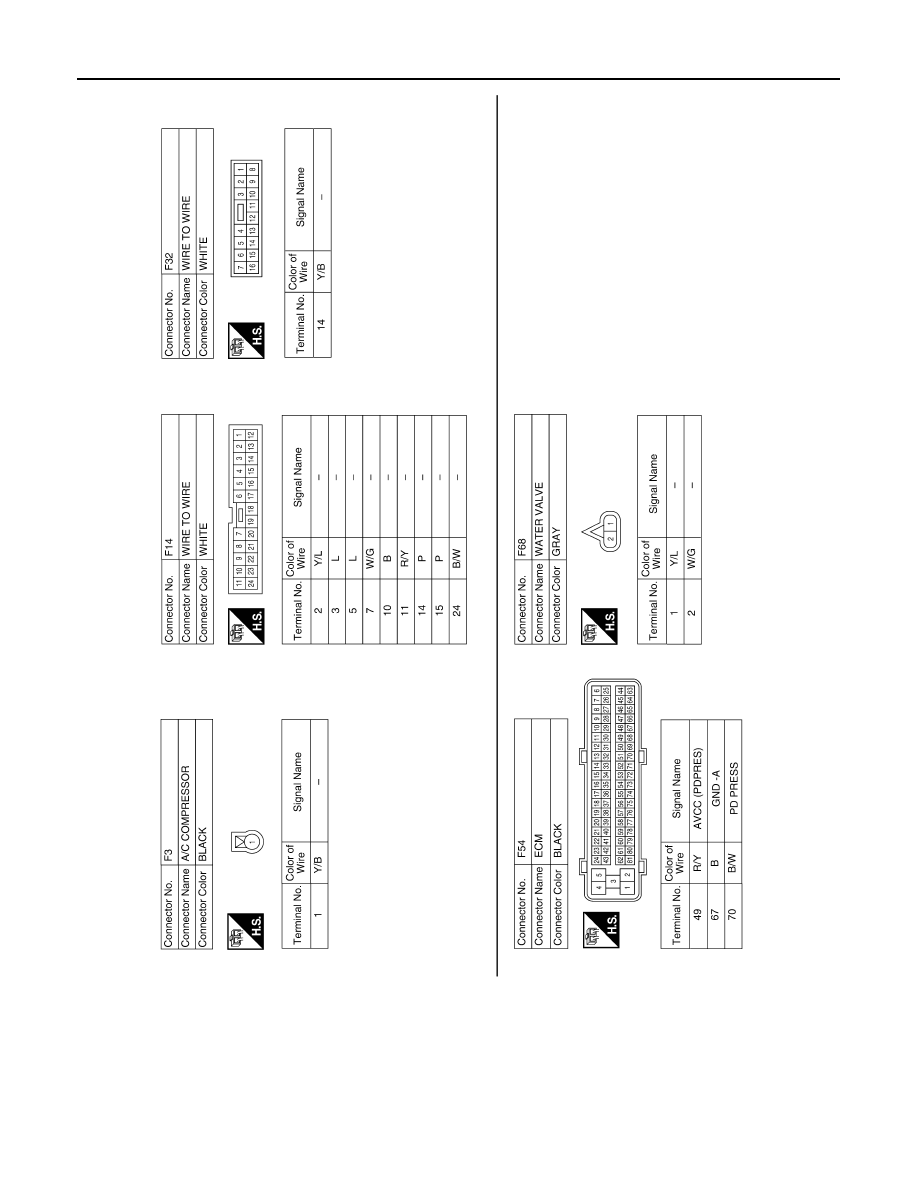

HAC-80

< WIRING DIAGRAM >

[AUTOMATIC AIR CONDITIONER]

AIR CONDITIONER CONTROL

ABIIA0644GB

AIR CONDITIONER CONTROL

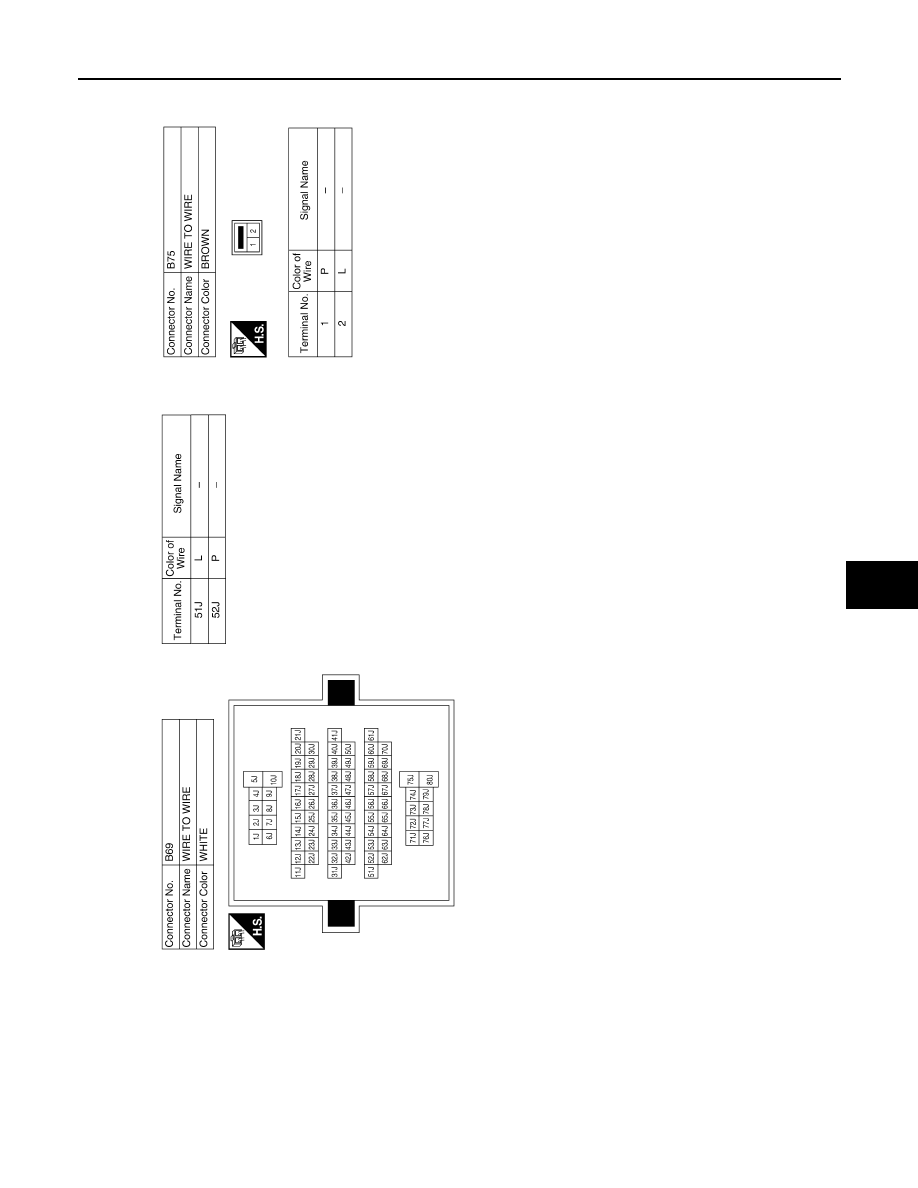

HAC-81

< WIRING DIAGRAM >

[AUTOMATIC AIR CONDITIONER]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

ABIIA0645GB

HAC-82

< SYMPTOM DIAGNOSIS >

[AUTOMATIC AIR CONDITIONER]

AIR CONDITIONER CONTROL

SYMPTOM DIAGNOSIS

AIR CONDITIONER CONTROL

Symptom Matrix Chart

INFOID:0000000006164724

SYMPTOM TABLE

Symptom

Reference Page

A/C system does not come on.

Go to Trouble Diagnosis Procedure for A/C System.

HAC-67

A/C system cannot be controlled.

Go to Self-diagnosis Function.

HAC-21

Air outlet does not change.

Go to Trouble Diagnosis Procedure for Mode Door Motor.

HAC-23

Mode door motor is malfunctioning.

Discharge air temperature does not change.

Go to Trouble Diagnosis Procedure for Air Mix Door Motor.

HAC-28

Air mix door motor is malfunctioning.

Intake door does not change.

Go to Trouble Diagnosis Procedure for Intake Door Motor.

HAC-36

Intake door motor is malfunctioning.

Defroster door motor is malfunctioning.

Go to Trouble Diagnosis Procedure for Defroster Door Motor.

HAC-38

Front blower motor operation is malfunction-
ing.

Go to Trouble Diagnosis Procedure for Front Blower Motor.

HAC-44

Magnet clutch does not engage.

Go to Trouble Diagnosis Procedure for Magnet Clutch.

HAC-49

Insufficient cooling

Go to Trouble Diagnosis Procedure for Insufficient Cooling.

HAC-83

Insufficient heating

Go to Trouble Diagnosis Procedure for Insufficient Heating.

HAC-91

Noise

Go to Trouble Diagnosis Procedure for Noise.

HAC-93

Self-diagnosis cannot be performed.

Go to Trouble Diagnosis Procedure for Self-diagnosis.

HAC-67

Memory function does not operate.

Go to Trouble Diagnosis Procedure for Memory Function.

HAC-94
