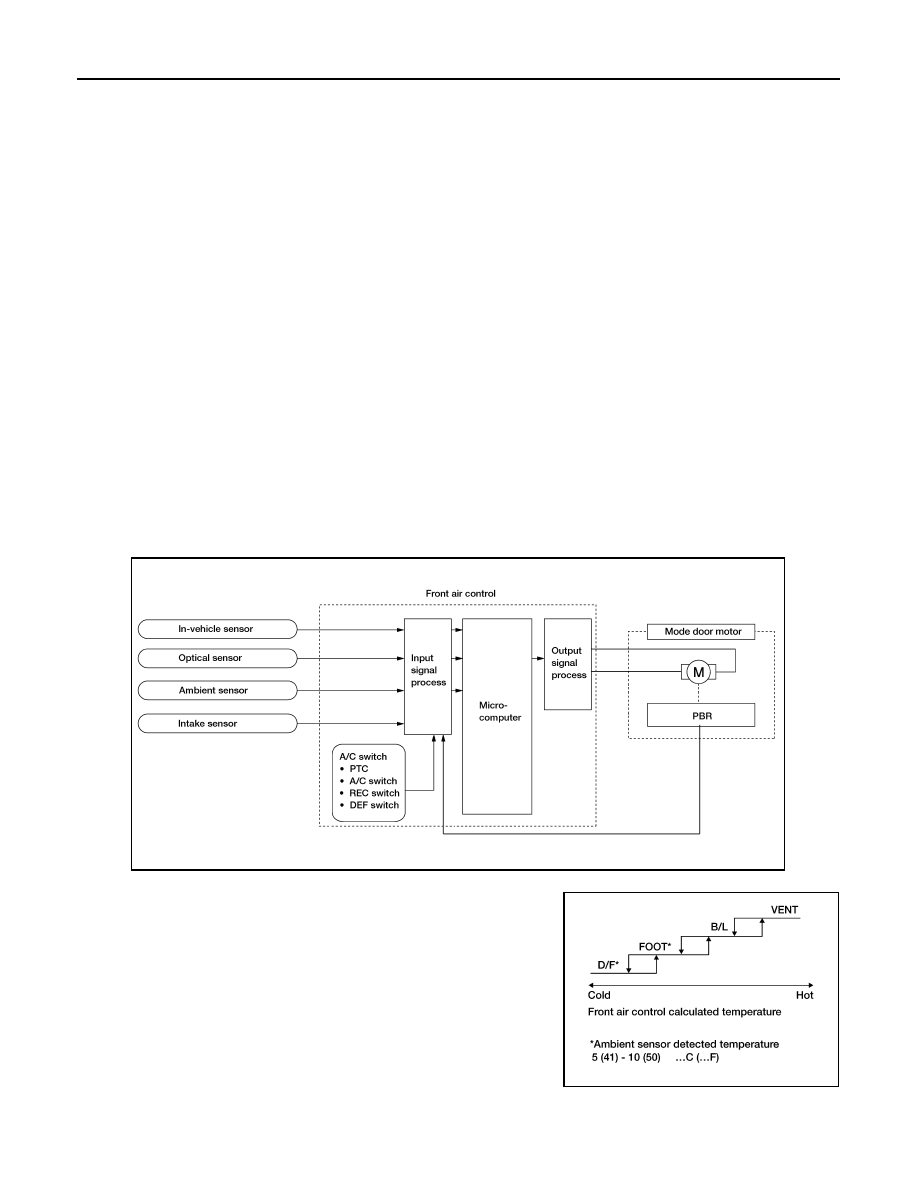

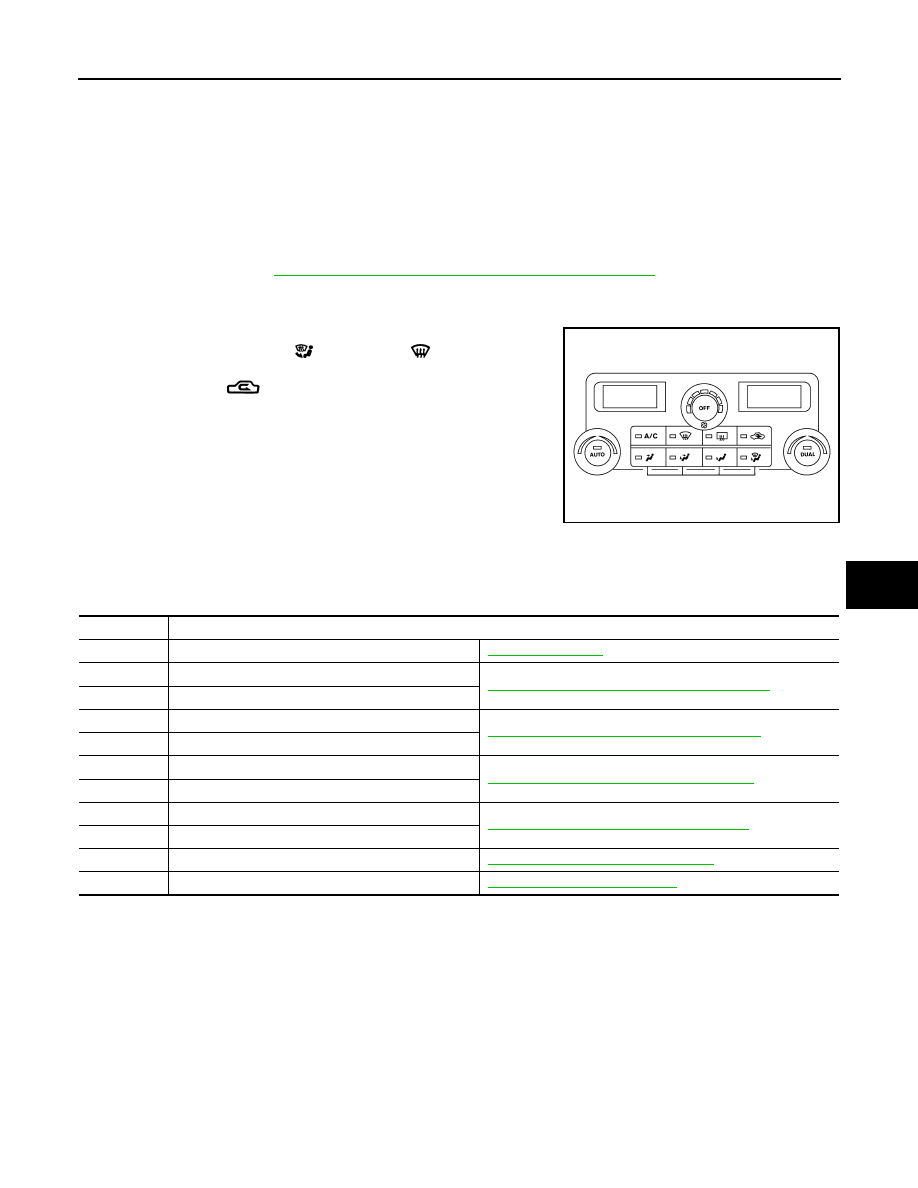

DIAGNOSIS SYSTEM (BCM) HAC-19 < SYSTEM DESCRIPTION > [AUTOMATIC AIR CONDITIONER] C D E F G H J K L M A B HAC N O P DIAGNOSIS SYSTEM (BCM) CONSULT-III Function (BCM - COMMON ITEM) INFOID:0000000006625981 APPLICATION ITEM CONSULT-III performs the following functions via CAN communication with BCM. SYSTEM APPLICATION BCM can perform the following functions. CONSULT-III Function (BCM - AIR CONDITIONER) INFOID:0000000006625982 DATA MONITOR Direct Diagnostic Mode Description Ecu Identification The BCM part number is displayed. Self Diagnostic Result The BCM self diagnostic results are displayed. Data Monitor The BCM input/output data is displayed in real time. Active Test The BCM activates outputs to test components. Work support The settings for BCM functions can be changed. Configuration • The vehicle specification can be read and saved. CAN Diag Support Mntr The result of transmit/receive diagnosis of CAN communication is displayed. System Sub System Direct Diagnostic Mode Ecu Id en tificati on Sel f Di agn os tic Re su lt Dat a M on ito r Acti ve T est W ork su pp ort Co nf ig ur at io n CAN Diag S upport Mntr Door lock DOOR LOCK × × × × Rear window defogger REAR DEFOGGER × × Warning chime BUZZER × × Interior room lamp timer INT LAMP × × × Remote keyless entry system MULTI REMOTE ENT × × × Exterior lamp HEADLAMP × × × Wiper and washer WIPER × × × Turn signal and hazard warning lamps FLASHER × × Air conditioner AIR CONDITIONER × Combination switch COMB SW × BCM BCM × × × × × Immobilizer IMMU × × × Interior room lamp battery saver BATTERY SAVER × × × Vehicle security system THEFT ALM × × × RAP system RETAINED PWR × × × Signal buffer system SIGNAL BUFFER × × TPMS AIR PRESSURE MONITOR × × × × Panic alarm system PANIC ALARM × |
