Nissan Titan A60. Manual - part 522
FRONT FOG LAMP
EXL-143
< REMOVAL AND INSTALLATION >
C
D
E
F
G
H
I
J
K
M
A
B
EXL
N
O
P

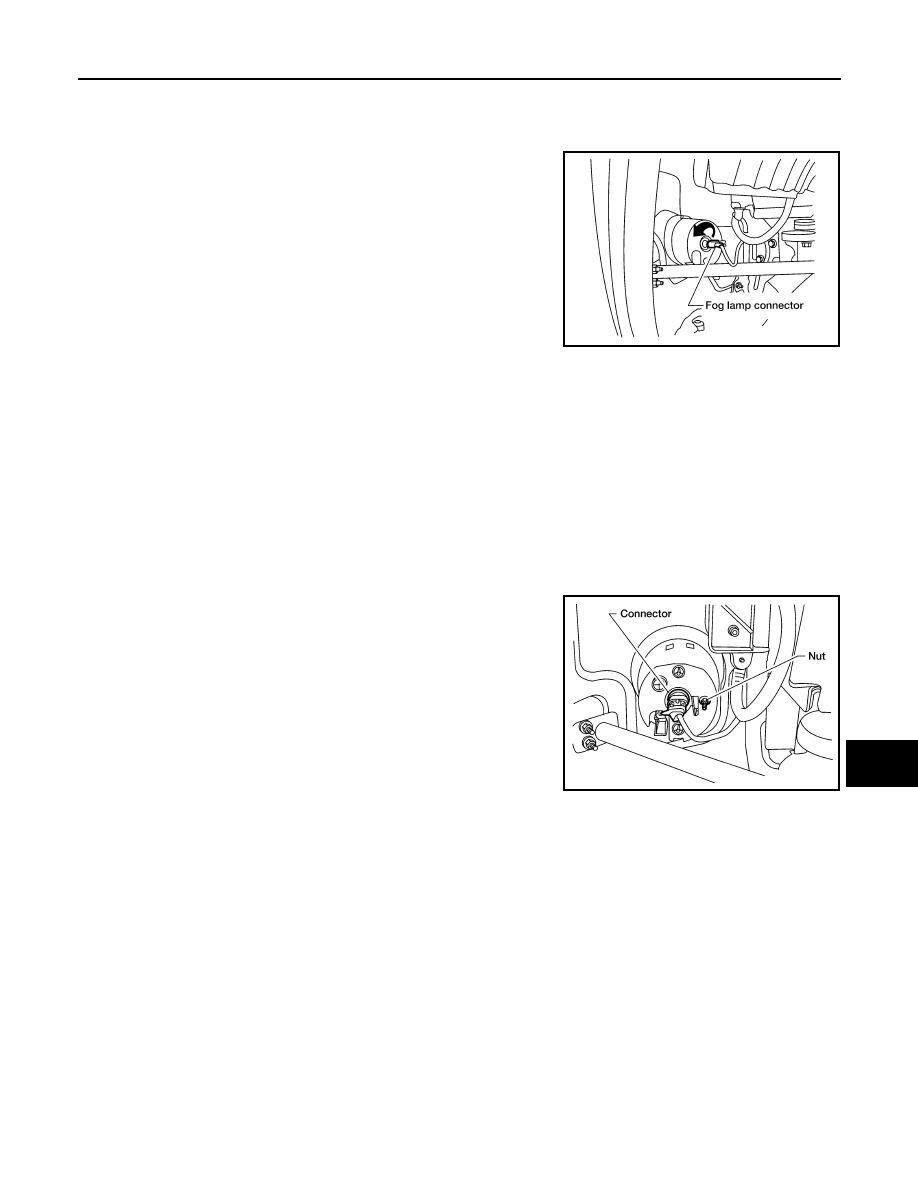

Bulb Replacement
INFOID:0000000006179083
Removal
1. Disconnect electrical connector.
2. Turn the bulb counterclockwise to remove it.
CAUTION:
• Do not touch the glass of bulb directly by hand. Keep
grease and other oily substances away from it. Do not
touch bulb by hand while it is lit or right after being turned
off. Burning may result.
• Do not leave bulb out of fog lamp reflector for a long time
because dust, moisture smoke, etc. may affect the perfor-
mance of fog lamp. When replacing bulb, be sure to
replace it with new one.
Installation
Installation is in the reverse order of removal.
Removal and Installation
INFOID:0000000006179084
The fog lamp is a semi-sealed beam type which uses a replaceable halogen bulb.
CAUTION:
• Do not leave fog lamp assembly without bulb for a long period of time. Dust, moisture, smoke, etc.
entering the fog lamp body may affect the performance. Remove the bulb from the headlamp assem-
bly just before replacement bulb is installed.
• Grasp only the plastic base when handling the bulb. Never touch the glass envelope. Touching the
glass could significantly affect the bulb life and/or fog lamp performance.
Removal
1. Disconnect electrical connector.
2. Remove nut and pull fog lamp out of front fascia.
Installation
Installation is in the reverse order of removal.
WKIA1394E
WKIA1395E
