TURN SIGNAL LAMP CIRCUIT

EXL-59

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

3. Check continuity between the door mirrors and ground (if

equipped with turn signals in the mirrors).

Are continuity test results as specified?

YES

>> Replace the malfunctioning lamp.

NO

>> Repair the harnesses or connectors.

Connector

Terminal

—

Continuity

Door mirror RH

D107

11

Ground

Yes

Door mirror LH

D4

WKIA4525E

EXL-60

< DTC/CIRCUIT DIAGNOSIS >

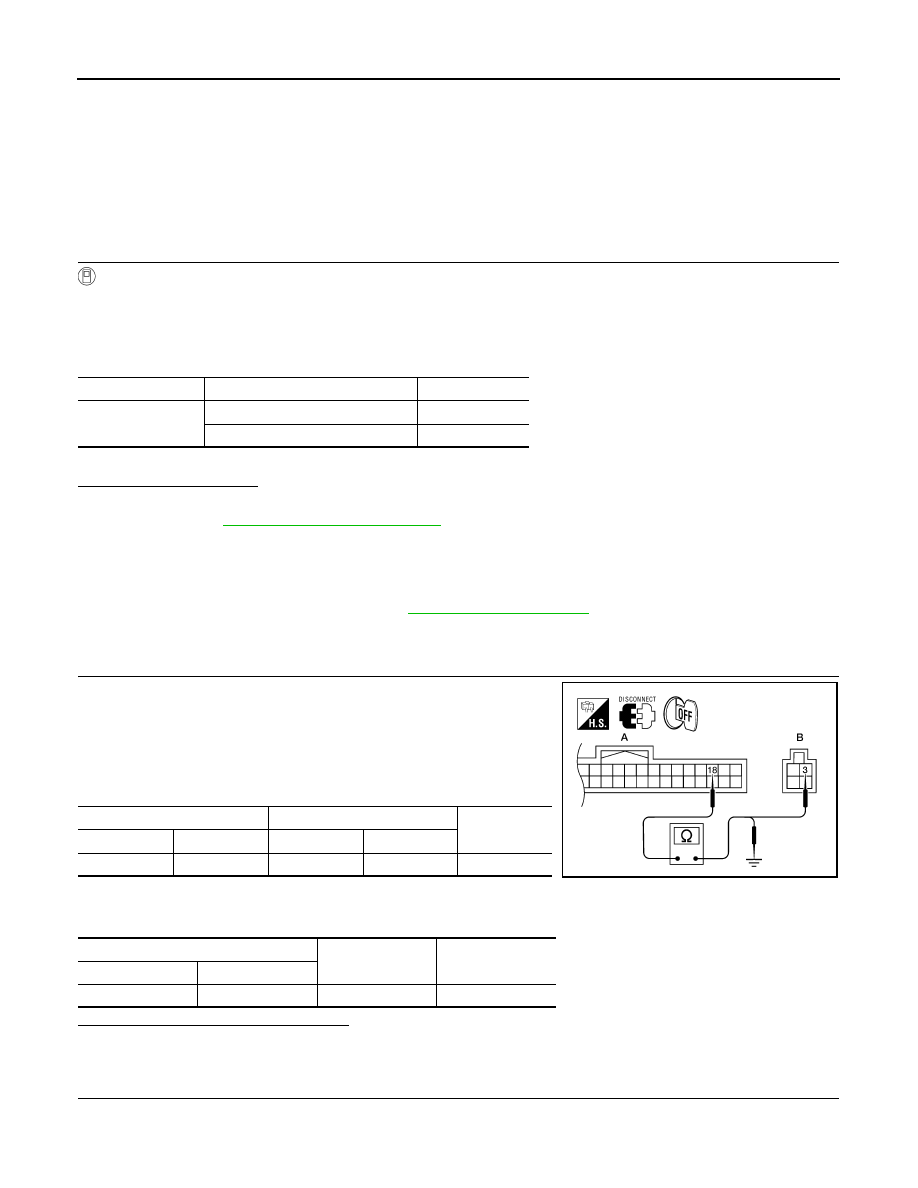

OPTICAL SENSOR

OPTICAL SENSOR

Description

INFOID:0000000006179041

The optical sensor converts the outside brightness (lux) to voltage and transmits the optical sensor signal to

the BCM.

Component Function Check

INFOID:0000000006179042

1.

CHECK OPTICAL SENSOR SIGNAL BY CONSULT-III

CONSULT-III

1. Turn the ignition switch ON.

2. Select "OPTICAL SENSOR" of BCM (HEAD LAMP) DATA MONITOR item.

3. Turn the lighting switch to AUTO.

4. With the optical sensor illuminating, check the monitor status.

*: Illuminates the optical sensor. The value may be less than the standard value if brightness is weak.

Is the item status normal?

YES

>> Optical sensor is normal.

NO

>> Refer to

EXL-60, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000006179043

Regarding Wiring Diagram information, refer to

EXL-83, "Wiring Diagram"

.

1.

CHECK OPTICAL SENSOR GROUND CIRCUIT

1. Turn the ignition switch OFF.

2. Disconnect BCM connector M18 and optical sensor connector

M302.

3. Check continuity between BCM harness connector M18 (A) ter-

minal 18 and optical sensor harness connector M302 (B) termi-

nal 3.

4. Check continuity between BCM harness connector M18 (A) ter-

minal 18 and ground.

Are continuity test results as specified?

YES

>> GO TO 2.

NO

>> Repair harness or connector.

2.

CHECK OPTICAL SENSOR SIGNAL CIRCUIT

Monitor item

Condition

Voltage

OPTICAL SENSOR

When illuminating

3.1V or more *

When shutting off light

0.6V or less

A

B

Continuity

Connector

Terminal

Connector

Terminal

M18

18

M302

3

Yes

A

—

Continuity

Connector

Terminal

M18

18

Ground

No

AWLIA1620ZZ

OPTICAL SENSOR

EXL-61

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

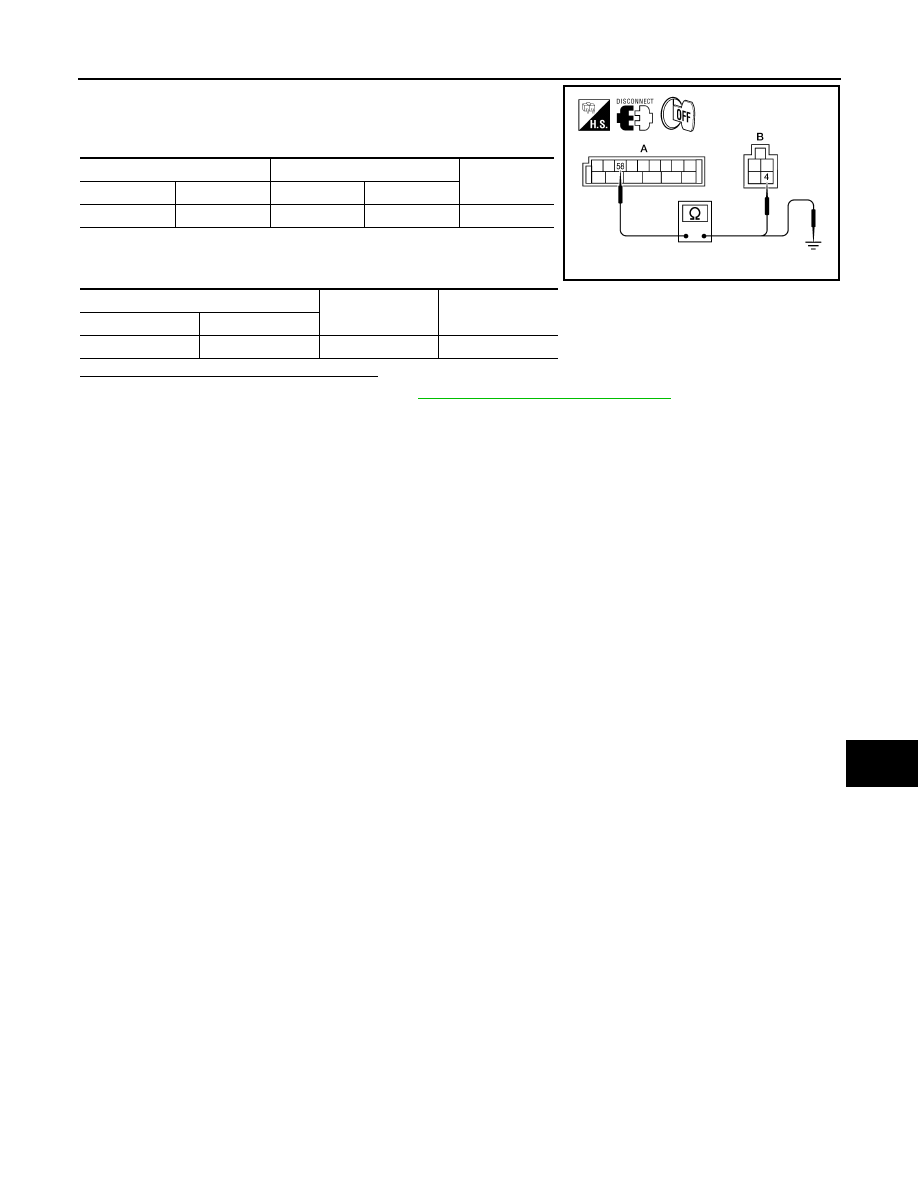

1. Check continuity between BCM harness connector M20 (A) ter-

minal 58 and optical sensor harness connector M302 (B) termi-

nal 4.

2. Check continuity between BCM harness connector M20 (A) ter-

minal 58 and ground.

Are the continuity test results as specified?

YES

>> Replace the optical sensor. Refer to

EXL-141, "Removal and Installation"

.

NO

>> Repair harness or connector.

A

B

Continuity

Connector

Terminal

Connector

Terminal

M20

58

M302

4

Yes

A

—

Continuity

Connector

Terminal

M20

58

Ground

No

AWLIA1621ZZ

EXL-62

< ECU DIAGNOSIS INFORMATION >

BCM (BODY CONTROL MODULE)

ECU DIAGNOSIS INFORMATION

BCM (BODY CONTROL MODULE)

Reference Value

INFOID:0000000006607777

VALUES ON THE DIAGNOSIS TOOL

Monitor Item

Condition

Value/Status

ACC ON SW

Ignition switch OFF or ON

Off

Ignition switch ACC

On

AIR COND SW

A/C switch OFF

Off

A/C switch ON

On

AIR PRESS FL

Front left tire air pressure value

kPa, kg/cm

2

, psi

AIR PRESS FR

Front right tire air pressure value

kPa, kg/cm

2

, psi

AIR PRESS RL

Rear left tire air pressure value

kPa, kg/cm

2

, psi

AIR PRESS RR

Rear right tire air pressure value

kPa, kg/cm

2

, psi

AUTO LIGHT SW

Lighting switch OFF

Off

Lighting switch AUTO

On

BRAKE SW

Brake pedal released

Off

Brake pedal applied

On

BUCKLE SW

Seat belt buckle unfastened

Off

Seat belt buckle fastened

On

BUZZER

Buzzer in combination meter OFF

Off

Buzzer in combination meter ON

On

CARGO LAMP SW

Cargo lamp switch OFF

Off

Cargo lamp switch ON

On

CDL LOCK SW

Door lock/unlock switch does not operate

Off

Press door lock/unlock switch to the LOCK side

On

CDL UNLOCK SW

Door lock/unlock switch does not operate

Off

Press door lock/unlock switch to the UNLOCK side

On

DOOR SW-AS

Front door RH closed

Off

Front door RH opened

On

DOOR SW-DR

Front door LH closed

Off

Front door LH opened

On

DOOR SW-RL

Rear door LH closed

Off

Rear door LH opened

On

DOOR SW-RR

Rear door RH closed

Off

Rear door RH opened

On

FAN ON SIG

Blower motor fan switch OFF

Off

Blower motor fan switch ON

On

FR FOG SW

Front fog lamp switch OFF

Off

Front fog lamp switch ON

On

FR WASHER SW

Front washer switch OFF

Off

Front washer switch ON

On
