Nissan Titan A60. Manual - part 314

FRONT OIL SEAL

DLN-195

< REMOVAL AND INSTALLATION >

[REAR FINAL DRIVE: M226 ]

DLN

REMOVAL AND INSTALLATION

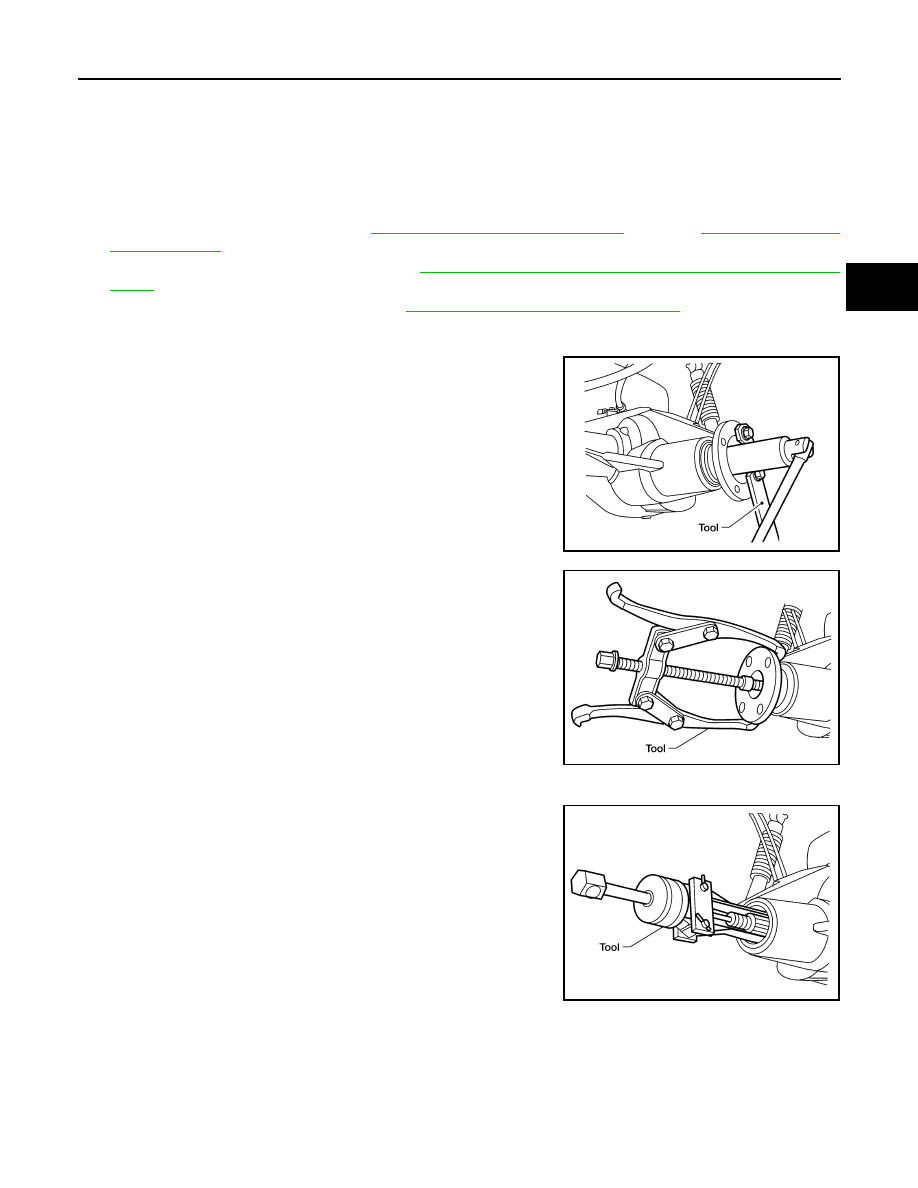

FRONT OIL SEAL

Removal and Installation

INFOID:0000000006179560

REMOVAL

1. Remove rear propeller shaft. Refer to

DLN-141, "Removal and Installation"

2. Remove brake calipers and rotors. Refer to

BR-36, "Removal and Installation of Brake Caliper and Disc

Rotor"

3. Measure the total preload torque. Refer to

DLN-199, "Disassembly and Assembly"

NOTE:

Record the total preload torque measurement.

4. Remove the drive pinion nut using suitable tool.
5. Put matching marks on the companion flange and drive pinion

using paint.

CAUTION:

Use paint to make the matching marks. Do not damage the

companion flange or drive pinion.

6. Remove the companion flange using suitable tool.

7. Remove oil seal/dust shield and discard.
8. Remove the front oil seal using Tool.

INSTALLATION

LDIA0122E

LDIA0123E

Tool number

: ST33290001 (J-34286)

LDIA0124E

DLN-196

< REMOVAL AND INSTALLATION >

[REAR FINAL DRIVE: M226 ]

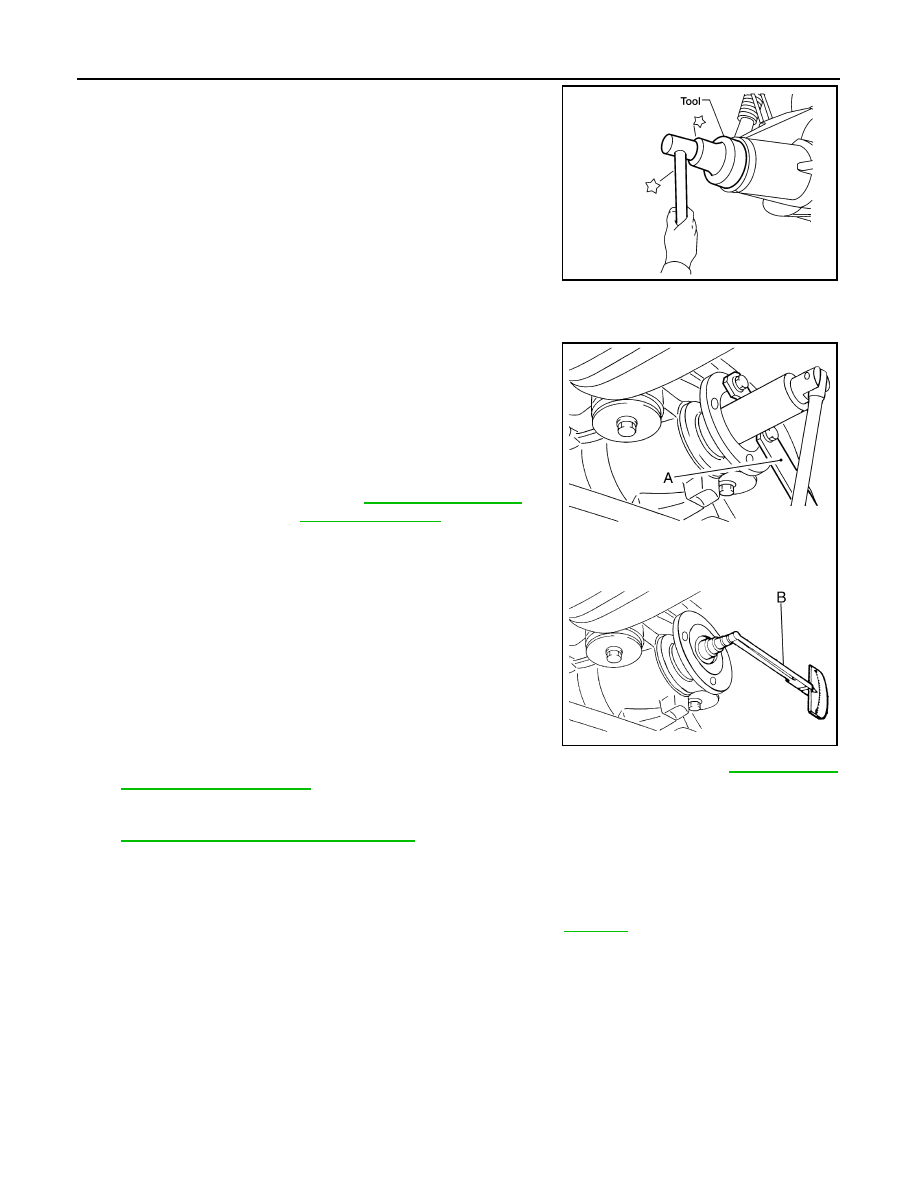

FRONT OIL SEAL

1. Apply multi-purpose grease to the lips of the new front oil seal.

Then drive the new front oil seal in evenly until it becomes flush

with the gear carrier using Tool.

CAUTION:

• Do not reuse front oil seal.

• Do not incline the new front oil seal when installing.

• Apply multi-purpose grease to the lips and differential

gear oil to the circumference of the new front oil seal.

2. Install a new oil seal/dust shield.
3. Install the companion flange to the drive pinion while aligning the matching marks.
4. Apply anti-corrosive oil to the threads of the drive pinion and the

seating surface of the new drive pinion lock nut and new drive

pinion lock nut washer. Then adjust the drive pinion lock nut

tightening torque using suitable tool A, and check the total pre-

load torque using Tool B.

• The total preload torque should be within the total preload

torque specification. When not replacing the collapsible

spacer, it should also be equal to the measurement taken dur-

ing removal plus an additional 0.56 N·m (0.06 Kg-m, 5 in-lb).

• If the total preload torque is low, tighten the drive pinion lock

nut in 6.8 N·m (0.69 Kg-m, 5ft-lb) increments until the total pre-

load torque is met.

CAUTION:

• Do not reuse drive pinion lock nut or drive pinion lock nut

washer.

• Apply anti-corrosive oil to the threads of the drive pinion

and the seating surface of the new drive pinion lock nut.

• Adjust the drive pinion lock nut tightening torque to the

lower limit first. Do not exceed the drive pinion lock nut specified torque. Refer to

DLN-199, "Dis-

assembly and Assembly"

• Do not loosen drive pinion lock nut to adjust the total preload torque. If the total preload torque

exceeds the specifications, replace the collapsible spacer and tighten it again to adjust. Refer to

DLN-199, "Disassembly and Assembly"

• After adjustment, rotate drive pinion back and forth 2 to 3 times to check for unusual noise, rota-

tion malfunction, and other malfunctions.

5. Installation of the remaining components is in the reverse order of removal.

CAUTION:

Check the differential gear oil level after installation. Refer to

DLN-194

Tool number

: ST15310000 ( — )

LDIA0125E

Tool number

B: ST3127S000 (J-25765-A)

Total preload torque: Refer to

DLN-199, "Disassem-

bly and Assembly"

WDIA0380E

CARRIER COVER

DLN-197

< REMOVAL AND INSTALLATION >

[REAR FINAL DRIVE: M226 ]

DLN

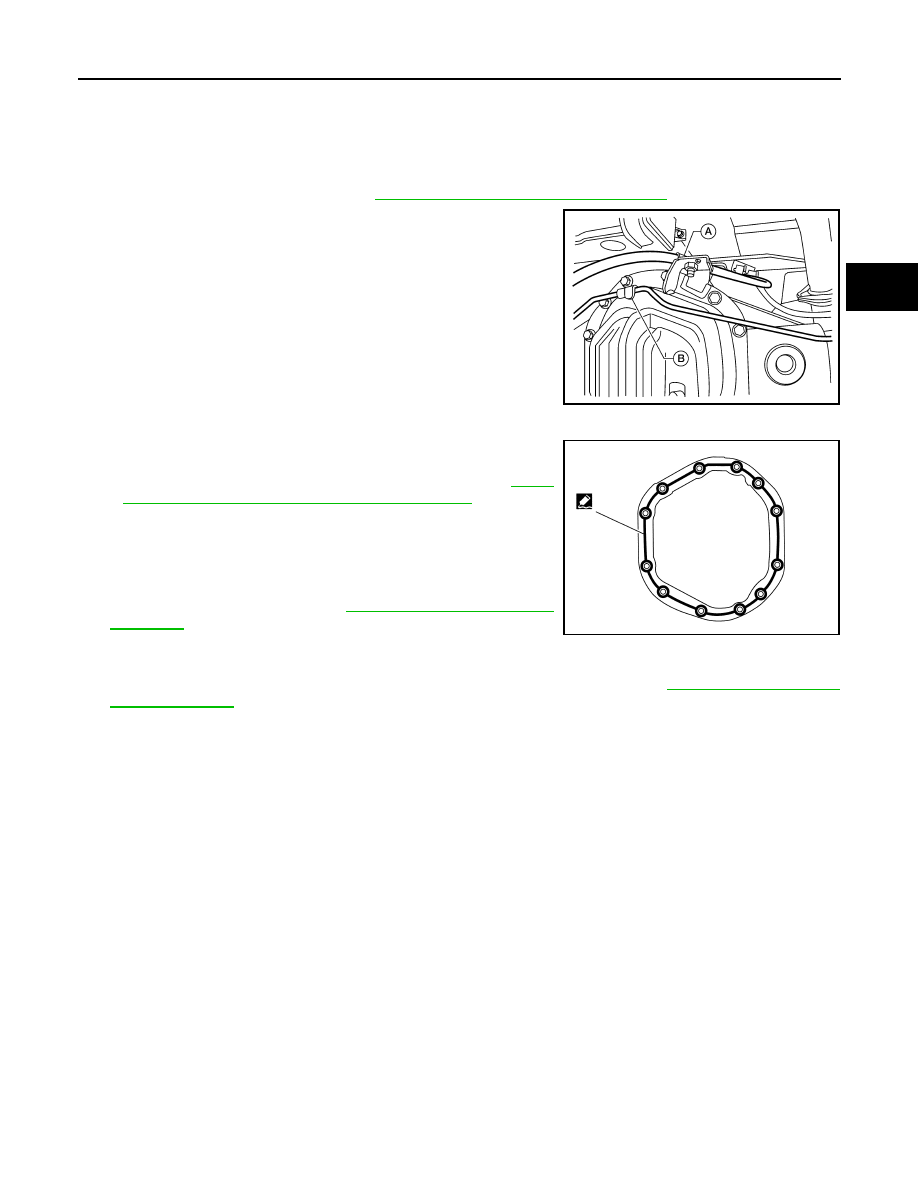

CARRIER COVER

Removal and Installation

INFOID:0000000006179561

REMOVAL

1. Drain the differential gear oil. Refer to

DLN-194, "Changing Differential Gear Oil"

2. Disconnect the parking brake cable (A) and brake tube (B) from

the carrier cover.

3. Remove the carrier cover bolts and separate the carrier cover

from the gear carrier using Tool.

CAUTION:

• Do not damage the mating surface.

• Do not insert flat-bladed screwdriver, this will damage the

mating surface.

INSTALLATION

1. Apply a bead of sealant to the mating surface of the carrier

cover as shown.

• Use Genuine Silicone RTV or equivalent. Refer to

GI-15,

CAUTION:

Remove any old sealant adhering to the mating surfaces.

Also remove any moisture, oil, or foreign material adhering

to the application and mating surfaces.

2. Install the carrier cover to the gear carrier. Tighten the bolts to

the specified torque. Refer to

DLN-199, "Disassembly and

Assembly"

3. Connect the parking brake cable and brake tube to the carrier

cover.

4. Fill the rear final drive assembly with recommended differential gear oil. Refer to

DLN-194, "Changing Dif-

ferential Gear Oil"

Tool number

: KV10111100 (J-37228)

WDIA0330E

PDIA1061E

DLN-198

< UNIT REMOVAL AND INSTALLATION >

[REAR FINAL DRIVE: M226 ]

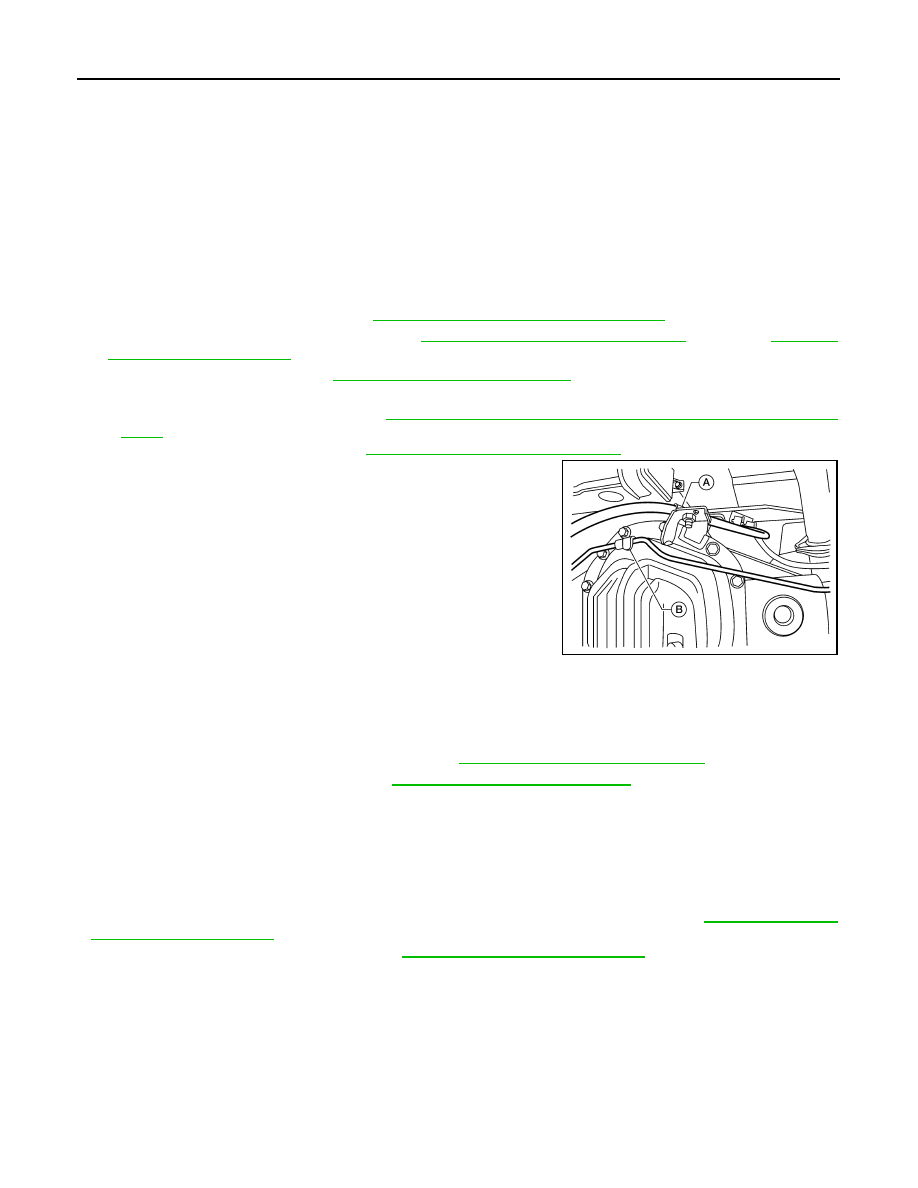

REAR FINAL DRIVE

UNIT REMOVAL AND INSTALLATION

REAR FINAL DRIVE

Removal and Installation

INFOID:0000000006179562

REMOVAL

CAUTION:

• Do not damage spline, companion flange and front oil seal when removing propeller shaft.

• Before removing final drive assembly or rear axle assembly, disconnect ABS sensor harness con-

nector from the assembly and move it away from final drive/rear axle assembly area. Failure to do so

may result in sensor wires being damaged and sensor becoming inoperative.

1. Drain the differential gear oil. Refer to

DLN-194, "Changing Differential Gear Oil"

2. Remove the rear propeller shaft. Refer to

DLN-141, "Removal and Installation"

(2S1410),

DLN-150,

"Removal and Installation"

(3S1410).

3. Remove the axle shaft. Refer to

RAX-8, "Removal and Installation"

4. Disconnect the following components from the rear final drive assembly.

• Brake tube block connectors. Refer to

BR-23, "Removal and Installation of Rear Brake Piping and Brake

Hose"

• ABS sensor wire harness. Refer to

BRC-113, "Removal and Installation"

• Parking brake cable (A).

• Brake tube (B).

5. Disconnect brake hose from brake tube at the mounting clip on top of rear final drive assembly. Then

remove the metal clip to disconnect brake line from the mounting clip on top of the rear final drive assem-

bly.

6. Support rear final drive assembly using a suitable jack.
7. Remove rear shock absorber lower bolts. Refer to

RSU-11, "Removal and Installation"

8. Remove leaf spring U-bolt nuts. Refer to

RSU-8, "Removal and Installation"

9. Remove rear final drive assembly.

CAUTION:

Secure rear final drive assembly to the jack while removing it.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Fill the rear final drive assembly with differential gear oil after installation. Refer to

DLN-194, "Chang-

ing Differential Gear Oil"

• Bleed the air from brake system. Refer to

BR-16, "Bleeding Brake System"

WDIA0330E
