DLK-122

< REMOVAL AND INSTALLATION >

DOOR

DOOR

Fitting Adjustment

INFOID:0000000006179267

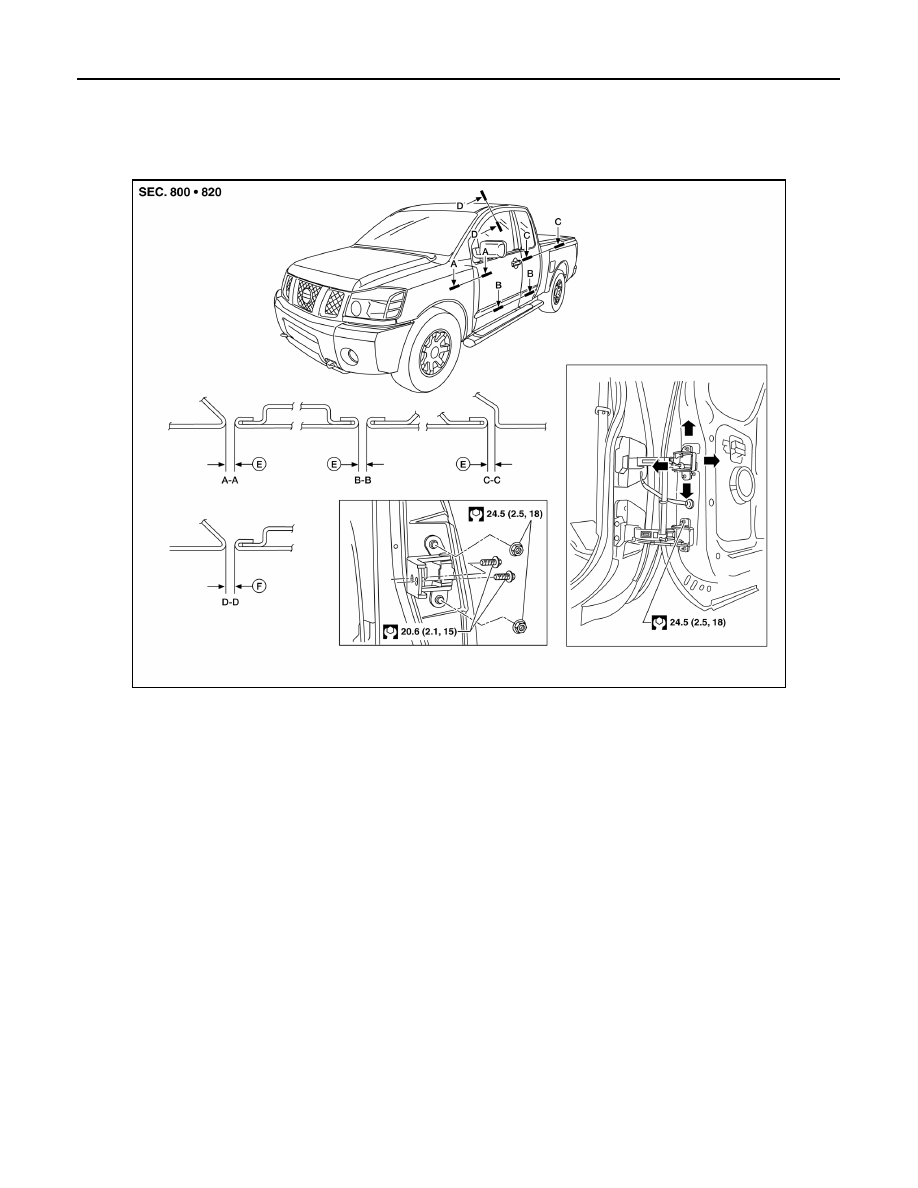

KING CAB

AWKIA1728GB

E.

4.5

± 1.0 mm (0.177 ± 0.039 in)

F.

6.5

± 1.0 mm (0.256 ± 0.039 in)

DOOR

DLK-123

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

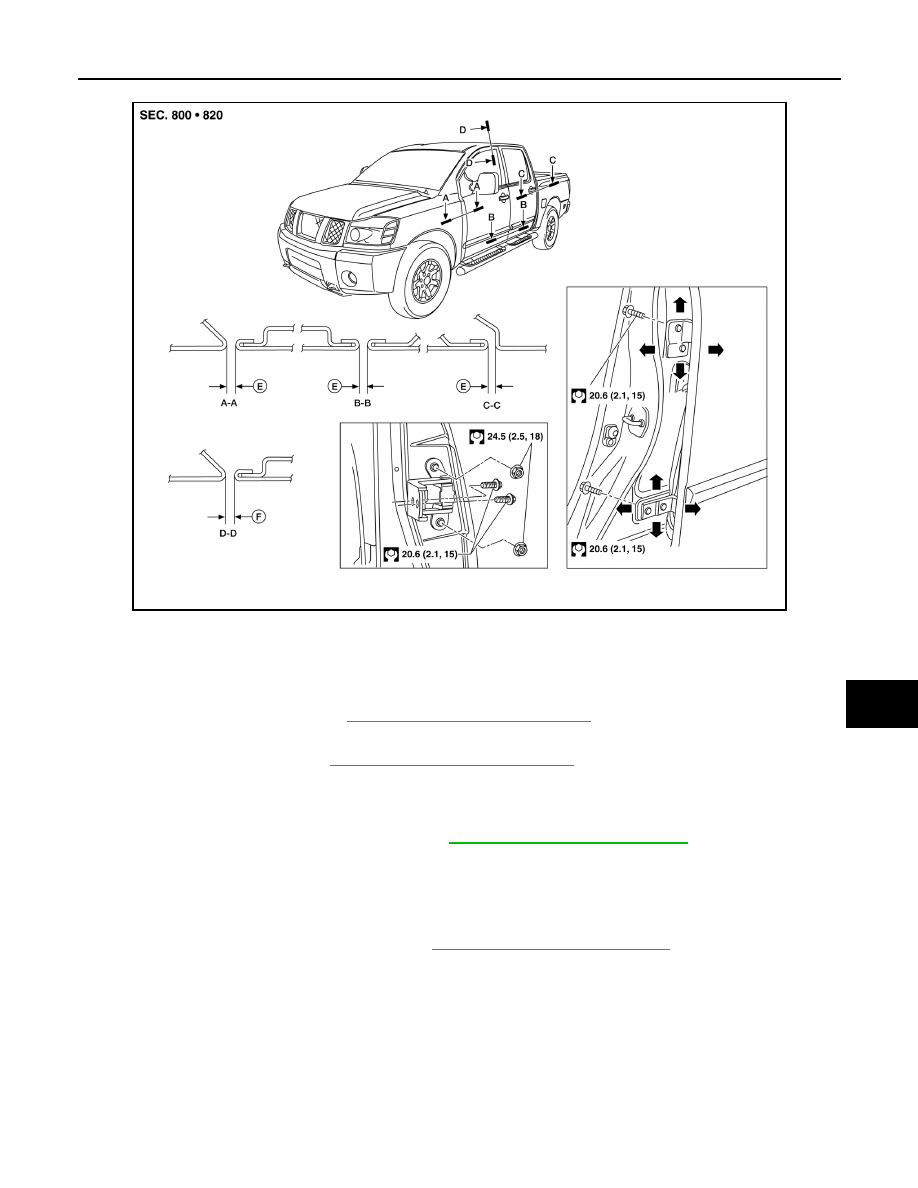

CREW CAB

Front Door

Longitudinal clearance and surface height adjustment at front end

1. Remove the front fender. Refer to

EXT-22, "Removal and Installation"

.

2. Loosen the hinge bolts. Raise the front door at rear end to adjust.
3. Install the front fender. Refer to

EXT-22, "Removal and Installation"

.

Rear Door Crew Cab

Longitudinal clearance and surface height adjustment at rear end

1. Remove the center pillar upper garnish. Refer to

INT-14, "Removal and Installation"

.

2. Accessing from inside the vehicle, loosen the nuts. Open the rear door, and raise the rear door at rear end

to adjust. Tighten the nuts to specification.

3. Install the center pillar upper garnish. Refer to

INT-14, "Removal and Installation"

.

Rear Door King Cab

Longitudinal clearance and surface height adjustment at front end

1. With the door open, support and loosen the hinge to door nuts.
2. Adjust the door position as necessary.
3. Tighten the nuts to specification.

AWKIA1730GB

E.

4.5

± 1.0 mm (0.177 ± 0.039 in)

F.

6.5

± 1.0 mm (0.256 ± 0.039 in)

Rear door hinge nuts

: 24.5 N·m (2.5 kg-m, 18 ft-lb)

Rear door hinge nuts

: 24.5 N·m (2.5 kg-m, 18 ft-lb)

DLK-124

< REMOVAL AND INSTALLATION >

DOOR

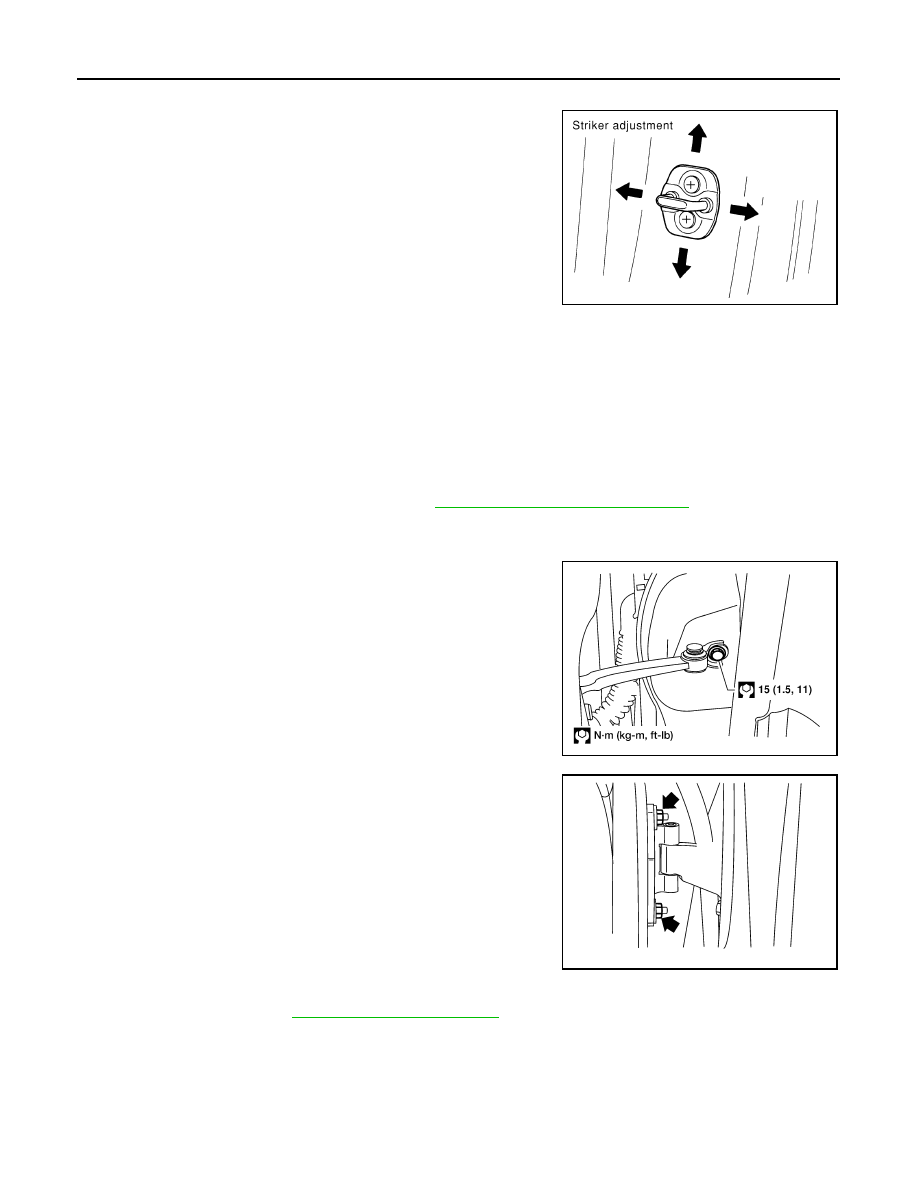

Striker adjustment

1. Adjust the striker so that it becomes parallel with the lock inser-

tion direction.

Removal and Installation

INFOID:0000000006179268

KING CAB

Front Door

CAUTION:

• When removing and installing the door assembly, support the door with a jack and shop cloth to pro-

tect the door and body.

• When removing and installing door assembly, be sure to carry out the fitting adjustment.

• Check the hinge rotating part for poor lubrication. If necessary, apply body grease.
1. Remove the front door lock assembly. Refer to

DLK-127, "Removal and Installation"

.

2. Remove the door harness.
3. Remove the check link cover.
4. Remove the check link bolt from the hinge pillar.

5. Remove the door-side hinge nuts and bolts, and remove the

door assembly.

Installation is in the reverse order of removal.

• Align the front door. Refer to

DLK-122, "Fitting Adjustment"

.

Rear Door

CAUTION:

• When removing and installing the door assembly, support the door with a jack and shop cloth to pro-

tect the door and body.

• When removing and installing door assembly, be sure to carry out the fitting adjustment.

• Check the hinge rotating part for poor lubrication. If necessary, apply body grease.

LIIA1621E

LIIA1503E

LIIA1727E

DOOR

DLK-125

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

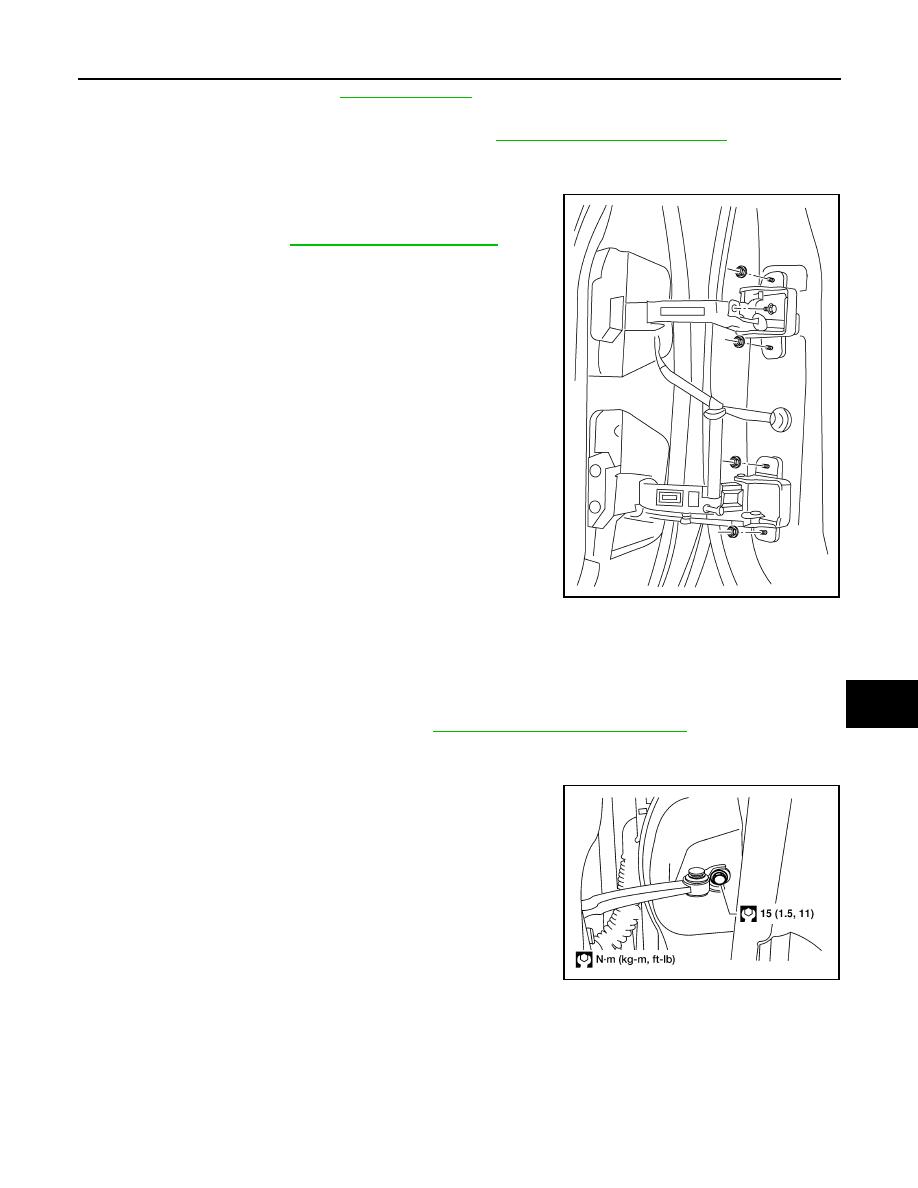

1. Remove the door glass. Refer to

GW-23, "Removal"

.

2. Remove the speaker.
3. Remove the door handles and latch assembly. Refer to

DLK-130, "Component Structure"

.

4. Remove the check link.
5. Remove the wire harness.
6. Remove the door assembly.
Installation is in the reverse order of removal.

• Align the rear door. Refer to

DLK-122, "Fitting Adjustment"

.

CREW CAB

CAUTION:

• When removing and installing the door assembly, support the door with a jack and shop cloth to pro-

tect the door and body.

• When removing and installing door assembly, be sure to carry out the fitting adjustment.

• Check the hinge rotating part for poor lubrication. If necessary, apply body grease.
1. Remove the rear door lock assembly. Refer to

DLK-131, "Removal and Installation"

.

2. Remove the door harness.
3. Remove the check link cover.
4. Remove the check link bolt from the hinge pillar.

WIIA0334E

LIIA1503E
