FRONT PILLAR

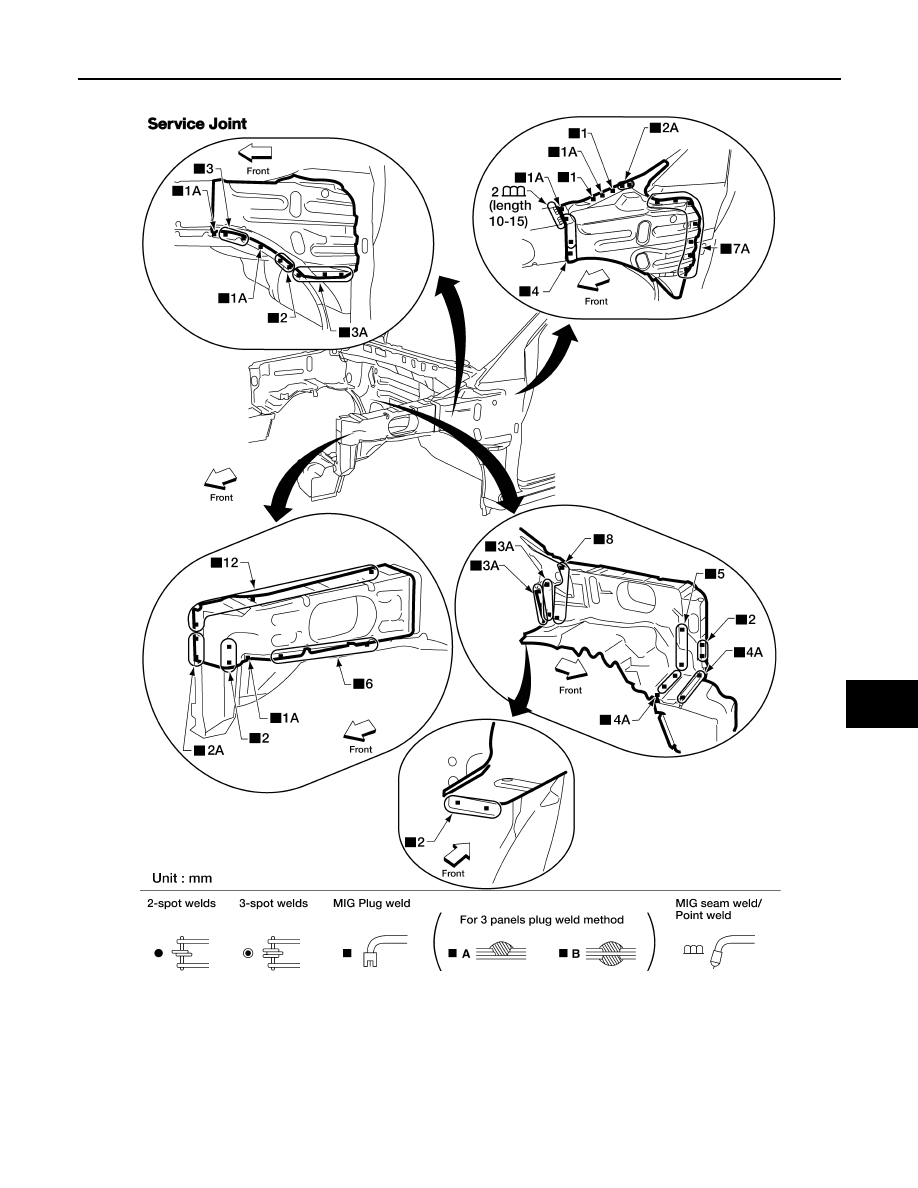

Work after rear hoodledge reinforcement has been removed.

Change parts:

z

Hoodledge reinforcement

z

Battery mounting reinforcement (RH)
1st body mounting bracket (LH)

z

Hoodledge front reinforcement

z

Harness bracket (RH)

z

Rear hoodledge reinforcement

ALKIA0517GB

BRM-56

< UNIT REMOVAL AND INSTALLATION >

REPLACEMENT OPERATIONS

Front Pillar Outer

ALKIA0516GB

Change parts:

z

Front pillar portion of body side outer

REPLACEMENT OPERATIONS

BRM-57

< UNIT REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

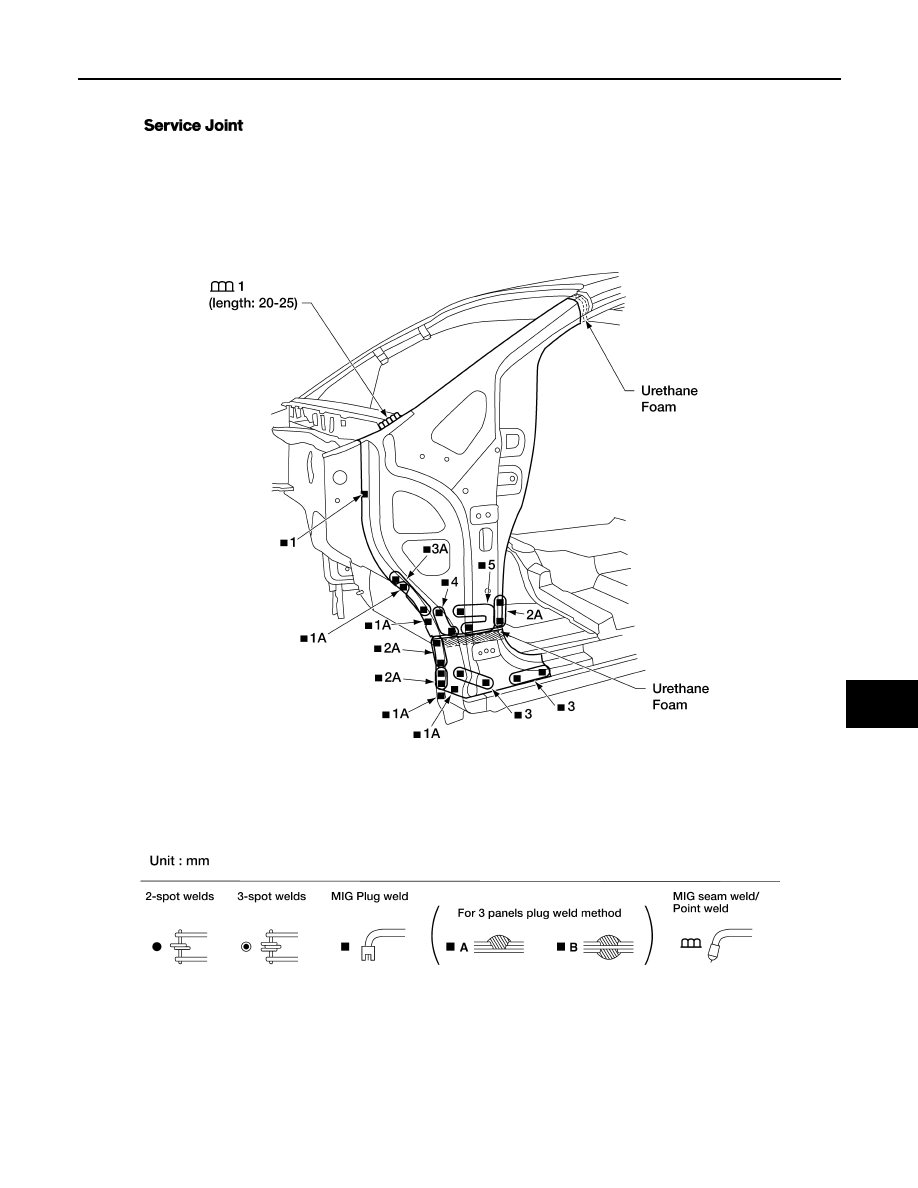

Front Pillar Brace

ALKIA0515GB

Change parts:

z

Front pillar brace

BRM-58

< UNIT REMOVAL AND INSTALLATION >

REPLACEMENT OPERATIONS

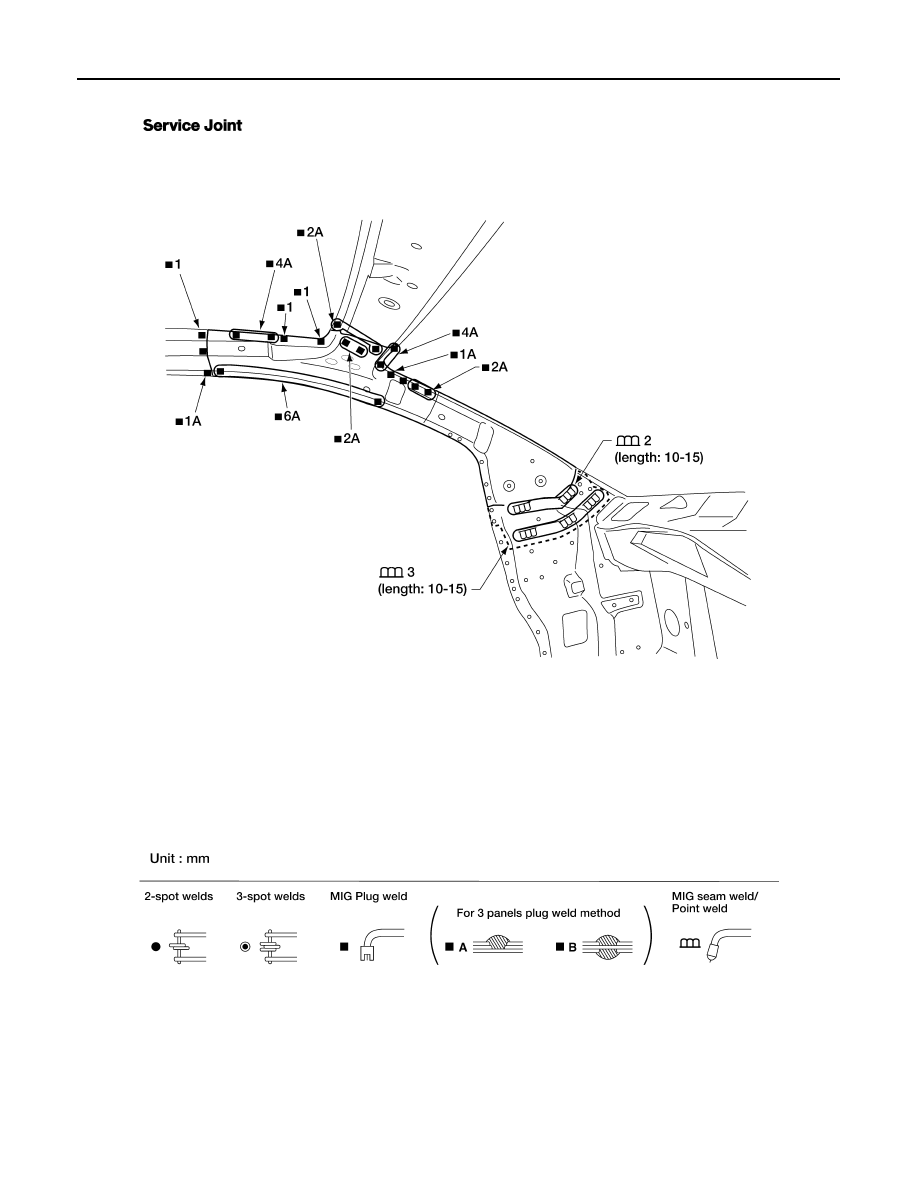

Inner Upper Front Pillar

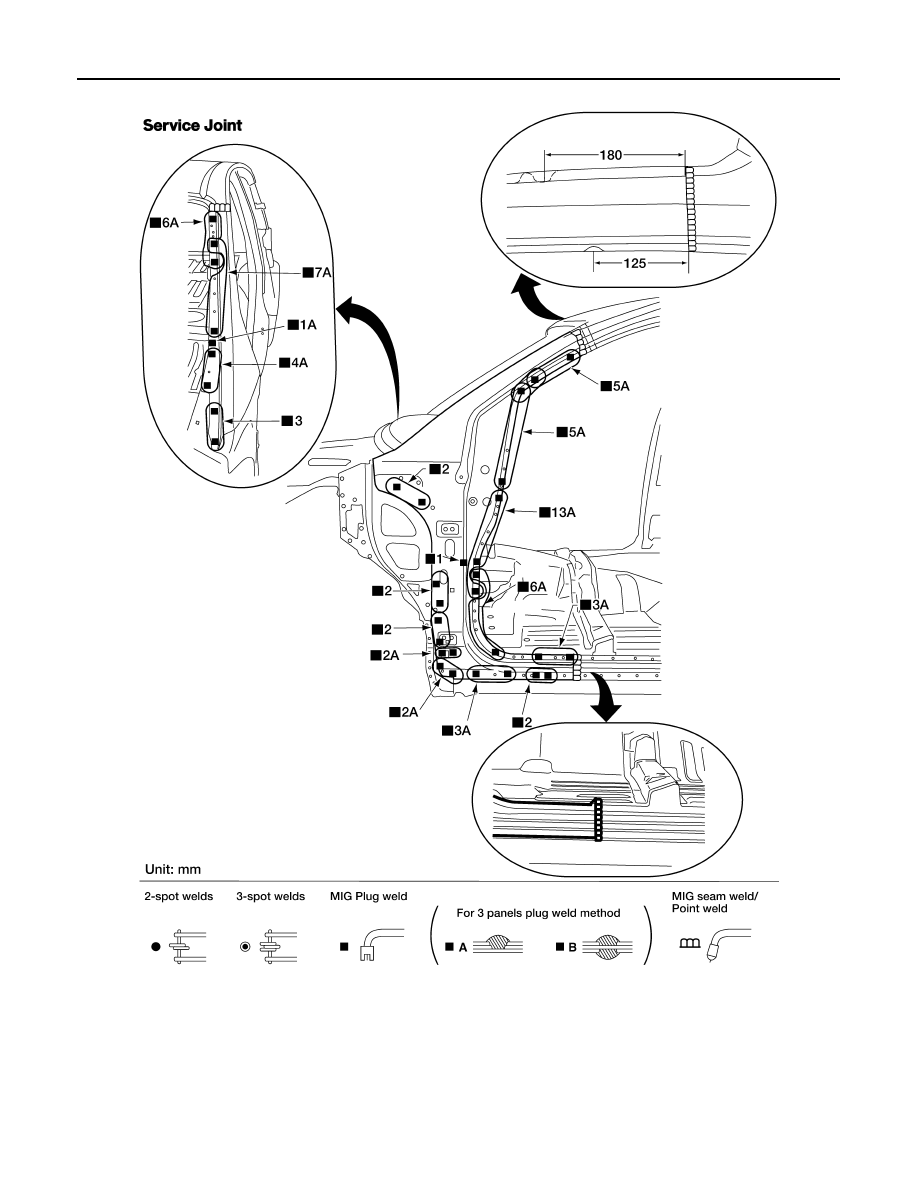

DASH SIDE

Work with front pillar brace and outer sill reinforcement removed.

ALKIA0514GB

Change parts:

z

Inner upper front pillar
