BODY COMPONENT PARTS

BRM-11

< UNIT REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

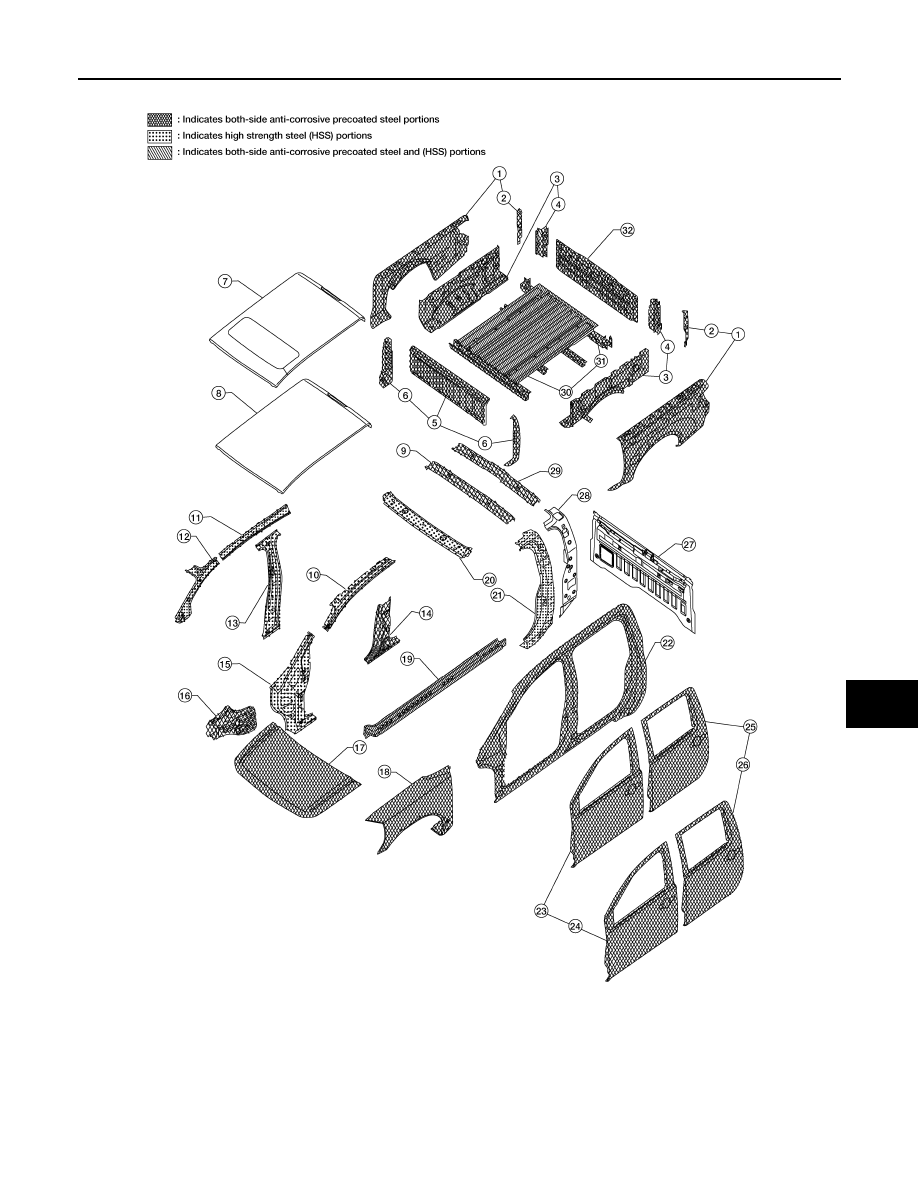

CREW CAB

1. Side panel assembly (RH & LH)
2. Inner rear strut assembly (RH & LH)
3. Inner side panel assembly (RH & LH)
4. Rear strut assembly (RH & LH)
5. Header panel
6. Front outer strut assembly (RH & LH)

ALKIA0491GB

BRM-12

< UNIT REMOVAL AND INSTALLATION >

BODY COMPONENT PARTS

7. Roof with sunroof opening
8. Standard roof
9. No. 2 roof bow
10. Upper front pillar reinforcement (RH & LH)
11. Inner roof side rail (RH & LH)
12. Inner upper front pillar (RH & LH)
13. Inner center pillar (RH & LH)
14. Lower center pillar brace (RH & LH)
15. Front pillar brace (RH & LH)
16. Hoodledge rear reinforcement (RH & LH)
17. Hood
18. Front fender (RH & LH)
19. Outer sill reinforcement (RH & LH)
20. Front roof rail
21. Outer lock pillar reinforcement (RH & LH)
22. Body side outer (RH & LH)
23. Front door assembly (RH & LH)
24. Front door outer panel (RH &LH)
25. Rear door assembly (RH & LH)
26. Rear door outer panel (RH & LH)
27. Back panel assembly
28. Inner lock pillar (RH & LH)
29. Rear roof rail
30. Rear body floor assembly
31. Tail floor bolster assembly
32. Rear gate

FRAME COMPONENT PARTS

BODY COMPONENT PARTS

BRM-13

< UNIT REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

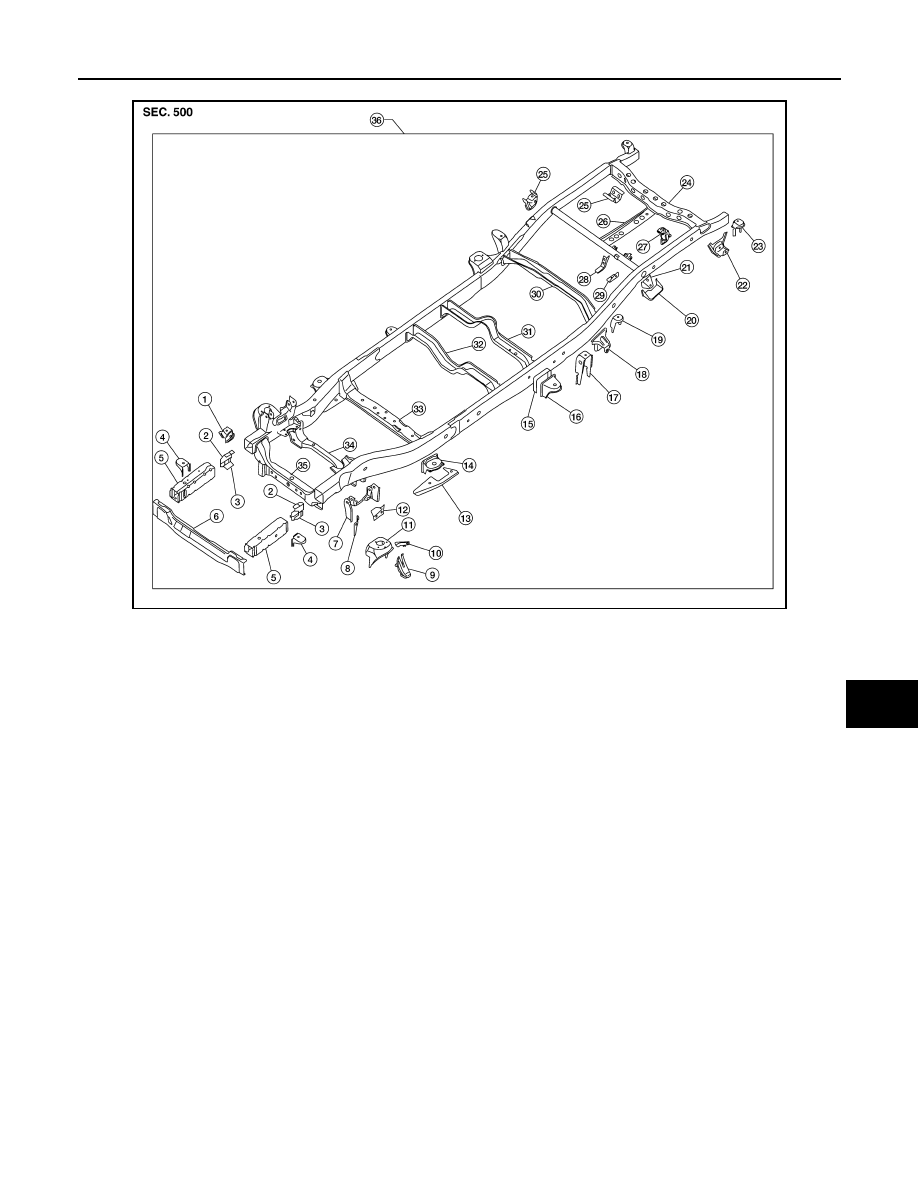

King Cab

1. Front differential mounting bracket (RH & LH)
2. Upper front side member extension assembly (RH & LH)
3. Lower front side member extension assembly (RH & LH)
4. 1st cab mounting bracket (RH & LH)
5. Front side member extension assembly (RH & LH)
6. 1st crossmember assembly
7. Front link upper mounting bracket (RH & LH)
8. Panhard rod bracket reinforcement
9. Bound bumper bracket (RH & LH)
10. Front brake hose bracket (RH & LH)
11. Front shock absorber bracket (RH & LH)
12. Panhard rod reinforcement
13. 4th crossmember gusset (RH & LH)
14. 2nd cab mounting bracket (RH & LH)
15. 3rd cab mounting reinforcement
16. 3rd cab mounting bracket (RH & LH)
17. 1st rear body mounting bracket (RH & LH)
18. Rear spring front bracket assembly (RH & LH)
19. 2nd rear body mounting bracket (RH & LH)
20. Rear bound bumper bracket (RH & LH)
21. Rear bound bumper reinforcement (RH & LH)
22. Rear spring rear bracket assembly (RH & LH)
23. 5th rear body mounting bracket (RH & LH)

ALKIA0492GB

BRM-14

< UNIT REMOVAL AND INSTALLATION >

BODY COMPONENT PARTS

24. 9th crossmember assembly
25. Exhaust bracket assembly
26. 8th crossmember assembly
27. Rear shock absorber bracket assembly (RH & LH)
28. Canister bracket, RH
29. Canister bracket, LH
30. 7th crossmember assembly
31. 6th crossmember assembly
32. 5th crossmember assembly
33. 4th crossmember assembly
34. 3rd crossmember assembly
35. 2nd crossmember assembly
36. Frame assembly

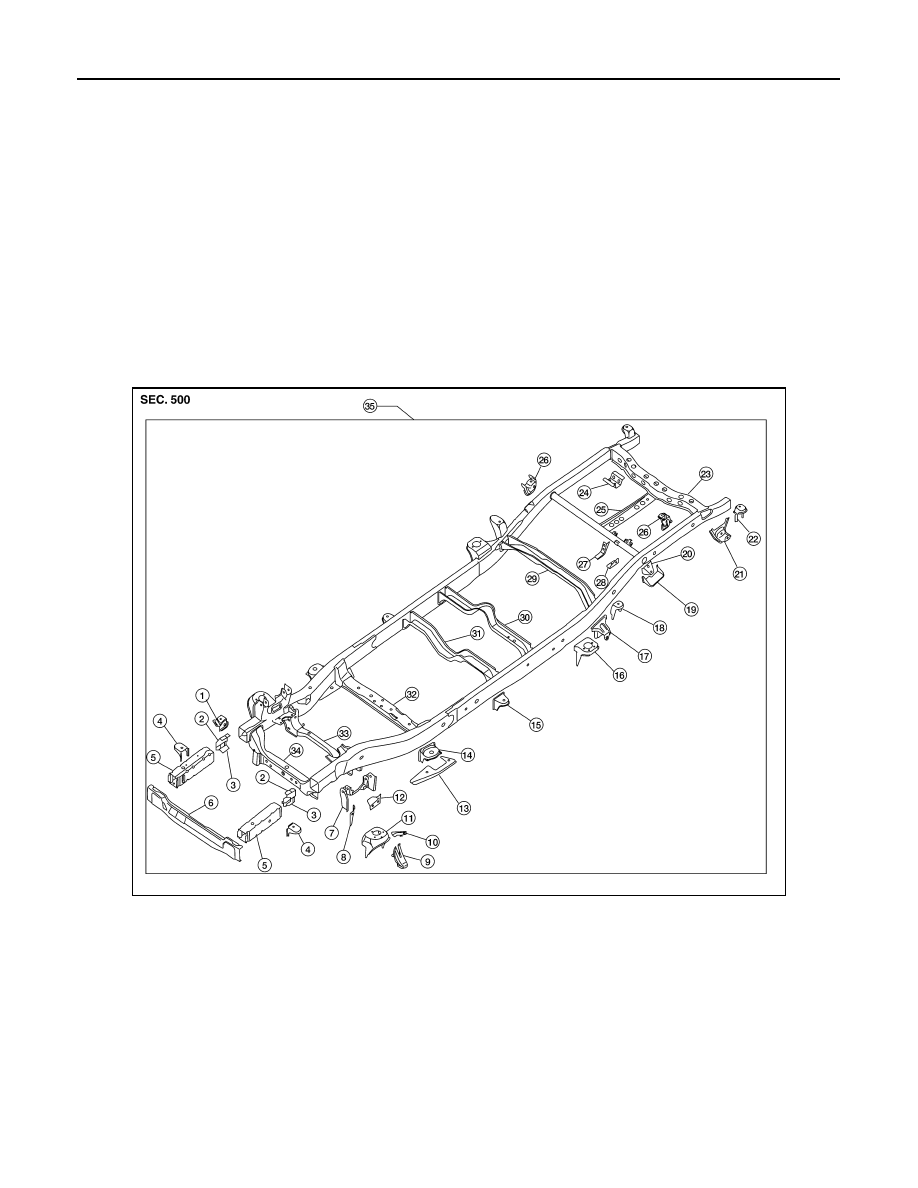

Crew Cab

1. Front differential mounting bracket (RH & LH)
2. Upper front side member extension assembly (RH & LH)
3. Lower front side member extension assembly (RH & LH)
4. 1st cab mounting bracket (RH & LH)
5. Front side member extension assembly (RH & LH)
6. 1st crossmember assembly
7. Front link upper mounting bracket (RH & LH)
8. Panhard rod bracket reinforcement
9. Bound bumper bracket (RH & LH)

ALKIA0493GB
