WASHER TANK

Washer Fluid Reservoir

INFOID:0000000006164558

REMOVAL AND INSTALLATION

Removal

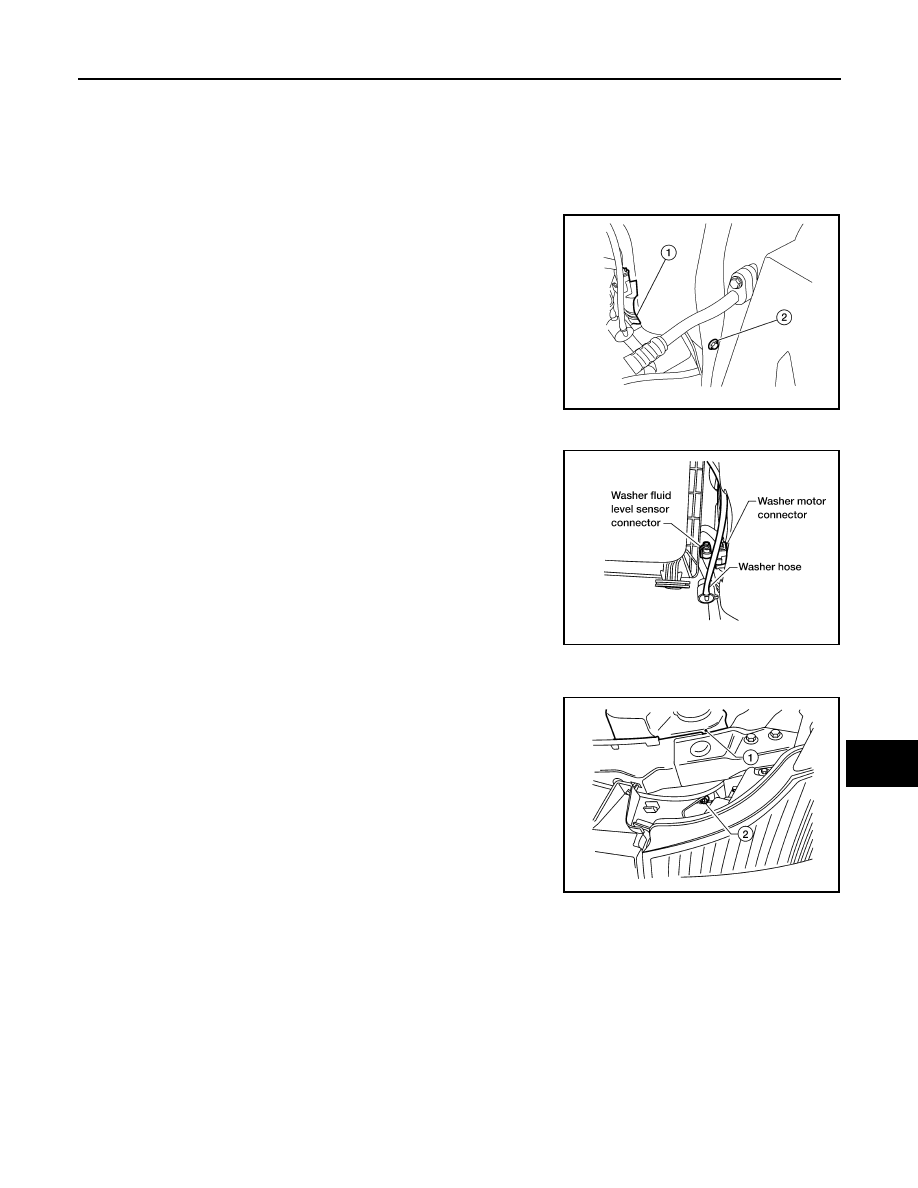

1. Remove side washer fluid reservoir screw (2).

• Front and rear washer motor (1).

2. Remove front washer motor connector.
3. Remove washer fluid level sensor connector.

4. Disconnect front hoses.

5. Remove front washer fluid reservoir screw (2).
6. Remove washer fluid reservoir (1) from the vehicle.

Installation

Installation is in the reverse order of removal.

CAUTION:

After installation, add washer fluid up to the upper level of the washer fluid reservoir inlet and check

for leaks.

ALLIA0372ZZ

AWKIA1594GB

WKIA4563E

WW-56

< REMOVAL AND INSTALLATION >

FRONT WASHER NOZZLE AND TUBE

FRONT WASHER NOZZLE AND TUBE

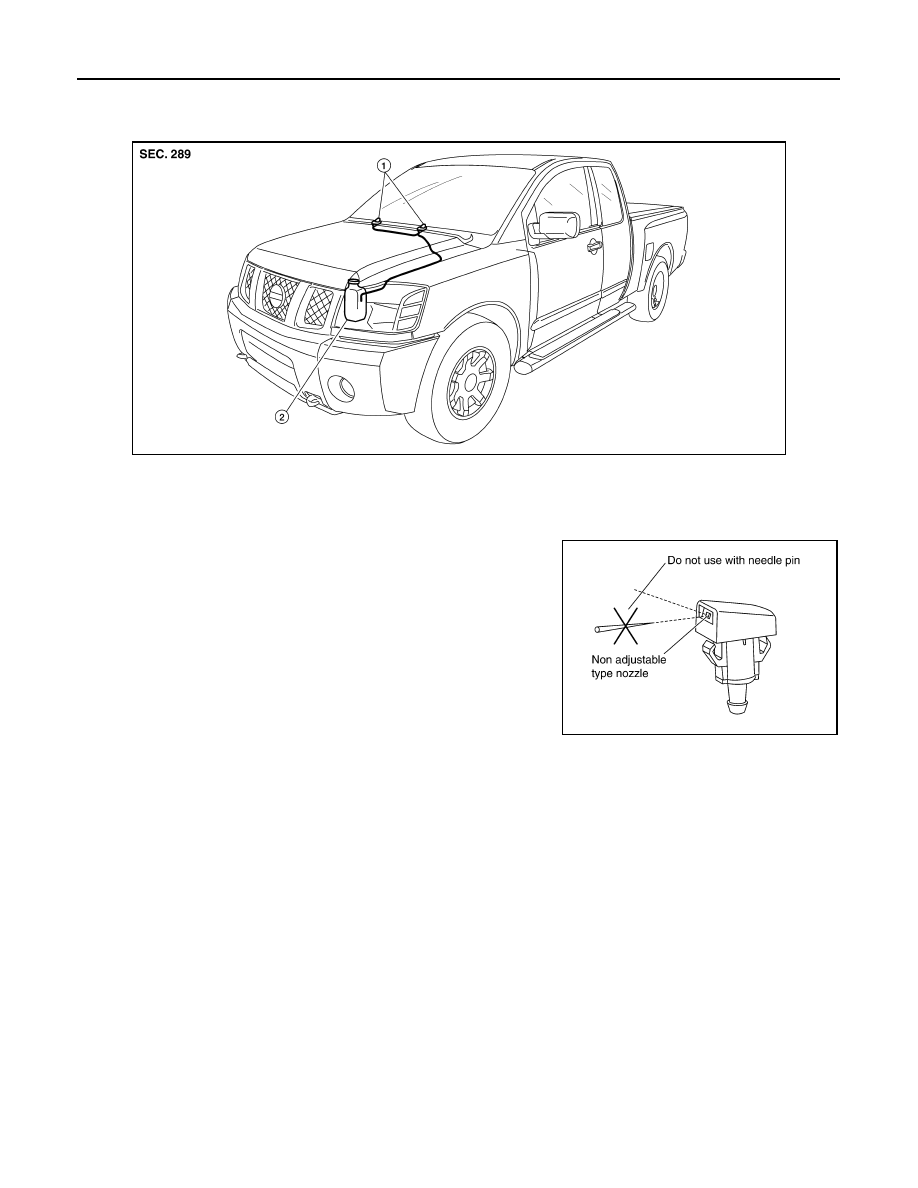

Washer Tube Layout

INFOID:0000000006164559

Washer Nozzle Adjustment

INFOID:0000000006164560

• This vehicle is equipped with non-adjustable washer nozzles.

• If not satisfied with washer fluid spray coverage, confirm that the

washer nozzle is installed correctly.

• If the washer nozzle is installed correctly, and the washer fluid

spray coverage is not satisfactory, replace washer nozzle.

WKIA4597E

1.

Washer nozzles

2.

Washer fluid reservoir

PKIA2552E

FRONT WIPER AND WASHER SWITCH

WW-57

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

FRONT WIPER AND WASHER SWITCH

Wiper and Washer Switch

INFOID:0000000006164561

REMOVAL AND INSTALLATION

Removal

1. Remove the lower instrument panel. Refer to

IP-11, "Exploded View"

2. Remove steering column covers.
3. Remove wiper washer switch connector.

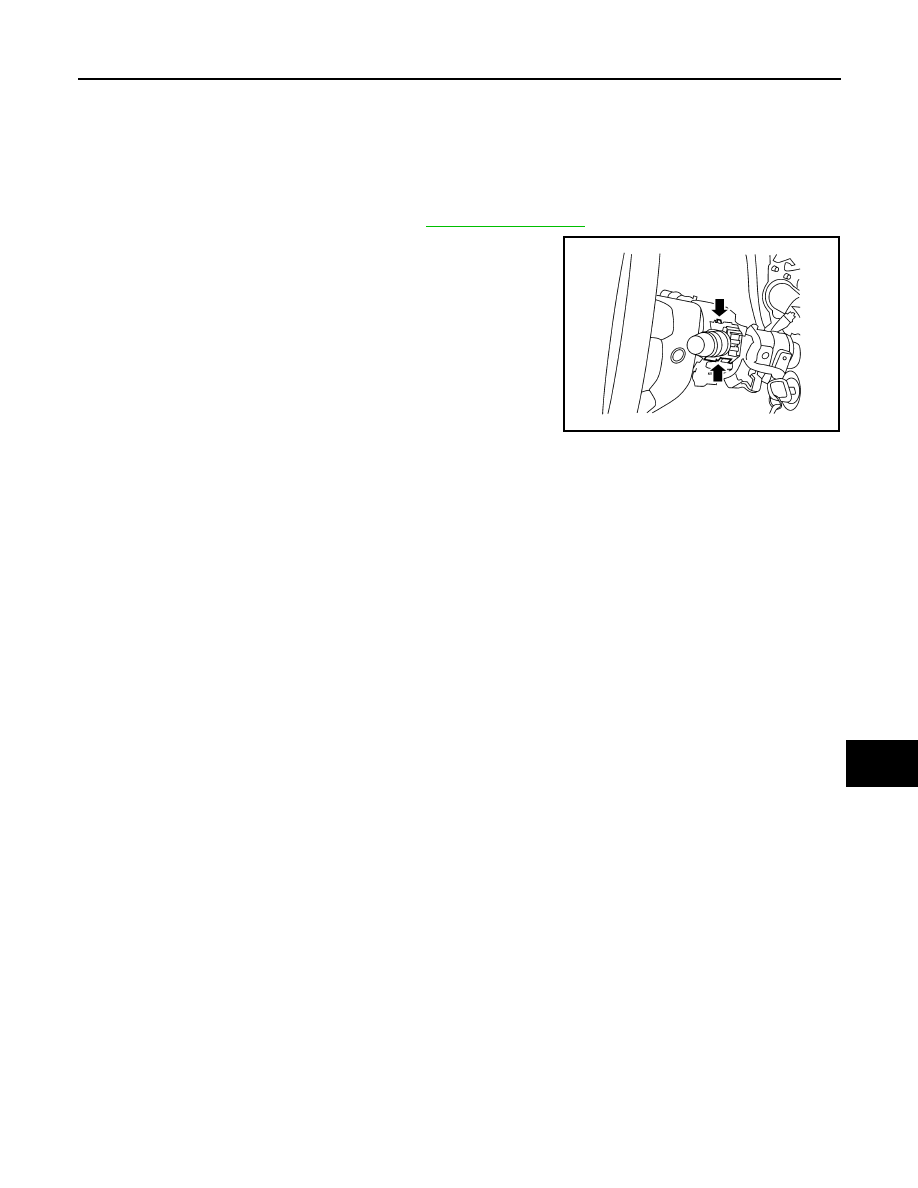

4. Pinch tabs at wiper and washer switch base and slide switch

away from steering column to remove.

Installation

Installation is in the reverse order of removal.

WKIA0071E

WW-58

< REMOVAL AND INSTALLATION >

WASHER PUMP

WASHER PUMP

Washer Motor

INFOID:0000000006164562

REMOVAL AND INSTALLATION

Removal

1. Remove washer fluid reservoir. Refer to

WW-55, "Washer Fluid Reservoir"

.

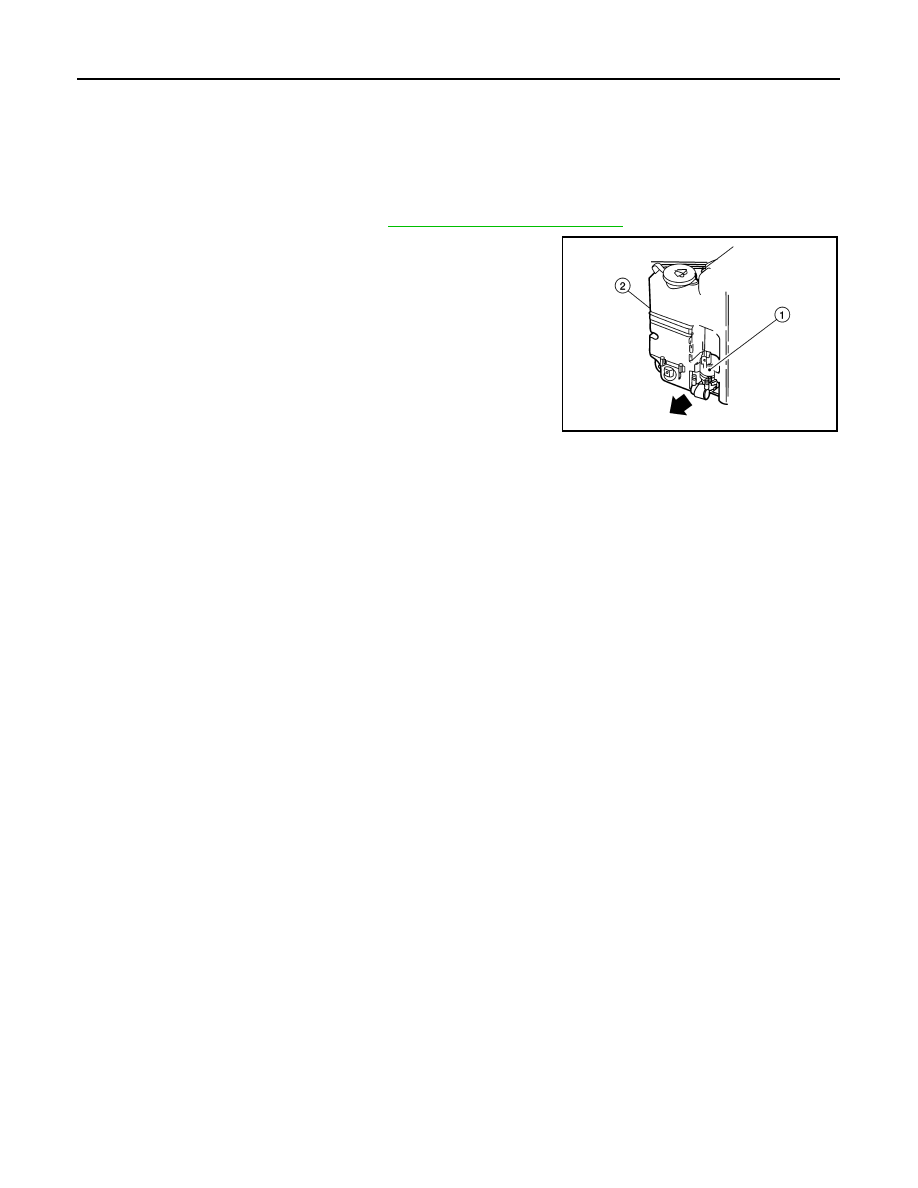

2. Remove washer motor (1) in the direction of the arrow as

shown, from washer fluid reservoir (2).

Installation

Installation is in the reverse order of removal.
