BCM (BODY CONTROL MODULE)

WW-35

< ECU DIAGNOSIS INFORMATION >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

C1716: [PRESSDATA ERR] FL

—

—

WT-18

C1717: [PRESSDATA ERR] FR

—

—

WT-18

C1718: [PRESSDATA ERR] RR

—

—

WT-18

C1719: [PRESSDATA ERR] RL

—

—

WT-18

C1720: [CODE ERR] FL

—

—

WT-16

C1721: [CODE ERR] FR

—

—

WT-16

C1722: [CODE ERR] RR

—

—

WT-16

C1723: [CODE ERR] RL

—

—

WT-16

C1724: [BATT VOLT LOW] FL

—

—

WT-16

C1725: [BATT VOLT LOW] FR

—

—

WT-16

C1726: [BATT VOLT LOW] RR

—

—

WT-16

C1727: [BATT VOLT LOW] RL

—

—

WT-16

C1729: VHCL SPEED SIG ERR

—

—

WT-19

C1735: IGNITION SIGNAL

—

—

WT-20

CONSULT display

Fail-safe

Tire pressure

monitor warning

lamp ON

Reference page

WW-36

< ECU DIAGNOSIS INFORMATION >

IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)

IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE
ROOM)

Reference Value

INFOID:0000000006627258

VALUES ON THE DIAGNOSIS TOOL

*: If equipped

Monitor Item

Condition

Value/Status

A/C COMP REQ

A/C switch OFF

OFF

A/C switch ON

ON

TAIL&CLR REQ

Lighting switch OFF

OFF

Lighting switch 1ST, 2ND, HI or AUTO (Light is illuminated)

ON

HL LO REQ

Lighting switch OFF

OFF

Lighting switch 2ND HI or AUTO (Light is illuminated)

ON

HL HI REQ

Lighting switch OFF

OFF

Lighting switch HI

ON

FR FOG REQ*

Lighting switch 2ND or AUTO (Light
is illuminated)

Front fog lamp switch OFF

OFF

• Front fog lamp switch ON
• Daytime light activated (Canada

only)

ON

FR WIP REQ

Ignition switch ON

Front wiper switch OFF

STOP

Front wiper switch INT

1LOW

Front wiper switch LO

LOW

Front wiper switch HI

HI

WIP AUTO STOP

Ignition switch ON

Front wiper stop position

STOP P

Any position other than front wiper
stop position

ACT P

WIP PROT

Ignition switch ON

Front wiper operates normally

OFF

Front wiper stops at fail-safe opera-
tion

BLOCK

ST RLY REQ

Ignition switch OFF or ACC

OFF

Ignition switch START

ON

IGN RLY

Ignition switch OFF or ACC

OFF

Ignition switch ON

ON

RR DEF REQ*

Rear defogger switch OFF

OFF

Rear defogger switch ON

ON

OIL P SW

Ignition switch OFF, ACC or engine running

OPEN

Ignition switch ON

CLOSE

DTRL REQ

Daytime light system requested OFF with CONSULT-III.

OFF

Daytime light system requested ON with CONSULT-III.

ON

THFT HRN REQ

Not operated

OFF

• Panic alarm is activated
• Horn is activated with VEHICLE SECURITY (THEFT WARNING) SYS-

TEM

ON

HORN CHIRP

Not operated

OFF

Door locking with keyfob (horn chirp mode)

ON

IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)

WW-37

< ECU DIAGNOSIS INFORMATION >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

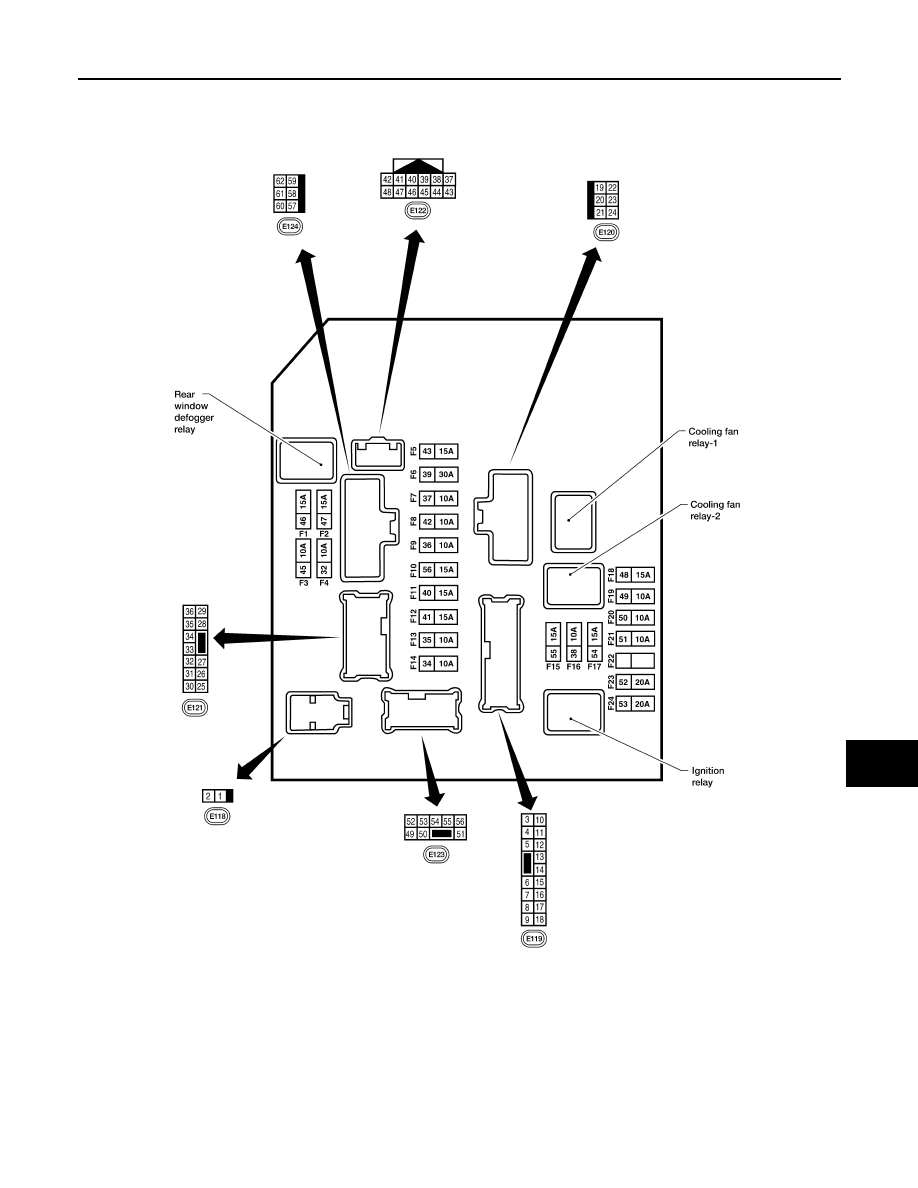

Terminal Layout

INFOID:0000000006627259

NOTE:

Numbers preceded by an "F" represent the fuse numbers imprinted on the IPDM E/R.  The other numbers rep-

resent the fuse numbers as they appear in the wiring diagrams.

Physical Values

INFOID:0000000006627260

PHYSICAL VALUES

AAMIA0386GB

WW-38

< ECU DIAGNOSIS INFORMATION >

IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)

Terminal

Wire

color

Signal name

Signal

input/

output

Measuring condition

Reference value

(Approx.)

Igni-

tion

switch

Operation or condition

1

B/Y

Battery power supply

Input

OFF

—

Battery voltage

2

R

Battery power supply

Input

OFF

—

Battery voltage

3

BR

ECM  relay

Output

—

Ignition switch ON or START

Battery voltage

Ignition switch OFF or ACC

0V

4

W/L

ECM  relay

Output

—

Ignition switch ON or START

Battery voltage

Ignition switch OFF or ACC

0V

6

L

Throttle control mo-
tor relay

Output

—

Ignition switch ON or START

Battery voltage

Ignition switch OFF or ACC

0V

7

W/B

ECM relay control

Input

—

Ignition switch ON or START

0V

Ignition switch OFF or ACC

Battery voltage

8

R/B

Fuse 54

Output

—

Ignition switch ON or START

Battery voltage

Ignition switch OFF or ACC

0V

10

G

Fuse 45
(Canada only)

Output

ON

Daytime light system active

0V

Daytime light system inactive

Battery voltage

11

Y/B

A/C compressor

Output

ON or

START

A/C switch ON or defrost A/C switch

Battery voltage

A/C switch OFF or defrost A/C switch

0V

12

L/W

Ignition switch sup-
plied power

Input

—

OFF or ACC

0V

ON or START

Battery voltage

13

B/Y

Fuel pump relay

Output

—

Ignition switch ON or START

Battery voltage

Ignition switch OFF or ACC

0V

14

Y/R

Fuse 49

Output

—

Ignition switch ON or START

Battery voltage

Ignition switch OFF or ACC

0V

15

LG/B

Fuse 50

Output

—

Ignition switch ON or START

Battery voltage

Ignition switch OFF or ACC

0V

16

G

Fuse 51

Output

—

Ignition switch ON or START

Battery voltage

Ignition switch OFF or ACC

0V

17

W

Fuse 55

Output

—

Ignition switch ON or START

Battery voltage

Ignition switch OFF or ACC

0V

19

W/R

Starter motor

Output

START

—

Battery voltage

21

BR

Ignition switch sup-
plied power

Input

—

OFF or ACC

0V

START

Battery voltage

22

G

Battery power supply

Output

OFF

—

Battery voltage

23

GR/W

Door mirror defogger
output signal (if
equipped)

Output

—

When rear defogger switch is ON

Battery voltage

When rear defogger switch is OFF

0V

27

W/B

Fuse 38
(With trailer tow)

Output

—

Ignition switch ON or START

Battery voltage

Ignition switch OFF or ACC

0V

30

W

Fuse 53

Output

—

Ignition switch ON or START

Battery voltage

Ignition switch OFF or ACC

0V

32

L

Wiper low speed sig-
nal

Output

ON or

START

Wiper switch

OFF

Battery voltage

LO or INT

0V
