Nissan Titan A60. Manual - part 1009
FRONT WIPER MOTOR LO CIRCUIT
WW-15
< DTC/CIRCUIT DIAGNOSIS >
C
D
E
F
G
H
I
J
K
M
A
B
WW
N
O
P

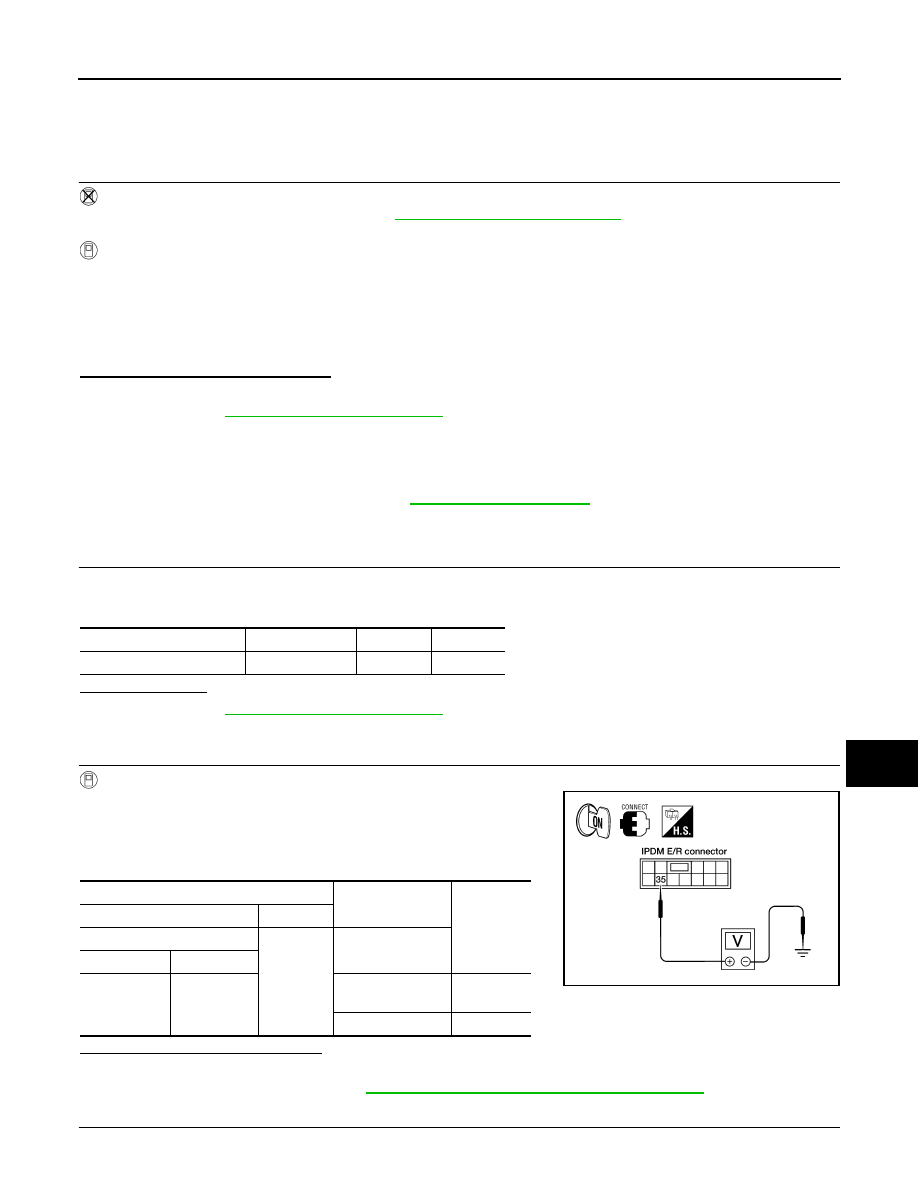

FRONT WIPER MOTOR LO CIRCUIT
Component Function Check
INFOID:0000000006164527
1.
CHECK FRONT WIPER LO OPERATION
IPDM E/R AUTO ACTIVE TEST
1. Start IPDM E/R auto active test. Refer to
PCS-11, "Diagnosis Description"
2. Check that the front wiper operates at the LO operation.
CONSULT-III ACTIVE TEST
1. Select "FRONT WIPER" of IPDM E/R active test item.
2. While operating the test item, check front wiper operation.
Is front wiper (LO) operation normal?
YES
>> Front wiper motor LO circuit is normal.
NO
>> Refer to
.
Diagnosis Procedure
INFOID:0000000006164528
Regarding Wiring Diagram information, refer to
.
1.
CHECK FRONT WIPER MOTOR FUSE
1. Turn the ignition switch OFF.
2. Check that the following fuse is not blown.
Is the fuse blown?
YES
>> Refer to
.
NO
>> GO TO 2
2.
CHECK FRONT WIPER MOTOR (LO) OUTPUT VOLTAGE
CONSULT-III ACTIVE TEST
1. Turn the ignition switch ON.
2. Select "FRONT WIPER" of IPDM E/R active test item.
3. While operating the test item, check voltage between IPDM E/R
harness connector and ground.
Is the measurement value normal?
YES
>> GO TO 3
NO
>> Replace IPDM E/R. Refer to
PCS-28, "Removal and Installation of IPDM E/R"
.
3.

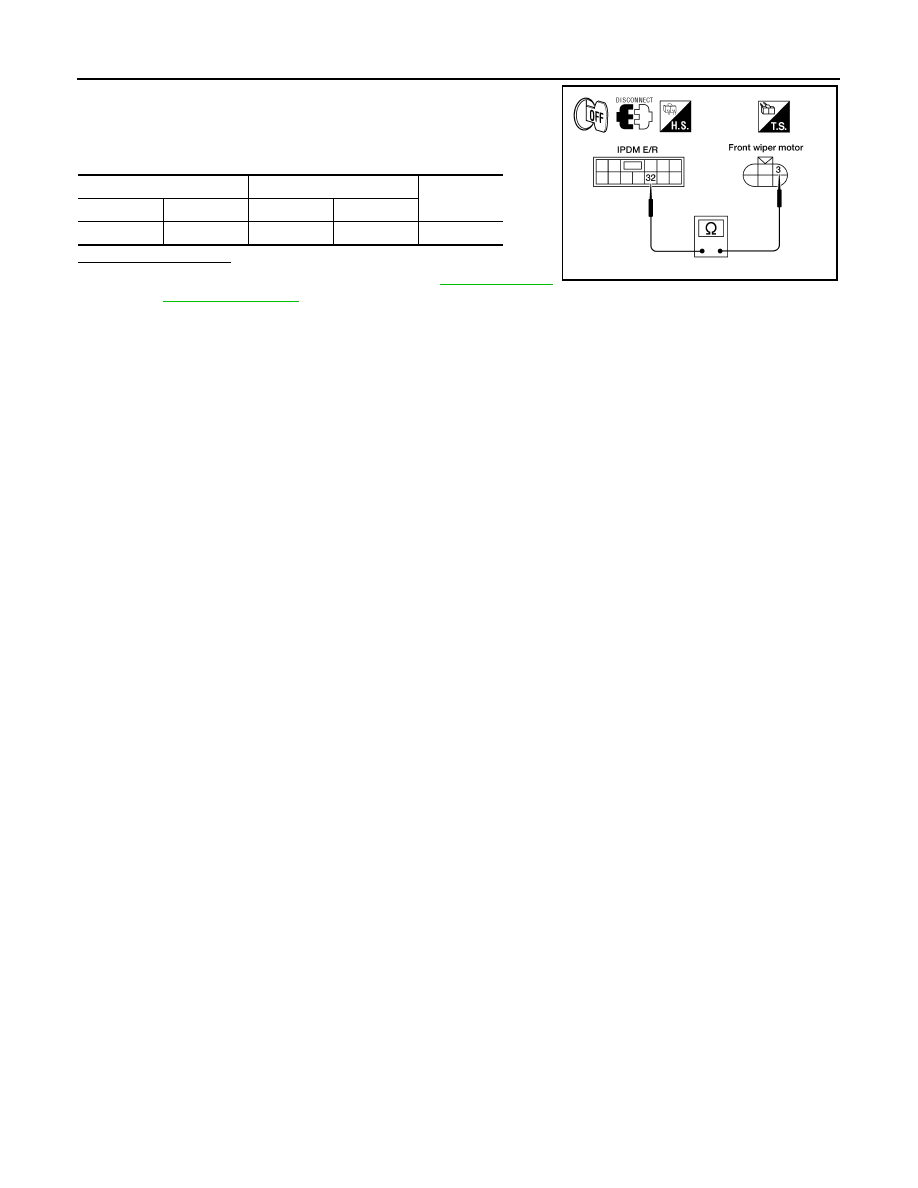

CHECK FRONT WIPER MOTOR (LO) OPEN CIRCUIT
LO
: Front wiper (LO) operation
OFF
: Stop the front wiper.
Unit
Location
Fuse No.
Capacity
Front wiper motor
IPDM E/R
39
30 A
Terminals
Test item
Voltage
(Approx.)
(+)
(-)
IPDM E/R
Ground
FRONT WIPER
Connector
Terminal
E121
32
LO
Battery
voltage
OFF
0V
WKIA3759E
