Nissan Titan A60. Manual - part 95





AV

HANDS-FREE PHONE SYSTEM

AV-205

< SYSTEM DESCRIPTION >

[PREMIUM WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

HANDS-FREE PHONE SYSTEM

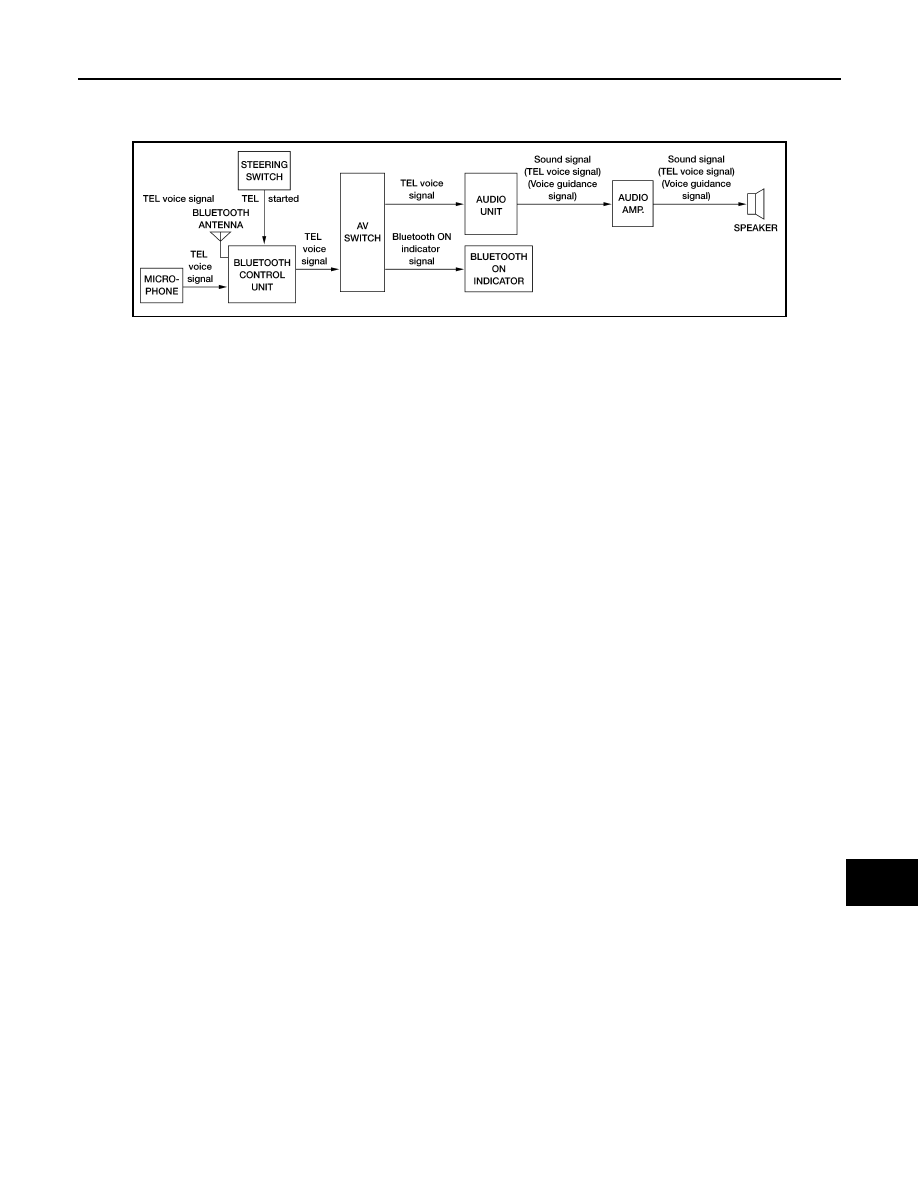

System Diagram

INFOID:0000000006166565

System Description

INFOID:0000000006166566

Refer to the Owner's Manual for Bluetooth telephone system operating instructions.

NOTE:

Cellular telephones must have their wireless connection set up (paired) before using the Bluetooth telephone

system.

Bluetooth telephone system allows users who have a Bluetooth equipped cellular telephone to make a wire-

less connection between their cellular telephone and the Bluetooth control unit. Hands-free cellular telephone

calls can be sent and received. Personal memos can be created using the Nissan Voice Recognition system.

Some Bluetooth cellular telephones may not be recognized by the Bluetooth control unit. When a cellular tele-

phone or the Bluetooth control unit is replaced, the telephone must be paired with the Bluetooth control unit.

Different cellular telephones may have different pairing procedures. Refer to the cellular telephone operating

manual.

BLUETOOTH CONTROL UNIT

When the ignition switch is turned to ACC or ON, the Bluetooth control unit will power up. During power up, the

Bluetooth control unit is initialized and performs various self checks.   Initialization may take up to 10 seconds.

If a phone is present in the vehicle and paired with the Bluetooth control unit, Nissan Voice Recognition will

then become active. Bluetooth telephone functions can be turned off using the Nissan Voice Recognition sys-

tem.

STEERING WHEEL AUDIO CONTROL SWITCHES

When buttons on the steering wheel audio control switch are pushed, the resistance in steering wheel audio

control switch circuit changes depending on which button is pushed. The Bluetooth control unit uses this sig-

nal to perform various functions while navigating through the voice recognition system.

The following functions can be performed using the steering wheel audio control switch:

• Initiate Self Diagnosis of the Bluetooth telephone system

• Start a voice recognition session

• Answer and end telephone calls

• Adjust the volume of calls

• Record memos

MICROPHONE

The microphone is located in the roof console assembly. The microphone sends a signal to the Bluetooth con-

trol unit. The microphone can be actively tested during self-diagnosis.

AV CONTROL UNIT

The AV control unit receives signals from the Bluetooth control unit and sends audio signals to the audio amp.

then on to the speakers.

AWNIA1619GB

AV-206

< SYSTEM DESCRIPTION >

[PREMIUM WITH NAVIGATION]

HANDS-FREE PHONE SYSTEM

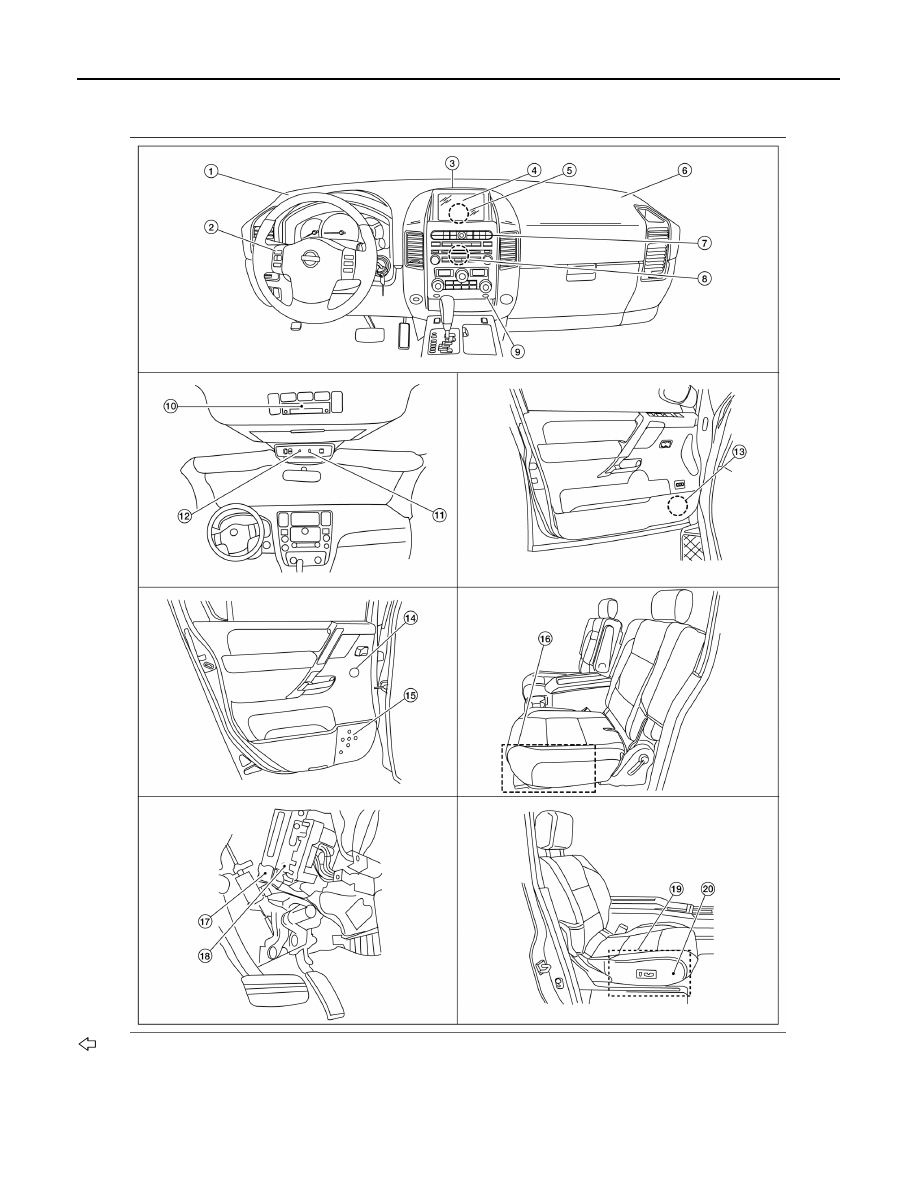

Component Parts Location

INFOID:0000000006706845

 :FRONT

1.

Front tweeter LH M109

2.

Steering wheel audio control switch-
es

3.

Center speaker M110

4.

Display unit M93

5.

Display control unit M94, M95

6.

Front tweeter RH M111

7.

AV switch M98

8.

Audio unit M42, M43, M44, M45, M46 9.

Aux jack M104

AWNIA2290ZZ

AV

HANDS-FREE PHONE SYSTEM

AV-207

< SYSTEM DESCRIPTION >

[PREMIUM WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

Component Description

INFOID:0000000006166568

10. Rear audio remote control unit R204 11. Bluetooth ON indicator R105

12. Microphone R109

13. Front door speaker

LH D12
RH D112

14. Rear door tweeter

LH D208
RH D308

15. Rear door speaker

LH D207
RH D307

16. Subwoofer B72 (under driver’s seat) 17. Audio amp. M112, M113 (view behind

instrument panel above accelerator
pedal)

18. Satellite radio tuner M41, M129

19. NAVI control unit B151, B152, B160

(located under passenger front seat)

20. Bluetooth control unit B142, B143

Part name

Description

Audio unit

• Receives telephone voice signal from Bluetooth control unit
• Sends telephone voice and voice guidance signals to the speakers

Audio amp.

• Receives audio signals from the audio unit
• Outputs amplified audio signals to the speakers.

Front door speaker

Receives telephone voice and voice guidance signals from the audio amp.

Front tweeter

Center speaker

Steering wheel audio control switches

• Start a voice recognition session
• Answer and end telephone calls
• Adjust the volume level

Microphone

Sends voice signals to Bluetooth control unit

Bluetooth control unit

Controls hands-free phone functions

Bluetooth antenna

Sends telephone voice signal to Bluetooth control unit

Bluetooth ON indicator

Controlled by the Bluetooth control unit

AV-208

< SYSTEM DESCRIPTION >

[PREMIUM WITH NAVIGATION]

DIAGNOSIS SYSTEM (AUDIO UNIT)

DIAGNOSIS SYSTEM (AUDIO UNIT)

AUDIO UNIT
AUDIO UNIT : Diagnosis Description

INFOID:0000000006166569

For self-diagnosis function information, refer to

AV-209, "Diagnosis Description"

.

AV SWITCH
AV SWITCH : Component Function Check

INFOID:0000000006166570

STARTING THE SELF-DIAGNOSIS MODE

1. Turn ignition switch from OFF to ACC.

2. Within 10 seconds press and hold the switches “MEMORY 1”

and “MEMORY 6” simultaneously for 3 seconds.

Then the self-diagnosis operates. A single beep indicates self-

diagnosis mode is active.

3. Press each switch and listen for beep.

NOTE:

CD player LOAD and EJECT buttons are not included in this test

and will not beep when pressed.

DIAGNOSIS FUNCTION

• It can check for continuity of the switches by sounding the beep when each AV switch and steering switch is

pressed.

• It can check for continuity of harness between AV switch and steering switch.

EXITING THE SELF-DIAGNOSIS MODE

Turn ignition switch OFF. Then the self-diagnosis ends.

WKIA4455E
