Nissan Titan A60. Manual - part 21





ADP-74

< DTC/CIRCUIT DIAGNOSIS >

PARK POSITION SWITCH

PARK POSITION SWITCH

Description

INFOID:0000000006163524

The park position switch is installed on the A/T shift selector. It is turned OFF when the A/T selector lever is in

P position. The driver seat control unit judges that the A/T shift selector is in P position if continuity does not

exist in this circuit.

Component Function Check

INFOID:0000000006163525

1.

 CHECK FUNCTION

1. Select “DETENT SW” signal in “Data monitor” mode with CONSULT-III.

2. Check park position switch (key lock) signal under the following conditions.

Is the indication normal?

YES

>> Inspection End.

NO

>> Perform diagnosis procedure. Refer to

ADP-75, "Diagnosis Procedure (Column Shift)"

 or

ADP-74,

"Diagnosis Procedure (Floor Shift)"

.

Diagnosis Procedure (Floor Shift)

INFOID:0000000006163526

Regarding Wiring Diagram information, refer to

ADP-128, "Wiring Diagram"

.

1.

 CHECK DTC WITH “BCM”

Check “Self Diagnostic Result” for BCM with CONSULT-lll.
Is any DTC detected?

YES

>> Check the DTC.

NO

>> GO TO 2

2.

 CHECK A/T SHIFT SELECTOR [PARK POSITION SWITCH (KEY LOCK)] INPUT SIGNAL

1. Turn ignition switch OFF.

2. Disconnect driver seat control unit.

3. Mechanical key must be inserted into the key switch and key lock solenoid.

4. Check voltage between driver seat control unit harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 4

NO

>> GO TO 3

3.

 CHECK A/T SHIFT SELECTOR [PARK POSITION SWITCH (KEY LOCK)] CIRCUIT

1. Turn ignition switch OFF.

2. Disconnect driver seat control unit and A/T shift selector.

3. Check continuity between driver seat control unit harness connector and A/T shift selector harness con-

nector.

Monitor item

Condition

Status

DETENT SW

A/T shift selector

P position

OFF

Other than
above

ON

Driver seat
control unit

connector

Terminal

Condition

Voltage (V)

(Approx.)

(+)

(-)

B202

21

Ground

A/T shift
selector

P position

0

Other than
above

Battery volt-

age

PARK POSITION SWITCH

ADP-75

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

H

I

K

L

M

A

B

ADP

N

O

P

4. Check continuity between driver seat control unit harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 4

NO

>> Repair or replace harness.

4.

 CHECK INTERMITTENT INCIDENT

Refer to

GI-39, "Intermittent Incident"

.

Is the inspection result normal?

YES

>> Replace driver seat control unit. Refer to

ADP-148, "Removal and Installation"

.

NO

>> Repair or replace the malfunctioning part.

Diagnosis Procedure (Column Shift)

INFOID:0000000006163527

Regarding Wiring Diagram information, refer to

ADP-128, "Wiring Diagram"

.

1.

 CHECK DTC WITH “BCM”

Check “Self Diagnostic Result” for BCM with CONSULT-lll.
Is any DTC detected?

YES

>> Check the DTC.

NO

>> GO TO 2

2.

 CHECK A/T SHIFT SELECTOR (PARK POSITION SWITCH) INPUT SIGNAL

1. Turn ignition switch OFF.

2. Disconnect driver seat control unit.

3. Check continuity between driver seat control unit harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 5

NO

>> GO TO 3

3.

 CHECK A/T SHIFT SELECTOR [PARK POSITION SWITCH (KEY LOCK)] CIRCUIT

1. Turn ignition switch OFF.

2. Disconnect A/T shift selector.

3. Check continuity between driver seat control unit harness connector and A/T shift selector harness con-

nector.

Connector

Terminal

Connector

Terminal

Continuity

B202

21

M203 (King

Cab)

M204 (Crew

Cab)

6

Yes

Connector

Terminal

Ground

Continuity

B202

21

No

Driver seat
control unit

connector

Terminal

Condition

Continuity

B202

21

Ground

A/T shift
selector

P position

No

Other than
above

Yes

Connector

Terminal

Connector

Terminal

Continuity

B202

21

M68

8

Yes

ADP-76

< DTC/CIRCUIT DIAGNOSIS >

PARK POSITION SWITCH

4. Check continuity between A/T shift selector harness connector and ground.

5. Check continuity between A/T shift selector harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 4

NO

>> Repair or replace harness.

4.

 CHECK A/T SHIFT SELECTOR (PARK POSITION SWITCH)

Check continuity between A/T shift selector (park position switch) terminals as follows.

Is the inspection result normal?

YES

>> GO TO 5

NO

>> Replace A/T shift selector. Refer to

TM-185, "A/T Shift Selector Removal and Installation"

.

5.

 CHECK INTERMITTENT INCIDENT

Refer to

GI-39, "Intermittent Incident"

.

Is the inspection result normal?

YES

>> Replace driver seat control unit. Refer to

ADP-148, "Removal and Installation"

.

NO

>> Repair or replace the malfunctioning part.

Connector

Terminal

Ground

Continuity

M68

1

Yes

Connector

Terminal

Ground

Continuity

M68

8

No

Terminals

Condition

Continuity

8

1

P position

No

Other than P position

Yes

FRONT DOOR SWITCH (DRIVER SIDE)

ADP-77

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

H

I

K

L

M

A

B

ADP

N

O

P

FRONT DOOR SWITCH (DRIVER SIDE)

Description

INFOID:0000000006163528

Detects front door LH open/close condition.

Component Function Check

INFOID:0000000006163529

1.

 CHECK FUNCTION

1. Select “DOOR SW-DR” in “Data monitor” mode with CONSULT-III.

2. Check the front door switch LH signal under the following conditions.

Is the inspection result normal?

YES

>> Inspection End.

NO

>> Perform diagnosis procedure. Refer to

ADP-77, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000006163530

Regarding Wiring Diagram information, refer to

ADP-128, "Wiring Diagram"

.

1.

 CHECK FRONT DOOR SWITCH LH CIRCUIT

1. Disconnect BCM and front door switch LH.

2. Check continuity between BCM connector and front door switch

LH connector.

3. Check continuity between BCM connector and ground.

Is the inspection result normal?

YES

>> GO TO 2

NO

>> Repair or replace harness.

2.

 CHECK FRONT DOOR SWITCH LH

Refer to

ADP-78, "Component Inspection"

.

Is the inspection result normal?

YES

>> GO TO 3

NO

>> Replace front door switch LH.

3.

 CHECK INTERMITTENT INCIDENT

Refer to

GI-39, "Intermittent Incident"

.

Is the inspection result normal?

YES

>> Replace BCM. Refer to

BCS-53, "Removal and Installation"

.

NO

>> Repair or replace the malfunctioning part.

Monitor item

Condition

Status

DOOR SW-DR

Front door switch LH

Open

ON

Close

OFF

BCM connector

Terminal

Front door switch

LH connector

Terminal

Continuity

M19

47

B8

2

Yes

BCM connector

Terminal

Ground

Continuity

M19

47

No

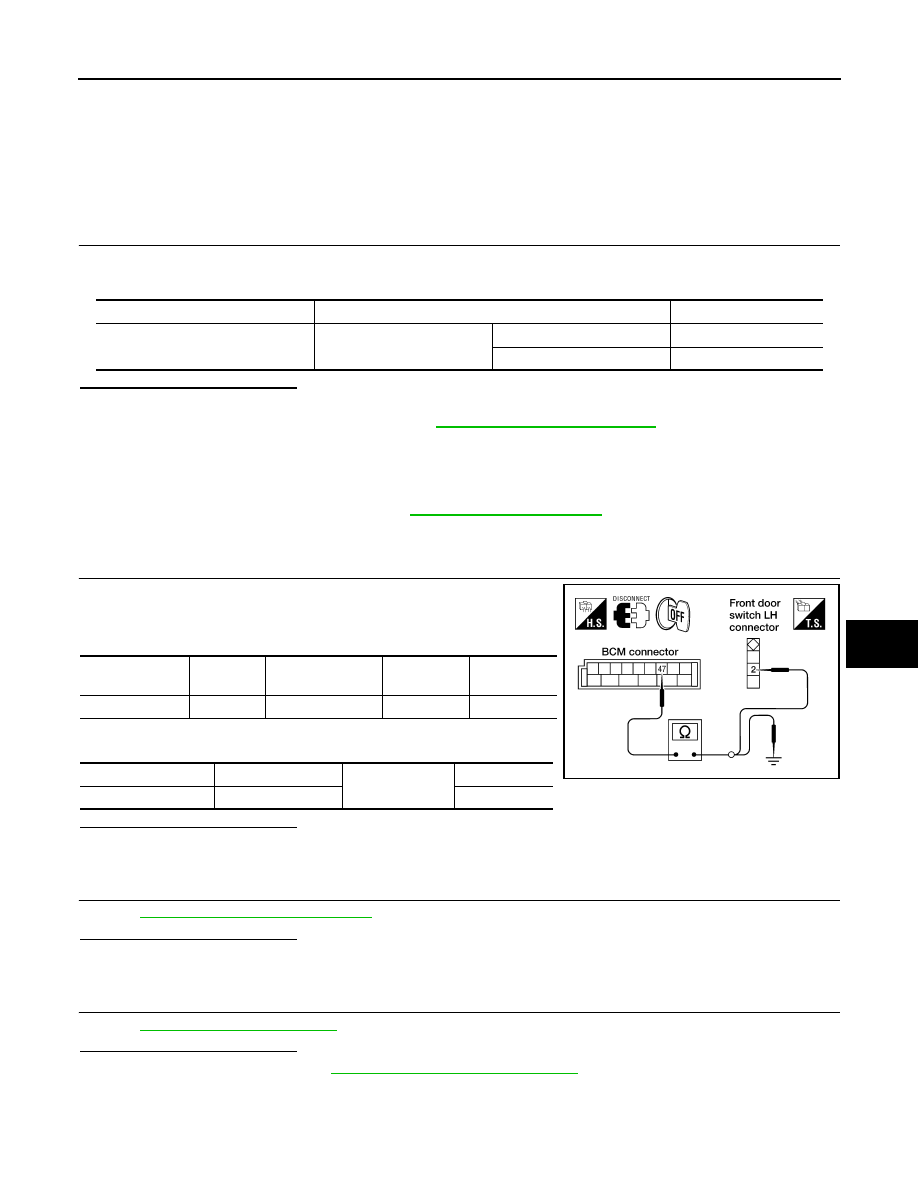

LIIA1027E
