STEP LAMP

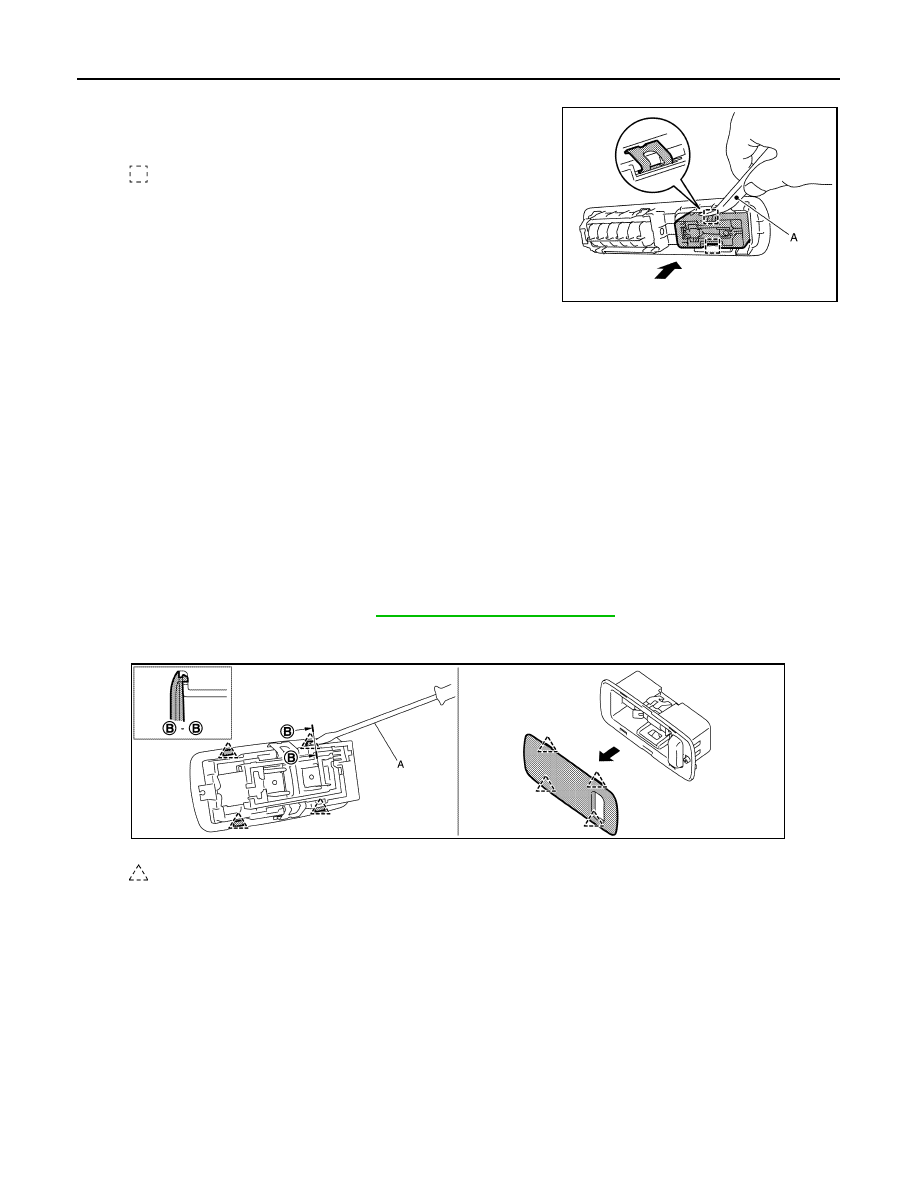

Push bulb with a remover tool (A), and then remove bulb.

JMLIA1530ZZ

PERSONAL LAMP

INL-77

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

INL

N

O

P

PERSONAL LAMP

Exploded View

INFOID:0000000009653506

Removal and Installation

INFOID:0000000009653507

CAUTION:

Disconnect the battery negative terminal or remove power circuit fuse while performing the operation
to electric leakage.

REMOVAL

1.

Remove rear cooler grille.

a.

Disengage rear cooler grille fixing metal clips with a remover tool
(A).

b.

Disconnect harness connector, and then remove rear cooler
grille.

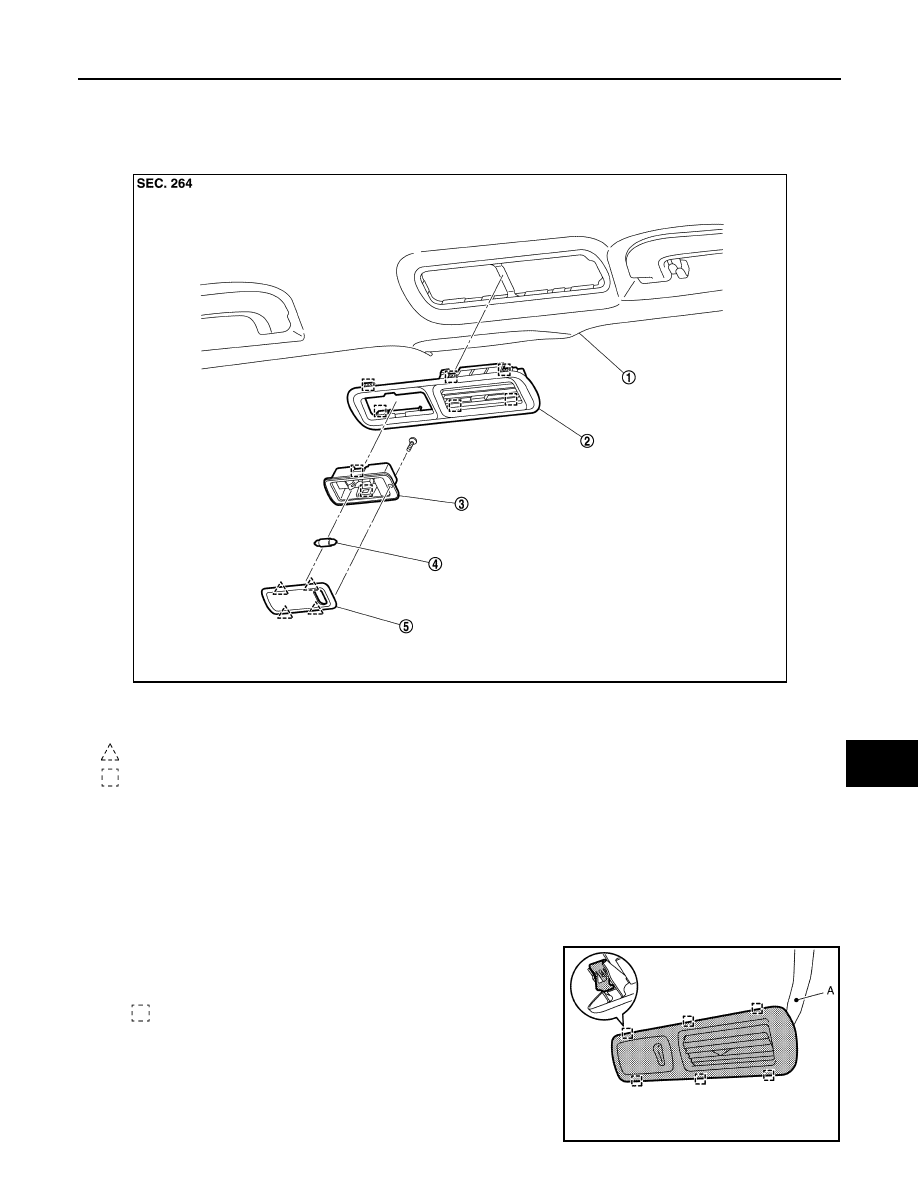

1.

Headlining

2.

Rear cooler grille

3.

Personal lamp case

4.

Bulb

5.

Lens

: Pawl

: Metal clip

JMLIA1424ZZ

: Metal clip

JMIIA1185ZZ

INL-78

< REMOVAL AND INSTALLATION >

PERSONAL LAMP

2.

Remove personal lamp case.

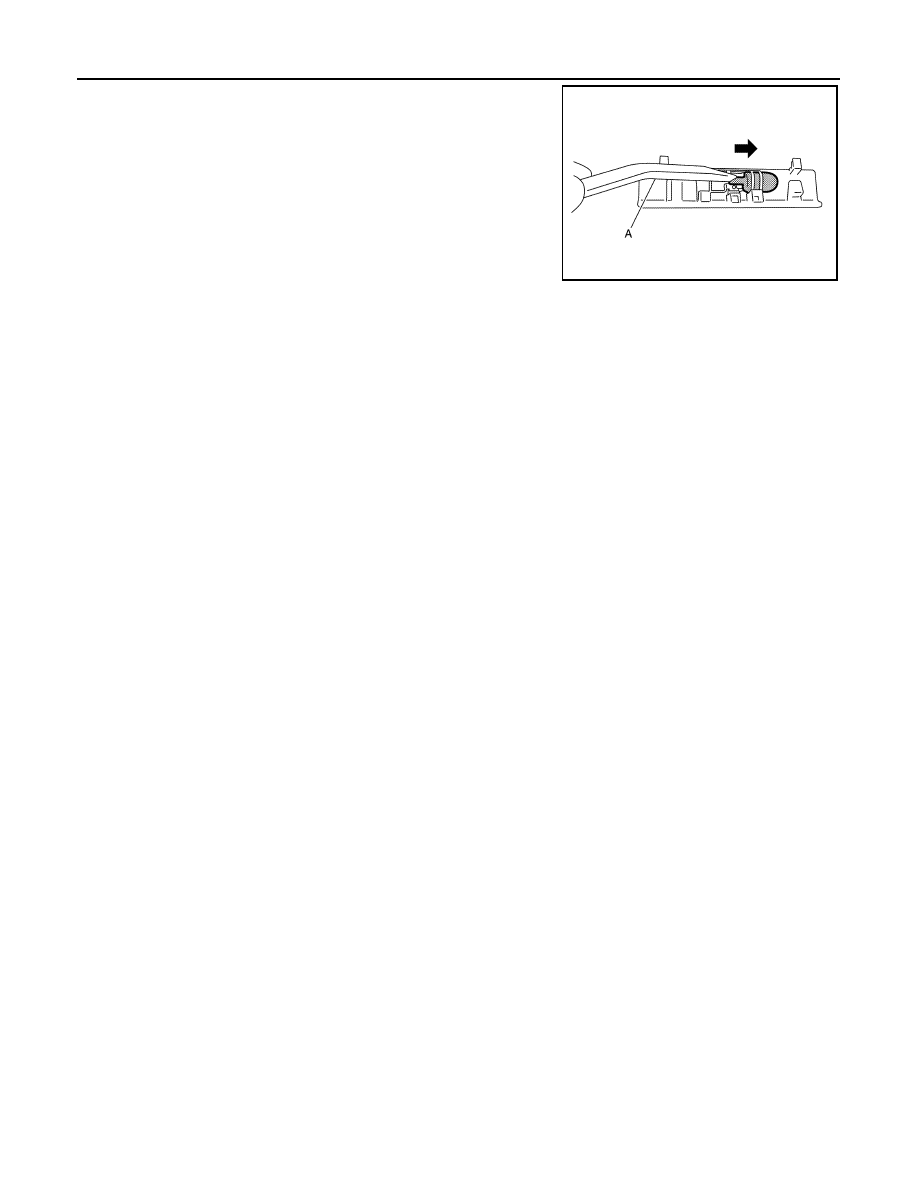

Disengage personal lamp case fixing metal clips with a remover
tool (A), and then remove personal lamp case.

INSTALLATION

Install in the reverse order of removal.

Replacement

INFOID:0000000009653508

CAUTION:

• Disconnect the battery negative terminal or remove power circuit fuse while performing the opera-

tion to electric leakage.

• Never touch the glass surface of the bulb with bare hands or allow oil or grease to get on it to pre-

vent damage to the bulb.

• Never touch the glass surface of the bulb with bare hands because the surface is very hot just after

the lamp is turned OFF to prevent a burns.

• Leaving the bulb removed from housing for a long period of time can deteriorate performance of the

lens and reflector (causing dirty or clouding). Always prepare a new bulb and have it on hand when
replacing the bulb.

PERSONAL LAMP BULB

1.

Remove personal lamp case. Refer to

INL-77, "Removal and Installation"

.

2.

Remove lens fixing screw.

3.

Disengage lens fixing pawls with a remover tool (A), and then remove lens.

4.

Remove bulb.

: Metal clip

JMLIA1532ZZ

: Pawl

JMLIA1533ZZ

LUGGAGE ROOM LAMP

INL-79

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

INL

N

O

P

LUGGAGE ROOM LAMP

Exploded View

INFOID:0000000009653509

Removal and Installation

INFOID:0000000009653510

CAUTION:

Disconnect the battery negative terminal or remove power circuit fuse while performing the operation
to electric leakage.

REMOVAL

Disengage luggage room lamp case fixing metal clips with a remover tool (A), and then remove luggage room
lamp case.

INSTALLATION

Install in the revers order of removal.

Replacement

INFOID:0000000009653511

CAUTION:

• Disconnect the battery negative terminal or remove power circuit fuse while performing the opera-

tion to electric leakage.

• Never touch the glass surface of the bulb with bare hands or allow oil or grease to get on it to pre-

vent damage to the bulb.

• Never touch the glass surface of the bulb with bare hands because the surface is very hot just after

the lamp is turned OFF to prevent a burns.

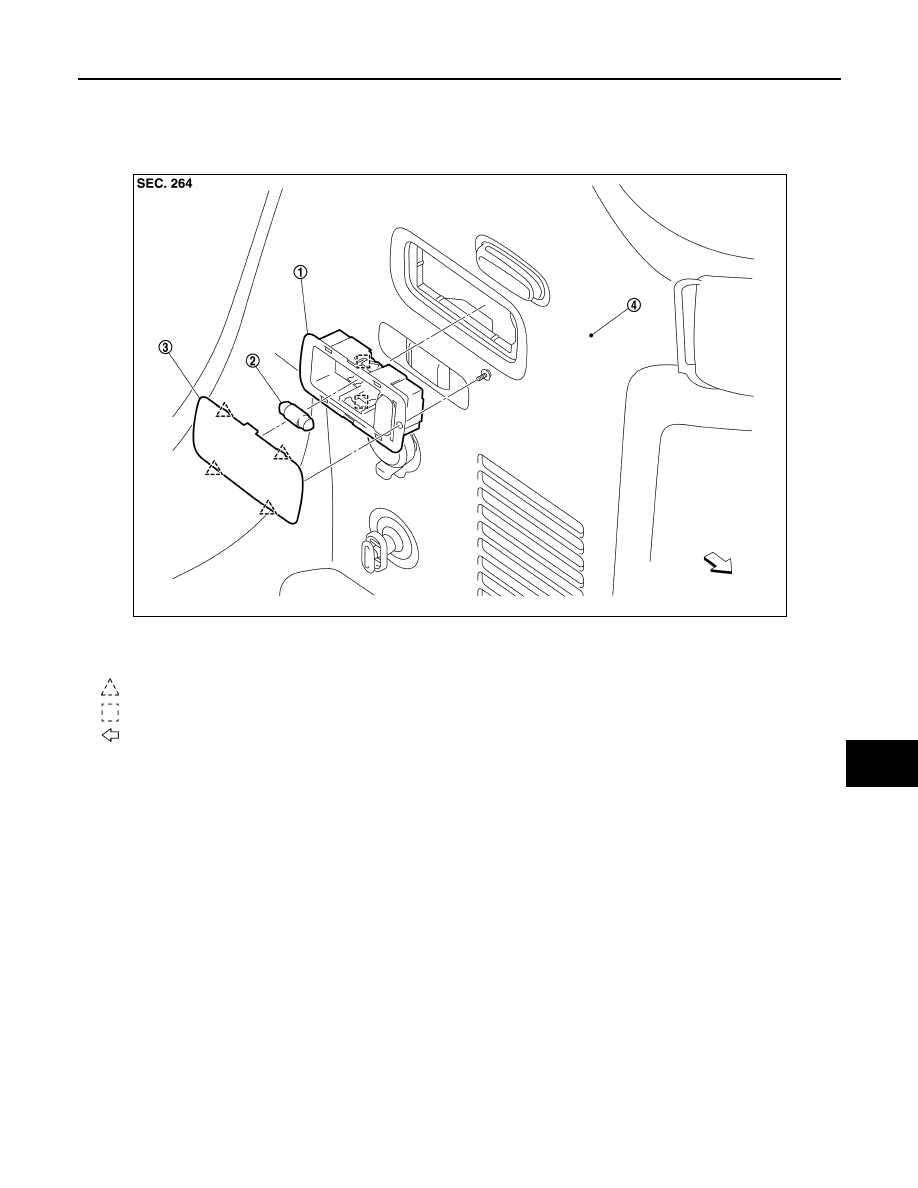

1.

Luggage room lamp case

2.

Bulb

3.

Lens

4.

Luggage side lower finisher LH

: Pawl

: Metal clip

: Vehicle front

JMLIA2180ZZ
