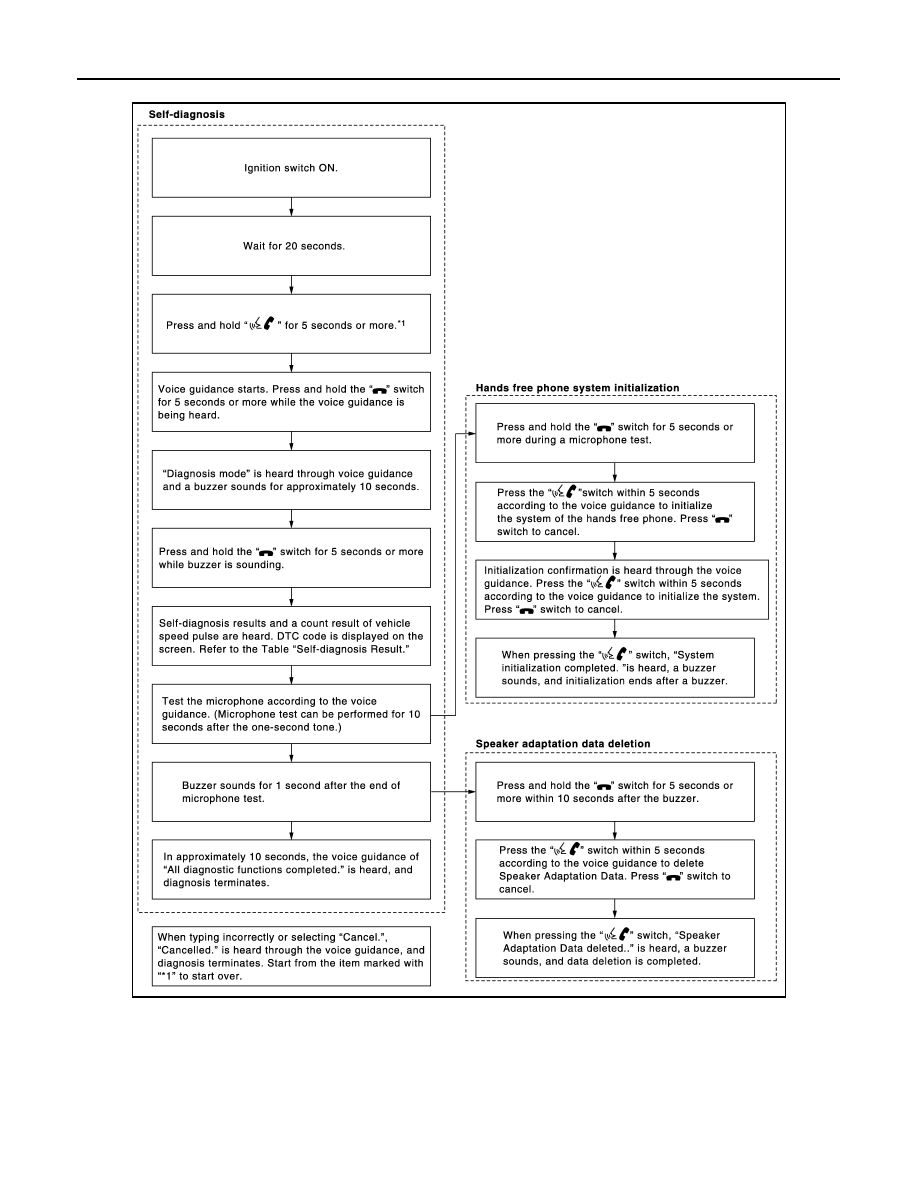

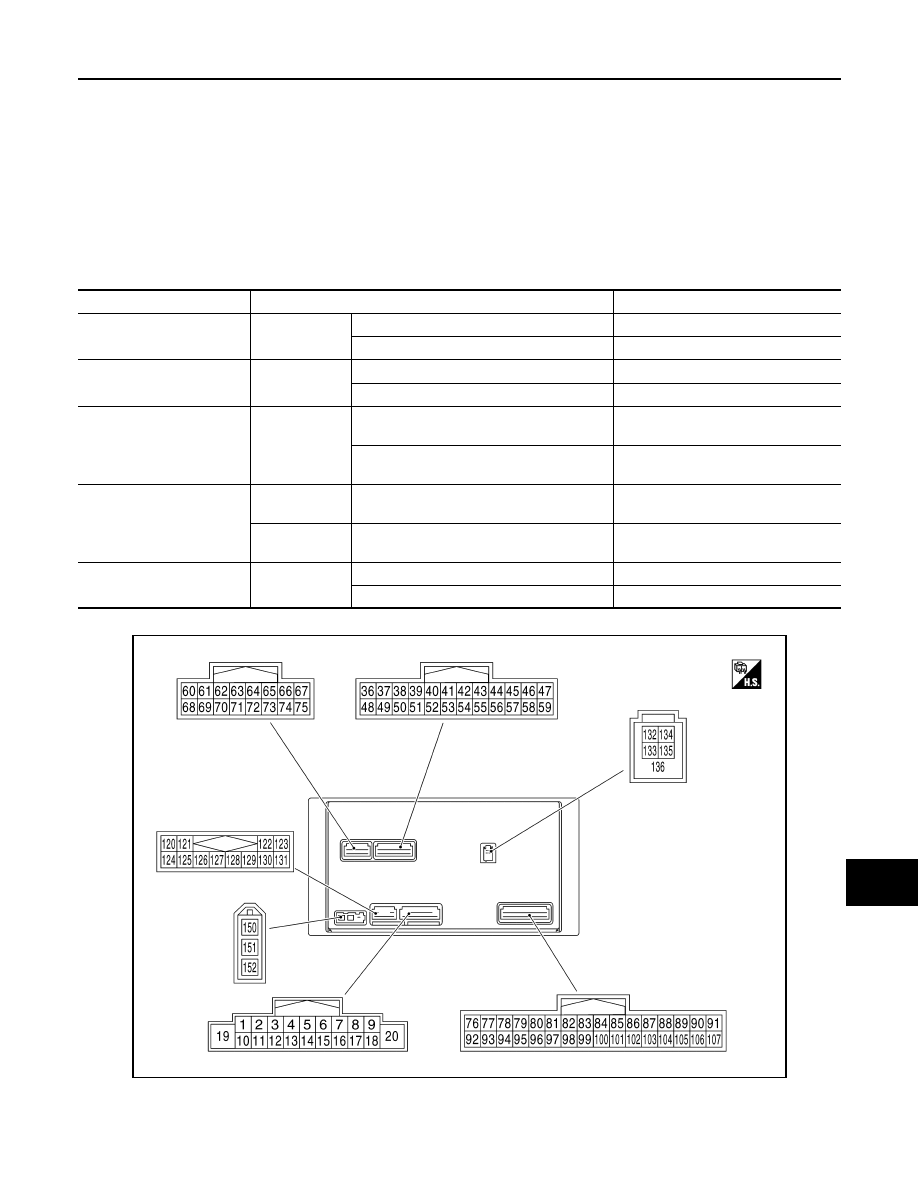

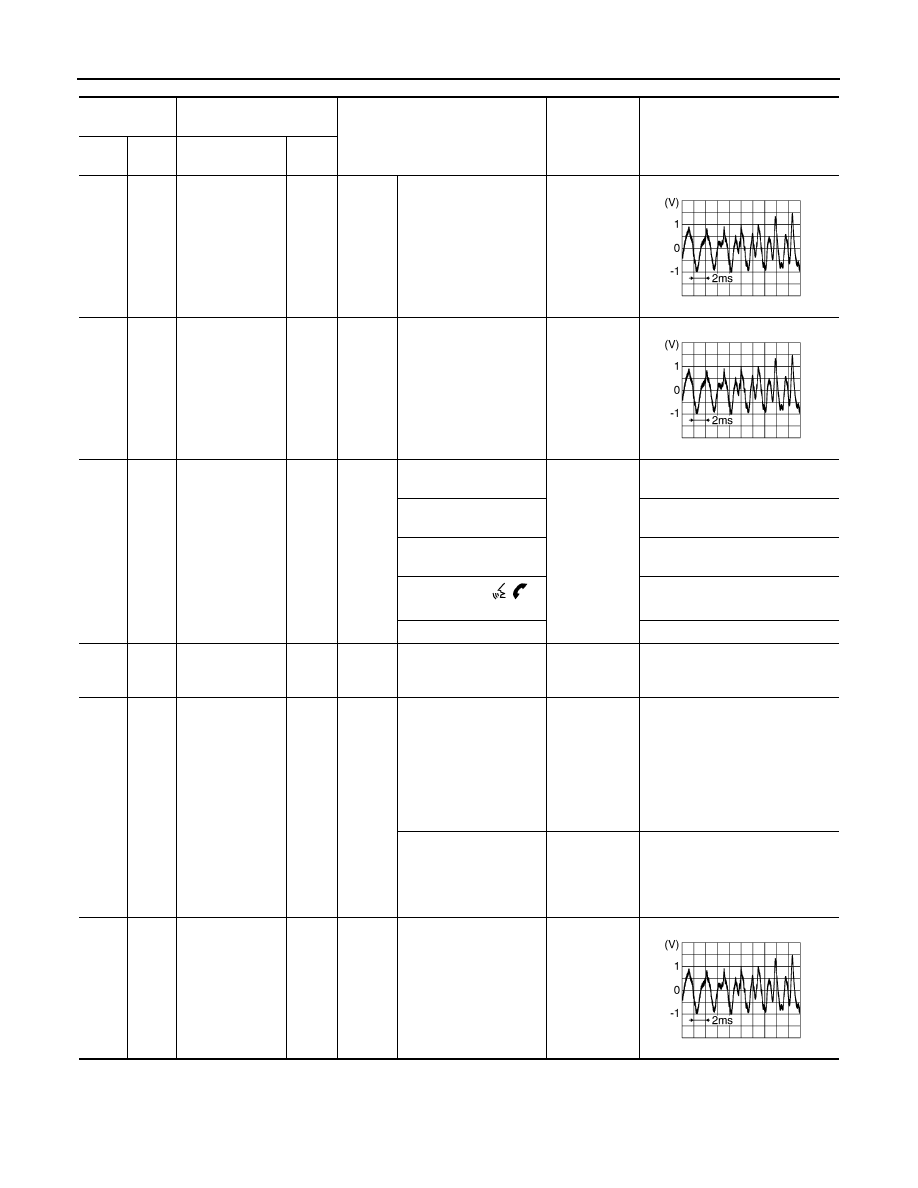

AV DIAGNOSIS SYSTEM (TEL ADAPTER UNIT) AV-159 < SYSTEM DESCRIPTION > [BASE AUDIO WITH SEPARATE DISPLAY] C D E F G H I J K L M B A O P DIAGNOSIS SYSTEM (TEL ADAPTER UNIT) Description INFOID:0000000009652012 During on board diagnosis the diagnosis function of TEL adapter unit starts with the operation of the steering On Board Diagnosis Function INFOID:0000000009652013 HANDS-FREE PHONE SYSTEM ON BOARD DIAGNOSIS During on board diagnosis the diagnosis function of TEL adapter unit starts with the operation of the steering ON BOARD DIAGNOSIS ITEM The on board diagnosis has 3 modes: the self-diagnosis mode that performs the trouble diagnosis, the CAUTION: • Perform the diagnosis with the vehicle stopped. Self-diagnosis results Self-diagnosis mode reads out the self-diagnosis results. Self-diagnosis results The Details of Error Count The error count guides “0” when the error occurs. The next time it counts up “1” if it is normal with the ignition STEP MODE Description STEP1 Self-diagnosis The self-diagnosis mode performs the microphone test and STEP2 Speaker adaptation data deleting The speaker adaptation data deleting mode can delete the Hands-free phone system initialization Hands-free phone system initialization mode can perform DTC DTC name Possible causes DTC 10000 INTERNAL FAILURE TEL adapter unit DTC 01000 ANT. SHORT TO BATT OR OPEN TEL antenna DTC 00100 ANT. SHORT TO GROUND DTC 00010 STEERING REMOTE BUTTON STUCK A Steering switch DTC 00001 STEERING REMOTE BUTTON STUCK B DTC 00000 THERE ARE NO FAILURE RECORDS TO REPORT — |
