STEERING GEAR AND LINKAGE

ST-17

< UNIT DISASSEMBLY AND ASSEMBLY >

C

D

E

F

H

I

J

K

L

M

A

B

ST

N

O

P

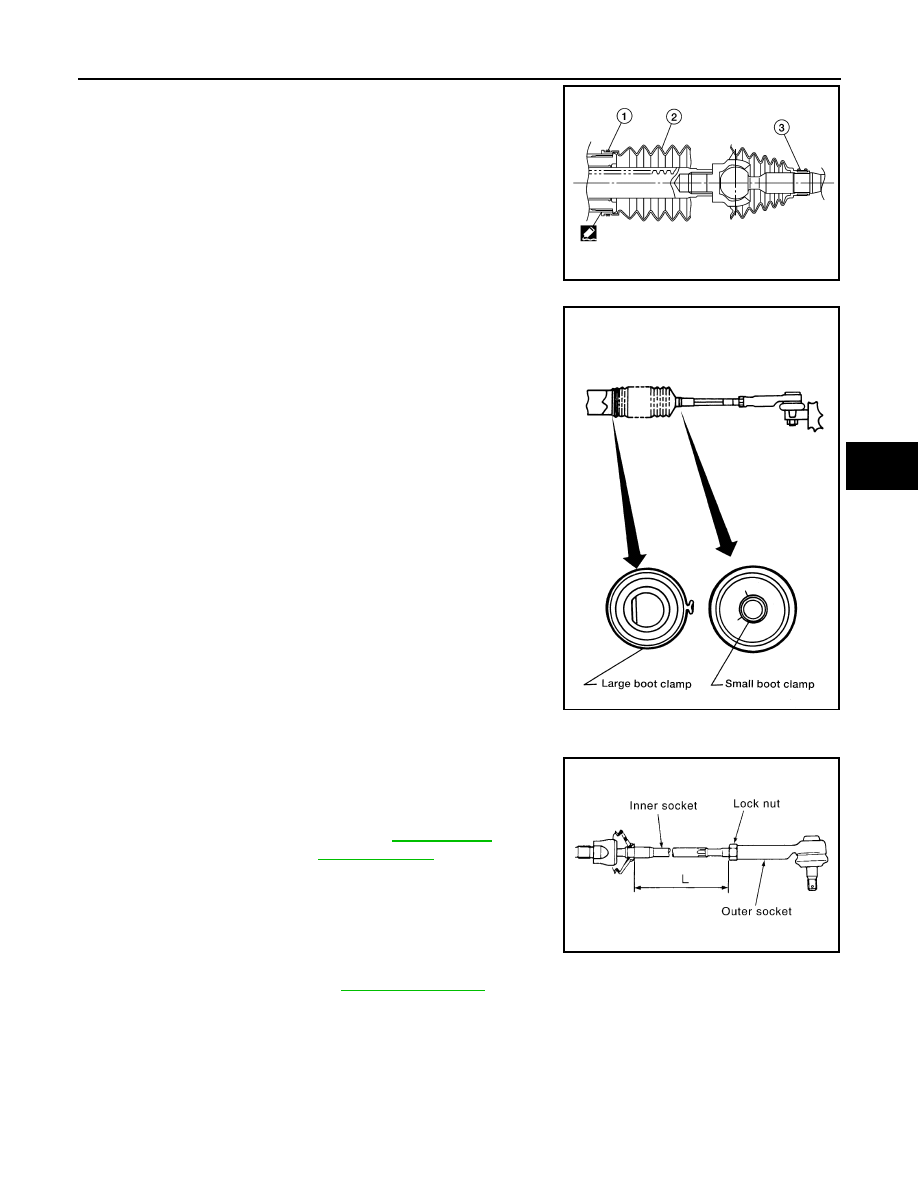

2. Install large end (1) of boot (2) to gear housing assembly.
3. Install small end (3) of boot (2) to inner socket boot mounting

groove.

4. Install outer boot clamp to boot small end using suitable tool.
5. Install inner boot clamp to boot large end using suitable tool.

CAUTION:

Do not reuse boot clamps.

6. Install outer socket.
7. Adjust inner socket to standard length (L) and then tighten lock

nut to the specified torque. Check length of inner socket (L)

again after tightening lock nut.

CAUTION:

The length achieved after toe-in adjustment is not neces-

sarily the above value.

8. Check wheel alignment. Refer to

FSU-8, "Adjustment"

.

CAUTION:

AWGIA0107ZZ

AST139

Inner socket length (L)

: Refer to

ST-20, "Inner

Socket Length"

.

SGIA0167E

ST-18

< UNIT DISASSEMBLY AND ASSEMBLY >

STEERING GEAR AND LINKAGE

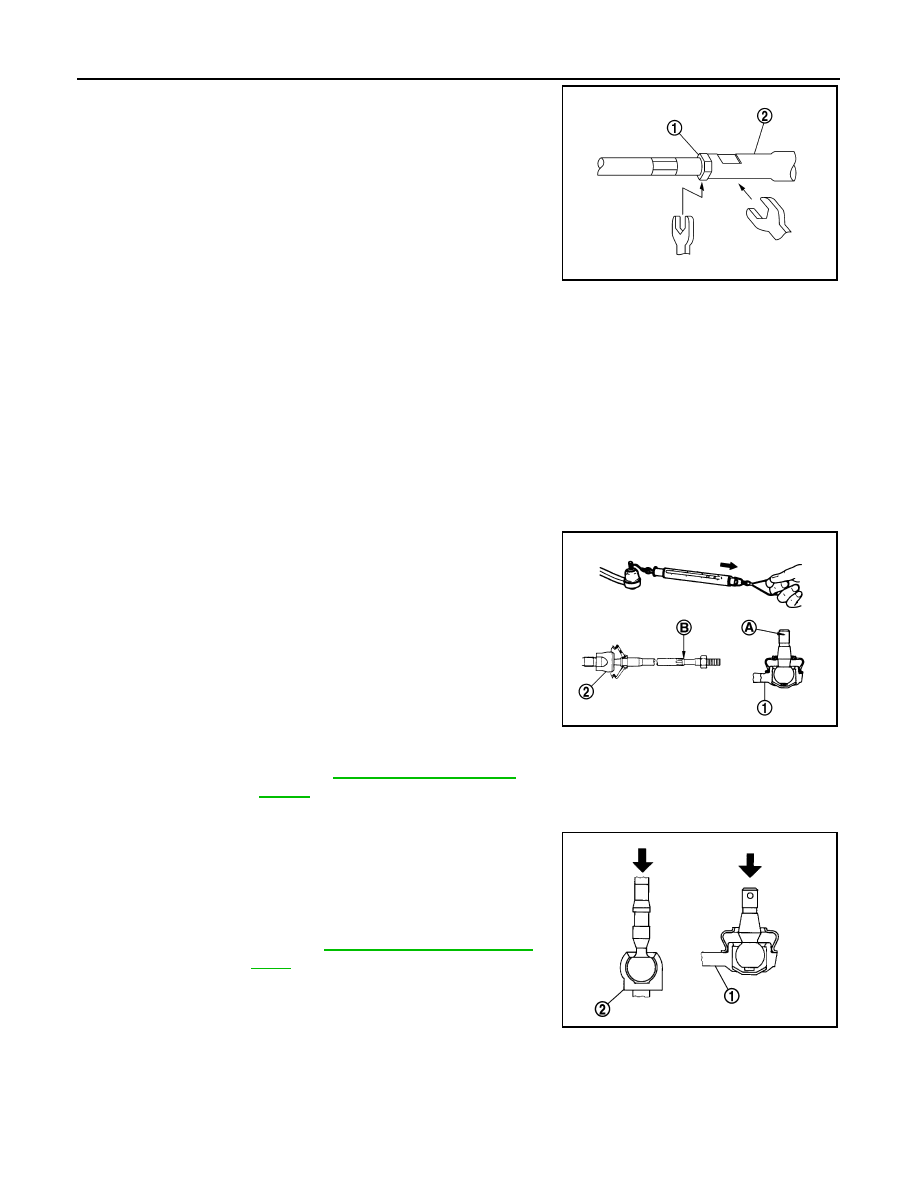

When tightening outer socket lock nut (1), be sure to hold

outer socket (2) using a suitable tool to prevent ball joint

from contacting knuckle.

Inspection

INFOID:0000000009385545

INSPECTION AFTER DISASSEMBLY

Boot

• Check boot for cracks and replace it if damage exists.

Steering gear

• Check steering gear for damage and scratches to the inner wall. Replace if there are any abnormal condi-

tions.

Outer Socket and Inner Socket

Check the following items and replace the component if outside specification:

BALL JOINT SWINGING FORCE

• Hook a Tool at the point shown and pull the spring balance. Make

sure that the Tool reads the specified value when ball stud and

inner socket start to move. Replace outer socket (1) and inner

socket (2) if they are outside the standard.

BALL JOINT AXIAL END PLAY

• Apply an axial load of 490 N (50 kg-f, 110 lb-f) to ball stud. Using a

dial gauge, measure amount of stud movement and make sure

that the value is within the following specified range. Replace outer

socket (1) and inner socket (2) if the measured value is outside the

standard.

JSGIA0538ZZ

Tool number :

—

(J-44372)

Measuring point of outer
socket (1)

: Ball stud upper side (A)

Measuring point of inner
socket (2)

: Point (B)

Swinging force : Refer to

ST-20, "Ball Joint Swing

Force"

.

Axial end play : Refer to

ST-20, "Ball Joint Axial End

Play"

.

JPGIA0188ZZ

JSGIA0109ZZ

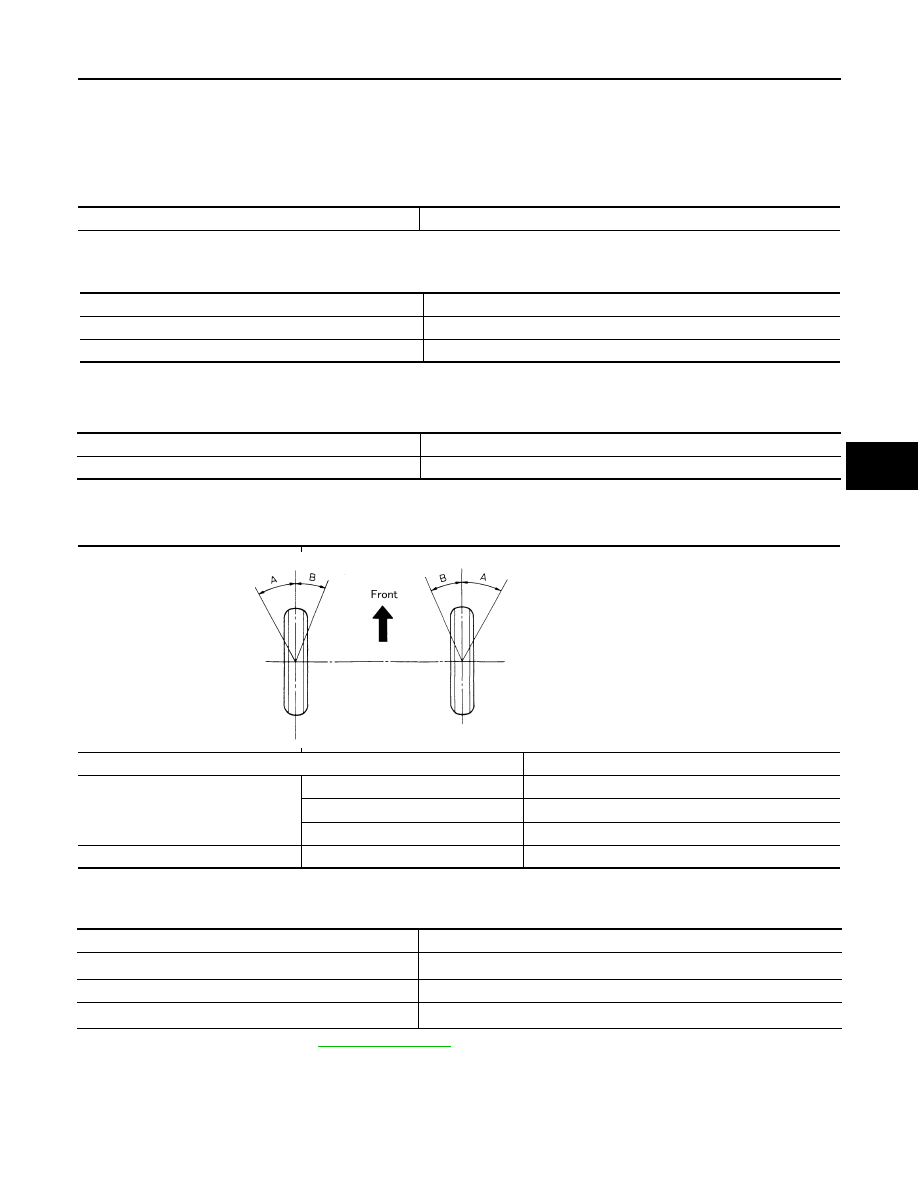

SERVICE DATA AND SPECIFICATIONS (SDS)

ST-19

< SERVICE DATA AND SPECIFICATIONS (SDS)

C

D

E

F

H

I

J

K

L

M

A

B

ST

N

O

P

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

General Specifications

INFOID:0000000009385546

Steering Wheel Axial End Play and Play

INFOID:0000000009385547

Unit: mm (in)

Steering Wheel Turning Force

INFOID:0000000009385548

Unit: N (kg-f, lb-f)

Steering Angle

INFOID:0000000009385549

Unit: Degree minute (Decimal degree)

Steering Column Operating Range

INFOID:0000000009385550

*: For measuring position, refer to

ST-10, "Inspection"

.

Steering gear model

R24K

Item

Standard

Steering wheel axial end play

0 (0)

Steering wheel play on the outer circumference

0 - 35 (0 - 1.38)

Item

Standard

Steering wheel turning force

36 (3.7, 8.09) or less

Item

Standard

Inner wheel (Angle A)

Minimum

34

° 30′ (34.5°)

Nominal

37

° 30′ (37.5°)

Maximum

38

° 30′ (38.5°)

Outer wheel (Angle B)

Nominal

32

° 00′ (32.0°)

SGIA0055E

Item

Standard

Tilt operating range

*

39.4 mm (1.551 in)

Rotating torque

1.4 – 2.1 N·m (0.14 – 0.21 kg-m, 12 – 19 in-lb)

Steering column length

*

477.9 mm (18.81 in)

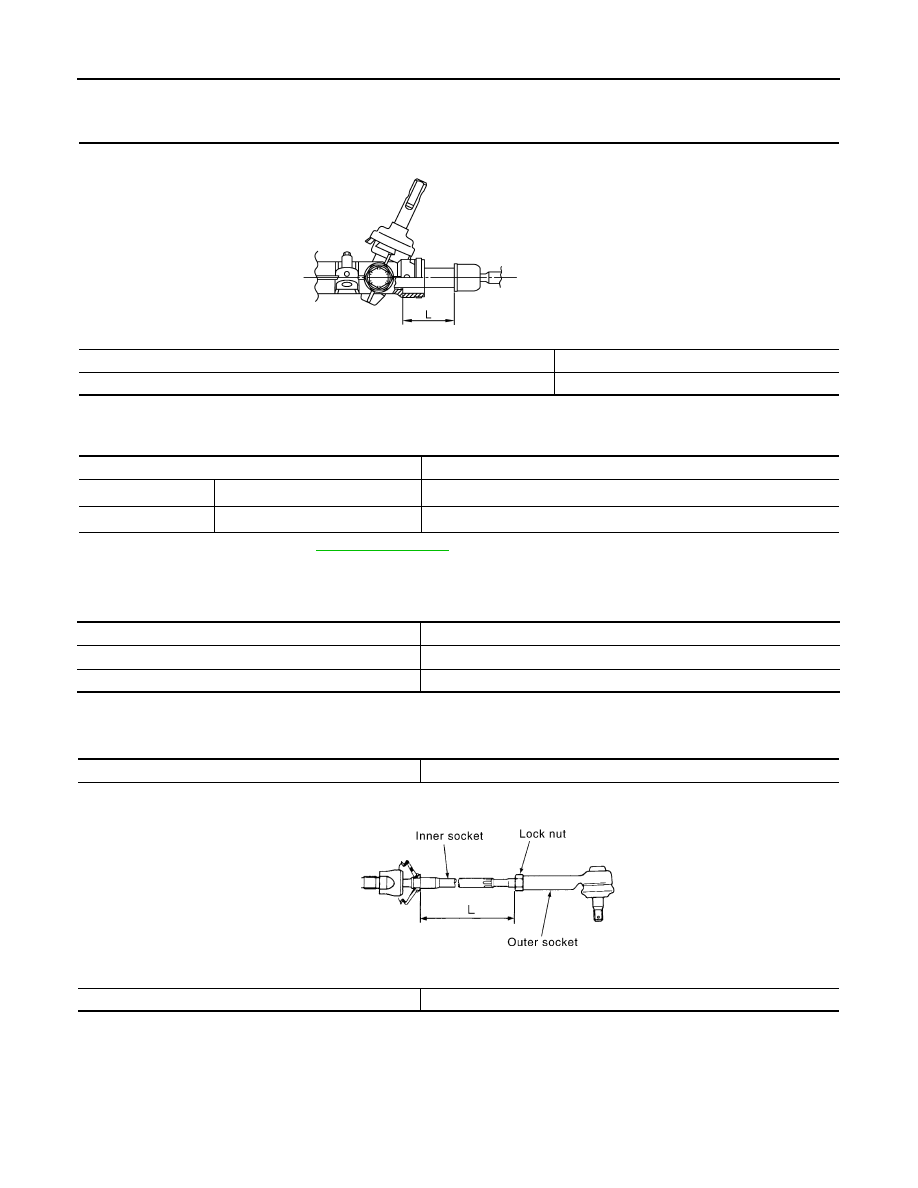

ST-20

< SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

Rack Stroke

INFOID:0000000009385551

Unit: mm (in)

Ball Joint Swing Force

INFOID:0000000009385552

*: For measuring position, refer to

ST-14, "Inspection"

.

Ball Joint Axial End Play

INFOID:0000000009385553

Unit: mm (in)

Inner Socket Length

INFOID:0000000009385554

Unit: mm (in)

Item

Standard

Rack stroke neutral position (L)

64.6 (2.543)

JSGIA0272ZZ

Item

Standard

Outer socket

Spring balance measurement

*

6.0 – 58 N (0.61 – 5.9 kg-f, 1.35 – 13.03 lb-f)

Inner socket

Spring balance measurement

*

3.5 – 34.7 N (0.36 – 3.5 kg-f, 0.79 – 7.8 lb-f)

Item

Standard

Outer socket

0.5 (0.020) or less

Inner socket

0.2 (0.008 in) or less

Item

Standard

Inner socket length (L)

67.4 (2.654)
