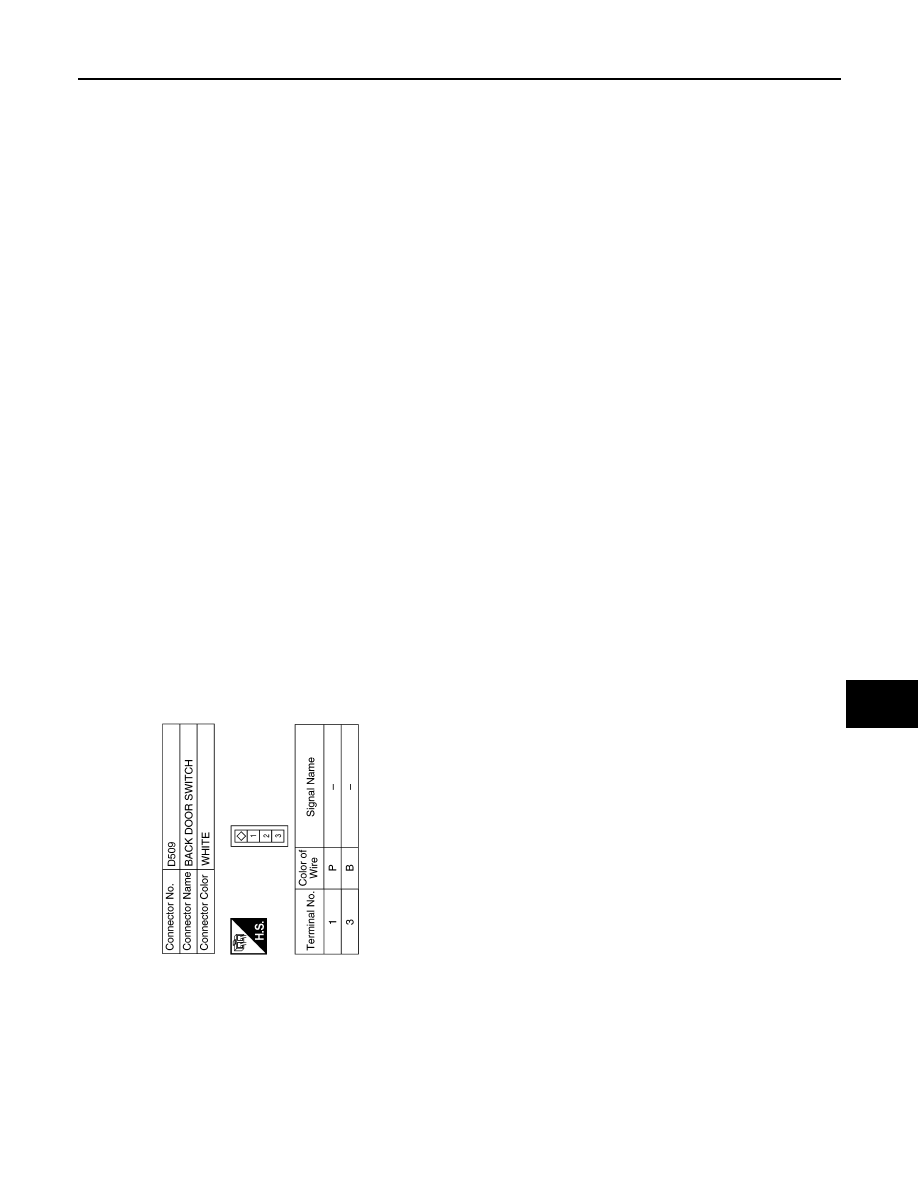

INTELLIGENT KEY SYSTEM/ENGINE START FUNCTION

SEC-39

< WIRING DIAGRAM >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

AAKIA1392GB

SEC-40

< WIRING DIAGRAM >

[WITH INTELLIGENT KEY SYSTEM]

NVIS - WITH INTELLIGENT KEY SYSTEM

NVIS - WITH INTELLIGENT KEY SYSTEM

Wiring Diagram

INFOID:0000000009520908

AAKWA0663GB

NVIS - WITH INTELLIGENT KEY SYSTEM

SEC-41

< WIRING DIAGRAM >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

AAKWA0664GB

SEC-42

< WIRING DIAGRAM >

[WITH INTELLIGENT KEY SYSTEM]

NVIS - WITH INTELLIGENT KEY SYSTEM

AAKIA1357GB
